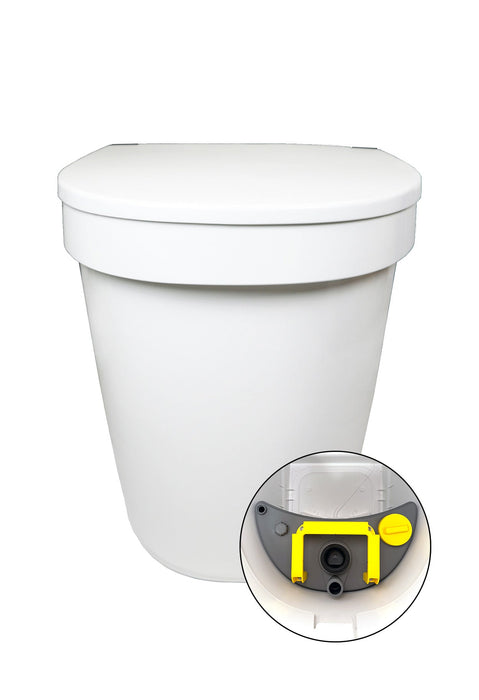

Separett Tiny with Urine Container

Separett Tiny with Urine Container

Self contained toilet for mobile installations!

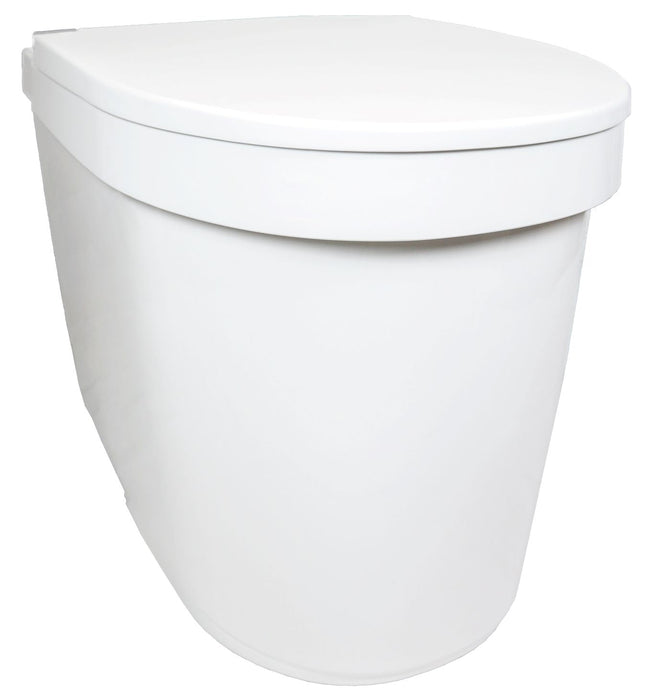

Tiny® is the latest addition to the Separett family of toilets. The smaller design and lessons learned from several decades have led to a modern urine separation toilet that is especially suitable for installations where space is limited. This version of Tiny® has a container for both solids and liquid making it self contained. This gives an opportunity for installation in vans, boats and other mobile solutions where no external handling for any waste is available. The toilet can be operated with 110-230V or with 12V solar cell / battery power. The fan has very low energy consumption (0.04 kWh / 24 h) and is therefore suitable for battery or solar cell operation. A battery is not included.

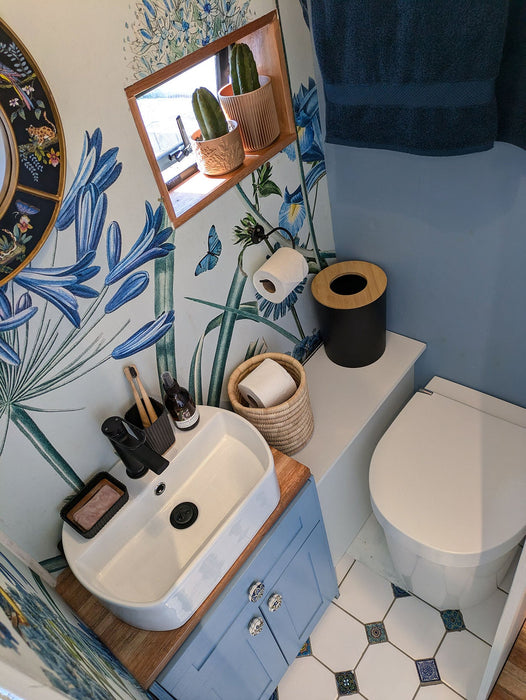

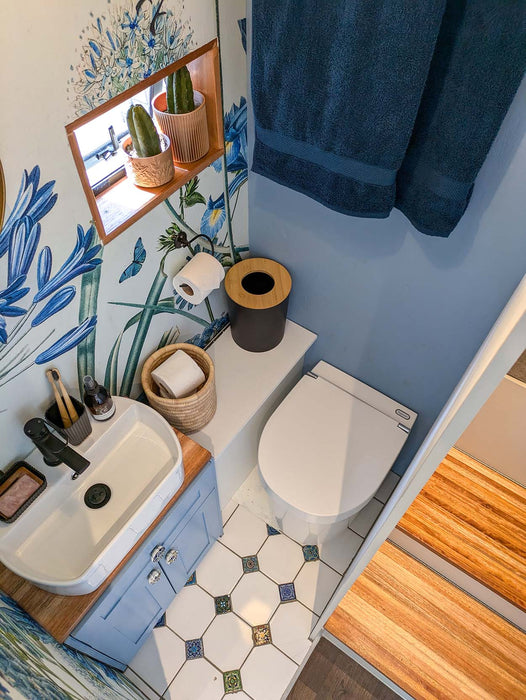

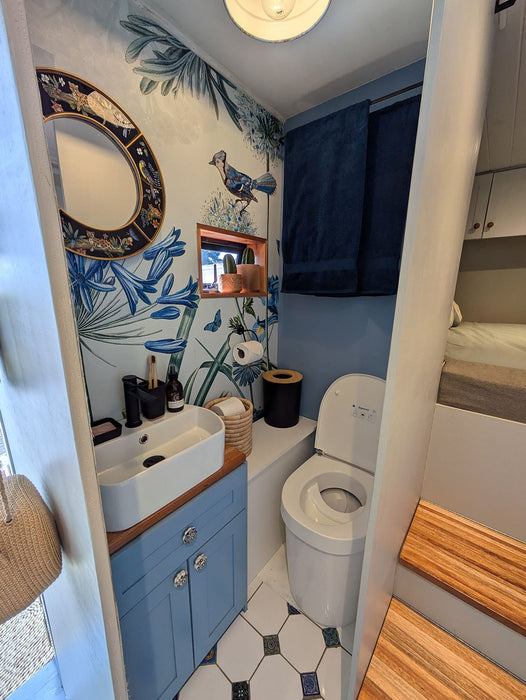

Unlike a traditional composting toilet there is no cranking or additives needed. The ADA compliant 17.5-inch seat height makes Tiny® as comfortable as a household toilet. Separett Tiny® is the best toilet solution for vans, tiny houses, RVs, boats, and off-grid properties.

What’s New!
We’ve upgraded the Tiny® for even better performance and durability. The front is now fixed in up-position for increased stability, and the new redesigned urine nozzle together with the removed movement of the front significantly reduces stress on the gasket - minimizing the risk of gasket damage and spills. All Tiny toilets sold in the U.S. are of the latest version (Tiny version 3)

Easy to empty and to extend the capacity

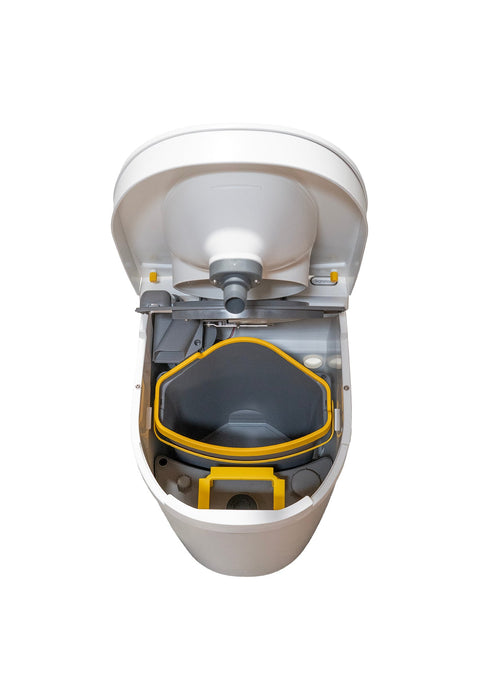

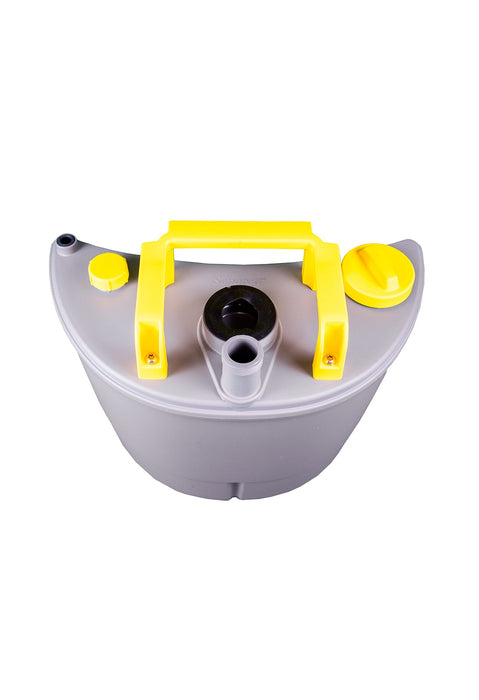

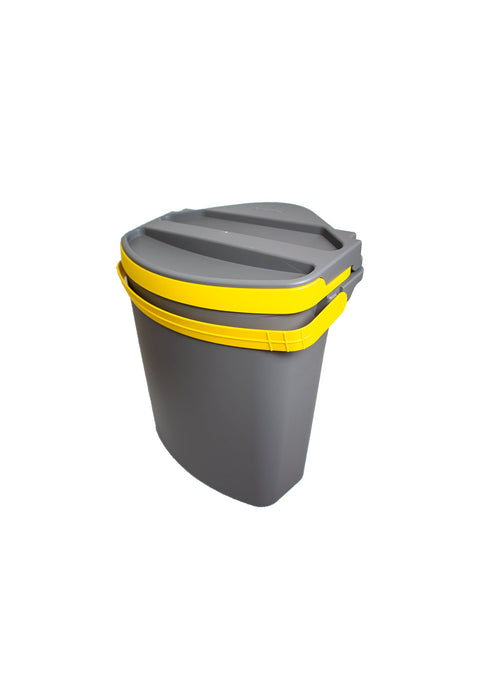

Thanks to urine separation the smell is significantly reduced. What comes out is exhaust air from the 1 1/2" schedule 20 or 40 PVC ventilation pipe. When used by 2 people, the solids container needs emptying once a week. With two users the urine container needs emptying about every other day. Both the container for solids and liquids come with lids or caps which can be used to seal the containers. For boaters or people traveling for days in between waste disposal sites it's recommended to use multiple containers which can be sealed and stored before emptying. Extra containers are available as accessories.

Hygienic and odorless

Separett Tiny® has high operational reliability and is easy to install. The fan ventilates the possibly remaining odor that is left after urine separation. The constantly running fan also contributes to a better indoor climate by keeping the air in the space in motion. The fan is efficient and quiet.

Convenient

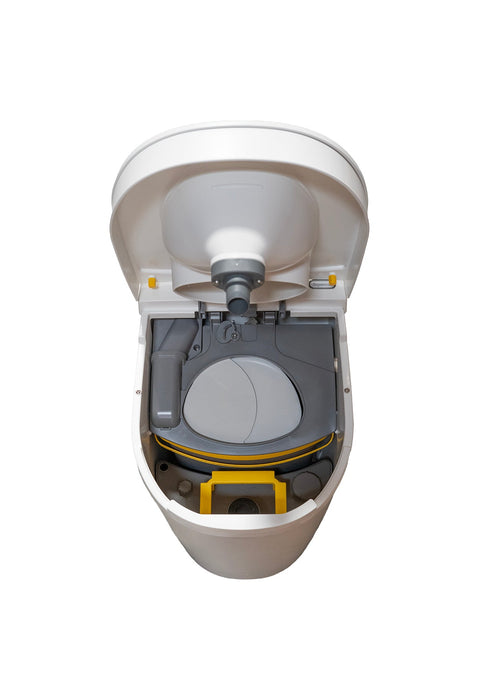

The view screens covers the solid waste container and the flaps open automatically when you sit down to use the toilet. This means that you never see the toilet waste except when it is time to empty.

Installation Instructions

Toilet placement
Separett Tiny has no requirements for room temperature and works in both cold and warm spaces. The only requirements are that you must be able to fit a ventilation pipe.

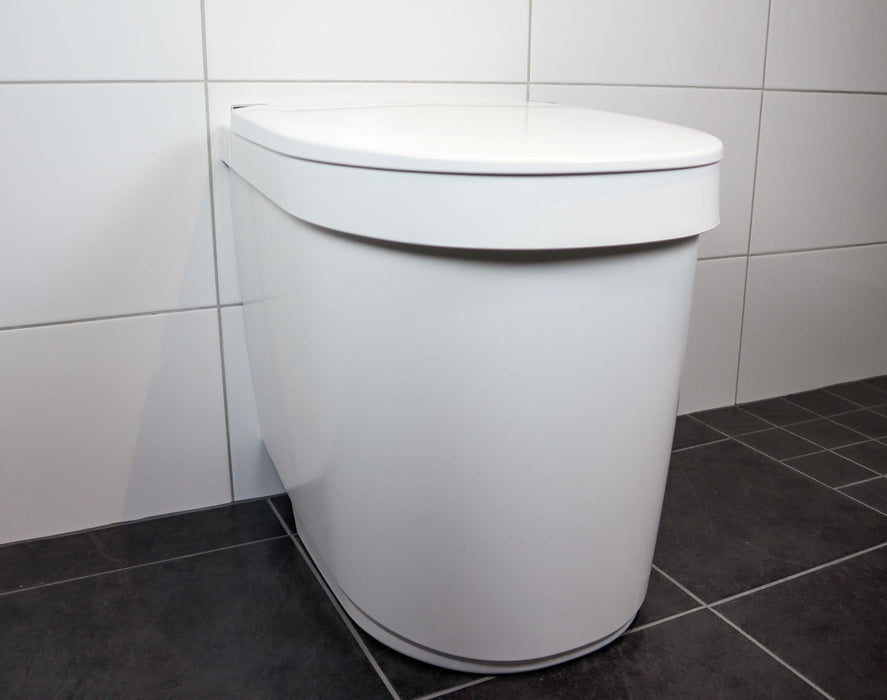

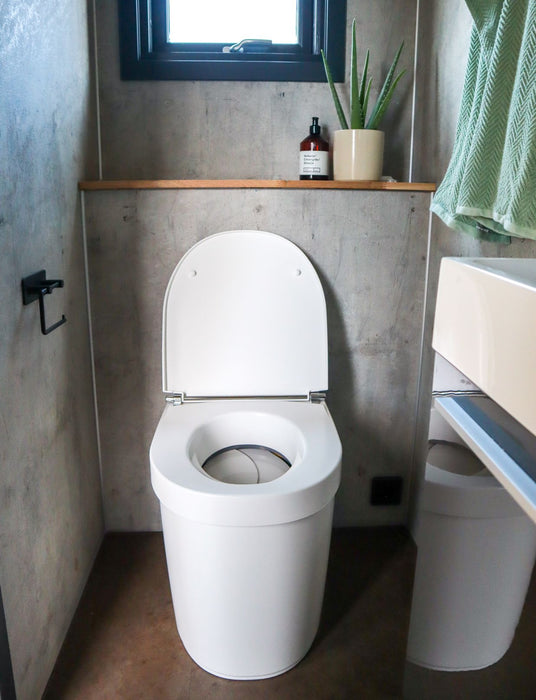

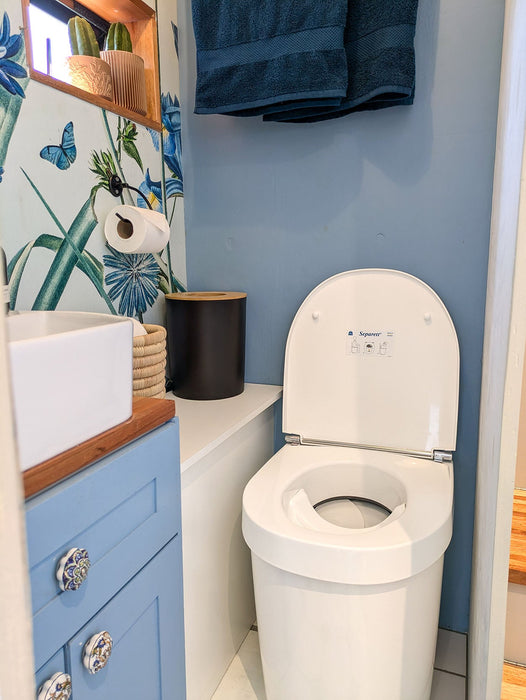

The toilet is made to be placed on the floor against the wall, and for extra stability it should be attached either to the floor, the wall or both.

Drill holes according to installation template

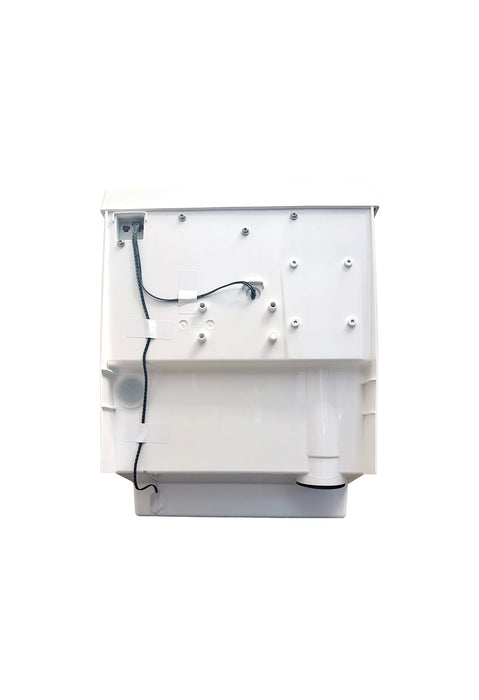

The installation instructions show possible installation options for urine drain and ventilation pipe through the wall, the ceiling or the floor. The installation template shows the places for holes in most common installations. These options enable an installation without visible pipes.

Install ventilation pipe
The toilet is designed for 1.5" schedule 20 or schedule 40 PVC pipes. For optimal function it is recommended that you use Separett’s installation kit that has pipes and connectors in the correct dimensions. Separett Tiny can be installed with up to 16 1/2 feet of ventilation piping and two 90-degree bends. Ventilated air can go through a wall, floor or ceiling, for example, up into an attic and out through a suitable side of the house. If there is already a ventilation pipe present from a previous toilet installation, the toilet may be connected to that duct, provided that it is not smaller than 1.5" (schedule 20 or schedule 40 PVC) and that it meets the piping requirements. Should you need longer piping that exceeds the recommendations above, you may install an extra fan (article number 13008).

The toilet comes with a coupling for connecting the toilet to 1.5 inch schedule 20 or schedule 40 PVC pipes.
