RUiXU 12kW Single/Split-Phase Off-Grid Inverter

SKU: SUNON12
Sold out
Original price $1,948.99
Original price $1,948.99 - Original price $1,948.99
Original price $1,948.99
Current price $1,559.00
$1,559.00 - $1,559.00
Current price $1,559.00
Availability:
Out of stock

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

5-Year Warranty

Off Grid Stores is an authorized retailer of RUiXU products. Because of this, we pass on RUiXU's manufacturer warranty to you.

Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

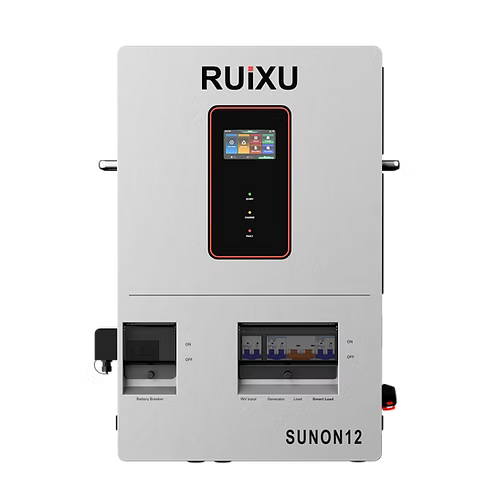

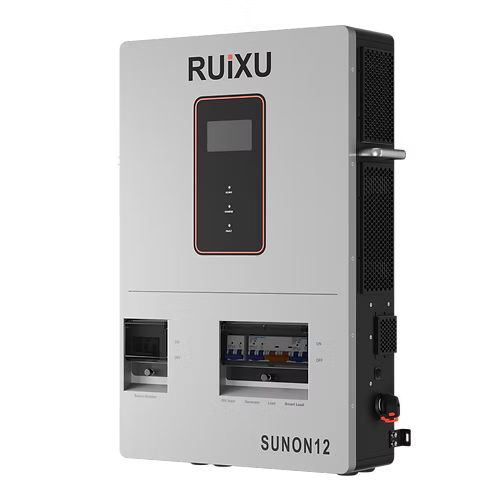

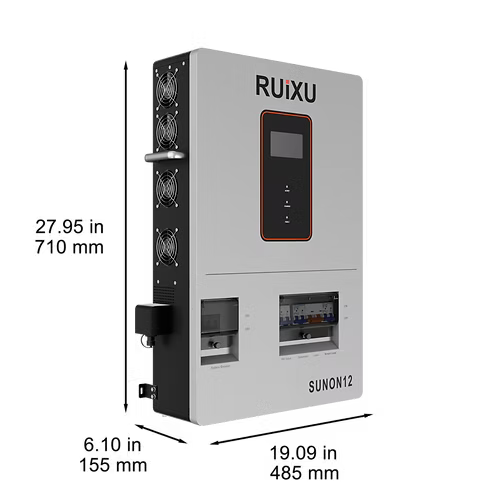

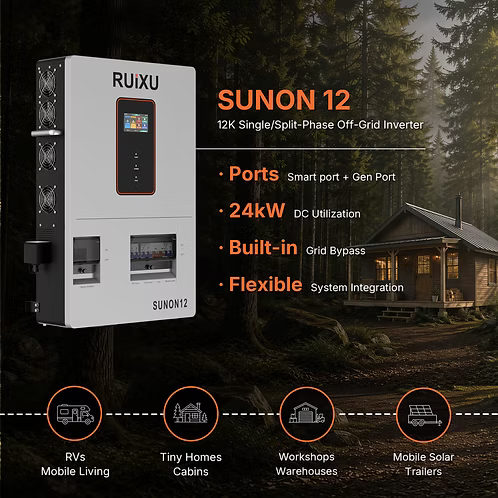

RUiXU 12kW Single/Split-Phase Off-Grid Inverter

RUiXU 12kW Single/Split-Phase Off-Grid Inverter

Standard Included

(1) SUNON12 12kW Inverter

(1) 200CM CAT6 Communication cable connect with battery

(1) Operation manual

(1) Wifi dongle

SUNON12 | RUiXU Single/Split-Phase Off-Grid Inverter | 12kW

Advanced solar energy storage solution compatible with 48V batteries, featuring a charging capacity of up to 250A. The innovative SUB working mode allows for hybrid charging from both the grid and solar sources, while the time-sharing charge and discharge function optimizes energy usage. Supporting parallel connections of up to six units for a total capacity of 72kW, this inverter is ideal for both residential and commercial applications. Efficiently harness and manage solar energy for maximum savings and performance with the SUNON12.

Powerful Hybrid Charging
Supports charging up to 150A, combining solar and grid hybrid charging

Intelligent Time-Sharing
Allows for timed charging and discharging, maximizing energy efficiency.

Stackable Design
Stack up to 6 units for a total output of 72kW

Dual MPPT Technology
Dual MPPT design ensures optimal solar energy utilization, 99% MPPT efficiency.

Smart Load Output
63A capacity,Adaptive control via voltage / SOC, and PV input

Generator Compatibility
Dedicated generator input ,Selectable 120V or 240V operation

Bypass Output
Up to 125A capacity  Seamless switching via EMS


Rapid Shutdown
Quickly de-energizes solar PV system to protect first responders


WiFi & App Integration
Connects via WiFi to an app for easy access and monitoring of information.

Specifications:

RUiXU 12kW Single/Split-Phase Off-Grid Inverter
INVERTER OUTPUT
Rated Output Power 12,000W
Max. Output Power 18,000VA
Rated Output Voltage 120/240 Vac (single-phase/split-phase)
Load capacity of Motors 6 HP
Rated Frequency 50/60Hz
Output Wave Pure sine wave
Bypass Overload Current 125A
Switching Time (bypass and inverter) 10ms (typical value)
Smart load Controlled Current 63A
BATTERY
Battery Type Lithium-ion battery / lead-acid battery /
user-defined battery
Rated Battery Voltage 48V
Voltage Range 40~60Vdc
Max. Solar Charging Current 250A
Max. Grid/Generator Charging Current 160A
Max. Mix Charge Current 250A
SOLAR INPUT
No. of MPPT 2
Max. Input Power 12,000W + 12,000W
Max. Input Current 32/32A
Max. Open Circuit Voltage 500Vdc
MPPT Voltage Range 90~450Vdc
GENERATOR INPUT
Rated Input Voltage 120(L1/N, L2/N) / 240Vac(L1/L2)
Input phase Voltage Range (85Vac~140Vac)±2%
Input Frequency Range 50/60Hz
Overload Current 63A
GRID INPUT
Rated Input Voltage 120(L1/N, L2/N) / 240Vac(L1/L2)
Input phase Voltage Range (85Vac~140Vac)±2%
Input Frequency Range 50/60Hz
EFFICIENCY
MPPT Tracking Efficiency 99.9%
Max. Efficiency 91%
GENERAL DATA
Parallel Capacity 1~6 Units
Dimension 27.95 in × 19.09 in × 6.10 in
Weight 84.88lb
Noise <60dB
Cooling Method Intelligent fan
Protection Degree IP20 Indoor Only
Temperature -10~55°C, >45°C Derate
Communication RS485/CAN/USB/Dry Contact
External Module (Optional) Wi-Fi
Integrated Circuit Breaker INV Input/GEN/Load/Smart load/Battery/PV
Certificate FCC Part15 ClassB/UL1741

Product Documents:

RUiXU 12kW Single/Split-Phase Off-Grid Inverter User Manual

download
Download Now >

RUiXU 12kW Single/Split-Phase Off-Grid Inverter Specification Sheet

download
Download Now >
