Rich Solar NOVA 12K PV Hybrid Inverter 48V 120/240V Split Phase

Rich Solar NOVA 12K PV Hybrid Inverter 48V 120/240V Split Phase

Features:

  • Built-in Arc Fault detection (AFD) and Rapid Shutdown (RSD)
  • P65 waterproof and dustproof for various working conditions
  • Support multiple input & output-Split phase 208/240Vac or single phase 230Vac.
  • Built-in AC coupled function
  • Built-in Wi-Fi for mobile monitoring (APP is available).
  • Accepts second input power source, generator input compatible.
  • Optional external CT sensor to guarantee 100% self-consumption.
  • Built-in communication port for BMS (RS485).
  • User-adjustable charging current and voltage
  • Parallel operation up to 6 units.



Specifications:

Rich Solar NOVA 12K PV Hybrid Inverter
SKU RS-H12K
Maximum PV Input Power 12000W
PARALLEL CAPABILITY Yes, 6 units
INPUT
Maximum PV input Power 12000W
Maximum DC Voltage 600VDC
Start-up Voltage/initial Feeding Voltage 125VDC/160VDC
MPP Voltage Range 120VDC-550VDC
Number of MPPT Trackers/Maximum Input Current 2/18A
OUTPUT
Rated Output Power:   10000VA/10000W
Nominal Output Voltage 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
Output Voltage Range 105.5-132VAC per phase
Nominal Output Current 41.5A per phase
BATTERY
Battery DC Voltage Range 40-62VDC
Maximum Solar Charging Current 200A
Maximum AC Charging Current 200A
Maximum Charging Current 200A
OPERATING ENVIRONMENT
Operating Temperature Range -25°C to 60°C(>45°C derating)
Protection Degree IP 65

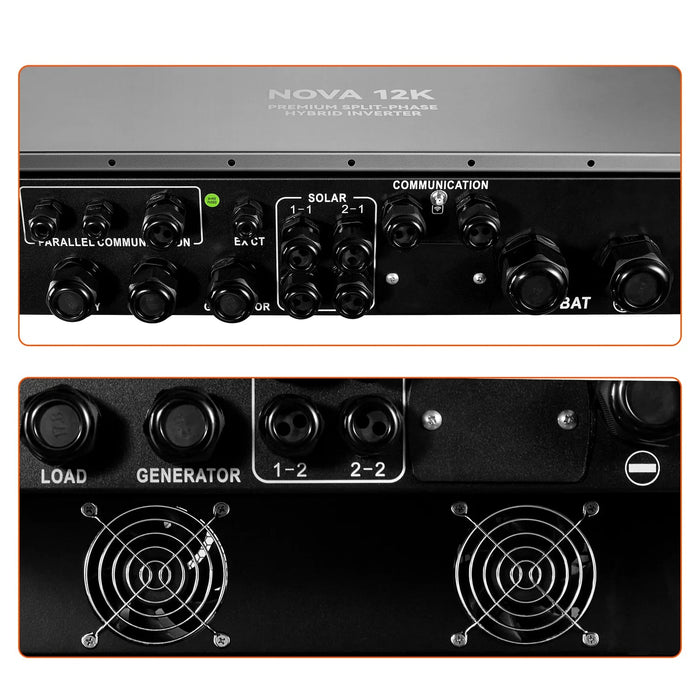

Communication Port RS232,RS485,WI-FI, USB
PHYSICAL

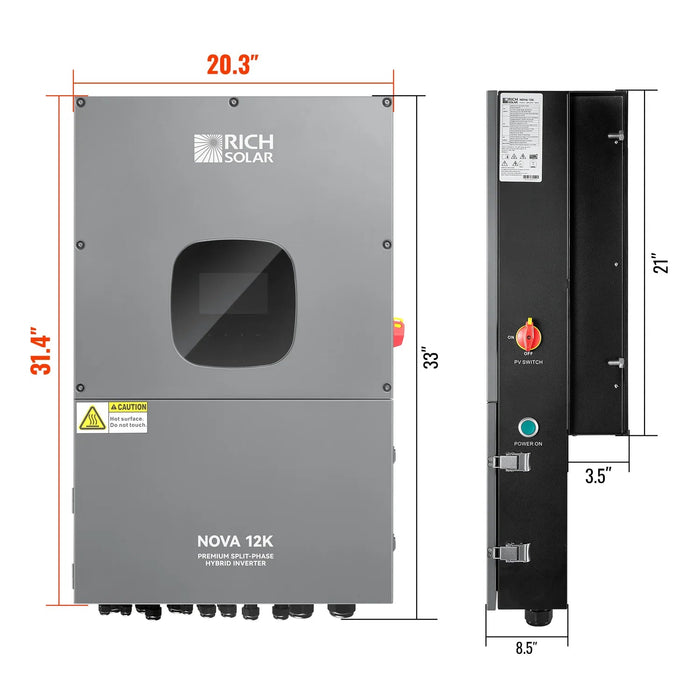

Dimension. DxWxH(mm) 215.5x575x715
Net Weight 45 (kg)/99.2(lb)

User Manuals & Files:

Rich Solar NOVA 12K PV Hybrid Inverter 48V 120/240V Split Phase User Manual

download
Download Now >

Rich Solar NOVA 12K PV Hybrid Inverter 48V 120/240V Split Phase Specification Sheet

download
Download Now >
