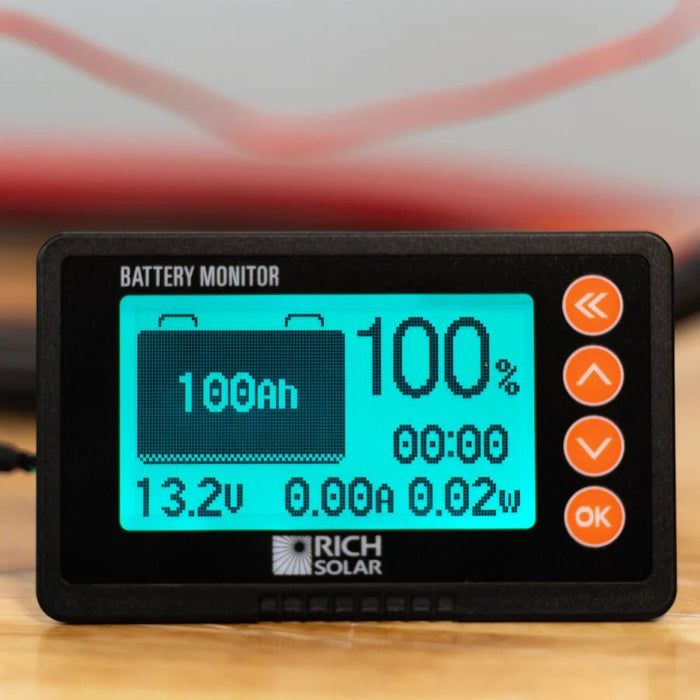

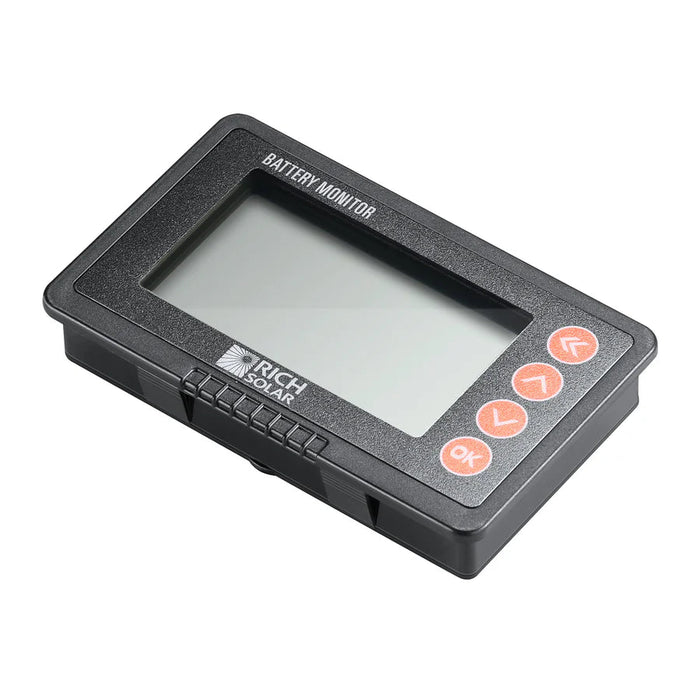

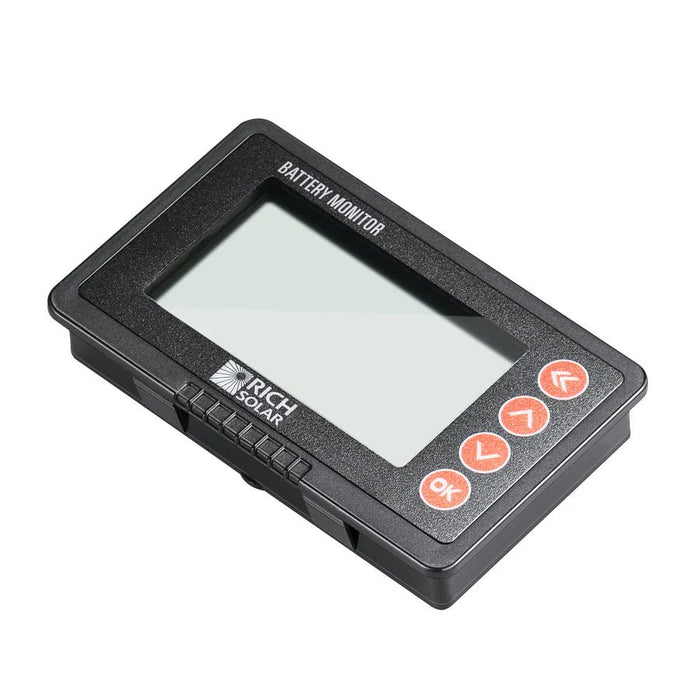

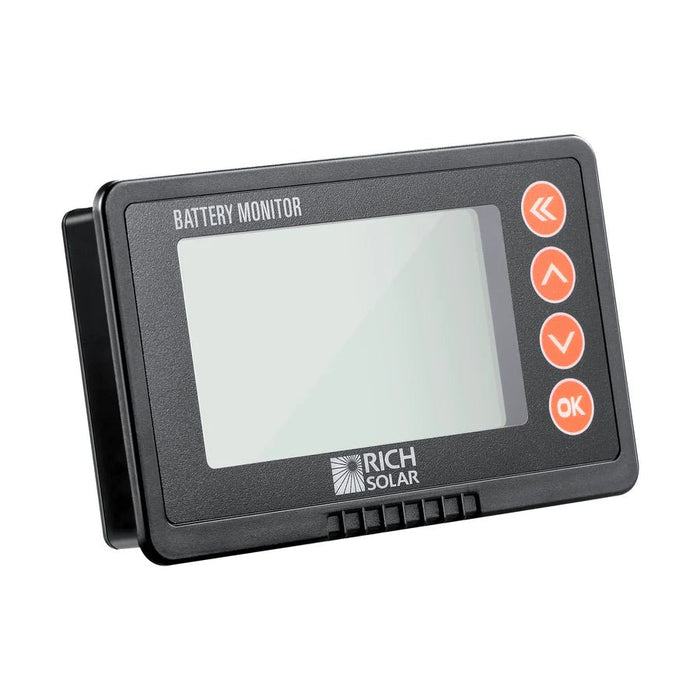

RICH SOLAR 500 Amp Battery Monitor with Shunt 8~120V 500A

SKU: RS-BM500
Save $16.00 Save $16.00
Original price $119.99
Original price $23.99 - Original price $119.99
Original price $119.99
Current price $103.99
$20.79 - $103.99
Current price $103.99
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Bundle Options: 500A Battery Monitor w/ Shunt

Free Shipping

Every Off Grid Stores Product Ships For Free

Limited Sales Tax Collection

In compliance with state regulations, we must charge sales tax in: AZ, CA, CO, FL, GA, IL, MI, NC, NV, OH, PA, TN, TX, VA, WA, and WI.

If your state isnโ€™t listed โ€” no tax!

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and weโ€™ll do our best to beat it. We work hard to offer you the best value online.

1-Year Warranty

Off Grid Stores is an authorized retailer of Rich Solar products. Because of this, we pass on Rich Solar's manufacturer warranty to you.

Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitorโ€™s site, let us know โ€” and weโ€™ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about ourย Shipping & Handling Policyย here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about ourย Returns & Refunds Policyย you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: Weโ€™ve served over 15,000 customers and counting โ€” your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell โ€” we actually use them ourselves.
  • U.S.-Based Support: When you reach out, youโ€™ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

RICH SOLAR 500 Amp Battery Monitor with Shunt 8~120V 500A

RICH SOLAR 500 Amp Battery Monitor with Shunt 8~120V 500A

Installation and Wiring-Overview

The RS-BM500 shunt should be mounted as close to the battery as possible, and the remote display is intended to be mounted on a wall.

Recommended Tools

  • Wrench
  • Drill
  • Jig saw
  • 2 ring terminals of appropriate size for battery cable
  • Crimp tool for ring terminals

Wiring Diagram

The following wiring diagram will be referenced in the next section.

Installation

  1. Before doing anything, disconnect all wires from the negative side of the battery.
  2. Cut the negative cable for the battery and crimp on new ring terminals. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
  3. Install the shunt as shown in the wiring diagram above. Note: The negative terminal of the battery must connect directly to the โ€œB-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements.
  4. Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery.
    Note: Do not stack smaller terminals under large ones.
  5. Connect the shunt to the remote display using the included shielded cable.

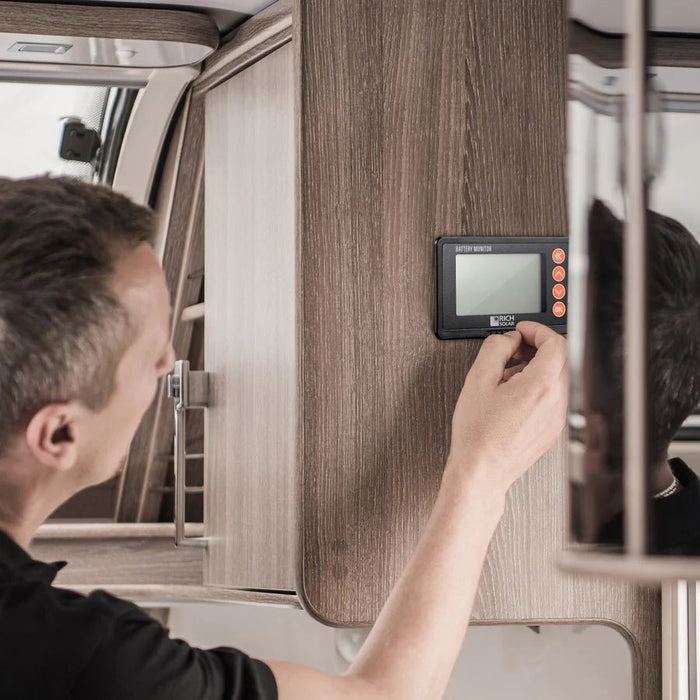

Mounting the Remote Display

  1. Plan the location of your remote display and keep in mind there is a cable that needs to route all the way to the shunt.

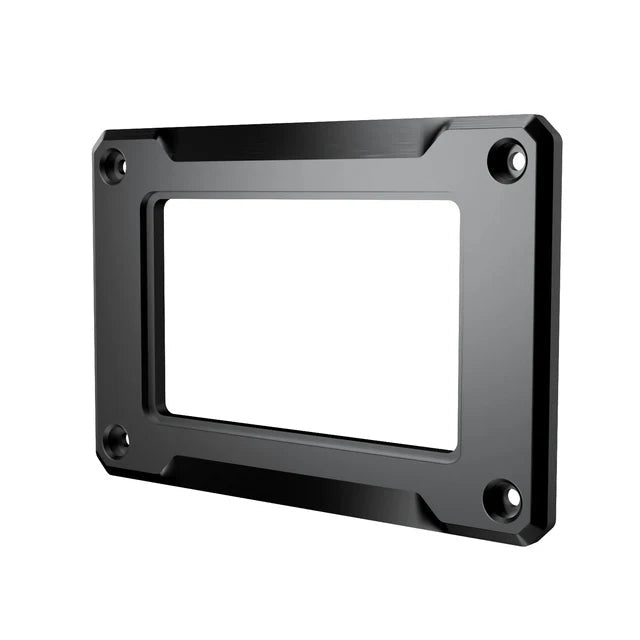

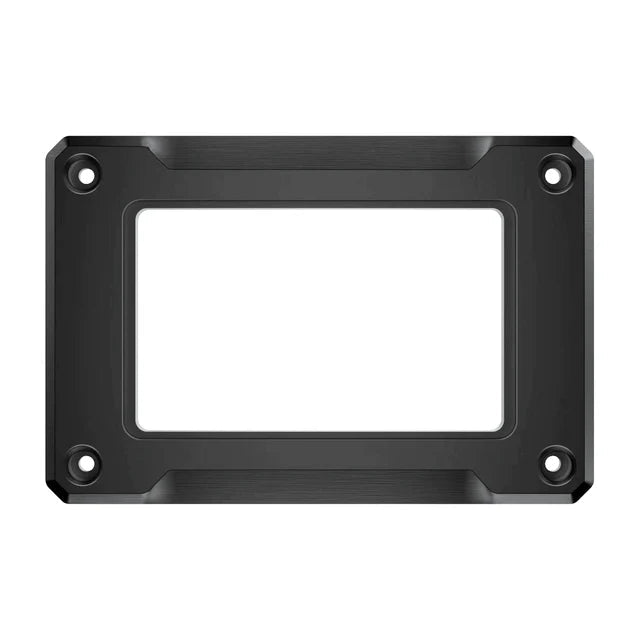

  2. Drill a hole in the center of the planned location and use the jigsaw to cut a hole according to the following picture.
  3. Connect the shielded cable to the shunt and route it such that you can bring it through the hole.
  4. Connect the shielded cable to the remote and snap the remote into place.

Basic Setup

  1. Before doing anything, disconnect all wires from the negative side of the battery.
    Cut the negative cable for the battery and crimp on new ring terminals.
  2. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
  3. Install the shunt as shown in the wiring diagram above. Note: The negative terminal of the battery must connect directly to the โ€œB-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements.
  4. Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery. Note: Do not stack smaller terminals under large ones.
  5. Connect the shunt to the remote display using the included shielded cable.

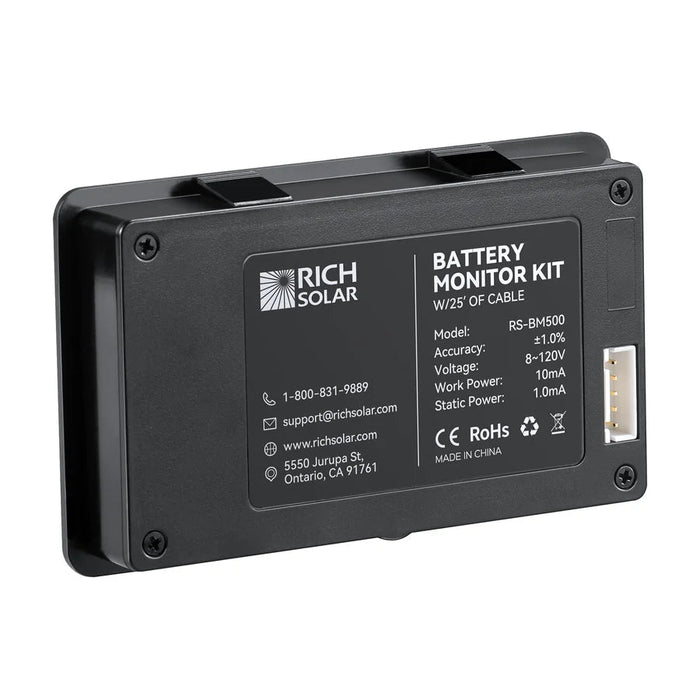

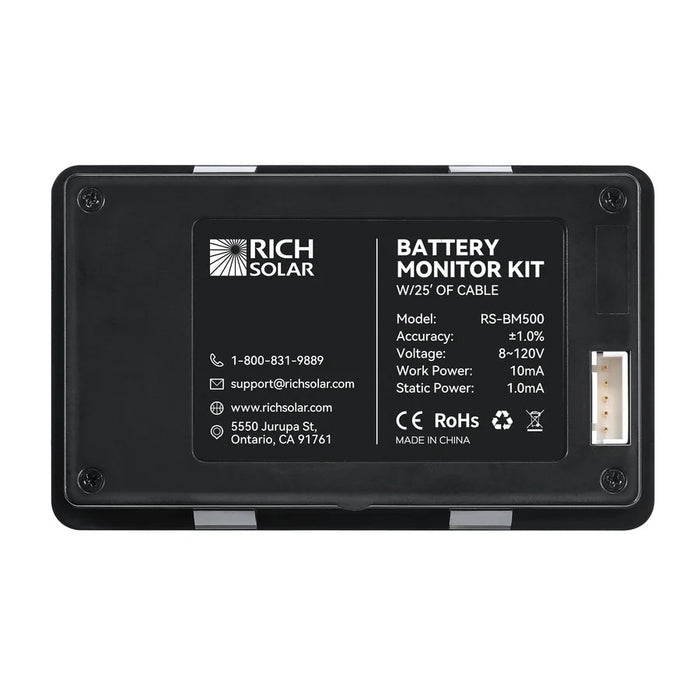

Specifications:

RICH SOLAR 500A Battery Monitor, 8~120V Automotive Monitor for RV Battery
SKU RS-BM500
Battery Voltage Range 8-120V
Working Dissipation 10mA
Standby Dissipation 1mA
Capacity Accuracy ยฑ1.0%
Voltage Accuracy ยฑ1.0%
Current Accuracy ยฑ1.0%
Backlight On Current 80mA
Capacity Setting Value 0-500A
Current Range 0.1-9999Ah

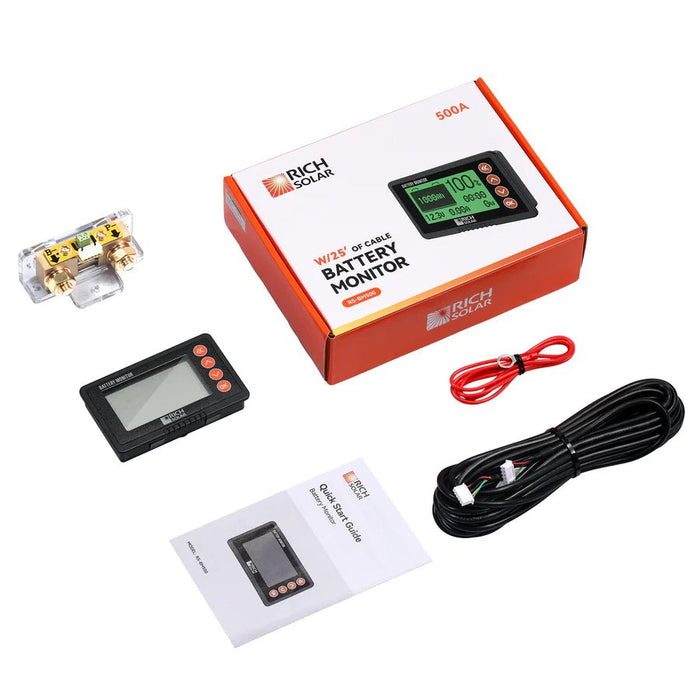

PACKAGE INCLUDES

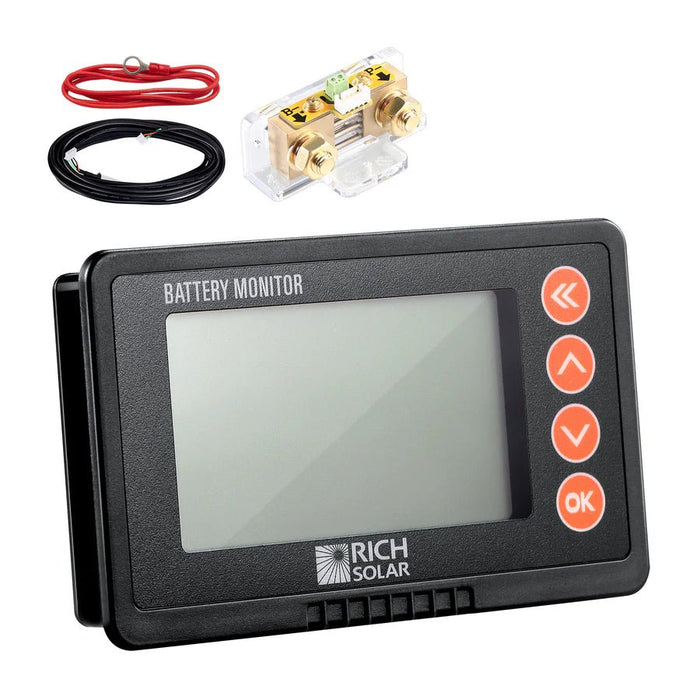

RICH SOLAR 500A Battery Monitor, 8~120V Automotive Monitor for RV Battery

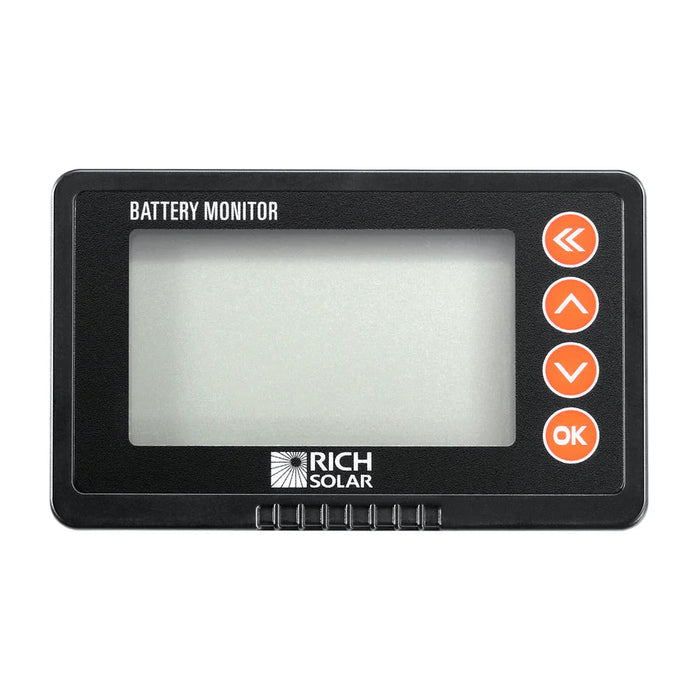

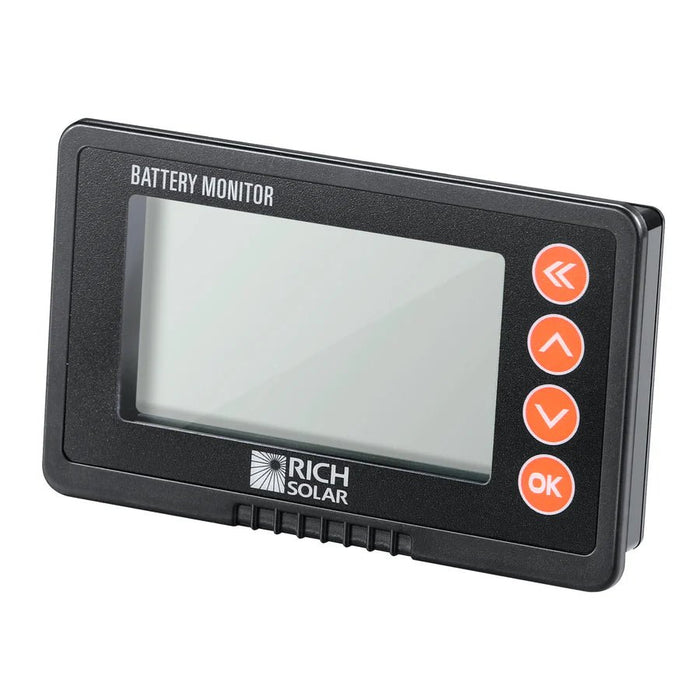

Remote Display

x 1

500A Shunt

x 1

25' (8m) Shielded Cable

x 1

3' (1m) B+ Wire

x 1

Product Documents:

RICH SOLAR 8~120V 500A Battery Monitor, Automotive Monitor for RV Battery User Manual

download
Download Now >

RICH SOLAR 8~120V 500A Battery Monitor, Automotive Monitor for RV Battery Specification Sheet

download
Download Now >
