Renogy Monitoring Screen for Smart Lithium Battery Series

Renogy Monitoring Screen for Smart Lithium Battery Series

SKU RMS-LFPS-US
Save $7.00 Save $7.00
Original price $56.99
Original price $56.99 - Original price $56.99
Original price $56.99
Current price $49.99
$49.99 - $49.99
Current price $49.99
Availability:
in stock, ready to be shipped

Free shipping with delivery betweenandOrder within

Free Shipping

Every Off Grid Stores Product Ships For Free

No Sales Tax Most States

We Only Charge Sales Tax In AZ, CA, CO, FL, GA, NC, NV, OH, PA, TN, and VA

Authorized Dealer

We are authorized dealers of every brand on our website

1-Year Workmanship And Materials Warranty

Off Grid Stores is an authorized retailer of Renogy products. Because of this, we pass on Renogy's manufacturer warranty to you.

Product Highlights
  • Accurate Monitoring- Obtains battery bank operation information directly from the battery management system (BMS) for precise tracking and prediction. Takes all the guesswork out of the battery bank.
  • Plug and Play- Simply connect the monitoring screen to the battery bank using the included RJ45 communication cable for real-time monitoring, without a shunt needed.

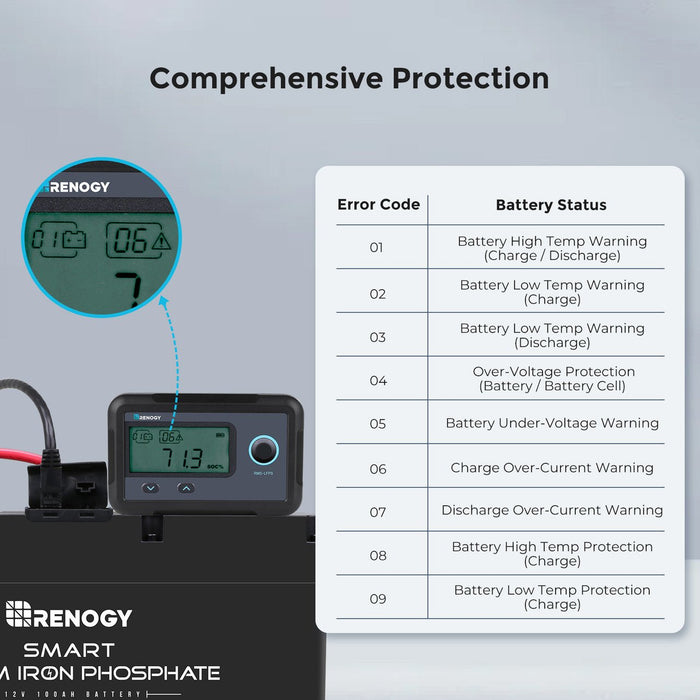

  • Comprehensive Protection- Displays straightforward 9 warning codes for quick recognition of potentially abnormal conditions and improper operation, helping extend the lifetime of the battery bank.

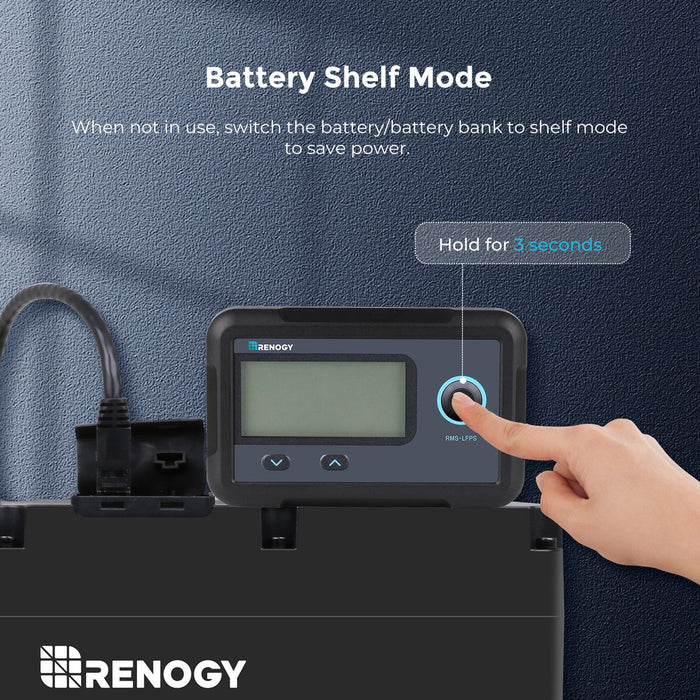

  • Battery Shelf Mode- Supports switching the battery/battery bank to shelf mode to preserve power when it is not in use.
  • Easy Operation- Shows detailed battery bank information at the push of a page up/page down button without the need for system configuration or calibration.
Why Buy From Us?

- Help Support Small Family Owned Business

- Our Team Has Actual Knowledge Of Our Products

- You Will Talk To A Real Person In The USA When You Call

- We Guarantee To Match The Lowest Prices On The Internet

- Our Items Are Located In The USA

- We Actually Live Off-Grid Unlike Some Of Our Competitors

Best Price Guarantee

Shop with confidence, as we guarantee the best prices available.

If you come across an item at a lower price on a competitor's website, we'll gladly match it.

Simply contact our customer service chat before purchasing to redeem this exclusive offer.

Learn more by visiting our Best Price Guarantee page here.

Shipping & Handling Policy

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Renogy Monitoring Screen for Smart Lithium Battery Series

Renogy Monitoring Screen for Smart Lithium Battery Series

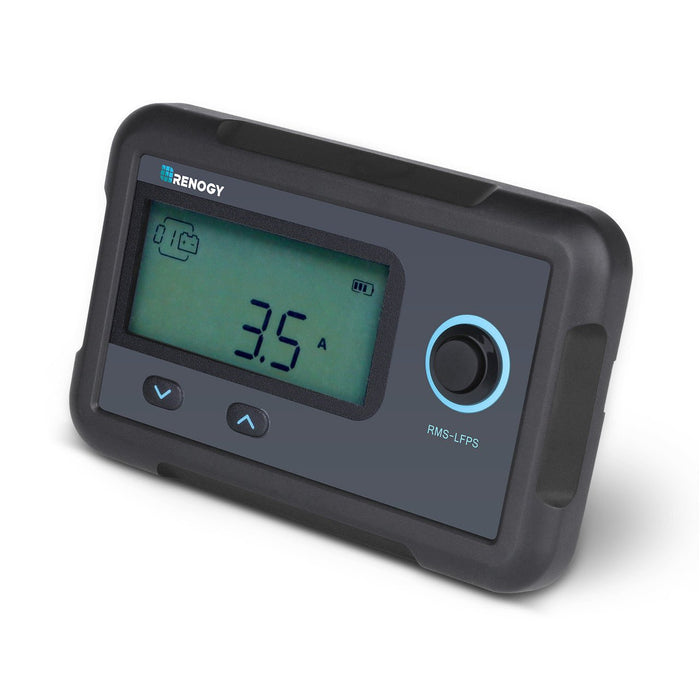

This Monitoring Screen, a high-precision meter, is the perfect companion to Renogy Smart Lithium Iron Phosphate Battery Series. Instead of measuring the current flowing in/out of the battery bank using a shunt, it can communicate directly with the battery management system (BMS) and obtain more accurate state of charge (SoC) readings compared to traditional battery monitors. Other readings including voltage, current, capacity, remaining time, warning code, and number of paralleled batteries are also available to help users avoid abnormal conditions and extend the lifetime of the battery bank.

Specifications:

Renogy Monitoring Screen for Smart Lithium Battery Series
SKU RMS-LFPS-US
Electrical Specifications
Supply Voltage 12VDC
Supply Current 30mA
Power Consumption <1W
Operating Temperature Range -4°F~113°F
Voltage Accuracy ±0.1V
Current Accuracy ±0.1A
Mechanical Specifications
Communication Port RJ45 (RS485 Protocol)
Display Backlit LCD
User Interface 2 Front Panel Menu Buttons,
1 Power Button
Mounting System Wall Mount
Dimension 2.76 in x 4.33 in x 1.25 in
Weight 0.14 lbs
Accessories
RJ45 Communication Cable 5m/16.4ft
Certification CE ROHS FCC EMC
Self-tapping Screws M2.9 x13

Frequently Asked Questions

Is this monitor compatible with non-Renogy brand lithium iron phosphate batteries?

No, it is only for the Renogy Smart Lithium Battery Series which includes our 48V 50Ah Smart Lithium Battery, 12V 100Ah Smart Lithium Battery w/ Self-Heating Function, and 12V 100Ah Smart Lithium Battery. If you need a monitor screen for connecting non-Renogy brand batteries, we recommend using our 500A Battery Monitor With Shunt.

Will the display always be on? Can I turn it off?

The display will automatically turn off when no operation is performed within 15 - 25 seconds.

How do I know that the lithium battery is 100% fully charged?

The battery level shows the real-time charge level of the battery relative to its capacity using four battery segments. If the battery is being charged, the battery segments will illuminate one by one repeatedly until the battery is fully charged. If the screen is used with a parallel battery bank, the battery level will be the average charge level of the batteries in the battery bank.

User Manuals & Files:

Renogy Monitoring Screen for Smart Lithium Battery Series User Manual

download
Download Now >

Renogy Monitoring Screen for Smart Lithium Battery Series Specification Sheet

download
Download Now >
