Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT
by Renogy

Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT

Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT

SKU RBC50D1S-US
Save $70.00 Save $70.00
$339.99
$339.99 - $339.99
$339.99
$269.99
$269.99 - $269.99
$269.99
Availability:
in stock, ready to be shipped

Free shipping with delivery betweenandOrder within

Free Shipping

Every Off Grid Stores Product Ships For Free

No Sales Tax Many States

We Charge Sales Tax Only In AZ, CA, CO, FL, GA, MI, NC, NV, OH, PA, TN, TX, VA, and WA

Authorized Dealer

We are authorized dealers of every brand on our website

2-Year Workmanship And Materials Warranty

Off Grid Stores is an authorized retailer of Renogy products. Because of this, we pass on Renogy's manufacturer warranty to you.

Product Highlights

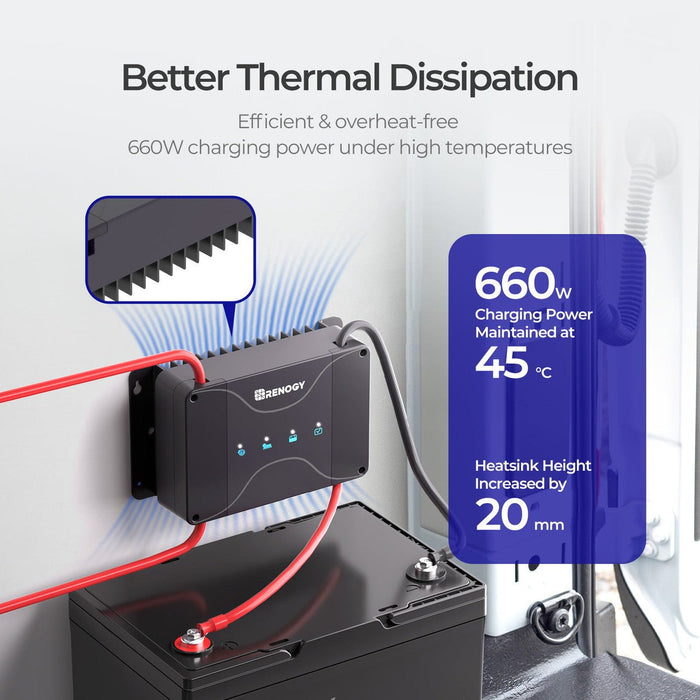

  • Enhanced heat dissipation and safety.
  • Max solar panel input voltage upgraded to 50V.
  • Versatile connections for DIY solar panel setups.
  • Optimized charging logic for efficiency boost.

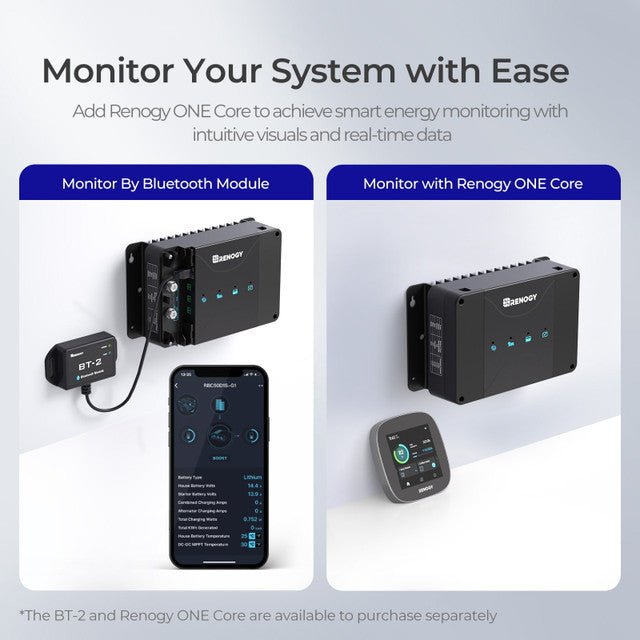

  • Smart charging and monitoring with DC Home app.
Why Buy From Us?

- Help Support Small Family Owned Business

- Our Team Has Actual Knowledge Of Our Products

- You Will Talk To A Real Person In The USA When You Call

- We Guarantee To Match The Lowest Prices On The Internet

- Our Items Are Located In The USA

- We Actually Live Off-Grid Unlike Some Of Our Competitors

Best Price Guarantee

Shop with confidence, as we guarantee the best prices available.

If you come across an item at a lower price on a competitor's website, we'll gladly match it.

Simply contact our customer service chat before purchasing to redeem this exclusive offer.

Learn more by visiting our Best Price Guarantee page here.

Shipping & Handling Policy

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT

Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT

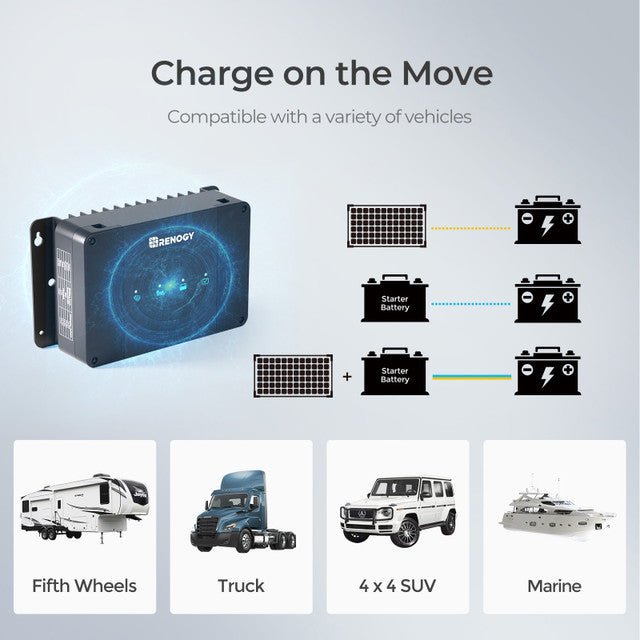

12V 50A DC-DC Dual Battery Charger

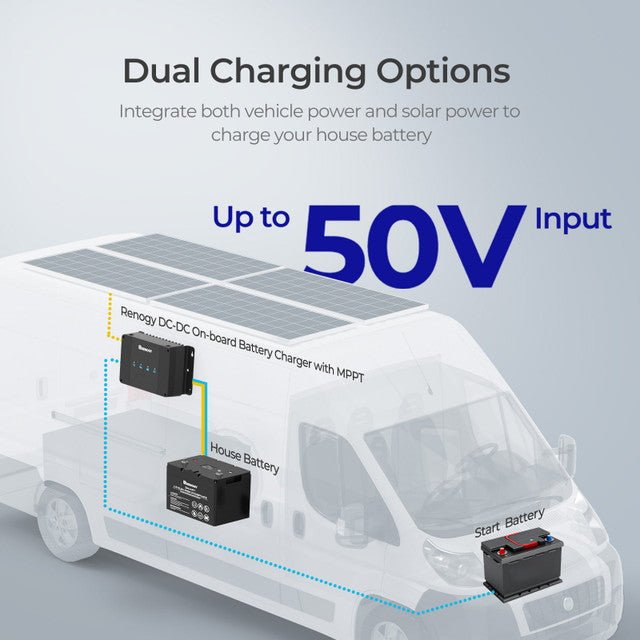

Renogy's upgraded DC to DC Dual Input Battery Charger now supports 50V solar input, delivering faster and more efficient charging for your house battery.

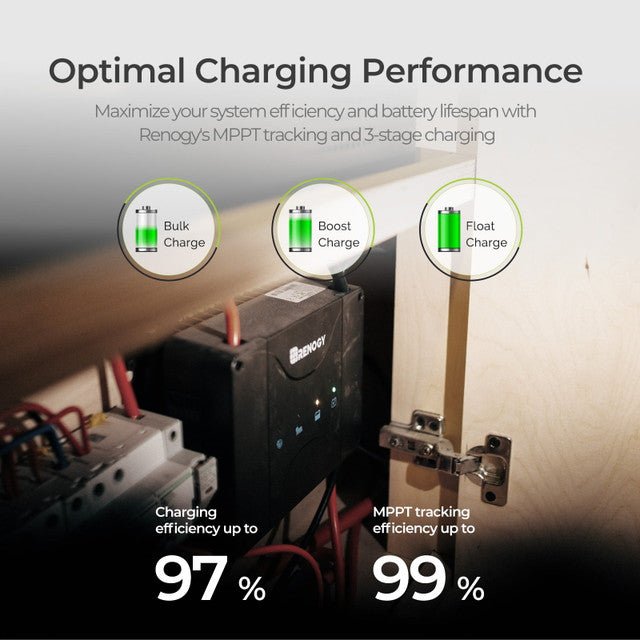

Intelligent Charging Mode Switching

Charge with advanced logic and 'Low Solar Cutoff Mode' for optimal performance in variable weather conditions.

Versatile DIY Options

Enjoy enhanced customization with the ability to connect solar modules in series up to 50V solar input voltage, expanding your DIY possibilities.

Adapt to Extreme Temperatures

Consistent high efficiency in extreme temperatures with precise battery temperature compensation.

Comprehensive System Protections

This battery charger features multiple intelligent protections for batteries, solar panels, and the alternator, safeguarding your system and ensuring optimal charging.

Soft Start Circuit Design for Enhanced Battery Stability

The soft start circuit gradually increases the charger's input voltage, preventing sudden overvoltage and over-discharge.

Protect Your Solar Panels at Night

At night, the battery's voltage can exceed that of the solar panels, potentially causing reverse charging from the battery to the panels and leading to damage. Reverse current protection eliminates this risk, ensuring system safety.

NOTES

1. Do not reverse the polarity since the reverse polarity of the battery connections can cause injury and damage to the device.

2. When connecting the charger and the battery, make sure the battery poles are clean when connecting the terminals, select a sufficient cross-section for the connection cable, tighten the nuts and bolts with proper torque as loose connections may cause overheating.

3. Be careful not to over-torque the terminals on the DCDC as over-torquing may cause irreparable damage (Do not exceed 16 N-m / 3.3 ft-lb).

4. Use the following cable colors:

Red: positive connection

Black: negative connection

5. If the battery charger is connected to the starting battery and solar panels at the same time, the maximum input current will be 25A for each; if the battery charger only connects one of the two DC inputs, the maximum input current will be 50A.

Specifications:

DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT
SKU RBC50D1S-US
ELECTRICAL PARAMETERS
System Voltage 12VDC
Battery voltage Range 9-16VDC
Maximum Charging Current 50A
Battery Types AGM/SLD , GEL ,FLD ,LI,USER
Charging Efficiency 94%
Max. Solar Input Voltage 50V
Max. Solar Input Power 660W @ 50A
Alternator Input Voltage Traditional Alternator: 13.2-16VDC ;
Smart Alternator (Euro 6): 12-16VDC
Max. Alternator Input Power 660W @ 50A
Self-consumption 60mA
Input Fuse Rating 75A-100A
Output Fuse Rating 75A-100A
Temperature Compensation -3mV / ℃ / 2V (Non-Lithium) ;
0mV / ℃ / 2V (Lithium)
Idle Power Consumption ＜30mA
GENERAL DATA
Terminal Size M8 x 1.25 - 10mm
Terminal Range 8AWG-4AWG
Terminal Size Ground Type Negative
Grounding Common Ground
Communication Protocol RS485
Operating Temperature Range -31℉ to 149℉
Storage Temperature Range -40℉ to 176℉
Operating / Storage Humidity 0%-95%, No Condensation
Dimensions 9.61 in x 5.75 in x 3.78 in
Weight 4.10 lbs
CERTIFICATIONS
Certifications CE;ROHS;FCC Part 15 class B;
ETL listed to UL 1741 & CSA C22.2
WARRANTY
Battery Chargers DCCS Dual Input
Charge Controllers DCCS Dual Input

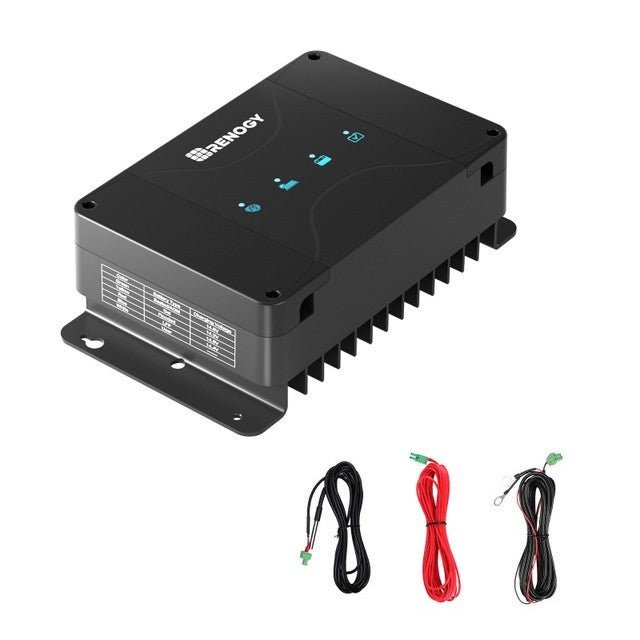

PACKAGE INCLUDES

Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT

Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT

x 1

Battery Temperature Sensor

x 1

Battery Voltage Sensor

x 1

IGN Signal Wire

x 1

Terminal Rings

x 4

60A ANL Fuse

x 1

Solar Adapter Cable

x 2

Frequently Asked Questions

What type of alternator is this on-board battery charger compatible with?

This battery charger is compatible with both traditional and smart alternators. However, since standard/traditional alternator has a fixed voltage when charging, while smart alternator has a controlled charging output based on operating conditions, it is required to connect the charger to the smart alternator through the Vehicle Ignition Port by the IGN Signal Wire comes with the package.

What will happen if the service battery is fully charged?

This Renogy's DC to DC MPPT on-board Battery Charger has a built-in Voltage Sensitive Relay (VSR), thanks to which the charger will Trickle Charge the service battery and maintain its fully charged status, and will also Trickle Charge the starting battery via solar panels. The VSR also ensures reliable isolation between the starting battery and service battery, avoiding charging interference.

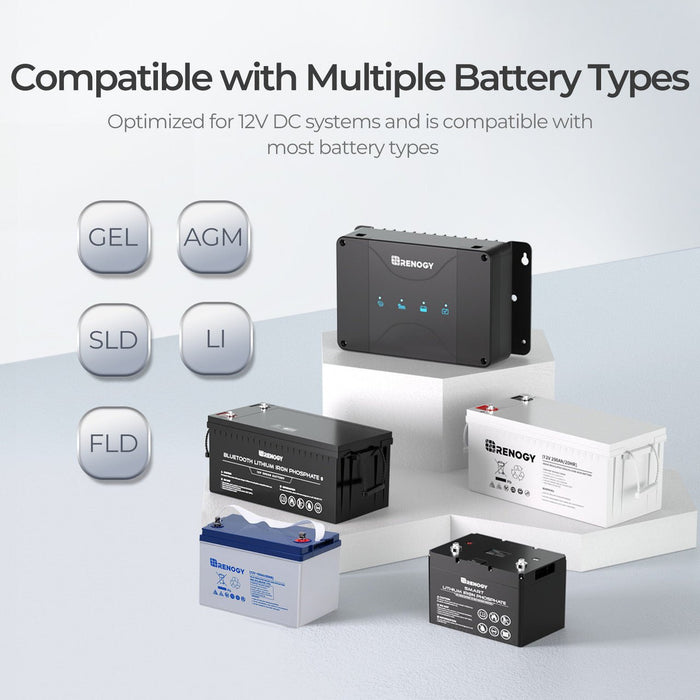

What types of battery does the charger support?

This controller supports Gel, AGM, Flooded, and Lithium battery, but please make sure to set the correct battery type once it is installed. For battery settings please refer to the Manual Book on page 12&15.

How do I set the battery since there is no display screen?

To change the battery type you will need to press the push button that is located on the PV+ and ALT+ side of the DCDC, then continue to press the button and the LED will display different colors with each representing a single type of battery. Please refer to the manual on page 15 for Battery Type LED.

User Manuals & Files:

Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT User Manual

download
Download Now >

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Philip Patinka
Great Discount on a Great Product

Offgrid gave a great discount, shipped timely and provided the link to the appropriate user manual. . Manufacturer included everything required to install the unit aside from the 6-8 gauge terminal wire. Step by step instructions were easy to follow.
