Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT with Renogy ONE Core

SKU: RBC30D1S-BT-CORE-US
Save $105.00 Save $105.00
Original price $404.99
Original price $404.99 - Original price $404.99
Original price $404.99
Current price $299.99
$299.99 - $299.99
Current price $299.99
Availability:
in stock, ready to be shipped

Free Shipping

Every Off Grid Stores Product Ships For Free

Limited Sales Tax Collection

In compliance with state regulations, we must charge sales tax in: AZ, CA, CO, FL, GA, IL, MI, NC, NV, OH, PA, TN, TX, VA, WA, and WI.

If your state isn’t listed — no tax!

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and we’ll do our best to beat it. We work hard to offer you the best value online.

2-Year Warranty

Off Grid Stores is an authorized retailer of Renogy products. Because of this, we pass on Renogy's manufacturer warranty to you.

Product Highlights
  • Monitoring with Renogy ONE Core- Add Renogy ONE Core to achieve smart energy monitoring with intuitive visuals and real-time data. It is an upgraded streamlined energy with our 3-in-1 smart panel.

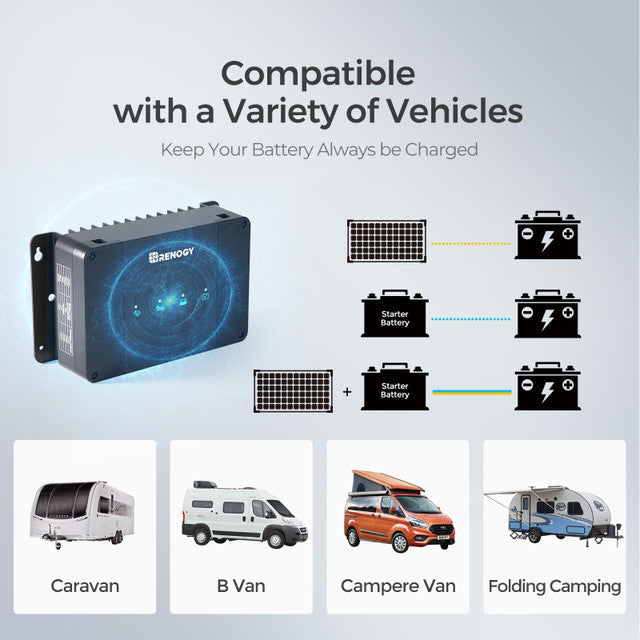

  • Multi-Input Efficiency Charging- The Renogy DC-DC Battery Charger with unique dual charging options. This multi-stage, multi-input battery charger can charge the house battery from a starter battery linked to the car alternator or by utilizing solar panels
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT with Renogy ONE Core

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT with Renogy ONE Core

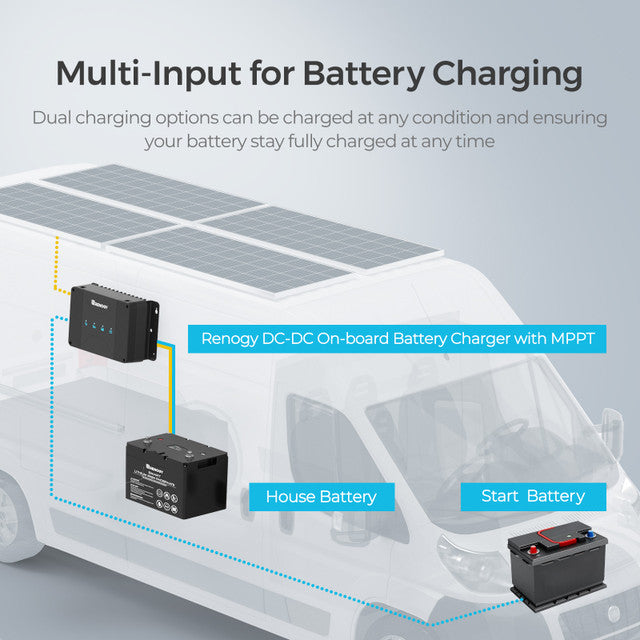

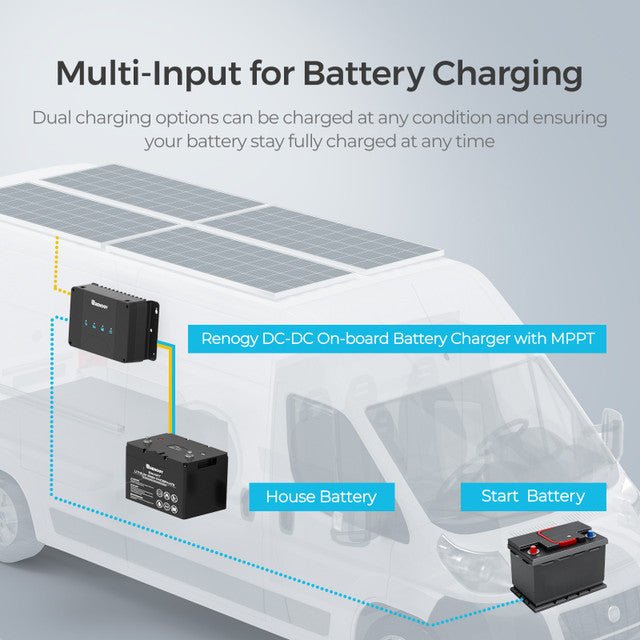

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.


Specifications:

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger
Electrical Parameters
System Voltage 12VDC
Battery voltage Range 9-16VDC
Maximum Charging Current 30A
Battery Types SLD/AGM, GEL, FLD, LISER
Service Battery Charging Mode MPPT
Charging Efficiency Up to 97%

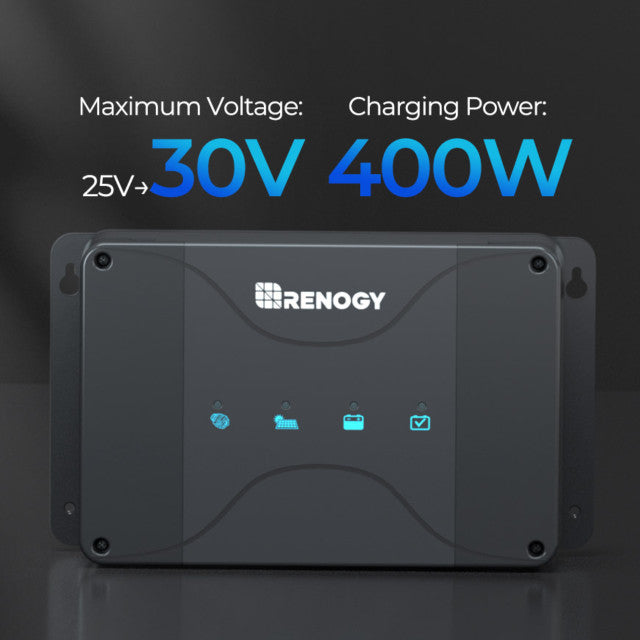

Max. Solar Input Voltage 30V
Max. Solar Input Power 400W
Alternator Input Voltage Traditional Alternator: 13.2-16VDC
Smart Alternator (Euro 6): 12-16VDC
Max. Alternator Input Power 400W
Self-consumption 60mA

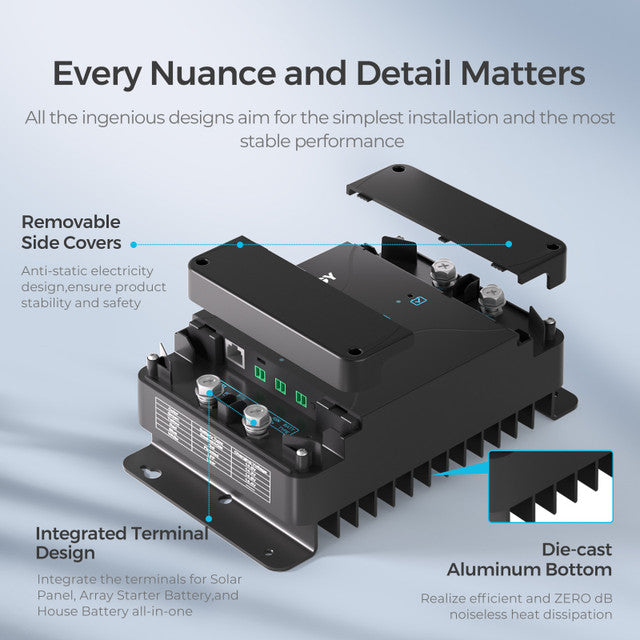

Mechanical Specifications
Ground Type Negative
Terminal Size M8*1.25 - 10mm
Temperature Compensation -3mV/C/2V
Operating Temperature Range -31°F - 149°F
Storage Temperature Range -40°F - 176°F
Operating / Storage Humidity 0%-95%, No Condensation
Dimensions 9.6 in x 5.7 in x 3.0 in
Weight 3.13Ibs
Communication Protocol RS485
Warranty Information
Material and workmanship warranty 2 Year
Charge Controllers DCCS Dual Input
Battery Chargers DCCS Dual Input
Certifications
CE YES
ROHS YES
FCC Part 15 class B YES

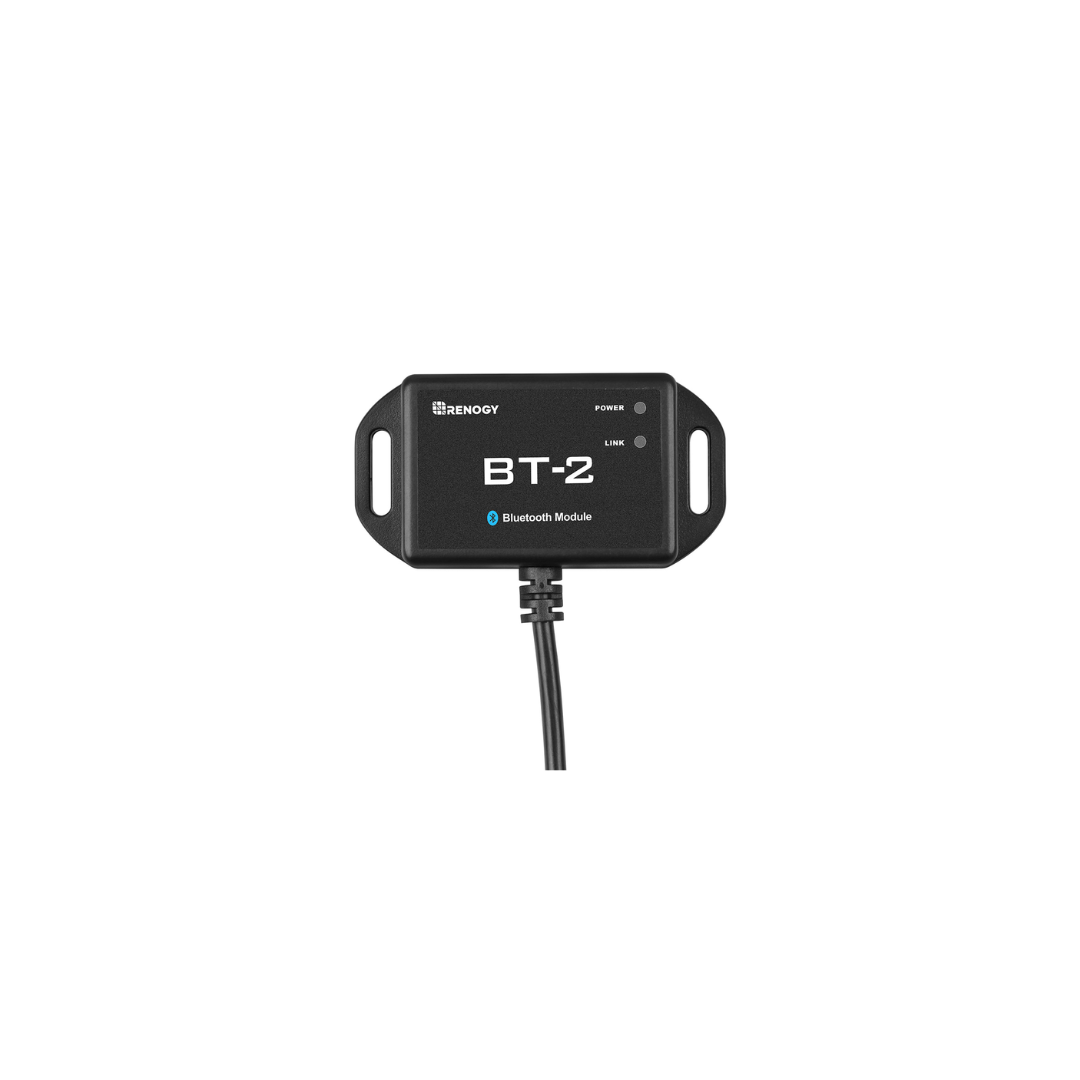

Renogy BT-2 Bluetooth Module
SKU RCM-BT2-US
COMPATIBILITY
Compatible Battery Charger RCC10RVRB RCC20RVRE
RCC40RVRE RNG-CTRL-RVR60
Compatible Inverter R-INVT-PGH1-20111S
RIV4835CSH1S
Compatible Smart Lithium Batteries RBT100LFP12S RBT100LFP12SH
RBT50LFP48S RBT100LFP12-BT
RBT200LFP12-BT
Compatible Battery Charger RBC30D1S RBC50D1S
Compatible App Renogy DC Home App available in
both the App Store and Google Play
OPERATION SPECIFICATIONS
Communication Protocol RS485
Port Type RJ45
Input Voltage 5V or 12V
Protection Grade IP54
Standby Power Consumption 0.04W
Operating Power Consumption 0.05W
Serial Baud Rate Fixed Baud Rate 9600bps
MECHANICAL SPECIFICATIONS
Communication Range ≤82ft (25m)
Cable Length 16.4 ft (5.00m )
Dimensions 2.65 in X 1.38 in X 0.55 in
Weight 0.29 lbs
Operation Temperature -4°F to 185°F
CERTIFICATIONS
FCC Class B Part 15 Compliant YES

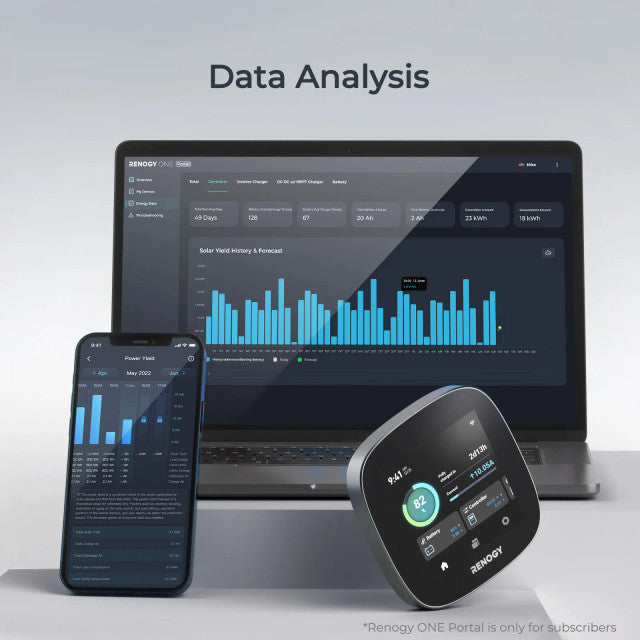

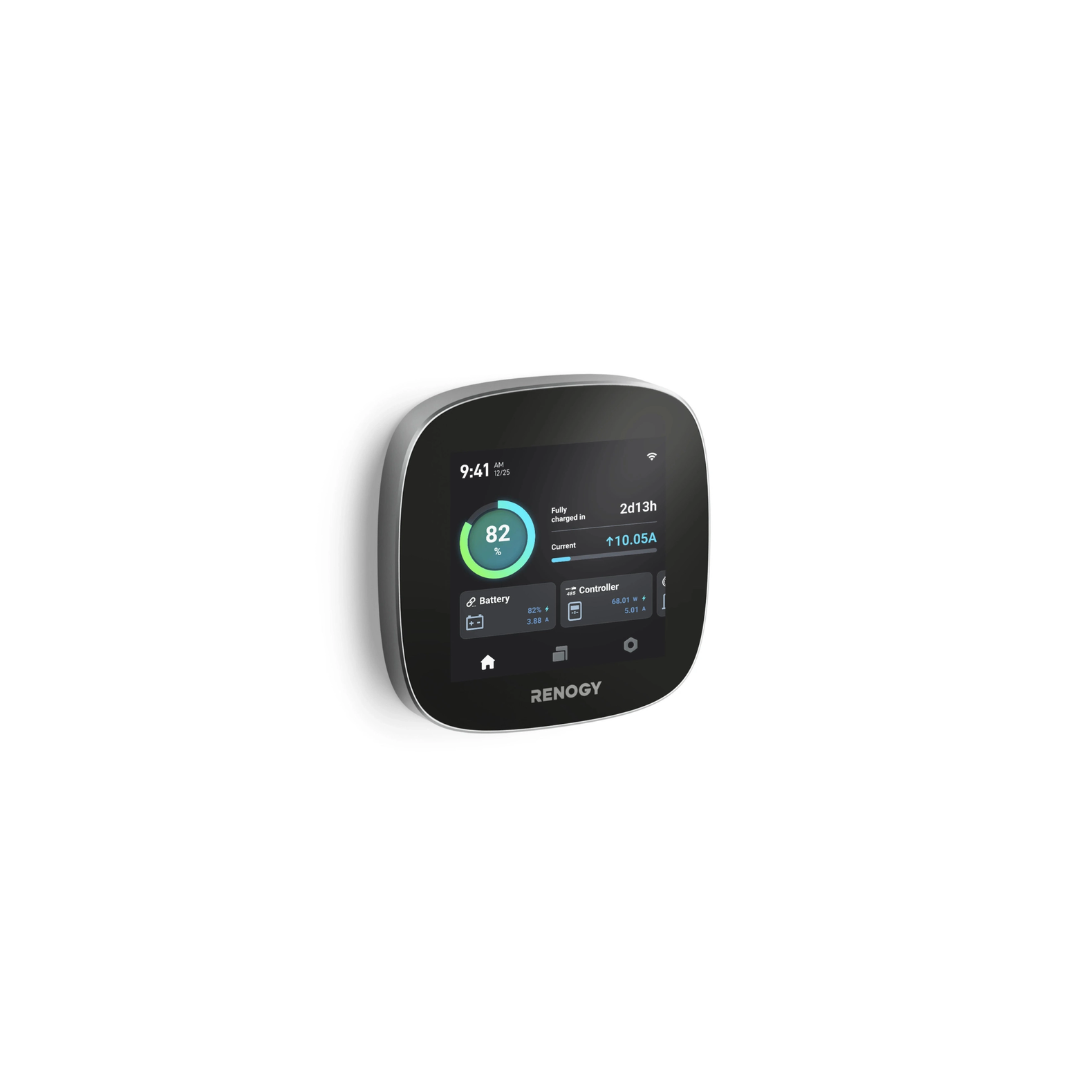

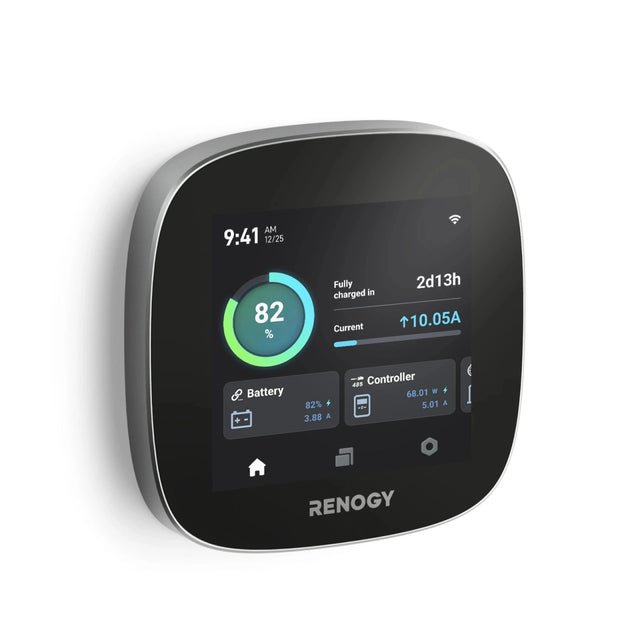

Renogy ONE Core (G3 Version)
ELECTRICAL DATA
Operating Voltage 8-35 VDC (5 VDC for USB Type-C)
Power Consumption at 12V Operating, WiFi On, 100% illumination: 3.2 W
Operating, WiFi On, 50% illumination: 2.4 W
Operating, WiFi On, 0% illumination: 1.9 W
Off, logger still active: 1.5 W
Communication IEEE 802.11 a/b/g/n 2.4GHz & 5GHz
Bluetooth LE and Bluetooth Mesh
Zigbee 3.0 (IEEE 802.15.4)
RS-485&CAN
Touch Screen 4 inches (480 x 480p)
GENERAL DATA
Model RSHGWSN-W02W-G3
Operating Temperature -4℉ to 158℉
Operating Humidity 0% to 95% RH
Operating Altitude Less than 5000m above sea level
Installation Flush mount
Dimensions 4.17 in x 4.17 in x 1.05 in
Weight 0.28 lb
Certification CE, FCC, RoHS, TSCA, BQB, IC-ID

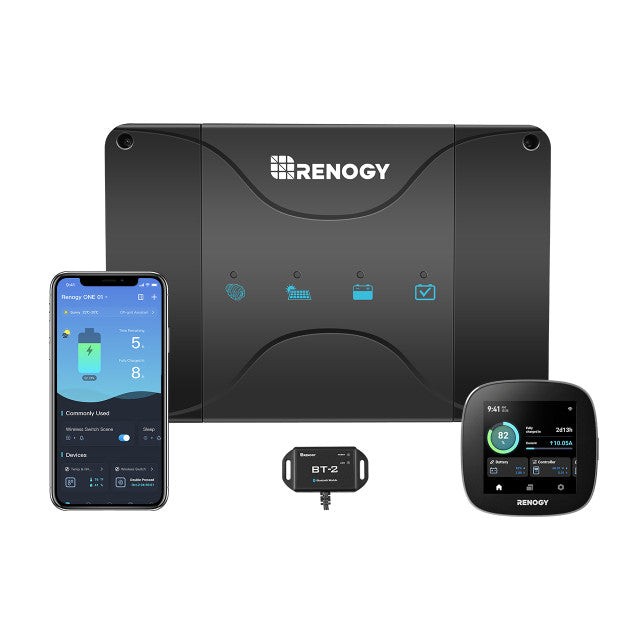

PACKAGE INCLUDES

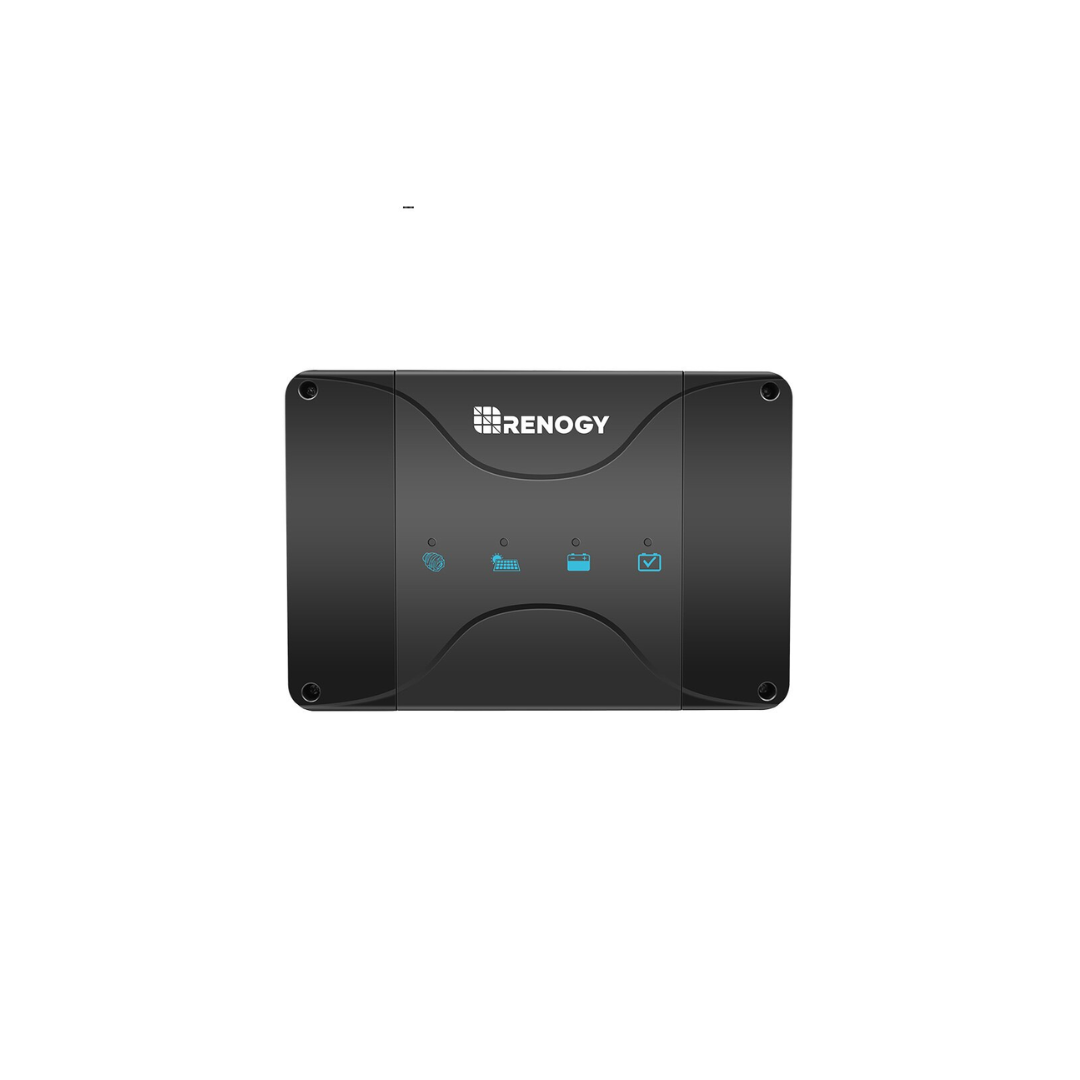

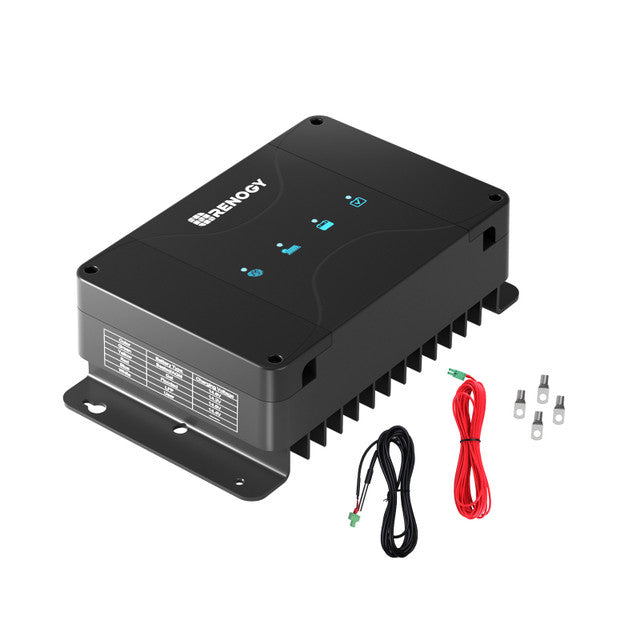

DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger

Renogy Battery Charger

x 1

Bluetooth Module

x 1

Renogy One Core

x 1

Battery Voltage Sensor

x 1

IGN Signal Wire

x 1

Battery Temperature Sensor

x 1

Frequently Asked Questions

What type of alternator is this on-board battery charger compatible with?

This battery charger is compatible with both traditional and smart alternators. However, since standard/traditional alternator has a fixed voltage when charging, while smart alternator has a controlled charging output based on operating conditions, it is required to connect the charger to the smart alternator through the Vehicle Ignition Port by the IGN Signal Wire comes with the package.

What will happen if the service battery is fully charged?

This Renogy's DC to DC MPPT on-board Battery Charger has a built-in Voltage Sensitive Relay (VSR), thanks to which the charger will Trickle Charge the service battery and maintain its fully charged status, and will also Trickle Charge the starting battery via solar panels. The VSR also ensures reliable isolation between the starting battery and service battery, avoiding charging interference.

What types of battery does the charger support?

This controller supports Gel, AGM, Flooded, and Lithium battery, but please make sure to set the correct battery type once it is installed. For battery settings please refer to the Manual Book on page 12&15.

How do I set the battery since there is no display screen?

To change the battery type you will need to press the push button that is located on the PV+ and ALT+ side of the DCDC, then continue to press the button and the LED will display different colors with each representing a single type of battery. Please refer to the manual on page 15 for Battery Type LED.
