Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

SKU RBC30D1S-US
Save $50.00 Save $50.00
Original price $289.99
Original price $289.99 - Original price $289.99
Original price $289.99
Current price $239.99
$239.99 - $239.99
Current price $239.99
Availability:
in stock, ready to be shipped

Free shipping with delivery betweenandOrder within

Free Shipping

Every Off Grid Stores Product Ships For Free

No Sales Tax Most States

We Only Charge Sales Tax In AZ, CA, CO, FL, GA, NC, NV, OH, PA, TN, and VA

Authorized Dealer

We are authorized dealers of every brand on our website

2-Year Workmanship And Materials Warranty

Off Grid Stores is an authorized retailer of Renogy products. Because of this, we pass on Renogy's manufacturer warranty to you.

Product Highlights
  • Monitoring with Renogy ONE Core - Add Renogy ONE Core to achieve smart energy monitoring with intuitive visuals and real-time data. It is an upgraded streamlined energy with our 3-in-1 smart panel.
  • Multi-Input Efficiency Charging - The Renogy DC-DC Battery Charger with unique dual charging options. This multi-stage, multi-input battery charger can charge the house battery from a starter battery linked to the car alternator or by utilizing solar panels connected directly to the unit. Both ways can be charged at the same time to minimize charging time. Up to 99% MPPT tracking efficiency and 94% convert efficiency.
  • Ingenious Structure Design - Removable side covers avoid contact between product terminals and the human body during transportation and daily use, which results in electrostatic damage, ensuring product stability and safety. The all-in-one NEG- terminal with partition design integrates the terminals for solar panels, the array starter battery, and the house battery, avoiding misconnection and making the simple installation.
  • Diversified Smart Monitoring - The Renogy 30A DC-DC Battery Charger uses the Modbus protocol and allows it to be compatible with various monitoring devices, including the RMS-DCDC monitoring screen, DC Home App, and Renogy One integrated screen. Managing and monitoring your energy easily and remotely in any scenario and situation.
  • Soft Start Circuit Design - The voltage at the input end of the Renogy 30A DC-DC battery charger will be rising gently, intending to avoid when the vehicle alternator starts, the instantaneous overvoltage which may cause damage to the battery charger or cause the starter battery to over-discharge and due to the vehicle can not start.
  • Comprehensive Security Assurance -The Renogy DC-DC Battery Charger is multi-certified to CE, FCC, and PoHs. This high-quality battery charger has multiple intelligent protections including battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection, guaranteeing charging safety and protecting your batteries.
Why Buy From Us?

- Help Support Small Family Owned Business

- Our Team Has Actual Knowledge Of Our Products

- You Will Talk To A Real Person In The USA When You Call

- We Guarantee To Match The Lowest Prices On The Internet

- Our Items Are Located In The USA

- We Actually Live Off-Grid Unlike Some Of Our Competitors

Best Price Guarantee

Shop with confidence, as we guarantee the best prices available.

If you come across an item at a lower price on a competitor's website, we'll gladly match it.

Simply contact our customer service chat before purchasing to redeem this exclusive offer.

Learn more by visiting our Best Price Guarantee page here.

Shipping & Handling Policy

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.

Note:

1. Do not reverse the polarity since the reverse polarity of the battery connections can cause injury and damage to the device.

2. When connecting the charger and the battery, make sure the battery poles are clean when connecting the terminals, select a sufficient cross-section for the connection cable, tighten the nuts and bolts with proper torque as loose connections may cause overheating.

3. Be careful not to over-torque the terminals on the DCDC as over-torquing may cause irreparable damage (Do not exceed 16 N-m / 3.3 ft-lb).

4. Use the following cable colors:

Red: positive connection

Black: negative connection

5. If the battery charger is connected to the starting battery and solar panels at the same time, the maximum input current will be 25A for each; if the battery charger only connects one of the two DC inputs, the maximum input current will be 50A.


Specifications:

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT
SKU RBC30D1S-US
ELECTRICAL PARAMETERS
System Voltage 12VDC
Battery Voltage Range 9-16VDC
Maximum Charging Current 30A
Battery Types AGM/SLD , GEL ,FLD ,LI ,USER
Service Battery Charging Mode MPPT
Charging Efficiency 94%
Max. Solar Input Voltage 30V
Max. Solar Input Power 400W
Alternator Input Voltage Traditional Alternator: 13.2-16VDC ;
Smart Alternator (Euro 6): 12-16VDC
Max. Alternator Input Power 400W
Self-consumption 60mA
Temperature Compensation (Non-Lithium) -3mV / ℃ / 2V
Temperature Compensation (Lithium) 0mV / ℃ / 2V
Idle Power Consumption <30mA
GENERAL DATA
Ground Type Negative
Terminal Size M8*1.25 - 10mm
Terminal Range 8AWG-4AWG
Operating Temperature Range -31℉ to 149℉
Storage Temperature Range -40℉ to 176℉
Operating / Storage Humidity 0%-95%, No Condensation
Dimensions 9.61 in x 5.75 in x 3.03 in
Weight 3.11 lbs
Communication Protocol RS485
CERTIFICATIONS
Certification CE;ROHS;FCC Part 15 class B;
ETL listed to UL 1741 & CSA C22.2
WARRANTY INFORMATION
Battery Chargers DCCS Dual Input
Charge Controllers DCCS Dual Input

PACKAGE INCLUDES

Renogy Dual Input DC-DC On-Board Battery Charger with MPPT

Renofy DCC30S Dual Input DC-DC On-Board Battery Charger with MPPT

x 1

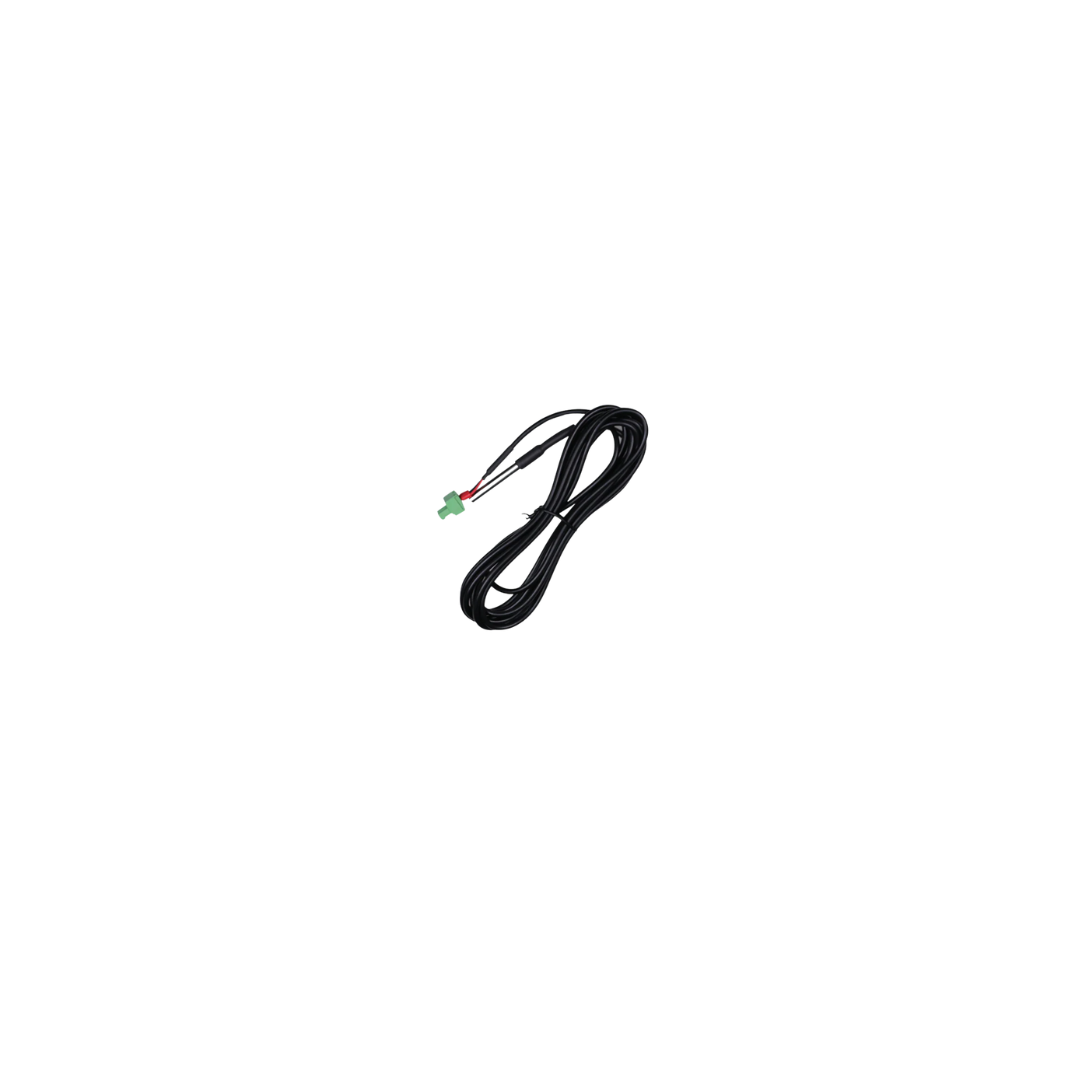

Battery Temperature Sensor

x 1

IGN Signal Wire

x 1

Terminal Rings

x 4

Frequently Asked Questions

What type of alternator is this on-board battery charger compatible with?

This battery charger is compatible with both traditional and smart alternators. However, since standard/traditional alternator has a fixed voltage when charging, while smart alternator has a controlled charging output based on operating conditions, it is required to connect the charger to the smart alternator through the Vehicle Ignition Port by the IGN Signal Wire comes with the package.

What will happen if the service battery is fully charged?

This Renogy's DC to DC MPPT on-board Battery Charger has a built-in Voltage Sensitive Relay (VSR), thanks to which the charger will Trickle Charge the service battery and maintain its fully charged status, and will also Trickle Charge the starting battery via solar panels. The VSR also ensures reliable isolation between the starting battery and service battery, avoiding charging interference.

What types of battery does the charger support?

This controller supports Gel, AGM, Flooded, and Lithium battery, but please make sure to set the correct battery type once it is installed. For battery settings please refer to the Manual Book on page 12&15.

How do I set the battery since there is no display screen?

To change the battery type you will need to press the push button that is located on the PV+ and ALT+ side of the DCDC, then continue to press the button and the LED will display different colors with each representing a single type of battery. Please refer to the manual on page 15 for Battery Type LED.

User Manuals & Files:

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT User Manual

download
Download Now >

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT Specification Sheet

download
Download Now >
