Renogy 5 Strings Solar Combiner Box

Renogy 5 Strings Solar Combiner Box

SKU RPVCOM5SMN7P-US
Save $30.00 Save $30.00
Original price $174.99
Original price $174.99 - Original price $174.99
Original price $174.99
Current price $144.99
$144.99 - $144.99
Current price $144.99
Availability:
in stock, ready to be shipped

Free shipping with delivery betweenandOrder within

Free Shipping

Every Off Grid Stores Product Ships For Free

No Sales Tax Many States

We Charge Sales Tax Only In AZ, CA, CO, FL, GA, MI, NC, NV, OH, PA, TN, TX, VA, WA, and WI

Authorized Dealer

We are authorized dealers of every brand on our website

1-Year Workmanship And Materials Warranty

Off Grid Stores is an authorized retailer of Renogy products. Because of this, we pass on Renogy's manufacturer warranty to you.

Product Highlights
  • 5 TO 1 CONNECTION- Combining up to 5 solar panel inputs into one, and each input can be equipped with a circuit breaker.

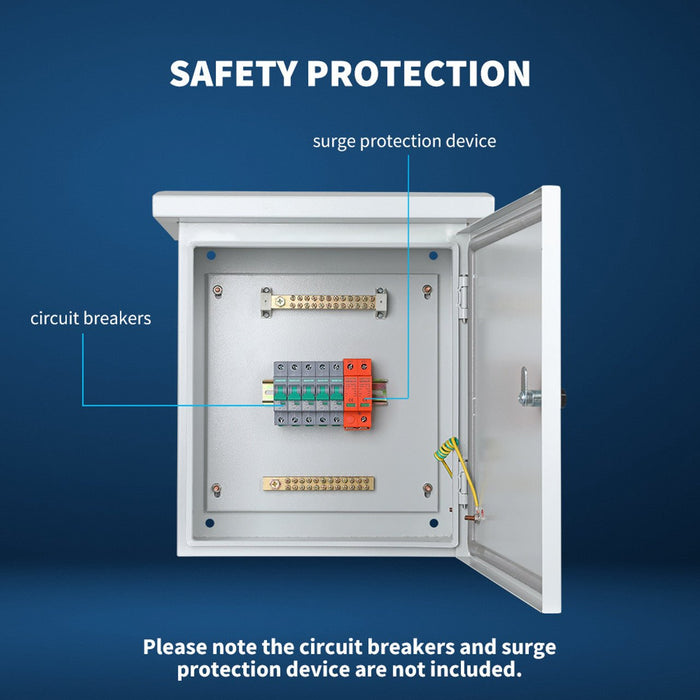

  • SAFETY PROTECTION- Circuit breaker and surge protection device can be installed to provide overload/short circuit protection and lightning protection.
  • EASY TO INSTALL- Offers built-in standard DIN rail for easy installation.
  • IDEAL FOR OUTDOOR- Protection level at IP55. The double slope top design and rubber seals on door make it more suitable for outdoor environments.
  • WORRY-FREE USE- Suitable for both On-Grid and Off-Grid Solar Systems. Material and workmanship warranty for 1 year.
Why Buy From Us?

- Help Support Small Family Owned Business

- Our Team Has Actual Knowledge Of Our Products

- You Will Talk To A Real Person In The USA When You Call

- We Guarantee To Match The Lowest Prices On The Internet

- Our Items Are Located In The USA

- We Actually Live Off-Grid Unlike Some Of Our Competitors

Best Price Guarantee

Shop with confidence, as we guarantee the best prices available.

If you come across an item at a lower price on a competitor's website, we'll gladly match it.

Simply contact our customer service chat before purchasing to redeem this exclusive offer.

Learn more by visiting our Best Price Guarantee page here.

Shipping & Handling Policy

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Renogy 5 Strings Solar Combiner Box

Renogy 5 Strings Solar Combiner Box

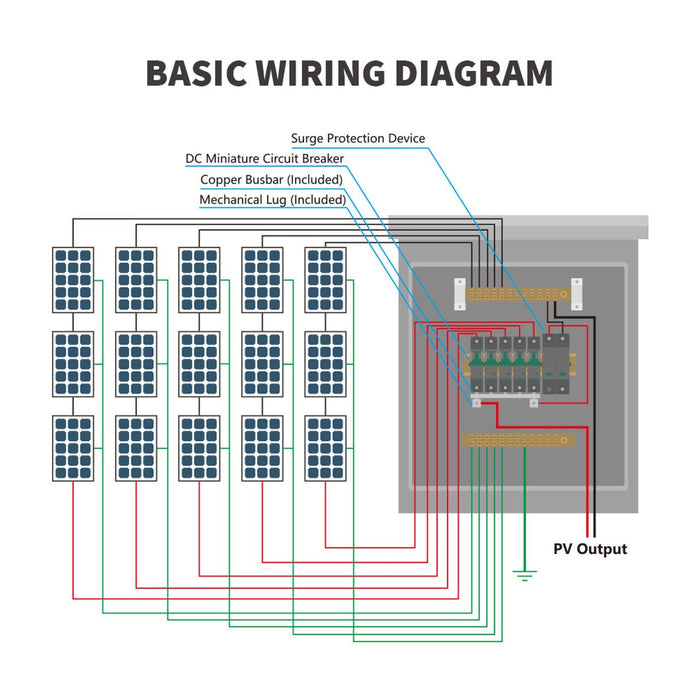

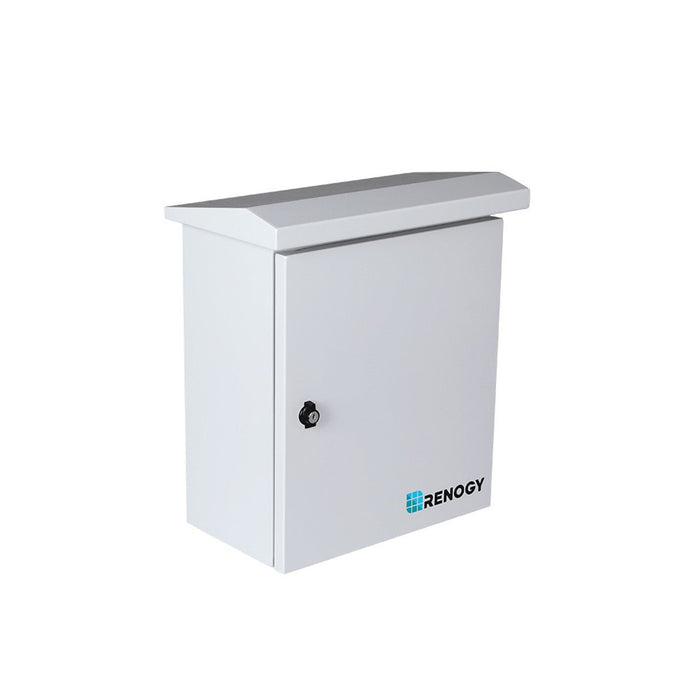

The Renogy 5 Strings Solar Combiner Box is the ideal solution to combine inputs from up to 5 strings of solar panels into a single output. It accepts up to five 1P miniature circuit breakers and one 2P surge protection device for improved safety of the solar system. The built-in standard DIN rail enables easy installation of the protection devices. Equipped with a rain cap and rubber seals, the grey steel enclosure is designed to survive in outdoor environments. The knockouts are reserved for waterproof strain reliefs or conduits.

Specifications:

Renogy 5 Strings Solar Combiner Box
SKU RPVCOM5SMN7P-US
Maximum PV Input/Output Voltage 250VDC
Maximum Number of Input Circuits 5
Maximum Overcurrent Protection
Device Rated Current
63A
Rated Short Circuit Current 6KA
Maximum Output Current 100A

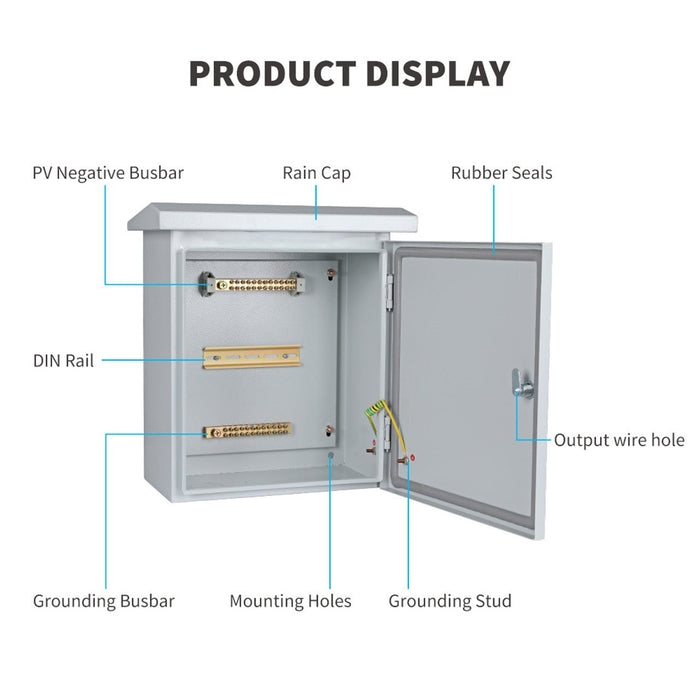

Number of Busbars 2 (PV Negative Busbar,
Grounding Busbar)
Busbar Rated Current 200A
Busbar Material Copper
Busbar Terminal Compression Terminals (24),
Lug Terminal (1)
Busbar Screw M5 (Compression Terminal),
M8 (Lug Terminal)
Recommended Busbar
Terminal Torque
26 inch·lbs (2.9 N·m)
(Compression Terminal),
106 inch·lbs (12 N·m) (Lug Terminal)
Busbar Conductor Size 14 AWG~6 AWG (Compression
Terminal), 12 AWG~4 AWG
(Lug Terminal)

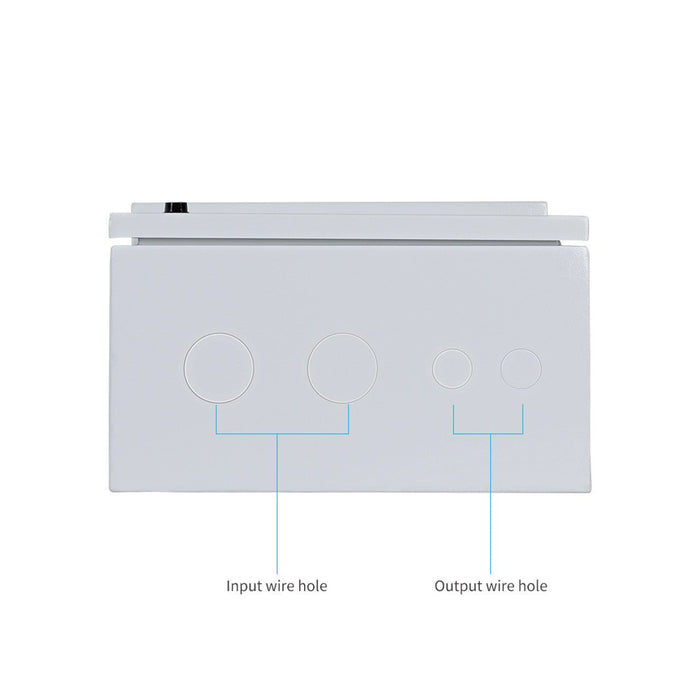

Knockout Diameter 1.99 inch (2), 1.12 inch (2)
DIN Rail Width 1.38 inch (35 mm)
Enclosure Material Cold-Formed Steel
Enclosure Protection Rating IP55
Enclosure Security Keyed Cam Lock
Mounting Method Vertical Wall Mount
Installation Environment Outdoor/Indoor
MECHANICAL SPECIFICATIONS
Dimensions 17.1 in x 15.0 in x 8.8 in
Weight 20.9 lbs
Knockout Diameter 1.99 inch (4), 1.12 inch (4)
ACCESSORIES
5 Pin Busbar
Rated Current 100A
Mechanical Lugs (2)
Key and Labels (2)

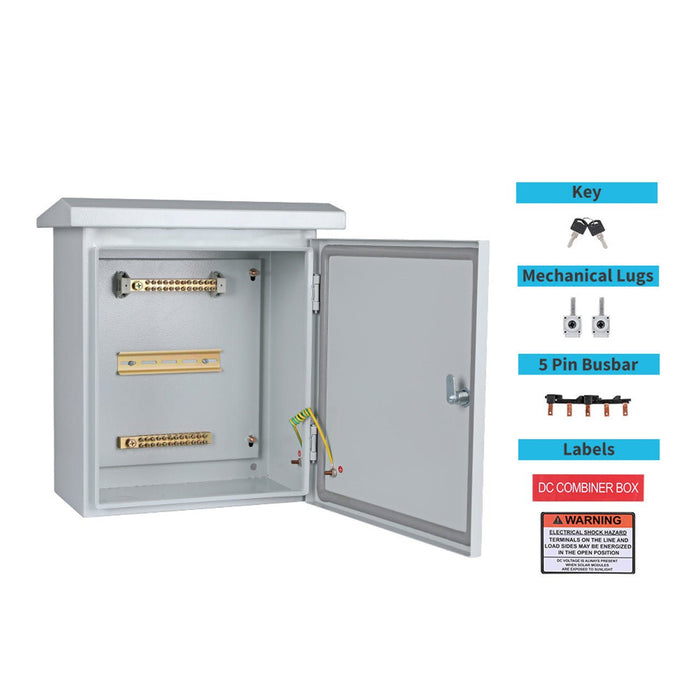

PACKAGE INCLUDES

Renogy 5 Strings Solar Combiner Box

Renogy 5 Strings Solar Combiner Box

x 1

5 Pin Busbar (Rated Current 100A)

x 1

Mechanical Lugs

x 2

Key

x 1

Labels

x 2

Frequently Asked Questions

If the ground wire is attached from the combiner box to the grounding rod, do the panels still need to be grounded?

If the panels are grounded to the same rod, I suppose you do not need to add a second grounding. In the case of an electrical storm, the grounding of the combiner panel is of the upmost importance.

Can I use different wattage panels to connect to this box?

No, only panels with the same voltage and wattage can be connected to the same box.

Under what circumstances is this used?

It is mainly used in home kits to combine up to 5 solar panel inputs into one single output, and it can be installed either indoor or outdoor.

Does a surge protective device have to be installed?

Yes, we suggested installing it in order to avoid device damage caused by lightning.
