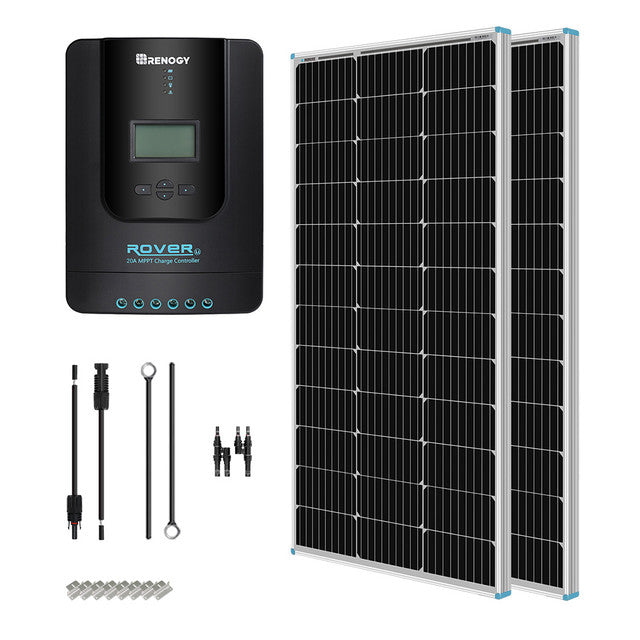

Renogy 200W 12V Solar Starter Kit w/ 20A MPPT Charge Controller

SKU: RNG-KIT-STARTER200D-RVR20-US
Sold out
Original price $261.99
Original price $261.99 - Original price $261.99
Original price $261.99
Current price $193.99
$193.99 - $193.99
Current price $193.99
Availability:
Out of stock

Free Shipping

Every Off Grid Stores Product Ships For Free

Limited Sales Tax Collection

In compliance with state regulations, we must charge sales tax in: AZ, CA, CO, FL, GA, IL, MI, NC, NV, OH, PA, TN, TX, VA, WA, and WI.

If your state isn’t listed — no tax!

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and we’ll do our best to beat it. We work hard to offer you the best value online.

Product Highlights

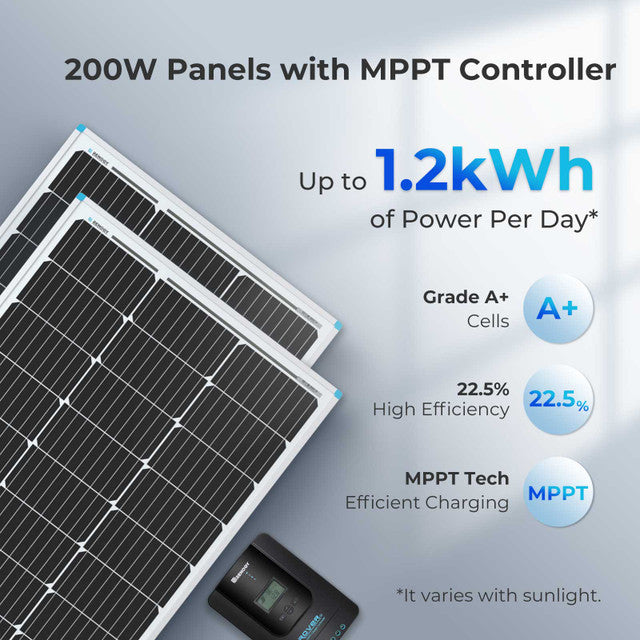

  • 1-1.2kWh average daily output. 22.5% cell efficiency
  • 10-year material and workmanship warranty on solar panels

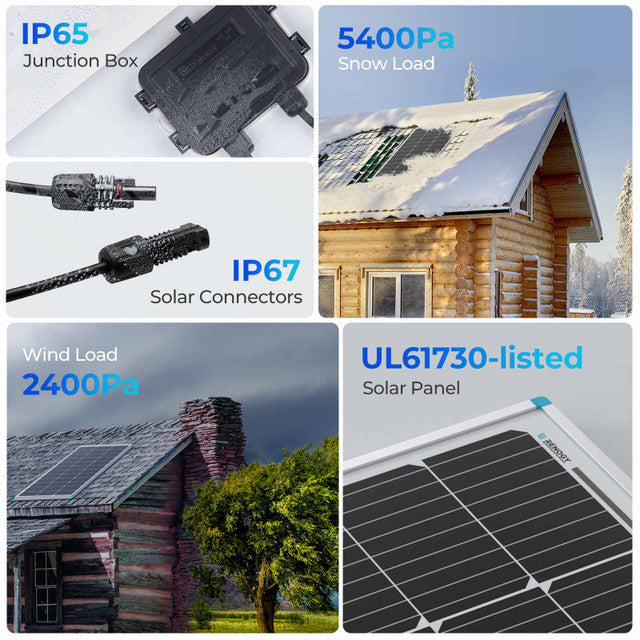

  • UL61730-listed panels. 2400Pa wind, 5400Pa snow
  • MPPT charge controller with 99% tracking efficiency
  • 20A charge controller with a RS485 bluetooth port
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Renogy 200W 12V Solar Starter Kit w/ 20A MPPT Charge Controller

Renogy 200W 12V Solar Starter Kit w/ 20A MPPT Charge Controller

Industry-leading Warranty, Effortless Solar Setup

Renogy Solar Starter Kits feature a 10-year material and workmanship warranty on solar panels and a 3-year warranty on MPPT charge controllers. They include all necessary equipment for building a basic system that is beginner-friendly.

Voltage Tracking in Real Time

You can add a BT-2 Bluetooth Module* to receive timely warnings through your DC Home app

Voltage Tracking in Real Time

You can add a BT-2 Bluetooth Module* to receive timely warnings through your DC Home app

Series Wiring (12V)

Parallel Wiring (12V)

4-Step Setup

Specifications:

Renogy Rover Li 20 Amp MPPT Solar Charge Controller
SKU RNG-CTRL-RVR20-US
ELECTRICAL PARAMETERS
Nominal System Voltage 12/24V (Auto-Detect for
Non-Lithium Batteries)
Rated Charge Current 20A
Max. PV Input Voltage 95 VDC
Max. PV Input Power 12V/260W, 24V/520W
Power Consumption <100mA/12V; <58mA/24V
Max Battery Voltage 32V
Ground Type Negative
Electrical Protection Overcharging, over-discharging,
overload, and short circuit. Capable
of charging over-discharged
lithium batteries.
ENVIRONMENTAL DATA
Protection Level IP32
Operating Temperature Range -31°F to 113°F
Storage Temperature Range -31°F to 167°F
Operating / Storage Humidity ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V
MECHANICAL SPECIFICATIONS
Dimensions 8.27 in x 5.95 in x 2.69 in
Weight 3.1 lbs
Max. Terminals Size 8 AWG 10mm2
CERTIFICATIONS
CE YES
FCC Class B Part 15 Compliant YES
Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)
SKU RNG-100D-SS-US
Maximum Power at STC 100W
Cell Efficiency 22.00%
Optimum Operating Voltage (Vmp) 20.4V
Open-Circuit Voltage (Voc) 24.3V
Optimum Operating Current (Imp) 4.91A
Short-Circuit Current (Isc) 5.21A
Operating Temperature -40°F to 176°F
Maximum Series Fuse Rating 15A
Certifications CE, ISO
Maximum System Voltage 600V DC (UL)
Weight 14.1lbs
Dimensions 41.8 in x 20.9 in x1.38 in
Panel Leads (Pair) 14 AWG (1.96 ft)
BUILT-IN COMPONENTS
Output Cables 14 AWG (1.96ft long)
Cell Type Monocrystalline (6.5 in x 3.3 in)
Number of Cells 36 (3 x 12)
Junction Box IP65
Solar Connectors IP67
Renogy 10 AWG Solar Panel to Charge Controller Adaptor Kit
Length 20ft
AWG 10
Rating Voltage 600/1000V
Cross Sectional Area of Conductor (mm²) 6.0
Min. Wall Thickness of Insulation (mm) 0.85
Number of Wires in Conductor 84
Conductor Tinned copper wire
Temperature -40°F to +185°F
Diameter of Wires in Conductor (mm) 3.02±0.08
Min. Wall Thickness of Sheath (mm) 1.08
Protection IP 65
Renogy Solar Y Branch Connectors MMF+FFM Pair
Withstanding voltage 1000V DC(TUV), 600V(UL)
Contact Resistance 1m
Protection Class Class II
Temperature -40°F to +194°F
Protection Degree IP67, mated
Unmating Force 147.51Ft·lb
Insulation Material PC/PA
Contact Material Copper, silver plated
Flame Class UL94-V0 or UL94-5VA
Rated Current 50A
Renogy Solar Panel Mounting Z Bracket - Set of 4
SKU RNG-MTS-ZB-US
Four Z Shape Solar Panel Brackets
Four M6 Split Lock Washer
Four M6 Hexagonal Nut
Four M6-16 Hex Cap Bolt
Eight M6 Flat Washer
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring
Renogy 8FT 8AWG Tray Cables (A PAIR)
Rating Voltage 600/1000V
Length 8ft
Wire Gauge 8AWG
Temperature -40°F to +185°F
