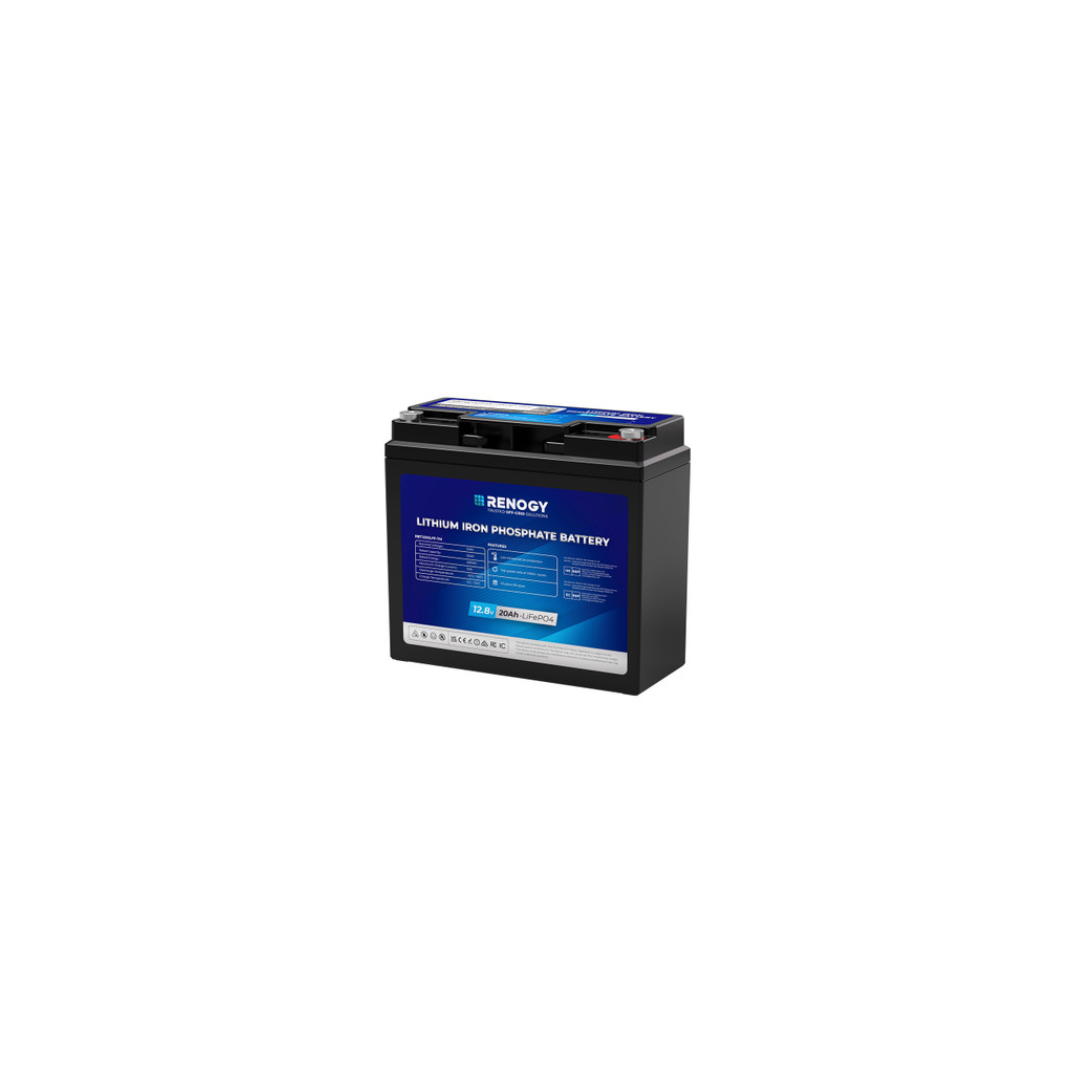

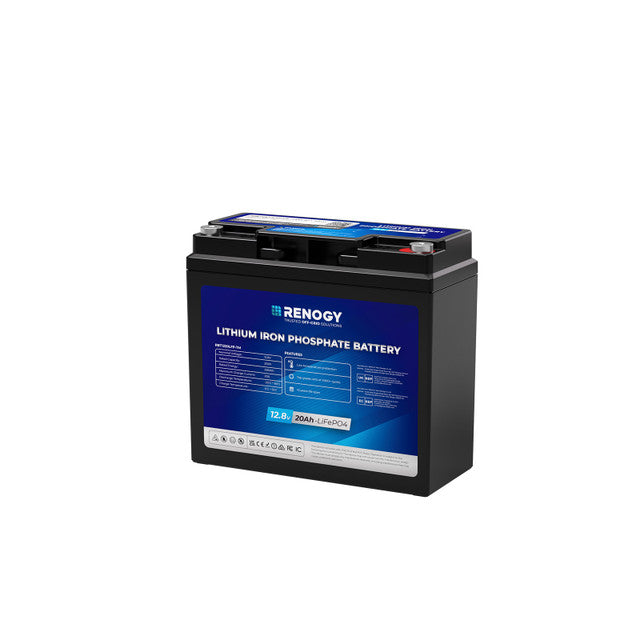

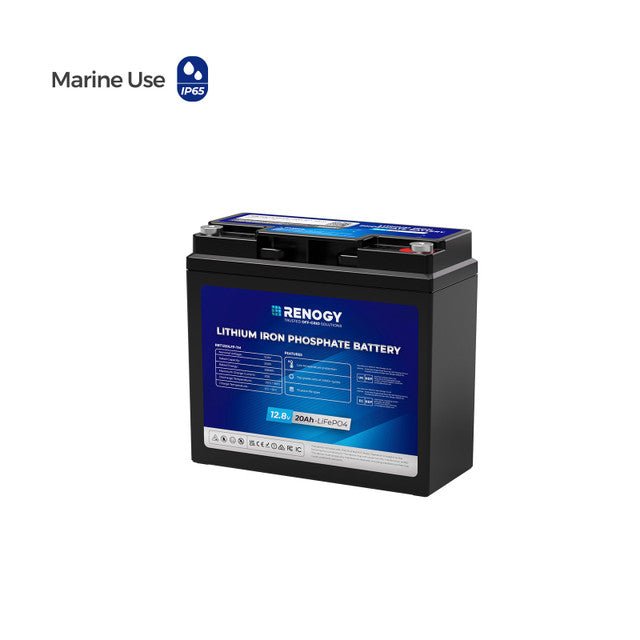

Renogy 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery

SKU: RBT1220LFP-TM-US
Save $24.00 Save $24.00
Original price $93.99
Original price $93.99 - Original price $93.99
Original price $93.99
Current price $69.99
$69.99 - $69.99
Current price $69.99
Availability:
in stock, ready to be shipped

Free Shipping

Every Off Grid Stores Product Ships For Free

Limited Sales Tax Collection

In compliance with state regulations, we must charge sales tax in: AZ, CA, CO, FL, GA, IL, MI, NC, NV, OH, PA, TN, TX, VA, WA, and WI.

If your state isn’t listed — no tax!

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and we’ll do our best to beat it. We work hard to offer you the best value online.

5-Year Warranty

Off Grid Stores is an authorized retailer of Renogy products. Because of this, we pass on Renogy's manufacturer warranty to you.

Product Highlights
  • A 50% lighter, drop-in replacement for 20Ah lead-acid batteries
  • 30% longer runtime for fish finders, scooters, ham radios, and more

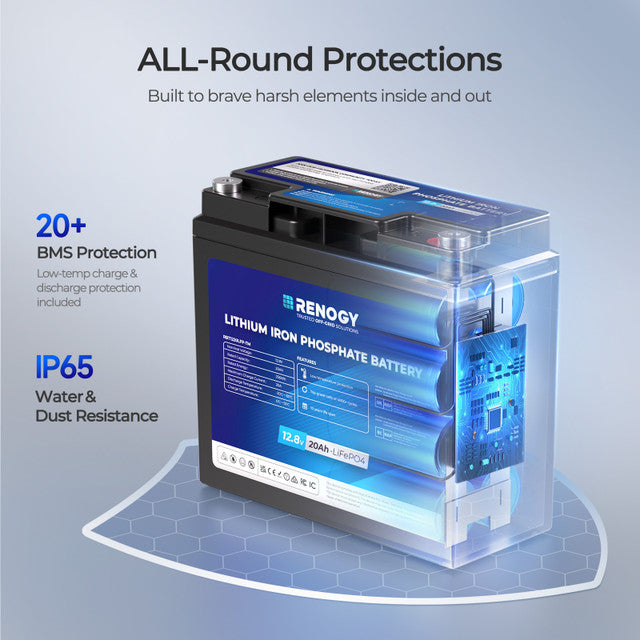

  • 20+ built-in BMS protection with low-temp cut-off for added safety
  • IP65 water & dust resistance for harsh outdoor environments
  • Add a Shunt 300* for at-a-glancing monitoring on Renogy app *Sold separately
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Renogy 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery

Renogy 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery

Take a Closer Look

Navigate Inland & Coastal Waters Confidently

At only half the weight of a lead-acid counterpart, the Renogy 12V 20Ah TM Series LiFePO4 Battery is built strong to tackle splashes, dust, and corrosion so you can stay on the water with peace of mind.

Power to Roam Further

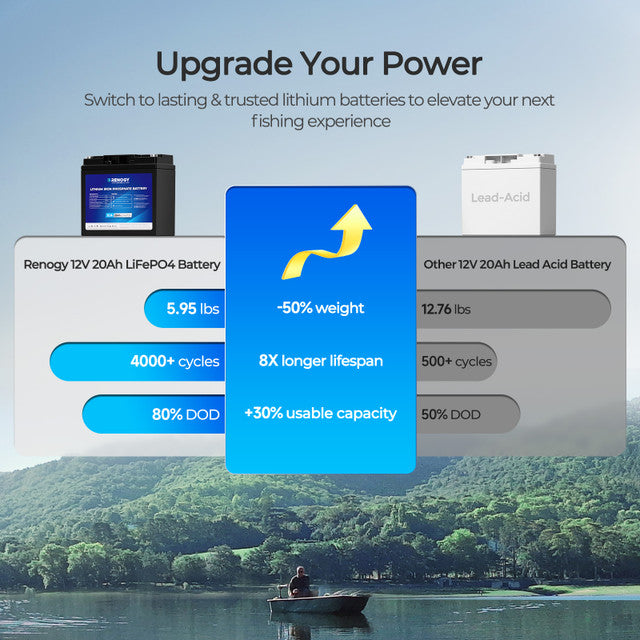

Delivers 30% more usable capacity on a single charge than traditional lead-acid batteries, so daily errands, park visits, or spontaneous adventures never get cut short.

Stay on Air with Portable Lithium Power

Renogy 12V 20Ah LiFePO4 battery powers mobile ham radio setups with 8 times longer lifespan than lead acid batteries—no more dead batteries during POTA activations.

Sizing Guide

Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (200 mm).

Specifications:

Renogy 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery
Electrical Specifications
Rated Capacity 20Ah (0.5C, 77°F)
Voltage 12V

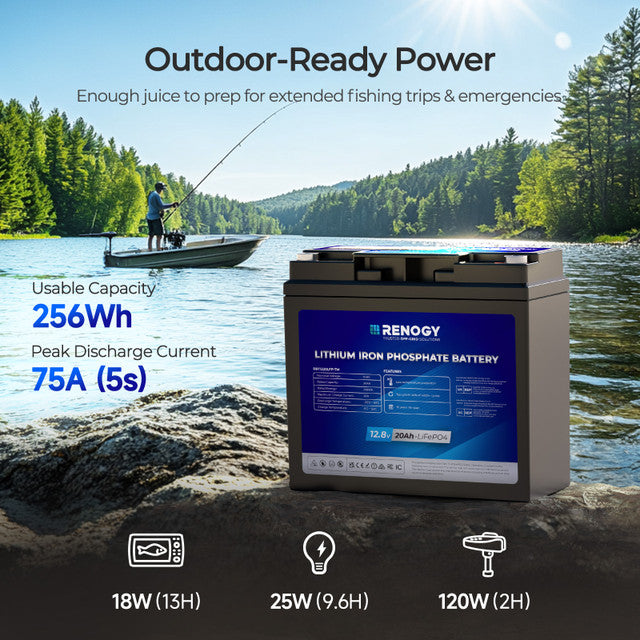

Energy 256Wh
Cycle Life (0.5C, 25℃) 4000 Cycles (80% DOD)
Charging Parameters
Voltage Range 10V to 14.8V
Maximum Continuous Charge Current 20A
Discharging Parameters
Maximum Continuous Discharge Current 20A
Peak Discharge Current 75A@5s
Temperature Parameters
Operation Temperature Range Charge: 32°F to 131°F
Discharge: -4°F to 140°F
Storage Temperature Range -4°F to 140°F
Operation Relative Humidity 10% to 95%
Mechanical Specifications
Dimension (L x W x H) 7.13 in x 3.03 in x 6.61 in
Weight 5.95 lbs
Terminal Bolt Size M6 x 1.25 x 10 mm
Protection Rating IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE,
RCM, IC, RoHS, and UKCA
Yes
Shop By Scenario Trolling Motor

PACKAGE INCLUDES

Renogy 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery

Renogy 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery

x 1

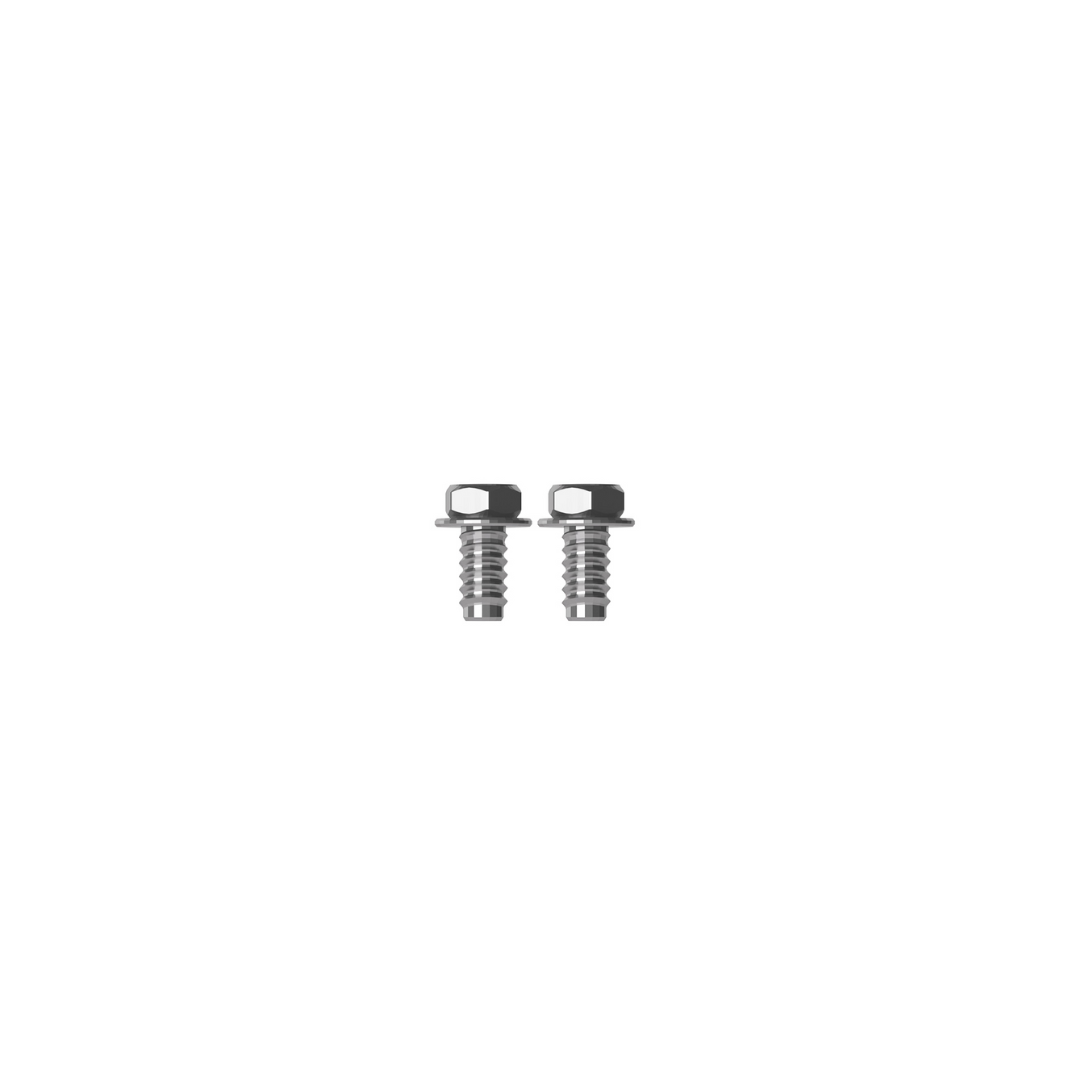

Terminal Bolts (M6 x 1.25 x 10 mm)

x 2

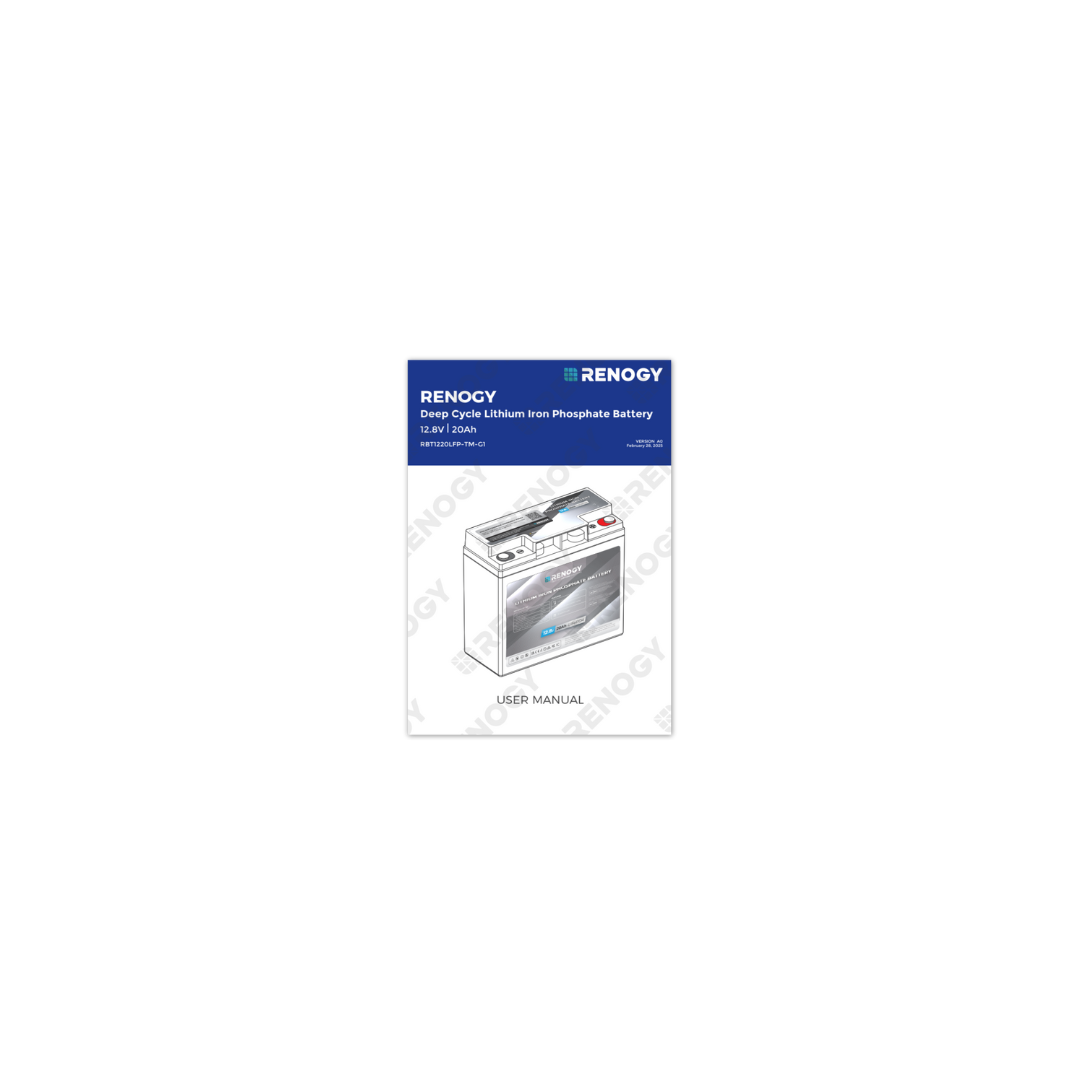

User Manual

x 1

Frequently Asked Questions

Can I replace my old lead-acid battery with the Renogy 12.8V 20Ah battery?

In most cases, yes. You can replace your lead-acid battery with the Renogy 12V 20Ah battery. However, it's important to verify compatibility with your specific device (like the charger) or system before making the switch.

Does this battery have BMS protection?

Yes. it has a built-in battery management system (BMS) that includes protection features such as overcharge, over-discharge, over-current, and short-circuit protection, and supports automatic disconnection at low / high temperatures to ensure safety and durability.

How many Renogy 12.8V 20Ah Deep Cycle Lithium Iron Phosphate Batteries can I connect at most?

You can connect up to 16 batteries in series and parallel to expand power to 4.096kWh. Batteries of the same model and similar capacity are required.

Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery does not have a Bluetooth port for a Bluetooth Module. However, you can connect your battery with a Renogy 300A Battery Shunt (sold separately), which can send the data to the Renogy app via Bluetooth so you can keep track of battery status in real time.

How long does it take to charge?

It is recommended to use a dedicated charger for lithium batteres. The charging time varies with the charging current. If you use a 10A charger, it will take approximately 2 hours to fully charge this 12V 20Ah LiFePO4 battery.
