Natures Generator 50A Automatic Generator Transfer Switch
by Natures Generator

Natures Generator 50A Automatic Generator Transfer Switch

SKU: NGA05031224N
Save $125.00 Save $125.00
$624.99
$624.99 - $624.99
$624.99
$499.99
$499.99 - $499.99
$499.99
Availability:
in stock, ready to be shipped

Free Shipping

Every Off Grid Stores Product Ships For Free

Limited Sales Tax Collection

In compliance with state regulations, we must charge sales tax in: AZ, CA, CO, FL, GA, IL, MI, NC, NV, OH, PA, TN, TX, VA, WA, and WI.

If your state isn’t listed — no tax!

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and we’ll do our best to beat it. We work hard to offer you the best value online.

Live Chat for Price Help

1-Year Limited Warranty

Off Grid Stores is an authorized retailer of Natures Generator products. Because of this, we pass on Natures Generator's manufacturer warranty to you.

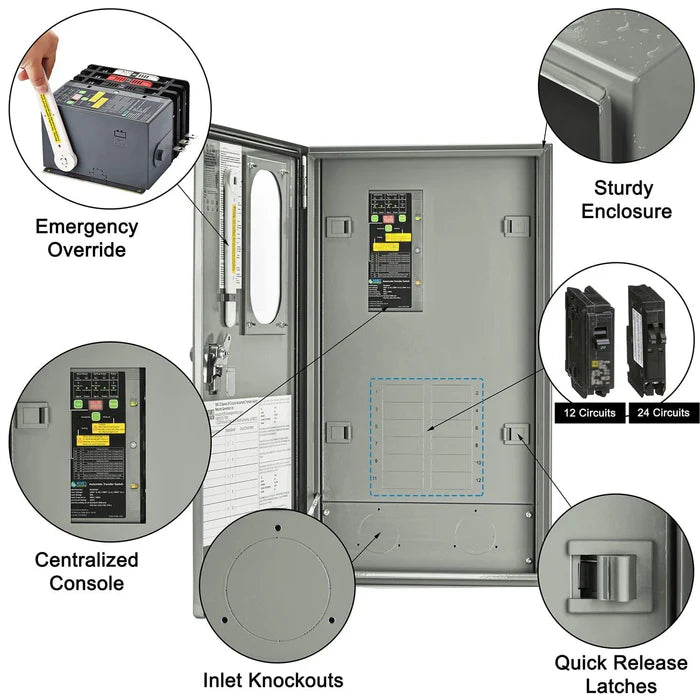

Product Highlights
  • Power Capacity: Supports up to 50 Amps with 120V/240V capability for a wide range of home generators.
  • Circuit Compatibility:Handles up to 24 circuits, providing comprehensive coverage for home power needs.
  • Load Management Made Easy: Allowing you to choose and run specific circuits efficiently.
  • Automatic Operation: Automatic Transfer Switch (ATS) ensures seamless switching between utility power and generator during outages.
  • Emergency Override: Built-in emergency override functionality for added control and reliability in critical situations.
  • Centralized Console: An easy-to-access centralized control panel for efficient management of power distribution.
  • Sturdy Enclosure: Durable, weather-resistant enclosure for safe installation indoors or outdoors.
  • Home Generator Ready: Perfectly designed for home generator systems, providing dependable backup power management.
  • Safe and Reliable: Ensures smooth, uninterrupted power transitions to protect your appliances and electronics.
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Natures Generator 50A Automatic Generator Transfer Switch

Natures Generator 50A Automatic Generator Transfer Switch

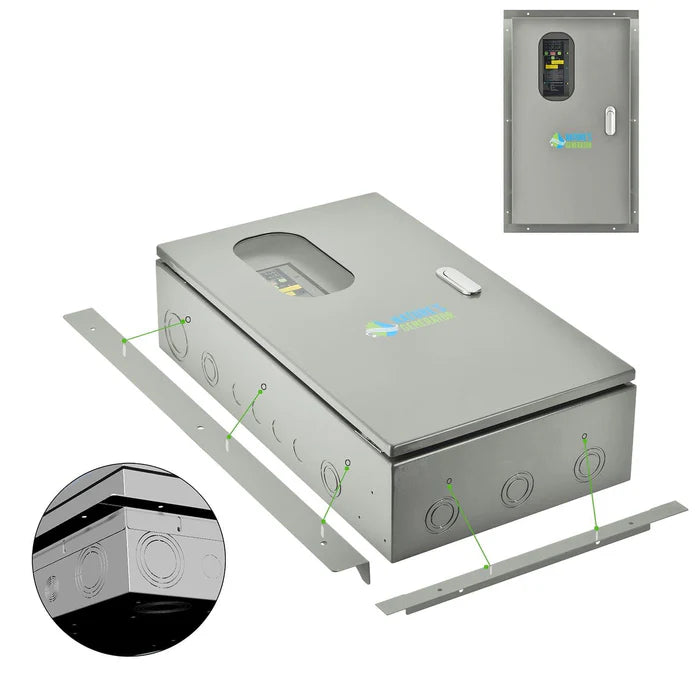

Easy Installation

Designed for convenience, this Automatic Transfer Switch offers flexible installation options. Whether you prefer surface-mounted or semi-flush installation, the setup is straightforward and user-friendly, making it an excellent choice for DIY enthusiasts and professional electricians alike.

Versatile Application

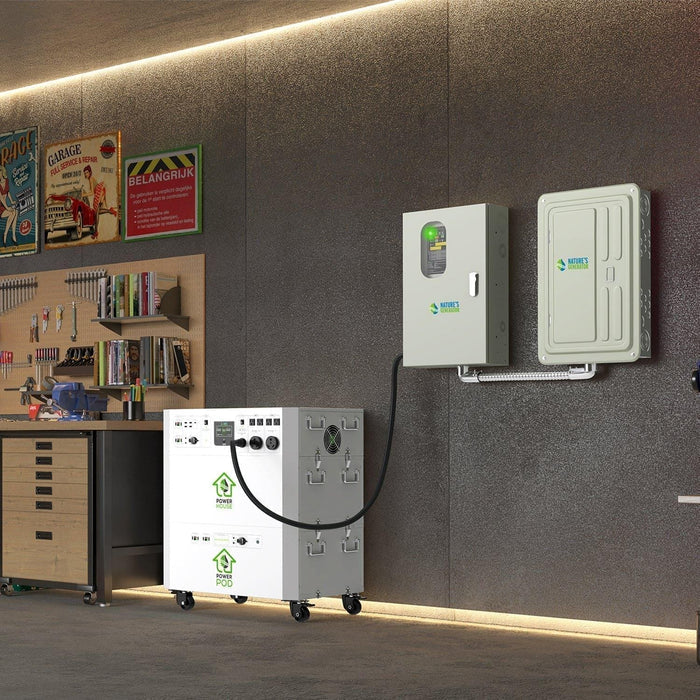

The 50A Automatic Transfer Switch for Generator is designed for seamless power transitions, making it the perfect solution for diverse applications such as cabins, whole home, mobile tiny homes, and solar power setups.

Specifications:

Natures Generator 50A Automatic Generator Transfer Switch
Power Rating 50A
System Voltage 120 V~ (L-N) / 208V~
(L-L) / 240V~ (L-L)
Number of Spaces 12 spaces
Number of Circuits Expandable to 24 circuits
with tandem breakers

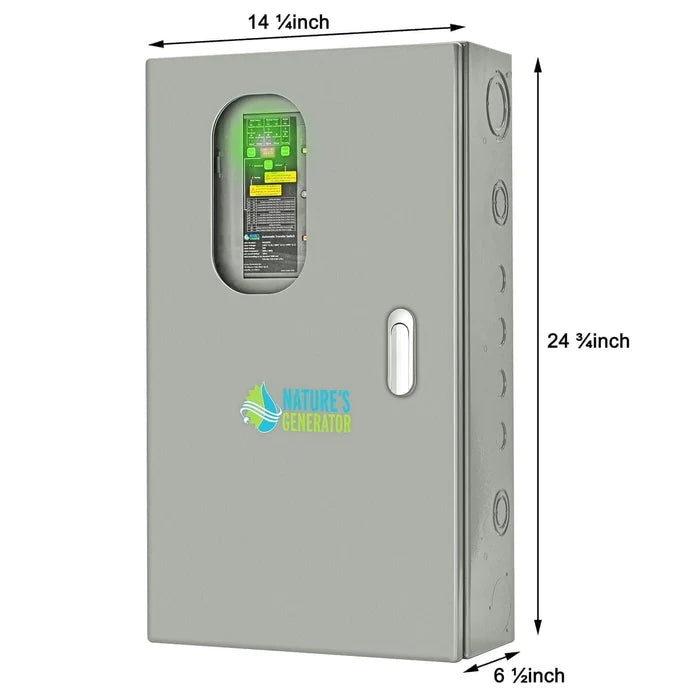

Dimension 24.75 in x 14.25 in x 6.5 in
Weight 54 lbs
Certification UL 508A, UL1008,
CAN/CSA C22.2 No. 178.1

Frequently Asked Questions

Where shall I install the automatic transfer switch?

It depends on the layout of installation. You might need to consider the convenience and proximity to the electrical panel boards, the existing power source, the alternative power source and the circuits you want to power.

Can the automatic transfer switch be installed outdoors?

No. The enclosure is rated NEMA 1 for indoor installation only.

Can the automatic transfer switch flush mounted?

Yes. The enclosure is designed to fit in between two studs that are 16” on center or 24” on center. The flush mount is not included in the box. Purchase the flush mount kit through www. naturesgenerator.com or 800-975-7909 before the installation.

Does the automatic transfer switch work with 240V?

Yes. It works with 120/240V electrical system. Follow the diagrams in the section “Connect Your Automatic Transfer Switch”.

Does the automatic transfer switch work with 120V/208V?

Yes. It works with 2 phases out of 3 phases of 120V/208V electrical system. Make sure your alternative power source is compatible with the circuits you want to power. Follow the diagrams in the section “Connect Your Automatic Transfer Switch”.

Does the automatic transfer switch work with 277V/480V?

No, it does not.

Can the automatic transfer switch work with other solar generators?

Yes. It can work with other brands of solar powered or battery powered generators as long as the output voltage and current are within the specifications of the automatic transfer switch.

Can the automatic transfer switch work with gas generators?

Yes. It also works with fuel powered generators as long as the output voltage and current are within the specifications of the automatic transfer switch. Either this automatic transfer switch needs to be installed outdoors or an outdoor inlet box is required since the gas generator must be outdoors.

Does the automatic transfer switch recharge the solar generator?

No. It does not recharge the solar generator. The automatic transfer switch only connects to the output port of the solar generator.

Does the automatic transfer switch start the gas generator automatically?

No. It does not auto start the gas generator.

What type of power sources are usually connected to the automatic transfer switch?

The main function of the automatic transfer switch is to switch between the main power source and the backup power source. It can connect between the grid and the generator, or between two generators or even between two grids.

Why does the automatic transfer switch also control the neutral line?

We understood some other brands of automatic transfer switch do not control the neutral line. Nature’s Generator believes safety is of paramount importance and decided to control the neutral line as well.

Can I use it off the grid like in cabin or RV or tiny house?

Yes. It can be used to manage the power sources from two generators or manage the power sources between the generator and the temporary shore power.

How many circuits can be installed in the automatic transfer switch?

You can install up to 24 circuits by using tandem breakers for 50A model and 16 circuits for 30A model.

What type of breakers can I install in the automatic transfer switch?

You can install one inch standard, tandem, GFCI, AFCI breakers from Simens/Murray, Eaton, GE, Square D/Schneider, Noark and other listed suppliers.

Do I need to bond the neutral bar and ground bar?

It depends. You need to follow the proper electrical code to decide bonding or not.

Does automatic transfer switch work same as the UPS (uninterrupted power supply)?

Similar, but not exactly. The automatic transfer switch usually operates slower than the UPS.

Product Documents:

Natures Generator 50A Automatic Generator Transfer Switch User Manual

download
Download Now >
