Epoch Batteries 48V 105Ah Golf Cart LiFePO4 Battery Complete Kit - Off Grid Stores
by Epoch Batteries

Epoch Batteries 48V 105Ah Golf Cart LiFePO4 Battery Complete Kit

SKU: BB51105A-Kit
$0.00 - $0.00
$0.00
$2,299.00
$2,299.00 - $2,299.00
$2,299.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Configuration Club Car Precedent

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

11-Year Limited Warranty

Off Grid Stores is an authorized retailer of Epoch Batteries products. Because of this, we pass on Epoch Batteries's manufacturer warranty to you.

Product Highlights
  • 48V 105Ah Complete Golf Cart Conversion Kit: One 51.2V (48V class), 105Ah, 5.38kWh LiFePO4 battery replaces a full bank of 8V or 12V lead-acid batteries in compatible 48V golf carts. Epoch estimates 35 to 45+ miles per charge for many standard carts; range depends on terrain, load, lift kits, controller tuning and driving style.
  • What's in the Kit: A 48V 15A waterproof lithium charger (AC input 85–265V) with a 10 ft heavy-duty extension cord, a digital Bluetooth battery gauge, a 6 ft remote on/off power switch with wiring harness, a 48V to 12V step-down converter rated 25A for 12V lights, radios and USB outlets, a cart-specific charge port plug that replaces the factory charging receptacle, cart-specific mounting brackets for Club Car Precedent, EZGO RXV, EZGO TXT, Yamaha 2007–2010, Yamaha 2011+ or Other, and free access to the Epoch Li-Ion app. Club Car DS carts: use the 48V 105Ah MINI kit.
  • 200A Continuous, 700A Peak: 200A continuous discharge, 300A for up to 15 seconds and 700A for up to 2 seconds for acceleration, hills and upgraded controllers. Keep the controller's current settings within these ratings, and size conductors and overcurrent protection to the 200A continuous rating.
  • Regen-Ready Charging: Accepts 100A continuous charge current and up to 300A for up to 15 seconds of regenerative braking current. The included 48V 15A charger charges the battery from empty in about 7 hours; Club Car carts with an On-Board Computer (OBC) may need an OBC bypass.
  • Digital Gauge, App & OTA Updates: The included dash-mounted digital gauge shows state of charge from 0 to 100%, voltage, current and temperature, and the built-in Bluetooth module connects to the free Epoch Li-Ion app (iOS and Android) to show state of charge, voltage, current, temperature, battery health and warnings. Firmware can be updated over the air (OTA) through the app.
  • IP67 Enclosure & Advanced BMS: Dust-tight and protected against temporary immersion to 1 m for 30 minutes; do not submerge or pressure-wash the battery. The BMS provides over-voltage, under-voltage, over-current, short-circuit and temperature protection, cell balancing and a low-charge warning.
  • Temperature & Bank Limits: Charges from 0°C to 55°C (32°F to 131°F) with no internal heater, and discharges from −10°C to 55°C (14°F to 131°F). Up to 2 batteries in parallel (210Ah); series connection is not supported.
  • 3,500+ Cycle Life, No Watering: Rated for 3,500+ cycles, with no watering or acid service; routine inspections of the terminals, cables and mounting keep it operating safely.
  • 11-Year Limited Warranty: 5 years of free repair or replacement, then 40% off MSRP on a replacement battery through Year 11. Covers defects in materials and workmanship under normal use; the full terms are at epochbatteries.com/pages/11-year-warranty. Register within 90 days or keep your proof of purchase.
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Epoch Batteries 48V 105Ah Golf Cart LiFePO4 Battery Complete Kit

Epoch Batteries 48V 105Ah Golf Cart LiFePO4 Battery Complete Kit

Complete 48V lithium golf cart conversion

Epoch 48V 105Ah Lithium Golf Cart Battery Complete Kit

A complete 48V golf cart lithium conversion kit: the battery, a 48V 15A lithium charger with a 10 ft heavy-duty extension cord, a digital Bluetooth battery gauge, a 6 ft remote on/off power switch, a 48V to 12V step-down converter, a cart-specific charge port plug, cart-specific mounting brackets and free Bluetooth app access.

The Epoch 48V 105Ah lithium golf cart battery complete kit (model BB51105A-Kit, Big Box Series) converts a compatible 48V golf cart from lead-acid to lithium without sourcing every part separately. One 51.2V (48V class), 105Ah, 5.38kWh LiFePO4 battery replaces a full bank of 8V or 12V lead-acid batteries. The kit adds a 48V 15A waterproof lithium charger with a 10 ft heavy-duty extension cord, a digital Bluetooth battery gauge that reads state of charge from 0 to 100%, a 6 ft remote on/off power switch with wiring harness, a 48V to 12V step-down converter rated 25A, a cart-specific charge port plug to replace the factory charging receptacle, mounting brackets for your cart configuration (Club Car Precedent, EZGO RXV, EZGO TXT, Yamaha 2007–2010, Yamaha 2011+ or Other) and free access to the Epoch Li-Ion app.

51.2V
Nominal (48V class)
105Ah
Capacity
5.38kWh
Stored energy
200A
Continuous discharge
700A
2-second peak
100A
Continuous charge
IP67
Waterproof
11-year
Limited warranty
Club Car DS fitment note

Club Car DS carts: use the 48V 105Ah MINI Golf Cart Battery Complete Kit, which has a Club Car DS configuration. This full-size kit fits Club Car Precedent and Onward carts.

A Complete Lithium Conversion for 48V Carts

Replace a lead-acid bank with one LiFePO4 golf cart battery.

This kit replaces a full bank of 8V or 12V lead-acid batteries with a single 51.2V (48V class) 105Ah LiFePO4 battery. The result is one battery instead of a bank, and no watering or acid service; routine inspections of the terminals, cables and mounting still keep it operating safely.

With 200A continuous discharge, 300A for up to 15 seconds and 700A for up to 2 seconds, it supports acceleration, hills and upgraded controllers and motors whose current demand fits the battery ratings. Before installing, confirm your cart is a compatible 48V platform and check tray fitment, terminal clearance, cable size, overcurrent protection and the controller's current settings.

One 99 lb Battery for the Whole BankA single 99 lb (45 kg) battery takes the place of a full bank of 8V or 12V lead-acid batteries, secured with the cart-specific brackets in the kit. No watering, no acid service.
Estimated 35–45+ Miles per ChargeEpoch estimates 35 to 45+ miles per charge for many standard carts. Range depends on terrain, passenger weight, tire size, lift kits, controller tuning, motor condition, speed and driving style; modified carts and steep terrain reduce range.

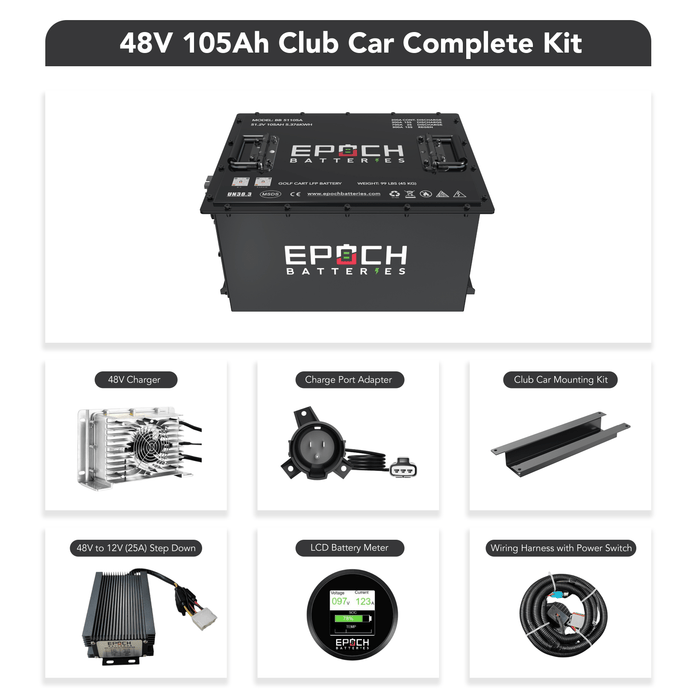

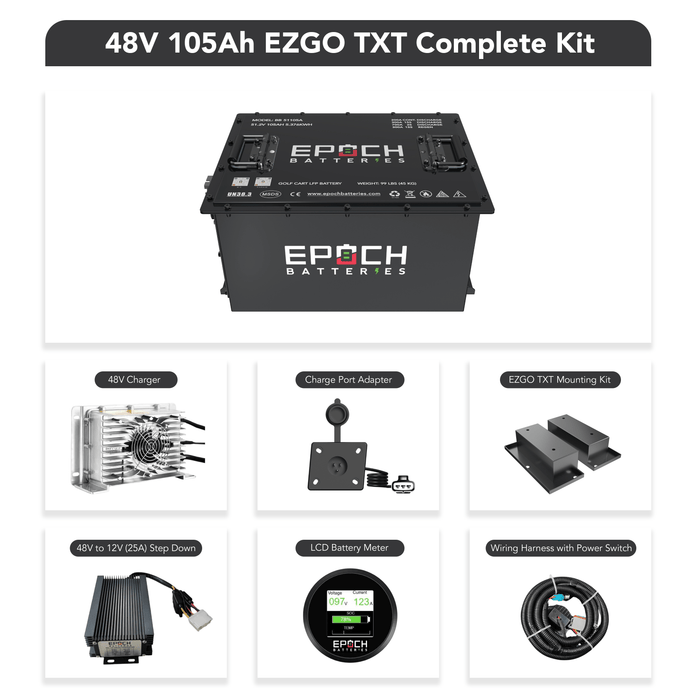

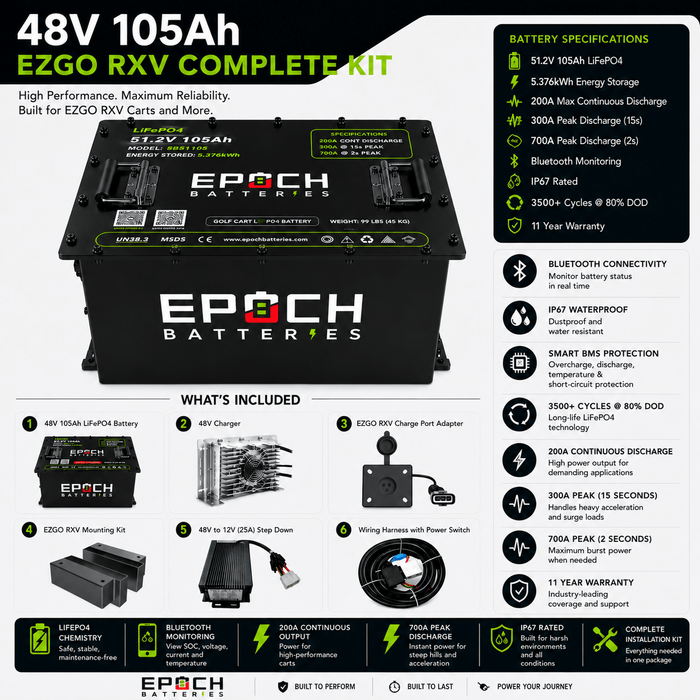

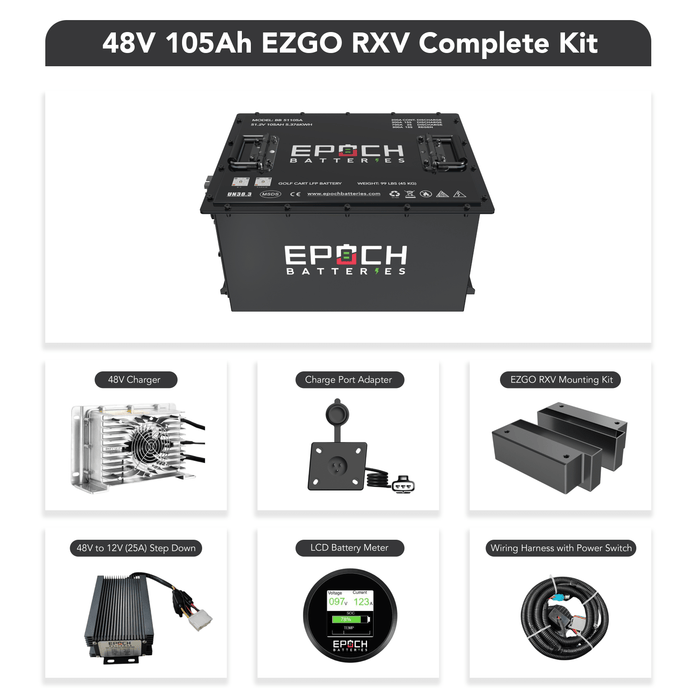

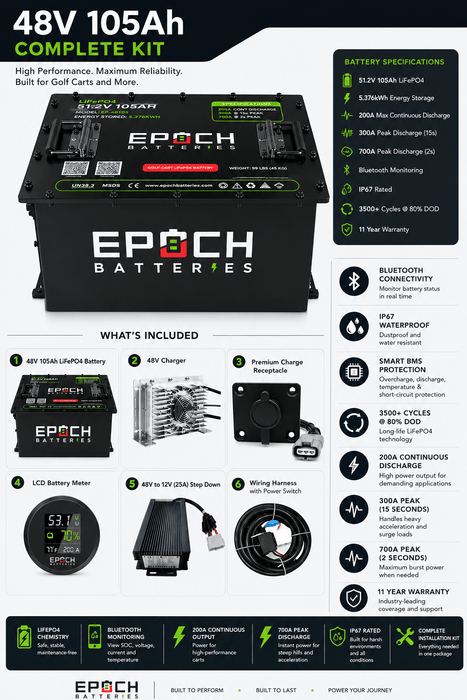

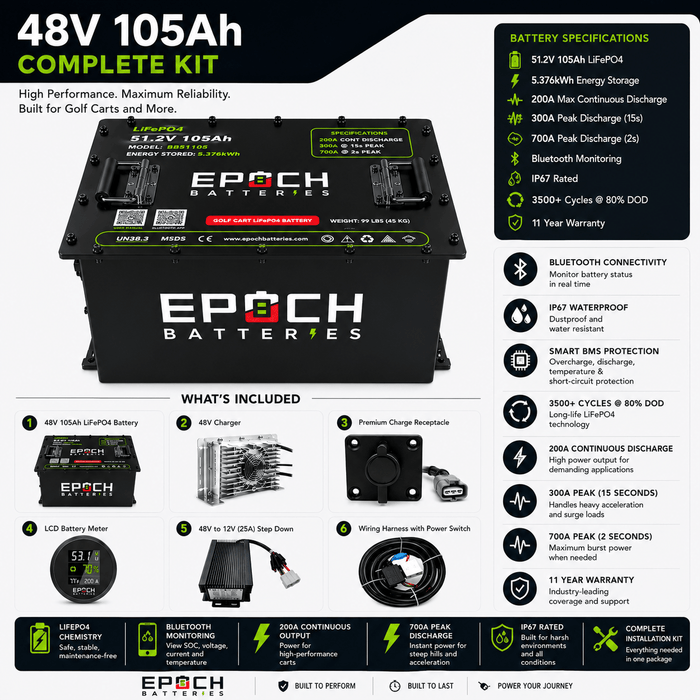

What's in the Box

The core conversion components in one kit.

Instead of sourcing a battery, charger, extension cord, gauge, remote switch, converter, charge port and brackets separately, the kit brings the main conversion components together. The listed kit contents do not include a main fuse or DC-rated breaker: install one selected for the wire, load and system voltage, as close as practical to the battery positive terminal, and make sure the cables and lugs are sized for your installation.

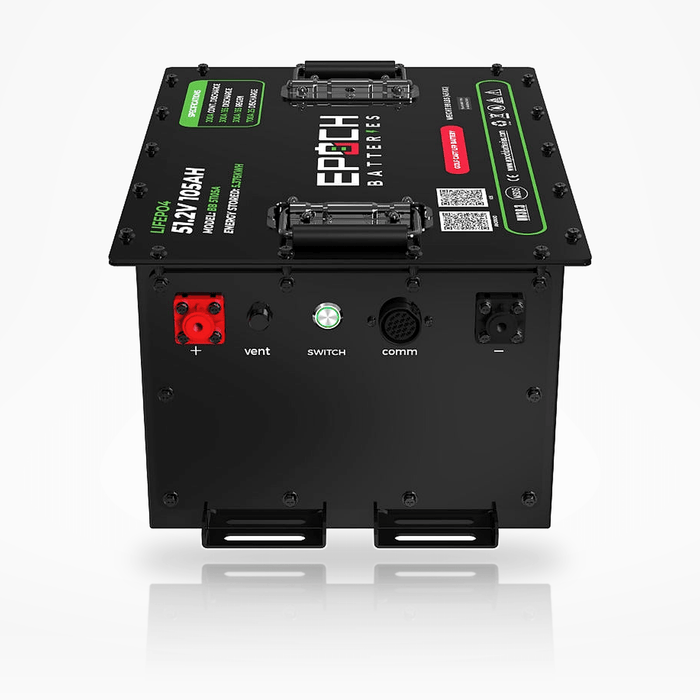

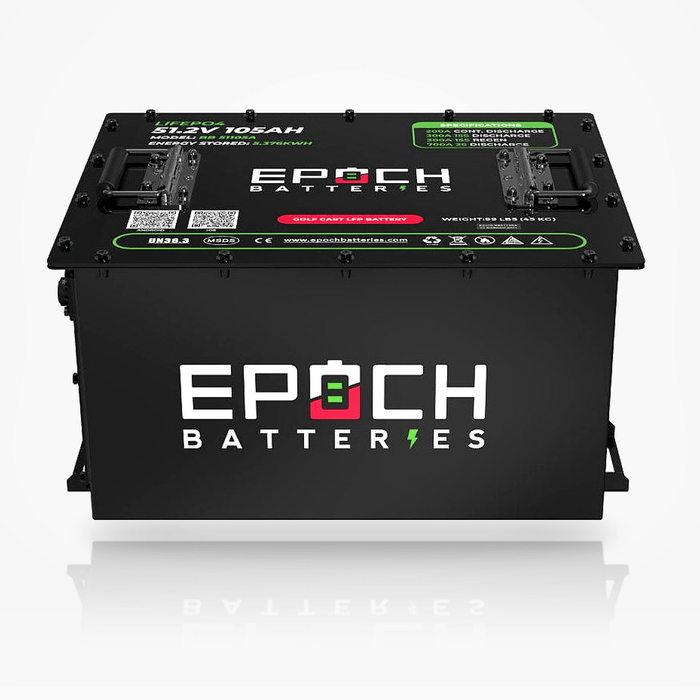

48V 105Ah LiFePO4 battery51.2V (48V class), 105Ah and 5.38kWh (5,376Wh) of nominal stored energy from 16 prismatic LiFePO4 cells in series (16S1P). Stainless-steel IP67 case, 18.1 × 13.4 × 9.8 in (460 × 340 × 250 mm), 99 lb (45 kg), with built-in Bluetooth and BMS. Front panel: positive terminal, vent, on/off switch, communication port and negative terminal.

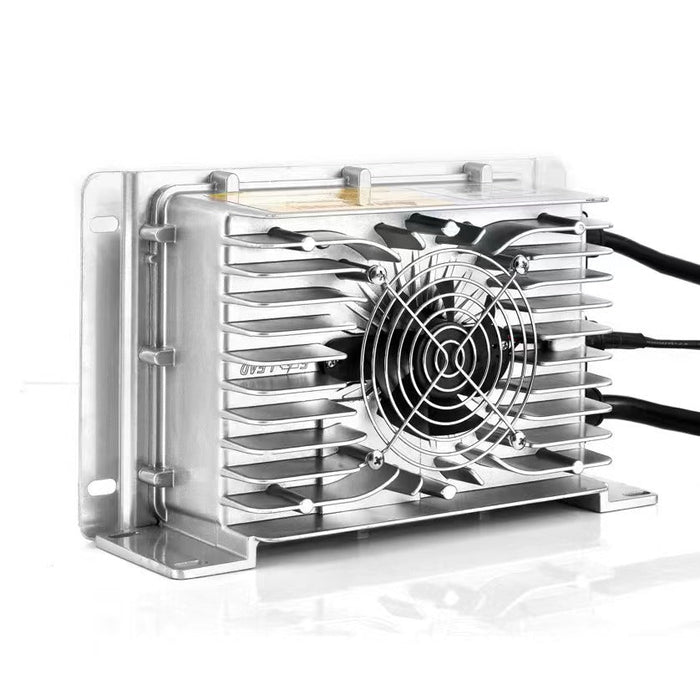

48V 15A waterproof lithium chargerA LiFePO4 charger (AC input 85–265V) that charges the battery from empty in about 7 hours. It installs in the battery compartment and connects to the battery terminals, in place of the cart's original lead-acid charger.
10 ft heavy-duty extension cordIncluded with the charger. Plug it into the cart's charge port and a standard 120V AC outlet to charge from outside the cart.

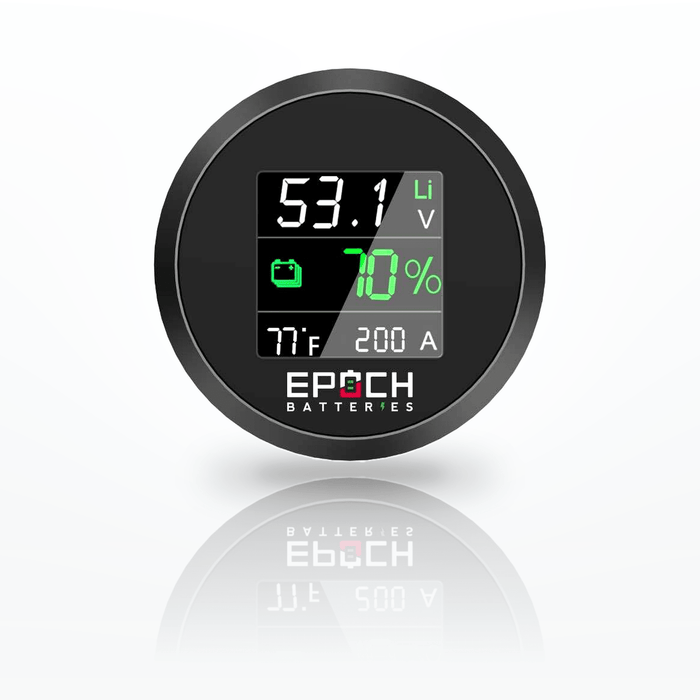

Digital Bluetooth battery gaugeMounts on the dashboard. Its digital display shows the state of charge from 0 to 100%, battery voltage, current and temperature, and shows warnings when the BMS raises an alarm.
6 ft remote on/off power switch and wiring harnessThe on/off switch (with LED) mounts on the dashboard, so you can turn the battery on and off from the driver's seat. The 6 ft harness connects the battery communication port, charger, switch and gauge; its CAN connector is for manufacturer or dealer BMS updates and does not need to be connected. For stretched, 6-passenger or custom carts that need more reach, the 13 ft Extended Harness for LiMAX Big Box is sold separately.

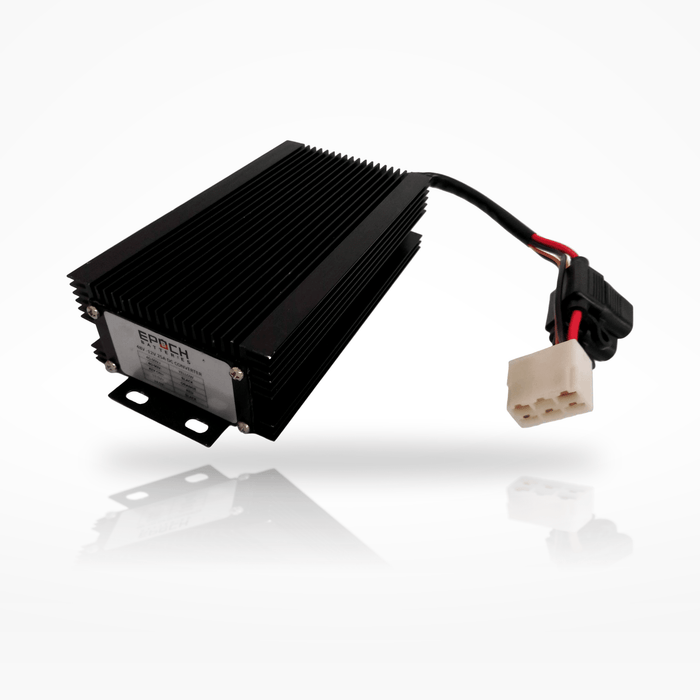

48V to 12V step-down converter (25A)Powers 12V headlights, light bars, radios and USB outlets from the 48V battery with a regulated supply: input 40–90V, output 13.5V. Keep the total 12V accessory load within its 25A rating.
Cart-specific charge port plugA 110V/120V AC charger receptacle that replaces the cart's factory lead-acid charging port, matched to your configuration, such as the Club Car Precedent, EZGO TXT & RXV, Yamaha Drive 2007–2010 and Yamaha Drive & Drive2 2011+ port plugs. It passes AC power to the included onboard lithium charger, so you charge from outside the cart with the included 10 ft extension cord. Replacing the original receptacle is required for safety.
Cart-specific mounting bracketsBrackets for your configuration (Club Car Precedent, EZGO RXV, EZGO TXT, Yamaha 2007–2010, Yamaha 2011+ or Other) fasten in the compartment as the base, and the battery fastens to them.

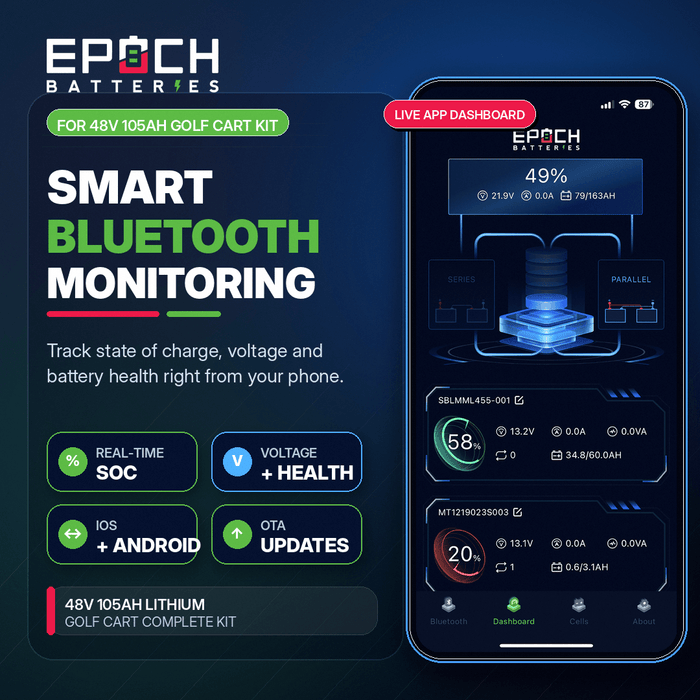

Free Epoch Li-Ion app accessFree for iOS and Android. The app connects to the battery's built-in Bluetooth to show state of charge, voltage, current, temperature, battery health and warnings on your phone, and installs firmware updates over the air (OTA).

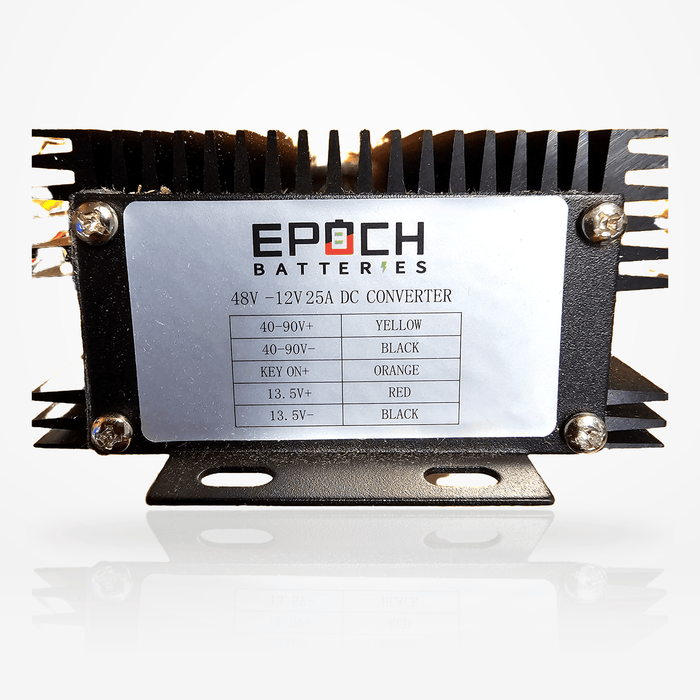

12V converter wiring (from the converter label)
Yellow · 40–90V+ Input positive, from the 48V system
Black · 40–90V− Input negative, from the 48V system
Orange · KEY ON+ Key-switch (enable) input
Red · 13.5V+ Output positive, to 12V accessories
Black · 13.5V− Output negative, to 12V accessories

Two converter wires are black: confirm the input negative and the output negative before connecting, since reversing them can damage the converter or the accessories. Turn the battery off and disconnect the charger before wiring the converter. The label does not specify the key-on source, fusing or connector pinout; follow the kit instructions or have a qualified installer confirm them for your cart.

48V Cart Compatibility

EZGO, Club Car Precedent and Onward, Yamaha, ICON and other compatible 48V carts.

  • ✓ EZGO TXT and RXV.
  • ✓ Club Car Precedent and Onward, using the full-size configuration.
  • ✓ Club Car DS carts: use the 48V 105Ah MINI Golf Cart Battery Complete Kit.
  • ✓ Yamaha 48V carts, with 2007–2010 and 2011+ configurations.
  • ✓ ICON, Bintelli, Evolution, Kandi, Epic and other compatible 48V platforms.
  • ✓ Neighborhood electric vehicles, utility vehicles, and commercial fleet and specialty 48V power systems.
  • ✓ Lifted carts with 12V lights and accessories powered through the included converter.
  • ✓ Upgraded controllers and motors whose continuous and peak current demand fits the battery ratings.

Kit features

High-current LiFePO4 power with included conversion components.

105Ah and 5.38kWhOne 51.2V LiFePO4 battery with 105Ah and 5.38kWh (5,376Wh) of nominal stored energy.
Complete conversion kitBattery, 48V 15A lithium charger with 10 ft extension cord, digital Bluetooth gauge, 6 ft remote on/off switch, 48V to 12V converter, cart-specific charge port plug and brackets in one box, plus free app access.
200A continuous dischargeFor acceleration, hills and upgraded controllers. Size conductors and overcurrent protection to the 200A continuous rating.
700A peak discharge300A for up to 15 seconds and 700A for up to 2 seconds, for short bursts only.
Regen-ready charging100A continuous charge, and up to 300A for up to 15 seconds of regenerative braking current.
Included 15A lithium charger48V 15A waterproof charger with a LiFePO4 profile and a 10 ft heavy-duty extension cord; AC input 85–265V; about 7 hours from empty.
Included 12V converterRated 25A with a regulated 13.5V output for 12V lights, radios and USB outlets.
Digital gauge, app and OTAThe included digital gauge shows state of charge (0–100%), voltage, current and temperature on the dash; the free Epoch Li-Ion app (iOS and Android) shows battery status on your phone and updates the firmware over the air.
Cart-specific bracketsBrackets for your cart configuration secure the 99 lb (45 kg) battery in the battery compartment.
IP67 enclosureDust-tight and protected against temporary immersion to 1 m for 30 minutes (IEC 60529). Do not submerge or pressure-wash the battery.
Advanced BMSOver-voltage, under-voltage, over-current, short-circuit and temperature protection, with cell balancing and a low-charge warning.
3,500+ cycle lifeRated for 3,500+ charge–discharge cycles.
No watering or acid serviceMaintenance-free compared with lead-acid; routine inspections keep it operating safely.
11-year limited warranty5 years of free repair or replacement, then 40% off MSRP on a replacement battery through Year 11.

Why upgrade your golf cart to lithium?

One battery instead of a bank, and no watering or acid service.

LiFePO4 (lithium iron phosphate) is a lithium-ion chemistry valued for thermal stability and long cycle life. Its voltage stays nearly flat across most of the discharge, and the battery needs no watering or acid service, only routine inspections.

Charging and everyday use

How the included charger, gauge and on/off switch work day to day.

  • ✓ Charge with the included 48V 15A lithium charger: plug the included 10 ft heavy-duty extension cord into the cart's charge port and a standard 120V AC outlet. Lead-acid chargers use different profiles and will not properly charge or balance a LiFePO4 battery. Club Car carts with an On-Board Computer (OBC) may need an OBC bypass.
  • ✓ Charge after each day's use, or at least once a week with occasional use, and avoid letting the state of charge fall below 20%.
  • ✓ The battery charges whether its on/off switch is on or off. When it is full, the state of charge resets to 100% and the gauge reads 100%. If the charger stays connected, it restarts when the lowest cell falls below 3.34V (about 95% SOC).
  • ✓ Disconnect the charger once the battery is full, and turn the battery off when the cart is not in use.
  • ✓ There is no internal heater: the BMS blocks charging outside 0°C to 55°C (32°F to 131°F), so let a cold battery warm above freezing before charging.
  • ✓ On/off: press the 6 ft remote on/off switch on the harness once to turn the battery on (the switch LED and gauge light up) and again to turn it off. The battery is on when either the switch on the case or the switch on the harness is on; to turn it off, both switches must be off.
  • ✓ Automatic shutdown: with no discharge, the battery turns off after 7 days above 20% SOC, or after 24 hours at or below 20% SOC. Press the on/off switch twice to restart.
  • ✓ Low-charge warning: below 20% SOC, the buzzer sounds and the gauge shows a warning. Charge as soon as possible.
  • ✓ Power-down recovery: if any cell falls below 2.2V or the pack to about 38V, switch the battery on, then connect the charger immediately.
  • ✓ Long-term storage: keep the state of charge between 60% and 90%, turn the battery off and store it dry at 10–35°C (50–95°F) where practical. Check the state of charge at least every 3 months and recharge as needed.

Installation and safety

Verify your cart and configuration before installation.

Only authorized mechanics or technicians should install the battery. Confirm your cart is a compatible 48V platform and verify tray fitment (the 18.1 × 13.4 × 9.8 in case plus cable clearance), bracket configuration, the controller's continuous and peak current settings, cable routing, OBC requirements, accessory wiring and charger installation. Club Car DS owners should use the Mini kit linked above.

  1. Turn off the cart and all accessories, disconnect the cables safely and remove the original lead-acid batteries.
  2. Fasten the cart-specific bracket in the compartment as the base, and install the charger in the compartment.
  3. Replace the cart's original charging receptacle with the included cart-specific charge port plug; this step is required for safety.
  4. Mount the digital gauge and the remote on/off switch on the dashboard, and route the 6 ft wiring harness. For stretched, 6-passenger or custom carts that need more reach, use the 13 ft Extended Harness for LiMAX Big Box (sold separately).
  5. Set the battery in the compartment and fasten it to the bracket base.
  6. Connect the battery terminals to the charger's leads and to the cart's positive and negative cables, observing polarity.
  7. Connect the harness to the battery communication port, on/off switch, gauge and charger; switch on and confirm the gauge shows the state of charge. If it is low, charge before first use.
  • ✓ Install a main fuse or DC-rated breaker as close as practical to the battery positive terminal. The internal BMS does not replace external overcurrent protection for the wiring.
  • ✓ Size loads, conductors and overcurrent protection to the 200A continuous rating; the 300A and 700A ratings apply for up to 15 and 2 seconds only.
  • ✓ Deep-cycle battery, not cranking-rated.
  • ✓ Install the battery upright, secured with the supplied brackets, and keep the vent clear; allow extra space for terminal hardware, cable bend radius and service removal. Damage from an unsecured or improperly secured battery is excluded from warranty coverage.
  • ✓ Battery banks: parallel only, up to 2 matched BB51105A-Kit batteries of similar age, condition and firmware, at the same state of charge. Never connect in series, and never mix with lead-acid batteries or other models.
  • ✓ IP67 covers dust and temporary immersion only (1 m, 30 min). Keep the communication port and harness connectors sealed, and inspect the battery after any immersion.
  • ✓ Never connect the terminals together or let tools or jewelry bridge them. Stop using the battery if it is swollen, leaking, smoking, unusually hot or damaged, and follow the Safety Data Sheet (SDS) listed under Downloadable resources.
  • ✓ Register the battery within 90 days, or keep your proof of purchase, to confirm your coverage start date.

Specifications:

Epoch Batteries 48V 105Ah Golf Cart LiFePO4 Battery Complete Kit
Electrical Specifications
Nominal voltage 51.2 V (48 V class)
Capacity 105 Ah
Stored energy 5.38 kWh (5,376 Wh)
Operating voltage 40–58.4 V
Max charge voltage 58.4 V
Cycle life 3,500+ cycles
Current Ratings
Continuous discharge 200 A
Peak discharge 300 A for up to 15 seconds; 700 A for up to 2 seconds
Continuous charge 100 A
Charge Settings (LiFePO4)
Charger 48 V 15 A waterproof lithium charger
AC input 85–265 V
Charge time About 7 hours from empty with the included charger
Charger restart When the lowest cell falls below 3.34 V (about 95% SOC)
Temperature
Charge 32 °F to 131 °F
Discharge 14 °F to 131 °F
Storage (recommended) 32 °F to 95 °F; up to 12 months
Mechanical Specifications
Dimensions (L × W × H) 18.1 in × 13.4 in × 9.8 in
Weight 99 lb (45 kg)
Enclosure IP67 per IEC 60529
System and Compliance
Bank limits Parallel only; maximum 2 batteries in parallel;
no series connection
Monitoring Yes — Epoch Li-Ion app (iOS and Android)

Frequently Asked Questions

Will this complete kit fit my specific golf cart?

This full-size kit comes in bracket configurations for Club Car Precedent, EZGO RXV, EZGO TXT, Yamaha 2007–2010 and Yamaha 2011+, and in an Other configuration for other compatible 48V carts. Compatible carts include EZGO TXT and RXV, Club Car Precedent and Onward (full-size configuration), Yamaha 48V carts, and ICON, Bintelli, Evolution, Kandi, Epic and other compatible 48V platforms. For Club Car DS carts, use the 48V 105Ah MINI Golf Cart Battery Complete Kit. The battery case is 18.1 × 13.4 × 9.8 in (460 × 340 × 250 mm); always confirm tray fitment and cable clearance, cable routing and your controller's current settings before installation.

Which kit should I choose for a Club Car DS?

Use the 48V 105Ah MINI Golf Cart Battery Complete Kit, which has a Club Car DS configuration.

What comes in the box?

The 48V 105Ah LiFePO4 battery, a 48V 15A waterproof lithium charger with a 10 ft heavy-duty extension cord, a digital Bluetooth battery gauge, a 6 ft remote on/off power switch with wiring harness, a 48V to 12V step-down converter (25A), a cart-specific charge port plug that replaces the factory charging receptacle, cart-specific mounting brackets and free access to the Epoch Li-Ion app. The listed kit contents do not include a main fuse or DC-rated breaker; install one close to the battery positive terminal.

Can I still use my old lead-acid golf cart charger?

No. Lead-acid chargers use different charging profiles and will not properly charge or balance a LiFePO4 battery. The kit includes a 48V 15A waterproof lithium charger; Club Car carts with an On-Board Computer (OBC) may need an OBC bypass. Never use lead-acid equalization, desulfation or repair modes on this battery.

How long does it take to charge?

About 7 hours from empty with the included 48V 15A charger. Charge after each day's use, or at least once a week with occasional use.

How do I plug in to charge?

Through the included cart-specific charge port plug, which replaces the factory charging receptacle. Plug the 10 ft heavy-duty extension cord that comes with the charger into the port and a standard 120V AC outlet; the port passes AC power to the onboard 48V 15A lithium charger. The charger, not the port plug, sets the LiFePO4 charge profile.

What does the digital gauge show?

The dash-mounted digital gauge shows the state of charge from 0 to 100%, battery voltage, current and temperature, and shows warnings when the BMS raises an alarm. The kit also includes free access to the Epoch Li-Ion app for iOS and Android, which connects over Bluetooth to show battery status on your phone and install firmware updates over the air.

Will the remote on/off switch reach the dash on a stretched cart?

The included remote on/off power switch comes on a 6 ft harness, which suits standard 2-passenger and many 4-passenger carts. For stretched, 6-passenger or custom carts, where the battery sits farther from the dash, add the 13 ft Extended Harness for LiMAX Big Box (sold separately). Route the harness along protected frame paths and do not splice or daisy-chain it.

How do I power my 12V headlights and radio with a 48V battery?

Through the included 48V to 12V step-down converter, so 12V headlights, light bars, radios and USB outlets receive a regulated supply (its label marks the output 13.5V). The converter is rated 25A, so keep the total 12V accessory load within 25A. Two of its wires are black, input and output negative: confirm which is which before connecting.

Do I need to bypass the OBC on my Club Car?

If your Club Car uses an older On-Board Computer (OBC) to control the original lead-acid charger, an OBC bypass may be required so the included lithium charger can charge the battery directly. Check your exact model and follow the kit instructions or a qualified installer's guidance.

What is the estimated range of the 105Ah battery?

Epoch estimates 35 to 45+ miles per charge for many standard carts. Range depends on terrain, passenger weight, tire size, lift kits, controller tuning, motor condition, speed and driving style; modified carts and steep terrain reduce range.

Can this battery handle upgraded aftermarket motors and controllers?

Yes, when the controller's current demand fits the battery ratings: 200A continuous, 300A for up to 15 seconds and 700A for up to 2 seconds. Check the controller's continuous and peak current settings, especially on upgraded or tuned controllers, and keep them within these ratings. Regenerative braking can return up to 300A for 15 seconds; the continuous charge limit is 100A.

Can I charge it in freezing weather?

Not below freezing. The battery has no internal heater, and the BMS blocks charging outside 0°C to 55°C (32°F to 131°F). Let a cold battery warm above freezing before charging. It discharges from −10°C to 55°C (14°F to 131°F).

Is the battery waterproof?

It is rated IP67 per IEC 60529: dust-tight and protected against temporary immersion up to 1 m for 30 minutes. Do not submerge, pressure-wash or leave it in standing water, and inspect the battery and connectors after any immersion.

Can I connect two batteries together?

Up to 2 BB51105A-Kit batteries can be connected in parallel (210Ah, 10.75kWh at 51.2V). Series connection is not supported. Use matched batteries of similar age, condition and firmware, charge each fully first, and never mix them with lead-acid batteries or other models.

Do I need to add water to this battery or winterize it?

No watering: the battery needs no watering or acid service, though routine inspections keep it operating safely (check the terminals, cables, fuses and mounting before use, and terminal tightness monthly). For off-season storage, keep the state of charge between 60% and 90%, turn the battery off and store it dry at 10–35°C (50–95°F) where practical, checking the state of charge at least every 3 months. The warranty excludes batteries left uncharged for more than three months.

What does the buzzer or a WARNING code on the gauge mean?

The BMS reports alarms and protection events on the gauge, with the buzzer and in the app. If the buzzer sounds while driving, slow down or stop and check the battery; otherwise BMS protection may shut it down. For low-voltage or low-charge warnings, stop and charge the battery. For temperature warnings, stop and let the battery return to its operating range. For over-current warnings, reduce the load and check the controller's current settings. For detection faults, MOSFET faults or a persistent cell-unbalance alarm, stop using the battery and contact Epoch support.

Why did my battery turn off by itself?

Above 20% state of charge, the battery shuts down after 7 days without discharge; at or below 20%, after 24 hours. Press the on/off switch twice to restart: once to reset the switch and once to turn the battery on.

Product Documents:

Epoch Batteries 48V 105Ah Golf Cart LiFePO4 Battery Complete Kit User Manual

download
Download Now >

Epoch Batteries 48V 105Ah Golf Cart LiFePO4 Battery Complete Kit Specification Sheet

download
Download Now >
OTP graphic
OTP graphic
