Epoch Batteries 48V 100Ah (5.12kWh) V2-T Elite Series LiFePO4 Battery - Off Grid Stores
by Epoch Batteries

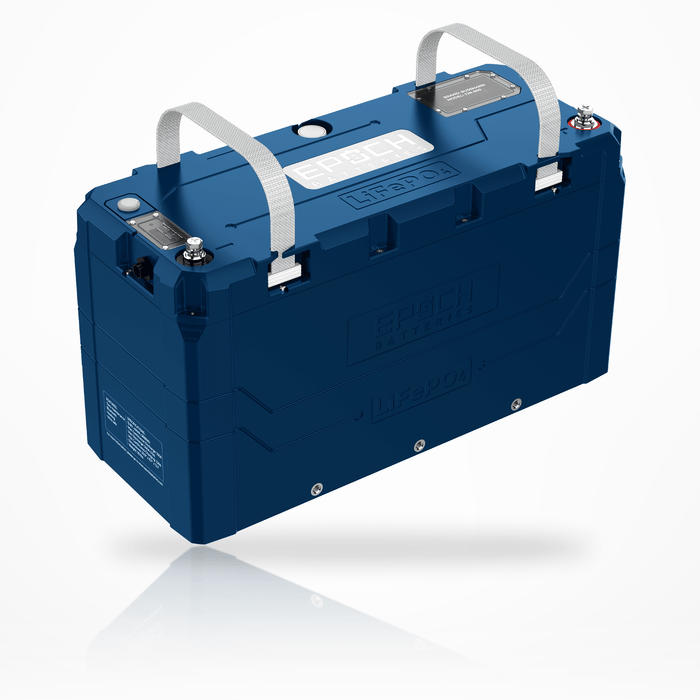

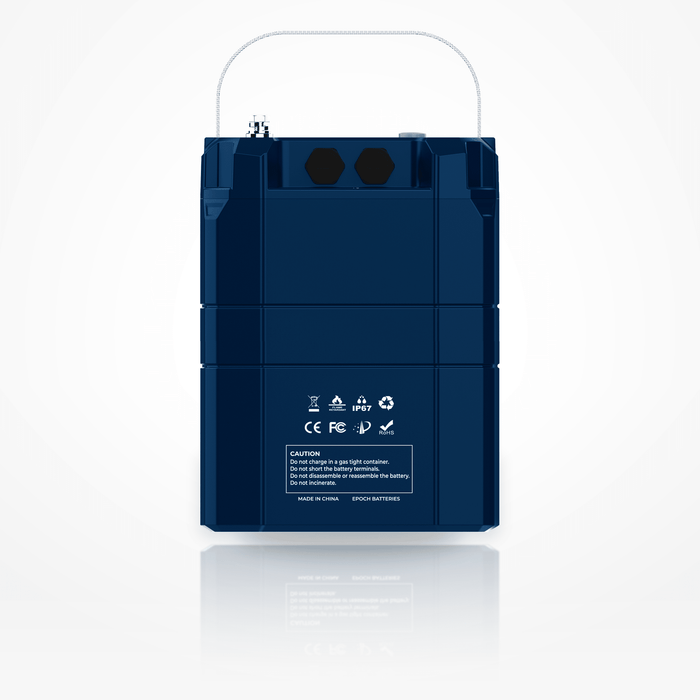

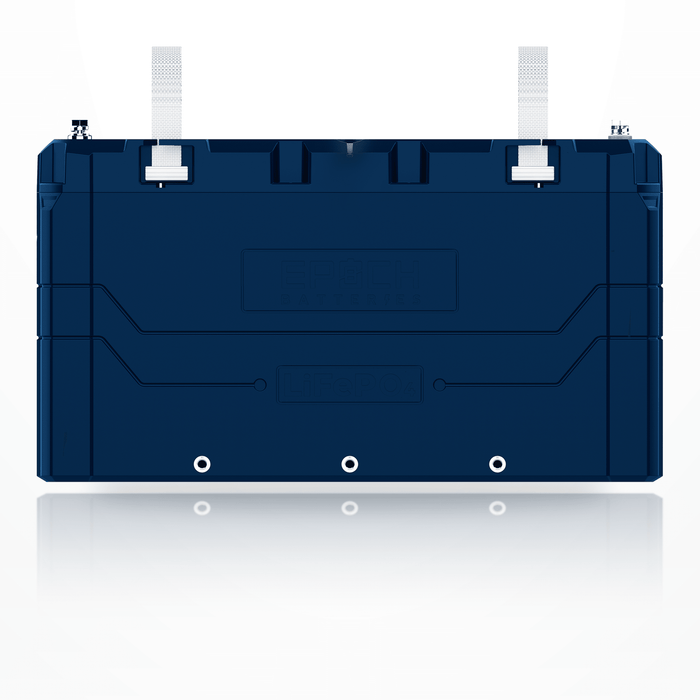

Epoch Batteries 48V 100Ah (5.12kWh) V2-T Elite Series LiFePO4 Battery

SKU: C48100A-A
$2,599.00 - $2,599.00
$2,599.00
$2,599.00 - $2,599.00
$2,599.00
Availability:
in stock

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

11-Year Limited Warranty

Off Grid Stores is an authorized retailer of Epoch Batteries products. Because of this, we pass on Epoch Batteries's manufacturer warranty to you.

Product Highlights
  • 48V 100Ah V2-T Elite Series LiFePO4 Battery (5.12kWh): 51.2V nominal, 100Ah and 5,120Wh (5.12kWh) of nominal stored energy in one case, for native 48V off-grid solar, marine, RV and backup power systems; plan runtime on about 4,096Wh. A deep-cycle battery for house power and energy storage, not engine starting.
  • User-Serviceable 250A Class T Fuse: A 250A Eaton Class T fuse behind a sealed top service panel improves source protection at the battery. It does not replace the main disconnect, downstream protection or cable sizing: install a DC-rated fuse or circuit breaker in the positive conductor, as close to the battery as practical.
  • Native VICTRON Communications: CAN bus at 500 kbit/s to a compatible Victron GX device (Cerbo GX, Ekrano GX or Cerbo GX Mk2). The battery reports its status, and with DVCC on it sets the charge voltage and current limits of Victron chargers. The communication harness is included; set the DIP switches and GX settings per the manual.
  • Elite Performance Specifications: 150A maximum continuous discharge, about 7,680W DC at 51.2V before inverter losses, and 300A for 30 seconds for surges. 100A maximum continuous charge from all sources combined, with up to 300A for 10 seconds. If an inverter's continuous DC input can exceed 150A, add batteries in parallel.

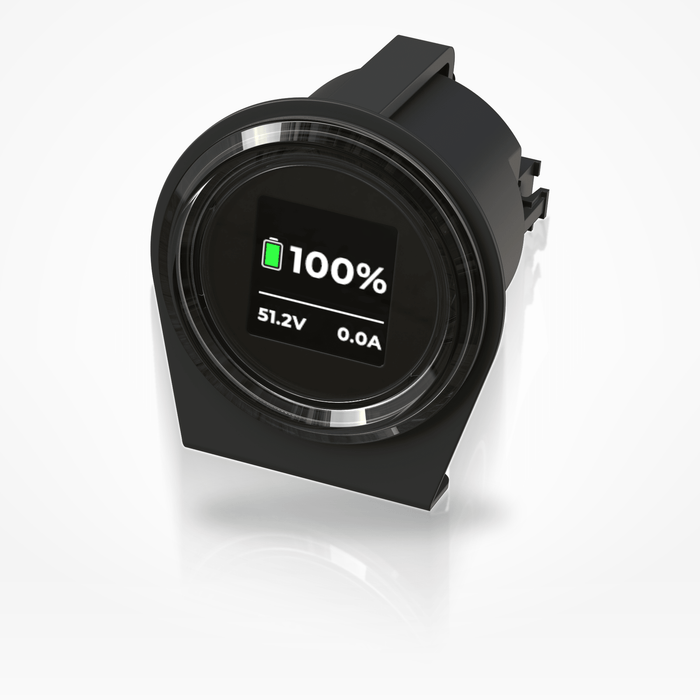

  • BLUETOOTH Monitoring: Bluetooth through the included battery gauge, which shows state of charge, voltage and current. The free Epoch Cloud app (iOS and Android) shows state of charge, voltage, current, temperature, cycles and alerts for each battery and the bank. A mountable external power button is included.
  • HEATED For Cold Climates: LiFePO4 cells must not be charged below 0°C (32°F). When the battery is too cold to accept charge, the BMS uses incoming charge current to power the internal heating pads first, then allows normal charging once the cells reach a safe temperature. Charging is supported down to -30°C (-22°F) ambient when charge current is available; discharge works down to -20°C (-4°F).
  • IP67 Rated Enclosure: Dust-tight and protected against temporary immersion in up to 1m of water for 30 minutes, with all seals and glands installed. It is not rated for water jets, pressure washing or continuous submersion: install it where it stays dry in normal use, with all harness connectors fully seated.
  • Dimensions & Fit: 20.86" L x 8.65" W x 12.06" H (529.8 x 219.8 x 306.3 mm; the height includes the terminal posts), 97 lb (approx. 44 kg). Lift with two people and install it upright. Replacing a Group 8D lead-acid battery? Confirm tray fit, hold-down and lid clearance first; the optional Epoch V2 & V2-T mounting bracket (8D, sold separately) fastens to the threaded inserts on the case.
  • Parallel Banks Only: Up to 16 batteries in parallel (1,600Ah, 81.92kWh), using matched C48100A-A batteries of the same age, capacity and state of charge, with the DIP switches set for the bank. The C48100A-A is a native 48V battery: do not connect it in series; series-parallel is not supported either.
  • Advanced Smart BMS & Certified Components: Overcharge, over-discharge, over-current, short-circuit and high/low temperature protection. UL 1642, UL 9540A and IEC 62619:2022 cells; UL 60691 internal fuse; UN 38.3 (transport).
  • 3,500+ Cycle Life & 11-Year Limited Warranty: Rated for 3,500+ cycles (to 70% capacity). Maintenance-free: no watering or equalizing, though regular inspection and 12 N·m terminal torque checks keep the system safe. Backed by an 11-year limited warranty (5 years of free repair or replacement, then 40% off MSRP on a replacement battery through Year 11); register within 90 days or keep your proof of purchase.
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Epoch Batteries 48V 100Ah (5.12kWh) V2-T Elite Series LiFePO4 Battery

Epoch Batteries 48V 100Ah (5.12kWh) V2-T Elite Series LiFePO4 Battery

V2-T Elite Series · Class-T fuse · Victron ready

Epoch 48V 100Ah V2-T Elite Series LiFePO4 Battery | Built-In Fuse, Victron & Bluetooth

The Epoch 48V 100Ah V2-T Elite is a premium 5.12kWh lithium battery built for serious 48V off-grid solar, marine, RV, and backup power systems. It combines a user-serviceable 250A Eaton Class T fuse, native Victron CAN communication, Bluetooth monitoring through the included battery gauge, internal heating and an IP67 enclosure (dust-tight; temporary immersion to 1 m for 30 min) in one rugged high-capacity LiFePO4 platform.

5.12kWh
Stored energy
100Ah
Capacity
150A
Continuous output
250A
Class-T fuse
IP67
Dust-tight, immersion-rated
16P
Parallel expansion

Premium V2-T safety and integration

User-serviceable Class-T fuse 250A Eaton Class T fuse behind a sealed top service panel. Downstream protection is still required.
Victron ready Native CANBus communication supports DVCC and GX device integration.
Heated for cold charging Internal heating supports charging in freezing conditions when charge current is available.
Bluetooth telemetry View SOC, voltage, current flow, temperature, cycles, and alerts in the Epoch Cloud app, through the included battery gauge.
IP67 enclosure Dust-tight; temporary immersion to 1 m for 30 min with all seals and glands installed. Not rated for water jets or pressure washing.
11-year limited warranty 5 years of free repair or replacement, then 40% off MSRP on a replacement battery through Year 11. Register within 90 days or keep your proof of purchase.

Safety: the V2-T Class T fuse

Built for high-current 48V systems that need more than basic lithium storage.

The Epoch 48V 100Ah V2-T Elite Series LiFePO4 battery is engineered for advanced users who need a high-performance 48V 100Ah LiFePO4 battery with smart protections, rugged construction, and ecosystem integration. With 5.12kWh of lithium storage, this V2-T Elite Series battery is an ideal foundation for 48V off-grid solar systems, marine house banks, RV inverter systems, and Victron-powered energy builds.

The major difference is protection and serviceability: the V2-T has a user-serviceable 250A Eaton Class T fuse behind a sealed top service panel, which improves source protection at the battery. A main fuse or DC-rated breaker close to the battery positive, a disconnect and correct cable sizing are still required.

User-serviceable, built-in Class-T fuse

The V2-T places a 250A Eaton Class T fuse behind a sealed top service panel, so a fuse that opens can be replaced without opening the case. It improves source protection at the battery but does not replace the main disconnect, correct downstream protection or cable sizing: install a DC-rated fuse or circuit breaker in the positive conductor as close to the battery as practical, and follow the electrical codes that apply (for boats and RVs, they limit the distance between the battery and the main fuse).

UL-certified components and advanced BMS

The built-in smart BMS helps protect against overcharge, over-discharge, over-current, short circuits, and temperature extremes. The cells are listed to UL 1642, UL 9540A and IEC 62619:2022, the internal fuse to UL 60691, and the battery meets UN 38.3 for transport.

IP67 dust-tight, immersion-rated casing

The IP67 enclosure is dust-tight and protected against temporary immersion to 1 m for 30 minutes with all seals and glands installed. It is not rated for water jets, pressure washing or continuous submersion, so install it where it stays dry in normal use.

Premium smart features and seamless integration

Victron CANBus, Bluetooth app data, and internal heating in one 48V Bluetooth lithium battery.

Native Victron integration via CANBus Connect to compatible Victron GX devices for BMS communication, DVCC, alarms, SOC visibility, and coordinated system control.
Cold-weather ready internal self-heating The BMS uses incoming charge current to warm the cells before charging in freezing conditions, supporting reliable winter operation.
Bluetooth app monitoring Through the included battery gauge, the Epoch Cloud app shows state of charge, voltage, current, temperature, cycles and alerts, without a separate battery monitor.
All-battery dashboard support Monitor large parallel banks from a single app dashboard when the system is configured with matching supported batteries.

Unrelenting power and massive scalability

A premium 5.12kWh lithium battery for high-demand 48V systems.

Power heavy loads 150A continuous output supports properly designed 48V inverter systems, marine equipment, off-grid appliances, and backup-power loads.
300A peak output A 300A 30-second peak discharge rating helps absorb short-duration surge events in compatible systems.
Parallel up to 16 batteries Scale from one 5.12kWh battery to an 81.92kWh energy bank at 48V nominal using matched batteries in parallel.
Designed for long-term ROI LiFePO4 chemistry, 3,500+ cycles, maintenance-free operation, and an 11-year limited warranty support years of daily service.

Compatible applications

48V marine lithium battery, off-grid solar storage, RV upgrades, and Victron inverter systems.

  • ✓48V off-grid solar battery banks and home backup energy storage.
  • ✓Victron inverter / charger systems using Cerbo GX, Ekrano GX, and DVCC communication.
  • ✓Marine house-power systems, electric propulsion support, and high-output 48V DC loads.
  • ✓RV, overland, and expedition vehicle 48V battery upgrades.
  • ✓Off-grid cabins, communications sites, workshops, and commercial auxiliary power.

Victron and charging setup note

Program all charge sources for a 48V LiFePO4 profile.

Program every charge source, Victron equipment included, to 56.8V bulk/absorption (at least 15 minutes per battery in the bank), 54.0V float, equalization disabled and temperature compensation disabled (0 mV/°C), with no more than 100A continuous per battery from all sources combined; never exceed 58.0V. Under Victron DVCC the battery sets these limits automatically, and the programmed values keep charging correct if CAN communication is lost. For Victron systems, set the DIP switches, connect the communication harness to the GX device (BMS-CAN, or VE.Can at 500 kbit/s), enable DVCC, and set Epoch as the controlling BMS and battery monitor.

Always follow the product label, current Epoch manual, charger documentation, and project-specific engineering requirements. The internal Class T fuse improves source protection, but it does not replace the main disconnect, correct downstream protection, cable sizing, or a complete system protection plan.

IP67 enclosure

Dust-tight and rated for temporary immersion.

The IP67 enclosure is dust-tight and protected against temporary immersion in up to 1 m of water for 30 minutes with all seals and glands installed. It is not rated for water jets, pressure washing or continuous submersion: install the battery where it stays dry in normal use, away from standing water and spray, with all harness connectors fully seated.

Specifications:

Epoch Batteries 48V 100Ah (5.12kWh) V2-T Elite Series LiFePO4 Battery
ELECTRICAL
Nominal voltage 51.2 V (3.2 V per cell)
Nominal capacity 100 Ah
Stored energy 5,120 Wh (5.12 kWh)
Operating voltage 41.6–58.0 V
Cell configuration 16S1P
Cycle life 3,500+ cycles
CURRENT
Max. continuous discharge 150 A
Peak discharge 300 A for 30 s
Max. continuous charge 100 A
Max. charge, short duration 300 A for 10 s
CHARGING
Bulk / absorption 56.8 V
Absorption time At least 15 min per battery in the bank
Float 54.0 V
Equalization Disabled
Temperature compensation Disabled (0 mV/°C)
Victron GX DVCC On; controlling BMS: Epoch
TEMPERATURE
Charge (cells) 32 to 131 °F
Charge with self-heating −22 to 131 °F, when charge current is available
Discharge −4 to 131 °F
Storage ≤ 1 month −4 to 113 °F
Storage ≤ 1 year 32 to 95 °F
MECHANICAL
Dimensions (L × W × H) 20.86 in × 8.65 in × 12.06 in
Weight 97 lb
Terminals M8 · 12 N·m (8.85 lbf·ft); follow the product label
Case ABS + PC, UL94 V-0
Enclosure IP67
COMMUNICATION AND BMS
Bluetooth Via included gauge · Epoch Cloud app
CAN bus 500 kbit/s · Victron GX
Series / parallel Parallel only · up to 16 BMS
BMS protections Over/under-voltage, overcurrent, short-circuit, temperature
Internal fuse 250 A Class T (Eaton)
COMPLIANCE
Pack / cells UL 1973 / UL 1642, UL 9540A, IEC 62619:2022
Other UN 38.3 (transport)

Frequently Asked Questions

What does V2-T mean and why is the built-in Class-T fuse important?

The V2-T has a user-serviceable 250A Eaton Class T fuse behind a sealed top service panel; the 48V 100Ah V2 Elite (model C48100A) has a built-in fuse instead and its own manual. The Class T fuse improves source protection at the battery, but it does not replace the main disconnect, correct downstream protection or cable sizing: install a DC-rated fuse or circuit breaker in the positive conductor as close to the battery as practical, and follow the codes that apply to the installation.

If the internal Class-T fuse blows, is the battery ruined?

No. The V2-T Elite Series is designed with a user-serviceable internal Class-T fuse. If a dead-short or severe fault opens the fuse, the fuse can be accessed through the sealed top service panel and replaced with the correct specified Class-T fuse after the system has been safely shut down and inspected by a qualified installer.

Does the 48V V2-T connect directly to my Victron system?

Yes. The Epoch 48V 100Ah V2-T Elite Series battery supports native CANBus communication for Victron systems. When connected to a compatible Victron GX device such as a Cerbo GX or Ekrano GX, the battery can provide BMS data for DVCC, state-of-charge reporting, alarms, and coordinated charging control.

What size 48V inverter can a single 48V 100Ah V2-T battery run?

A single Epoch 48V 100Ah V2-T battery is rated for 150A continuous discharge and 300A for 30 seconds. At 51.2V, 150A is about 7,680W DC before inverter losses. To size an inverter, estimate its DC input current as AC load (W) ÷ (battery voltage × inverter efficiency): for example, a 2,000W load through a 90%-efficient inverter draws about 2,000 ÷ (51.2 × 0.90) ≈ 43A. If the inverter's continuous DC input can exceed 150A, add batteries in parallel so the current per battery stays within the rating.

Can I connect these 48V batteries in series to make a 96V system?

No. This 48V battery is designed for 48V / 51.2V nominal systems and should not be wired in series. It can be wired in parallel with matching batteries, up to 16 batteries total, to increase total capacity while staying at the same 48V nominal voltage.

How does the self-heating feature work in freezing conditions?

When the battery is too cold to safely accept a charge, the smart BMS protects the lithium cells and uses incoming charge current to power the internal heating pads first. Once the cells reach a safe charging temperature, the BMS allows normal charging to resume. This supports cold-weather charging down to -22°F / -30°C when external charge current is available.

Is the battery completely waterproof?

No. The IP67 rating means the enclosure is dust-tight and protected against temporary immersion in up to 1 meter of water for 30 minutes, with all seals and glands installed. It is not rated for water jets, pressure washing or continuous submersion: install the battery where it stays dry in normal use, away from standing water and spray, with all harness connectors fully seated.
