Epoch Batteries 48V 100Ah (5.12kWh) V2 Elite Series LiFePO4 Battery - Off Grid Stores
by Epoch Batteries

Epoch Batteries 48V 100Ah (5.12kWh) V2 Elite Series LiFePO4 Battery

SKU: C48100A
$2,399.00 - $2,399.00
$2,399.00
$2,399.00 - $2,399.00
$2,399.00
Availability:
in stock

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

11-Year Limited Warranty

Off Grid Stores is an authorized retailer of Epoch Batteries products. Because of this, we pass on Epoch Batteries's manufacturer warranty to you.

Product Highlights
  • 48V 100Ah V2 Elite Series LiFePO4 Battery (5.12kWh): 51.2V nominal, 100Ah and 5,120Wh (5.12kWh) of nominal stored energy in one managed case with one BMS. A native 48V battery draws less current than a lower-voltage bank of the same energy, for smaller cables and cleaner busbars. A deep-cycle battery for house power and energy storage, not engine starting.
  • Dimensions & Fit: 20.86" L x 8.65" W x 12.06" H (529.8 x 219.8 x 306.3 mm; the height includes the terminal posts), 97 lb (approx. 44 kg). Install it upright. Replacing a Group 8D lead-acid battery? Confirm tray fit, hold-down and lid clearance against these dimensions first; the optional Epoch V2 & V2-T Mounting Hardware (8D battery bracket, sold separately) fastens to the six M8 nuts on the case.
  • Native VICTRON Communications: CAN bus at 500 kbit/s to a compatible Victron GX device (Cerbo GX, Ekrano GX or Cerbo GX Mk2). The battery reports its status and charge limits, and with DVCC on it sets the charge voltage and current limits of Victron chargers. The communication harness is included; set the DIP switches and GX settings per the manual.
  • Elite Performance Specifications: 150A maximum continuous discharge, about 7,680W DC at 51.2V before inverter losses, for up to 20 minutes at 150A (not for cycling), and 300A for 30 seconds for surges. 100A maximum continuous charge, with up to 300A for 5 seconds. If an inverter's continuous DC input can exceed 150A, add batteries in parallel.
  • BLUETOOTH Battery Intelligence: Bluetooth 4.0 through the included battery gauge. The Epoch Li-Ion app (iOS and Android) shows state of charge, voltage, current, cell voltages, temperatures, history and warnings, and installs firmware updates over the air. The battery has a power button, and a mountable ON/OFF switch and the mountable battery gauge are included.
  • HEATED For Extreme Climates: LiFePO4 cells must not be charged below 0°C (32°F). When a charger is connected and the cells are too cold, the BMS holds off charging while the internal heater, powered by the charge source, warms them; charging resumes at 5°C (41°F). With self-heating, charging is supported from -30°C (-22°F) ambient. Discharge works down to -20°C (-4°F).
  • IP67 Rated Enclosure: Dust-tight and protected against temporary immersion in up to 1m of water for 30 minutes. It is not rated for water jets, pressure washing or continuous submersion: install it where it stays dry in normal use, with all harness connectors fully seated.
  • Parallel Banks Only: Up to 16 batteries in parallel (1,600Ah, 81.92kWh), using matched C48100A batteries of the same age, capacity and state of charge, with the DIP switches set for the bank. The C48100A is a native 48V battery: do not connect it in series.
  • Advanced Smart BMS & Certifications: Over/under-voltage, overcurrent, short-circuit and high/low temperature protection, and a 270A internal fuse (UL 60691). UL 1642, UL 9540A and IEC 62619:2022 cells; CE and RoHS. The internal fuse does not replace system protection: install a DC-rated fuse or breaker close to the battery positive.
  • 3,500+ Cycle Life & 11-Year Limited Warranty: 3,500+ cycles to 70% remaining capacity (25°C, 0.5C charge, 1C discharge). Maintenance-free: no watering or equalizing, though regular inspection and 8–12 N·m terminal torque checks keep the system safe. Backed by an 11-year limited warranty (5 years of free repair or replacement, then 40% off MSRP on a replacement battery through Year 11); register within 90 days or keep your proof of purchase.
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Epoch Batteries 48V 100Ah (5.12kWh) V2 Elite Series LiFePO4 Battery

Epoch Batteries 48V 100Ah (5.12kWh) V2 Elite Series LiFePO4 Battery

Epoch V2 Elite · Victron ready · IP67 dust-tight

Epoch 48V 100Ah V2 Elite Series LiFePO4 Battery (5.12kWh)

A 48V 100Ah LiFePO4 battery engineered for serious off-grid, RV, marine, solar, and system-builder power applications.

The Epoch V2 Elite 48V 100Ah lithium battery is a 5.12kWh lithium battery built for high-performance 48V systems that need Victron CANbus communication, an IP67 dust-tight and immersion-rated enclosure, internal self-heating, Bluetooth monitoring through the included battery gauge, and 150A continuous discharge for up to 20 minutes. It is a premium 48V off-grid battery for builders who want higher efficiency, smaller wire gauges, cleaner installation, and rugged real-world reliability beyond indoor-only server rack batteries.

48V
System voltage
100Ah
Capacity
5.12kWh
Stored energy
150A
Continuous, up to 20 min
IP67
Immersion-rated
16x
Parallel ready

Built to go further

11-year limited warranty 5 yrs free repair or replacement
Victron ready CANbus / DVCC support
IP67 protection Dust-tight, immersion-rated
Bluetooth app Live battery data
Internal heating Cold-weather charging
Advanced BMS Built-in protection

The Ultimate 48V Powerhouse for Off-Grid, RV & Marine Systems

5.12kWh lithium storage for high-efficiency 48V architecture.

This 48V 100Ah LiFePO4 battery is built for the most demanding off-grid, RV, and marine systems, from large RV solar arrays and van power systems to electric marine propulsion support and remote cabins. A native 48V system can reduce current draw compared with lower-voltage architectures, helping builders use more efficient cable runs, cleaner busbar layouts, and larger inverter platforms.

With 5.12kWh of energy, 150A continuous discharge (up to 20 minutes at 150A), 300A peak output for 30 seconds, and Victron compatible communication, the Epoch V2 Elite gives professional installers and experienced DIYers a premium high-capacity 48V power bank that is built for harsh environments instead of climate-controlled server rooms.

Compatible applications

Off-grid, RV, marine, solar, industrial, and 48V power systems.

  • ✓ 48V off-grid battery banks for cabins, remote sites, and solar energy storage.
  • ✓ RV, overland, and van systems using 48V inverter/charger architecture.
  • ✓ 48V marine lithium battery installations for vessels, electric propulsion support, and house-power systems.
  • ✓ Victron-based systems using compatible Cerbo GX, Ekrano GX, and GX Touch displays.
  • ✓ Large 48V inverters, mini-splits, well pumps, RV air conditioners, and heavy off-grid appliances.
  • ✓ Golf cart and 48V vehicle upgrades where controller, charger, space, and current requirements match.
  • ✓ Parallel 48V battery banks up to 16 batteries for expanded system capacity.
  • ✓ Outdoor, mobile, or marine installations where an IP67 dust-tight, immersion-rated enclosure matters, mounted where it stays dry in normal use.

Engineered for System Builders: V2 Elite Tech

Premium communication, sealed IP67 construction, heating, and battery intelligence.

Native Victron & CANbus Integration

Built-in CAN communication at 500 kbit/s supports compatible Victron Cerbo GX, Ekrano GX and other GX devices. The battery reports its status and charge limits, and with DVCC on it sets the charge voltage and current limits of Victron chargers.

IP67 Dust-Tight & Immersion Rating

Unlike indoor-only 48V server rack batteries, this battery has an IP67 enclosure: dust-tight and protected against temporary immersion in up to 1 m of water for 30 minutes. It is not rated for water jets, pressure washing or continuous submersion, so in RV bays, marine compartments, outdoor enclosures, and off-grid locations install it upright and secured against vibration, where it stays dry in normal use, with all harness connectors fully seated.

Smart Internal Heating Down to -22°F

LiFePO4 cells must not be charged below 0°C (32°F). When a charge source is connected and the cells are too cold, the BMS holds off normal charging while the internal heater, powered by the charge source, warms the cells; charging resumes once they reach 5°C (41°F). With self-heating, charging is supported from -22°F / -30°C ambient, and discharge is available down to -4°F / -20°C without heating.

Real-Time Bluetooth App Monitoring

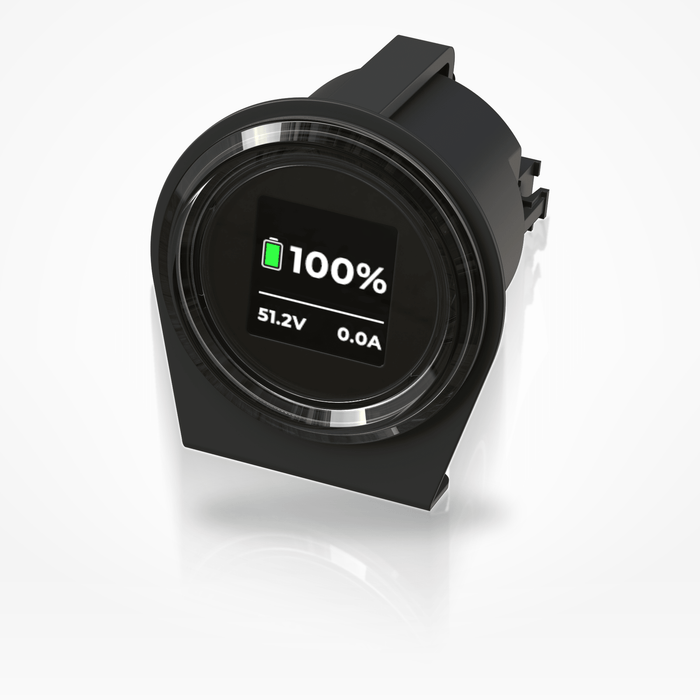

Bluetooth 4.0 through the included battery gauge connects to the Epoch Li-Ion app (iOS and Android) for state of charge, voltage, current, cell voltages, temperatures, history and warnings, and installs firmware updates over the air. With several batteries, the parallel view shows the whole bank.

Battery features

Technical performance that separates this battery from generic 48V rack batteries.

5.12kWh lithium battery Stores 5.12kWh of energy in one rugged 48V 100Ah lithium battery pack.
150A continuous discharge Supports high-power 48V inverter systems with about 7,680W DC at 51.2V before inverter losses, for up to 20 minutes at 150A (not for cycling).
300A peak output Provides 300A peak discharge for 30 seconds for high-demand startup and surge loads.
Victron CANbus communication Native communication supports Cerbo GX, Ekrano GX, DVCC, and closed-loop system control when properly configured.
IP67 enclosure Dust-tight and protected against temporary immersion to 1 m for 30 minutes. Not rated for water jets or pressure washing: install it where it stays dry in normal use.
Smart internal heating Built-in heating, powered by the charge source, supports cold-weather charging from -22°F / -30°C ambient.
Bluetooth app monitoring Bluetooth 4.0 through the included battery gauge: view state of charge, voltage, current, cell voltages, temperatures and warnings in the Epoch Li-Ion app, and update firmware over the air.
Parallel expansion Supports up to 16 batteries in parallel for a massive 81.9kWh 48V energy system.
Certified safety components UL 1642, UL 9540A and IEC 62619:2022 cells; a 270A UL 60691 internal fuse; and Smart BMS safeguards.
Replacing a Group 8D battery? Confirm tray fit, hold-down and lid clearance against 20.86 × 8.65 × 12.06 in first. The optional Epoch V2 & V2-T Mounting Hardware (8D battery bracket, sold separately) fastens to the six M8 nuts on the case.
11-year limited warranty 5 years of free repair or replacement, then 40% off MSRP on a replacement battery through Year 11. Register within 90 days or keep your proof of purchase.
Maintenance-free LiFePO4 No watering, equalizing or acid maintenance. Inspect the case, terminals and cables every 3 months and keep the M8 terminals at 8–12 N·m.

Expandable 48V Power Architecture

Scale Up to Massive Capacities: Wire Up to 16 in Parallel

Start with 5.12kWh. Scale to 81.9kWh.

As power needs grow, the Epoch V2 Elite can grow with the system. Wire up to 16 batteries in parallel to create a 48V bank with up to 1,600Ah of capacity and approximately 81.9kWh of stored energy. This makes it a strong platform for large off-grid homes, premium RV conversions, marine systems, and high-capacity backup power builds.

IP67 enclosure protection

Dust-tight, immersion-rated, and installed where it stays dry.

The IP67 enclosure is dust-tight and protected against temporary immersion in up to 1 m of water for 30 minutes (IEC 60529), making it far more flexible than indoor-only server rack designs. It is not rated for water jets, pressure washing or continuous submersion: secure the battery upright, keep it where it stays dry in normal use, protect wiring and ports, keep all harness connectors fully seated, and follow best practices for marine, RV, and outdoor electrical systems.

Victron and charger setup matters

Use CANbus communication and proper 48V LiFePO4 settings.

For Victron systems, set the DIP switches, plug the communication harness’s grey RJ45 plug into the GX device’s BMS-CAN port (VE.Can 1 or 2 at 500 kbit/s on a Cerbo GX Mk2), confirm the Epoch battery appears on the device list, turn DVCC on, and set Epoch as the controlling BMS and the battery monitor. Program every charge source, Victron included, to the recommended 56.8V absorption, 54.0V float and 53.2V re-bulk values so charging stays correct if CAN communication is lost; for non-Victron systems, use a 48V LiFePO4-compatible charger or inverter charger set to the same values.

Fitment and installation note

Verify your complete 48V system before installation.

Always confirm space (20.86 × 8.65 × 12.06 in; when replacing a Group 8D lead-acid battery, check tray fit, hold-down and lid clearance), mounting, cable clearance, terminal access, charger compatibility, inverter surge requirements, communication harnessing, fuse/breaker sizing (a DC-rated fuse or breaker close to the battery positive; the internal 270A fuse does not replace it), and local electrical standards before installation. Use matched batteries of the same model, age, capacity, and state of charge for parallel banks, and follow Epoch’s manual for DIP switch and communication setup.

Specifications:

Epoch Batteries 48V 100Ah (5.12kWh) V2 Elite Series LiFePO4 Battery
ELECTRICAL
Nominal voltage 51.2 V (3.2 V per cell)
Nominal capacity 100 Ah (0.5C, 25 °C)
Stored energy 5,120 Wh (5.12 kWh)
Operating voltage 40.0–58.4 V
Cell configuration 16S1P (100 Ah cells)
Cycle life 3,500+ cycles to 70% remaining capacity
(25 °C, 0.5C charge, 1C discharge)
Self-discharge ≤ 3% per month (100% SOC, 25 °C)
CURRENT RATINGS
Max. continuous discharge 150 A (up to 20 min at 150 A; not for cycling)
Peak discharge 300 A for 30 s
Max. continuous charge 100 A
Max. charge, short duration 300 A for 5 s
CHARGING SETTINGS
Bulk / absorption 56.8 V
Absorption time At least 15 min per battery in the bank
Float 54.0 V
Re-bulk 53.2 V
Equalization Disabled
Temperature compensation Disabled (0 mV/°C)
Victron GX DVCC On; controlling BMS: Epoch
TEMPERATURE
Charge (cells) 32 to 131 °F
Charge with self-heating −22 to 131 °F
Discharge −4 to 131 °F
Storage ≤ 1 month −4 to 113 °F
Storage ≤ 1 year 32 to 95 °F
MECHANICAL
Dimensions (L × W × H) 20.86 in × 8.65 in × 12.06 in
Weight 97 lb
Terminals M8 · 8–12 N·m (71–106 lbf·in)
Case ABS + PC, UL94 V-0
Enclosure IP67
COMMUNICATION AND BMS
Bluetooth Via included gauge · Epoch Li-Ion app
CAN bus 500 kbit/s · Victron GX
Series / parallel Parallel only · up to 16 BMS
BMS protections Over/under-voltage, overcurrent, short-circuit,
temperature
Internal fuse 270 A, UL 60691
COMPLIANCE
Pack / cells UL 1973 / UL 1642, UL 9540A, IEC 62619:2022
Other certifications and transport CE, RoHS · UN 3480, Class 9

Frequently Asked Questions

Is this 48V battery compatible with Victron Energy equipment?

Yes. The Epoch 48V 100Ah V2 Elite communicates over CAN bus at 500 kbit/s with compatible Victron GX devices, including Cerbo GX, Ekrano GX and Cerbo GX Mk2 installations. The included communication harness has a grey RJ45 plug for the GX device’s BMS-CAN port; on a Cerbo GX Mk2, use VE.Can 1 or VE.Can 2 and set the port speed to 500 kbit/s. Set the DIP switches on every battery, then turn on DVCC and set the controlling BMS and the battery monitor to Epoch: the battery then reports its status and sets the charge voltage and current limits of Victron chargers.

How does this differ from a standard 48V server rack battery?

Most 48V server rack batteries are designed for dry, climate-controlled indoor environments. The Epoch V2 Elite is built for mobile and harsh environments with an IP67 dust-tight, immersion-rated enclosure, internal self-heating, Bluetooth monitoring, Victron CAN communication, and a rugged 20.86 × 8.65 × 12.06 in case for RV, marine, and off-grid systems.

What size inverter can a single 48V 100Ah battery power?

A single Epoch 48V 100Ah battery stores 5.12kWh and is rated for 150A continuous discharge, about 7,680W DC at 51.2V before inverter losses, but only for up to 20 minutes at 150A and not for cycling; 300A is allowed for 30 seconds for surges. The DC input current is roughly the AC load divided by (battery voltage × inverter efficiency): a 2,000W load through an inverter assumed to be 90% efficient draws about 2,000 ÷ (51.2 × 0.90) ≈ 43A. If the inverter’s continuous DC input can exceed 150A, add batteries in parallel so the current per battery stays within the rating, and size cables, fusing and the disconnect for the maximum system current.

Can I connect multiple 48V 100Ah batteries together?

Yes. This model supports up to 16 batteries in parallel, allowing system builders to scale from one 5.12kWh battery up to a 1,600Ah / 81.92kWh 48V power bank. Use matched C48100A batteries of the same age, capacity, and state of charge, and set the DIP switches for the bank. This is a native 48V battery and should not be wired in series to create higher voltages.

Will the internal heating drain my battery if I am off-grid?

No. The internal heater is powered by the charge source: when a charger is connected and the cells are below 0°C (32°F), the BMS holds off normal charging while the heater warms the cells, then resumes charging when they reach 5°C (41°F). It does not use stored battery capacity to keep itself warm while sitting or discharging. With self-heating, charging is supported from -22°F / -30°C ambient.

Can I use this battery in a 48V golf cart or electric marine outboard?

It can be an excellent upgrade for compatible 48V vehicles, golf carts, and electric marine propulsion systems, but compatibility must be confirmed first. Verify controller voltage, peak current (the battery allows 300A for 30 seconds), continuous current (150A for up to 20 minutes, 100A continuous charge), charger profile, physical fitment, terminal access, and manufacturer guidance before installation.

Is this battery waterproof?

It is IP67 rated, meaning it is dust-tight and protected against temporary immersion in up to 1 m of water for 30 minutes. It is not rated for water jets, pressure washing or continuous submersion: install it where it stays dry in normal use, with all harness connectors fully seated, and do not treat it as submersible equipment or install it with damaged seals or open ports.

Does the Epoch Li-Ion app show all batteries in a large bank?

Yes. The Epoch Li-Ion app (iOS and Android), reached over Bluetooth 4.0 through the included battery gauge, shows state of charge, total voltage, total current and total capacity for the bank in its parallel view, and voltage, current, power, remaining capacity and warnings for each battery. Each battery appears as C48100A_ followed by its serial number; the Cells, History and Battery events screens add cell voltages, cell balance, temperatures and BMS events, and the About page installs firmware updates over the air.
