Epoch Batteries 24V 60Ah (1.54kWh) Pro Series LiFePO4 Battery - Off Grid Stores
by Epoch Batteries

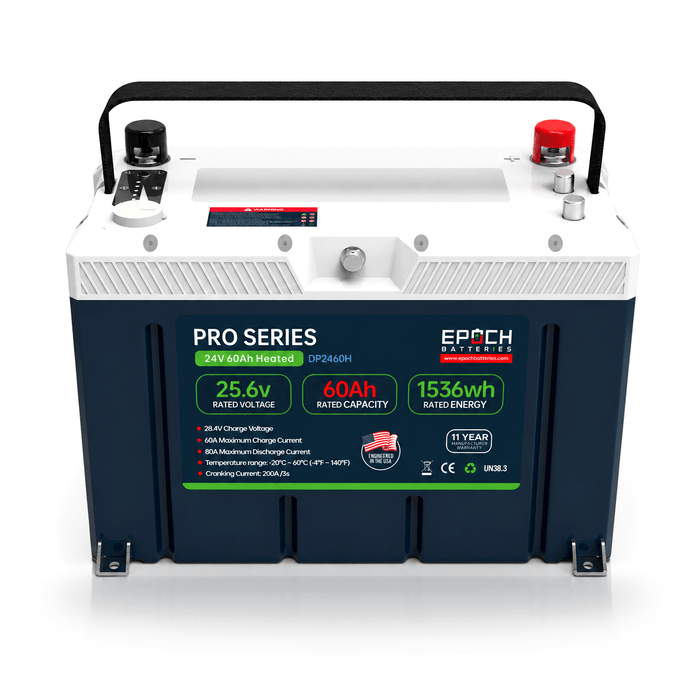

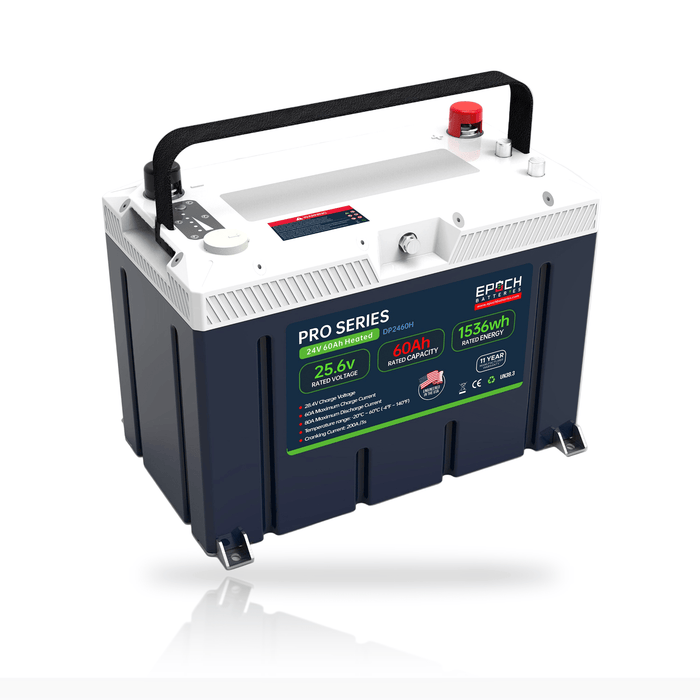

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series LiFePO4 Battery

SKU: DP2460H
$699.00 - $699.00
$699.00
$699.00 - $699.00
$699.00
Availability:
In stock

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

11-Year Limited Warranty

Off Grid Stores is an authorized retailer of Epoch Batteries products. Because of this, we pass on Epoch Batteries's manufacturer warranty to you.

Product Highlights
  • 24V 60Ah Pro Series LiFePO4 (1.54kWh): A 25.6V nominal, 60Ah heated deep-cycle battery, model DP2460H, that stores 1,536Wh (1.54kWh, nominal) in a BCI Group 27 footprint; plan runtime on about 1,229Wh. It is not a drop-in replacement for every lead-acid installation: check tray fit, terminal clearance, cable size, overcurrent protection and the charger profile first.
  • Compact & Mountable: 12.25 × 6.75 × 9 in (311 × 171 × 229 mm) and 30 lb (13.7kg), with M8 terminals torqued to 8-10 Nm (71-89 in-lb). Mount it upright, never on its side or upside down.
  • 80A Continuous Output: 80A maximum continuous discharge (30A recommended for daily use) and 200A for up to 3 seconds for start-up surges only. For a 24V trolling motor, the motor's maximum current draw (not its average) must be at or below 80A. Not a cranking battery.
  • 60A Charging: 60A maximum continuous charge current from all sources combined (up to 30A recommended) at 28.4-28.8V bulk/absorption. Use a 24V LiFePO4 charger such as the Epoch 24V 15A Lithium Battery Charger, a solar controller with a LiFePO4 or programmable profile, or a DC-to-DC charger for alternator charging.
  • Internal Heating: In cold weather, a connected charger powers the internal heater, which warms the battery to 10°C (50°F) and then switches to charging, so it charges down to -20°C (-4°F). It discharges from -20°C to 60°C (-4°F to 140°F).
  • Bluetooth Monitoring: The free Epoch Pro app (iOS and Android) shows state of charge, voltage, current, temperature and battery status and alerts, sets up multi-battery networks and installs firmware updates over the air.
  • Victron-Compatible Communication: CAN/RS485 Link in and Link out ports network a parallel bank and support Victron-compatible communication; integration depends on the GX device, inverter charger, cable, firmware and configuration, so contact Epoch for setup support.
  • Advanced BMS Protection: Protects against overcharge, over-discharge, over-current, short circuit (cutoff at 800A within 500µs) and high and low temperature. The BMS is not a substitute for correctly sized fuses or breakers.
  • IP67 Rated: Dust-tight and rated for temporary immersion to 1 m for 30 minutes. Not rated for water jets or pressure washing; do not leave it submerged or install it where standing water can collect, such as a bilge.
  • Parallel Only: Up to 16 matched DP2460H batteries in parallel (960Ah, 24.58kWh at 25.6V). Series wiring is not approved for this model.
  • 6,000+ Cycle Life & Low Maintenance: No watering or acid service; routine inspections keep it safe.
  • 11-Year Limited Warranty: 3 years of free replacement, then 40% off MSRP on a replacement battery through Year 11. Register within 90 days or keep
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series LiFePO4 Battery

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series LiFePO4 Battery

24V 60Ah LiFePO4 battery · Pro Series lithium battery

Epoch 24V 60Ah Pro Series LiFePO4 Battery

Premium 24V deep cycle lithium power with 1.54kWh of energy, Bluetooth telemetry, smart BMS protection, IP67 construction, internal heating, and Victron-ready communications.

The Epoch 24V 60Ah Pro Series LiFePO4 Battery is a compact 24V 60Ah LiFePO4 battery built for technical users who need reliable 24V deep cycle lithium power in marine, RV, off-grid, backup, and mobile systems. This Pro Series lithium battery stores 1,536Wh / 1.54kWh (nominal; plan runtime on about 1,229Wh) and delivers 80A continuous discharge and 200A for up to 3 seconds for start-up surges, with Bluetooth app monitoring, a smart BMS, internal heating, and an IP67 dust-tight, immersion-rated enclosure in a BCI Group 27 footprint.

25.6V
Nominal voltage
60Ah
Capacity
1.54kWh
Stored energy
80A
Continuous output
IP67
Temporary immersion
30 lb
Battery weight

Built to go further

11-year limited warranty 3 yrs free replacement
6,000+ cycles Long service life
Advanced smart BMS Built-in protection
Bluetooth telemetry Epoch Pro app visibility
Victron ready CAN/RS485 communication
IP67 enclosure Dust-tight, temporary immersion

Advanced Smart BMS (Battery Management System)

A smart BMS 24V battery platform engineered for protection, consistency, and data-driven control.

The Epoch Pro Series is built around a responsive Battery Management System that helps protect the pack from overcharge, over-discharge, over-current, short circuit, and high or low temperature conditions. For installers and technical buyers, that means the battery is not just a lithium upgrade; it is a monitored, protected power platform designed for demanding 24V applications.

With 25.6V nominal output, 60Ah capacity, 80A continuous discharge, 60A maximum charge current, and 200A peak output for 3 seconds, this 24V deep cycle lithium battery supports efficient power delivery for compatible trolling motor, marine house, RV, mobile, solar, and off-grid systems.

Real-time Bluetooth telemetry

A 24V lithium battery with Bluetooth app monitoring and over-the-air firmware support.

The built-in Bluetooth connection pairs with the Epoch Pro app so users can monitor state of charge, voltage, current, temperature, and battery status from a compatible smartphone. This helps reduce guesswork and makes troubleshooting easier without adding a separate display or shunt for basic visibility.

IP67 dust-tight enclosure

IP67 protection for marine, RV, outdoor, and off-grid installations.

The sealed IP67-rated enclosure is dust-tight and rated for temporary immersion in water up to 1 meter for 30 minutes. It is not rated for water jets or pressure washing and must not be left submerged: install it where standing water cannot collect around the case or terminals (not in a bilge).

One battery for a two-battery 12V bank

A compact 24V 60Ah battery for compatible BCI Group 27 installations; not a drop-in replacement for every lead-acid installation.

In compatible 24V systems, one 24V lithium battery can replace a two-battery 12V lead-acid series bank where voltage, current, capacity, tray size, charger profile, and wiring requirements match. The Group 27 footprint and 30 lb battery weight help simplify compact installations while reducing maintenance and cable complexity.

Compatible applications

Technical 24V lithium power for marine, RV, trolling motor, off-grid, and backup systems.

  • ✓Compatible 24V trolling motors whose maximum current draw (not the average) is at or below 80A continuous, where cable sizing, charger settings, and runtime needs match.
  • ✓Marine house-power systems for electronics, lighting, pumps, fish finders, navigation, and accessories.
  • ✓Kayak, skiff, pontoon, fishing boat, and compact marine power installations that need IP67 protection.
  • ✓RV, camper, van, overland, and mobile systems using a 24V auxiliary battery platform.
  • ✓Solar energy storage for cabins, trailers, boats, and off-grid 24V systems.
  • ✓Victron-based power systems using compatible CAN/RS485 communication hardware and configuration.
  • ✓Parallel battery banks up to 16 batteries for expanded 24V capacity.
  • ✓Group 27 lead-acid replacement applications where fitment, charging profile, and system requirements are compatible.

Pro Series battery features

High-intent technical specifications with practical installation benefits.

24V Pro Series platformCompact high-output LiFePO4 power for 24V deep-cycle systems.
60Ah capacityStores 1,536Wh / 1.54kWh (nominal); plan runtime on about 1,229Wh.
80A continuous dischargeSupports demanding 24V loads while maintaining efficient lithium output.
60A max charge current60A maximum from all charging sources combined; up to 30A recommended.
200A peak dischargeFor start-up surges of up to 3 seconds only; not a cranking battery.
Internal self-heatingWith a charger connected in cold weather, the heater warms the battery to 10°C (50°F) before charging; it charges down to -20°C (-4°F).
Bluetooth battery monitorCompatible with the Epoch Pro app for iOS and Android battery visibility.
Victron communication supportCAN/RS485 communication support helps integrate battery data with compatible Victron systems.
Advanced smart BMSHelps protect against overcharge, over-discharge, over-current, short circuit, and temperature extremes.
IP67 enclosureDust-tight and rated for temporary immersion to 1 m for 30 minutes; not for pressure washing or standing water.
6,000+ cycle lifeLong-lasting LiFePO4 performance compared with traditional lead-acid batteries.
Parallel expansionSupports up to 16 batteries in parallel (960Ah) for larger 24V capacity banks. Series wiring is not approved.
BCI Group 27 footprint12.25 × 6.75 × 9 in (311 × 171 × 229 mm) and 30 lb (13.7 kg).
Optional gauge supportDesigned for use with an optional 5 in touchscreen battery gauge.
Low maintenanceNo watering or acid service; routine inspections keep it safe.

Compatible chargers and accessories

Recommended add-ons for a complete 24V Pro Series installation.

✓Epoch 24V 15A Lithium Battery Charger.
✓Optional 5 in touchscreen battery gauge.
✓Victron-compatible CAN/RS485 communication integration, when configured with compatible equipment.
✓Properly sized busbars, fuses, disconnects, and marine-grade cabling for 24V installations.

IP67 dust-tight protection

Dust-tight and rated for temporary immersion. Not submersible.

The IP67-rated enclosure is dust-tight and rated for temporary immersion in water up to 1 meter for 30 minutes. It suits marine, mobile, RV, and outdoor environments where splash exposure, rain, and dust are common, but it is not rated for water jets or pressure washing and must not be left submerged. Install the battery securely and upright with protected cabling, where standing water cannot collect around the case or terminals (not in a bilge).

Bluetooth and app monitoring

Smartphone visibility for state of charge, voltage, current, and temperature.

Bluetooth monitoring through the Epoch Pro app helps users view important battery data from a compatible mobile device. This visibility is especially useful in hidden battery compartments, marine lockers, RV bays, and off-grid installations where quick status checks matter.

Victron-ready communications

CAN/RS485 support for compatible Victron ecosystem integrations.

This Pro Series battery supports CAN/RS485 communication for compatible Victron integrations, helping make battery information available to properly configured system components. Communication setup depends on the specific GX device, inverter/charger, cable, firmware, and system configuration used.

Why upgrade to Epoch LiFePO4?

More usable energy. Less maintenance. Longer service life.

LiFePO4 technology provides stable voltage output, long cycle life, fast charging capability, and maintenance-free operation. Compared with traditional lead-acid batteries, this 24V 60Ah battery delivers efficient energy storage in a lighter package while eliminating watering, acid maintenance, and routine lead-acid service.

Fitment and charging note

Verify your battery tray, charger profile, communication wiring, and total system current before installation.

Always confirm Group 27 tray fitment, cable clearance, terminal compatibility, charger compatibility, BMS communication requirements, and total system current before installation. Use a lithium-compatible 24V charger, inverter charger, converter, solar charge controller, or DC-to-DC charger programmed within Epoch’s recommended charging parameters. For parallel battery banks, use matched batteries of the same model, age, capacity, and state of charge, fully charge each one before connecting it into the bank, match their voltages within 0.5V, and follow Epoch’s installation guidelines; series wiring is not approved. Mount the battery upright (never on its side or upside down), place a DC-rated main fuse or breaker as close as practical to the positive terminal, and torque the terminals to 8–10 N·m (71–89 in-lb).



Specifications:

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series LiFePO4 Battery
ELECTRICAL & SYSTEM
Model DP2460H Series Pro Series
Battery type Heated deep cycle
Chemistry LiFePO4
Cell configuration 8S2P
Nominal voltage 25.6 V
Capacity 60 Ah
Stored energy 1.54 kWh (1,536 Wh)
Operating range 20.0–29.2 V
Max. charge voltage 29.2 V
Cycle life 6,000+ cycles
Bluetooth Epoch Pro app, iOS / Android
Self-heating Yes
DISCHARGE & RUNTIME
Max. continuous discharge 80 A
Peak discharge 200 A / 3 s
Daily discharge 30 A recommended
Series / parallel Parallel only, max. 16P
100 W / 500 W load ≈ 12.3 h / ≈ 2.5 h
CHARGE SETTINGS
Max. continuous charge 60 A
Recommended charge Up to 30 A (50%)
Bulk / absorption 28.4–28.8 V
Absorption time ≤ C/20 (3 A) or 15 min
Float 26.6–27.2 V (off preferred)
Re-bulk 26.4 V
Equalization Disabled
Temp. compensation 0 mV/°C (disabled)
BMS high-V cutoff 29.2 V
SOC recalibration 29.2 V
TEMPERATURE
Charge −4 to 131 °F (heated)
Discharge −4 to 140 °F
Storage 32 to 95 °F
Low-temp charge Heater warms battery to 10 °C before charging
MECHANICAL
Dimensions 12.25 in × 6.75 in × 9 in
Metric 12.24 in × 6.73 in × 9.02 in
Footprint BCI Group 27
Weight 30 lb
Terminals M8, 8–10 Nm
Enclosure IP67, dust-tight
BMS PROTECTIONS
Smart BMS Built-in management
Overcharge / overdischarge Protected
Over-current / short circuit Protected
High / low temperature Disconnect protection
COMPLIANCE
Cell certification UL 1642 (cells)
Thermal runaway testing UL 9540A (cells)
Battery certification UL 1973 (pack); IEC 62619:2022
Compliance marks CE, RoHS
Transport UN 38.3, Class 9

Frequently Asked Questions

What are the recommended charging parameters for this 24V LiFePO4 battery?

For optimal performance and longevity, use a dedicated 24V LiFePO4 charger or charge controller. Epoch lists 28.4V–28.8V for bulk/absorption charging, 29.2V as the maximum charge voltage / BMS high-voltage cutoff, float disabled preferred or 26.6V–27.2V, 26.4V re-bulk, temperature compensation disabled, and equalization disabled. End absorption when current falls to C/20 (3A) or after 15 minutes, whichever comes first. Combined current from all charging sources must not exceed 60A per battery, and up to 30A is recommended; the Epoch 24V 15A Lithium Battery Charger is compatible, and a smaller charger simply takes longer. Avoid lead-acid chargers with desulfation or equalization modes.

Can I monitor the State of Charge (SOC) without a separate shunt?

Yes. The 24V 60Ah Pro Series features built-in Bluetooth monitoring through the free Epoch Pro app for iOS and Android. The app shows state of charge, voltage, current, temperature, and battery status and alerts without wiring a separate shunt, and it also sets up multi-battery networks and installs firmware updates over the air. Use the app data as a monitoring aid; for a more complete health check, the manual suggests a shunt-based battery monitor and load testing.

What makes the Pro Series different from standard lithium batteries?

This Pro Series battery adds professional-grade features for demanding installations, including a smart BMS, an IP67 dust-tight, immersion-rated enclosure, internal heating, Bluetooth app monitoring, CAN/RS485 communication support for compatible Victron systems, over-the-air firmware updates, and a 6,000+ cycle-life rating.

Can I wire multiple 24V 60Ah Pro Series batteries together?

Yes, in parallel. Epoch lists this model for up to 16 batteries in parallel to increase total amp-hour capacity (up to 960Ah / 24.58kWh) while keeping the system at 25.6V nominal; series wiring is not approved. Use matched batteries of the same model, age, capacity, and state of charge, fully charge each one before connecting it into the bank, match their voltages within 0.5V, and confirm all cabling, fusing, charger settings, and installation limits before designing the bank.

Is this battery waterproof?

It is IP67-rated: dust-tight and rated for temporary immersion in water up to 1 meter for 30 minutes. That suits marine, mobile, and outdoor environments, but the battery is not submersible: it is not rated for water jets or pressure washing, must not be left submerged, and should not be installed where standing water can collect around the case or terminals, such as a bilge. Mount it securely and upright.

Does this battery support Victron communication?

Yes. The 24V 60Ah Pro Series supports Victron-compatible communication over CAN/RS485 through its Link in / Link out ports. Final integration depends on the compatible Victron GX device, inverter/charger, cable, firmware, and system configuration used in the installation; contact Epoch for setup support.

Can this 24V 60Ah battery be used for trolling motors or marine house power?

Yes, this battery is well suited for compatible 24V trolling motor systems and marine house-power loads where voltage, current draw, runtime needs, cable sizing, tray fitment, and charger settings match the published specifications. Use the motor’s maximum current draw, not its average: it must be at or below 80A continuous. In compatible systems, one 24V battery can replace a two-battery 12V lead-acid series bank; at a 500W load, plan on about 2.5 hours (1,229Wh planning energy). Always verify the motor manufacturer’s battery requirements before installation.

an this battery be used for engine starting or cranking?

No. This model is designed as a 24V deep-cycle lithium battery, not as an engine starting battery. For cranking applications, use a cranking-rated lithium battery or confirm compatibility directly with Epoch and the engine manufacturer before replacing an existing starting battery.
