Epoch Batteries 12V 460Ah (5.89kWh) V2 Elite Series LiFePO4 Battery - Off Grid Stores
by Epoch Batteries

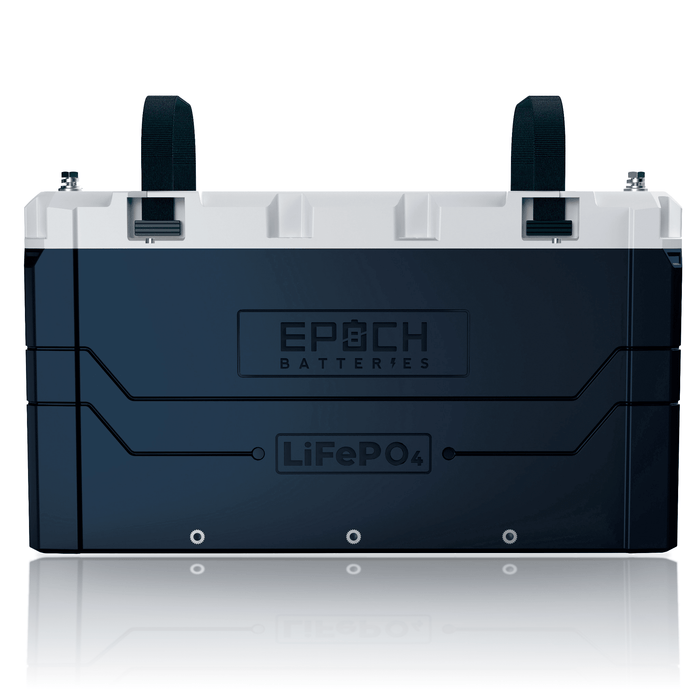

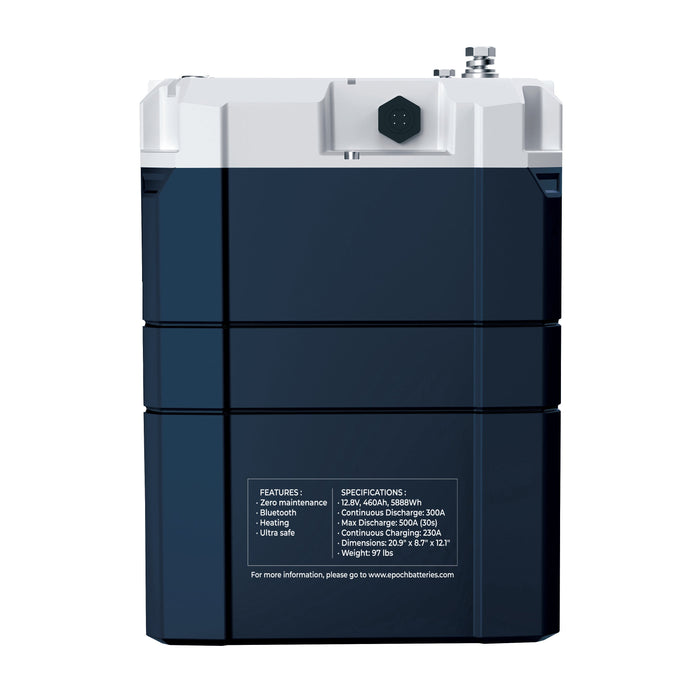

Epoch Batteries 12V 460Ah (5.89kWh) V2 Elite Series LiFePO4 Battery

SKU: C12460A
$2,399.00 - $2,399.00
$2,399.00
$2,399.00 - $2,399.00
$2,399.00
Availability:
in stock

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

11-Year Limited Warranty

Off Grid Stores is an authorized retailer of Epoch Batteries products. Because of this, we pass on Epoch Batteries's manufacturer warranty to you.

Product Highlights
  • 12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh): 12.8V nominal, 460Ah and 5,888Wh (5.89kWh) of nominal stored energy in one managed case with one BMS, so a large house bank needs fewer interconnects and cleaner routing than a bank of smaller batteries. A deep-cycle battery for house power and energy storage, not engine starting.
  • Dimensions & Fit: 20.86" L x 8.65" W x 12.06" H (529.8 x 219.8 x 306.3 mm; the height includes the terminal posts), 97 lb (approx. 44 kg). Install it upright. Replacing a Group 8D lead-acid battery? Confirm tray fit, hold-down and lid clearance against these dimensions first; the optional Epoch V2 & V2-T Mounting Hardware (8D battery bracket, sold separately) fastens to the six M8 nuts on the case.
  • Native VICTRON Communications: CAN bus at 500 kbit/s to a compatible Victron GX device (Cerbo GX, Ekrano GX or Cerbo GX Mk2). The battery reports its status and charge limits, and with DVCC on it sets the charge voltage and current limits of Victron chargers. The communication harness is included; set the DIP switches and GX settings per the manual.
  • Elite Performance Specifications: 230A continuous discharge and 230A continuous charge (0.5C, also the recommended rate), about 2,944W DC at 12.8V before inverter losses. Peak discharge of 500A for 30 seconds and 1,300A for 1 second for inverter surge; up to 400A charge for 5 seconds.
  • BLUETOOTH Battery Intelligence: Bluetooth 4.0 through the included battery gauge. The Epoch Li-Ion app (iOS and Android) shows state of charge, voltage, current, cell voltages, temperatures, history and warnings, and installs firmware updates over the air. External power button and battery gauge included.
  • HEATED For Extreme Climates: LiFePO4 cells must not be charged below 0°C (32°F). When a charger is connected and the cells are too cold, the BMS holds off charging while the internal heater, powered by the charge source, warms them; charging resumes at 5°C (41°F). With self-heating, charging is supported from -30°C (-22°F) ambient. Discharge works down to -20°C (-4°F).
  • IP67 Rated Enclosure: Dust-tight and protected against temporary immersion in up to 1m of water for 30 minutes. It is not rated for water jets, pressure washing or continuous submersion: install it where it stays dry in normal use, with all harness connectors fully seated.
  • Scalable Banks: Up to 16 batteries in parallel (7,360Ah, 94.21kWh) or up to 4 in series (51.2V nominal), using matched C12460A batteries of the same age, capacity and state of charge. Series-parallel arrays are not covered by the published DIP switch settings; contact Epoch before designing one.
  • Advanced Smart BMS & Certifications: Over/under-voltage, overcurrent, short-circuit and high/low temperature protection, and a 400A internal fuse (UL 60691). UL 1642, UL 9540A and IEC 62619:2022 cells; CE and RoHS. The internal fuse does not replace system protection: install a DC-rated fuse or breaker close to the battery positive.
  • 3,500+ Cycle Life & 11-Year Limited Warranty: 3,500+ cycles to 70% remaining capacity at 25°C. Maintenance-free: no watering or equalizing, though regular inspection and 8–12 N·m terminal torque checks keep the system safe. Backed by an 11-year limited warranty (5 years of free repair or replacement, then 40% off MSRP on a replacement battery through Year 11); register within 90 days or keep your proof of purchase.
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Epoch Batteries 12V 460Ah (5.89kWh) V2 Elite Series LiFePO4 Battery

Epoch Batteries 12V 460Ah (5.89kWh) V2 Elite Series LiFePO4 Battery


Victron-ready high-capacity lithium

Epoch 12V 460Ah LiFePO4 Battery with Native Victron Integration

12V 460Ah deep cycle · 5.89kWh storage · IP67 heated lithium

The Epoch 12V 460Ah LiFePO4 battery is a Victron compatible lithium battery built for serious RV, marine, and off-grid solar systems. With 5.89kWh lithium storage, native Victron CANBUS comms, an IP67 dust-tight and immersion-rated case, internal heating, Bluetooth monitoring, and 230A continuous output, this 12V 460Ah deep cycle battery gives advanced system builders a powerful single-case alternative to wiring multiple smaller batteries together.

460Ah
Capacity
5.89kWh
Stored energy
230A
Continuous output
IP67
Immersion-rated
16x
Parallel ready
11 yr
Limited warranty
Built to go further
11-year limited warranty5 yrs free repair or replacement
Victron readyCANBUS communication
U.S.-based supportHelp when you need it
Advanced BMSBuilt-in protection
UL-certified safetyCertified components
LiFePO4 chemistryStable lithium platform

Seamless Victron CANBUS Communication

A premium 12V battery for Cerbo GX, Ekrano GX, and compatible Victron-based power systems.

For advanced RV, marine, and off-grid installers, Victron integration is one of the biggest reasons to choose this Epoch V2 Elite battery. The battery’s BMS CAN communication is designed to connect with compatible Victron GX devices, helping your system see battery status, alarms, and BMS-managed charging behavior from the Victron ecosystem.

When configured correctly with the proper cable, DIP switch settings, and DVCC setup, this Victron compatible lithium battery helps reduce guesswork in complex power systems while still giving you app-based Bluetooth monitoring as a secondary battery dashboard.

Massive 5.89kWh Energy Density in a Single Case

Instead of building a bank from four or more smaller 100Ah-class batteries, this Epoch 12V 460Ah battery gives you 5,888Wh / 5.89kWh of nominal stored energy in one 20.86 × 8.65 × 12.06 in case with one BMS. Fewer batteries means fewer interconnect cables, fewer resistance points, cleaner routing, and more usable cargo space in an RV, boat, van, or off-grid enclosure.

Built-In Heating for Sub-Zero Environments

LiFePO4 cells must not be charged below 0°C (32°F). When shore power, solar, an alternator charger or an inverter/charger starts charging and the cells are too cold, the BMS holds off normal charging while the internal heater, powered by the charge source, warms the cells; charging resumes once they reach 5°C (41°F). With self-heating, charging is supported from -30°C (-22°F) ambient, and discharge is available down to -20°C (-4°F) without heating.

IP67 Enclosure & Bluetooth Monitoring

The sealed IP67 case is dust-tight and protected against temporary immersion in up to 1 m of water for 30 minutes. It is not rated for water jets, pressure washing or continuous submersion, so install it where it stays dry in normal use, with all harness connectors fully seated. Bluetooth 4.0 monitoring through the included battery gauge shows state of charge, voltage, current, cell voltages, temperatures and warnings in the Epoch Li-Ion app, which also installs firmware updates over the air.

High-Capacity 12V Power for RV, Marine, Solar & Off-Grid Systems

Built for installers who need capacity, communication, waterproofing, and clean integration.

  • ✓RV, motorhome, travel trailer, camper, and fifth-wheel house-power systems.
  • ✓Marine house banks for electronics, refrigeration, lighting, pumps, and onboard AC loads through an inverter.
  • ✓Off-grid 12V solar storage for cabins, tiny homes, remote sites, and backup systems.
  • ✓Van, overland, expedition, and mobile auxiliary power builds.
  • ✓Victron-based power systems using compatible GX devices and BMS CAN communication.
  • ✓Large inverter-class 12V systems where cabling, fusing, and load calculations are properly designed.
  • ✓Group 8D lead-acid replacement applications where tray fit, hold-down, lid clearance, charging profile, and electrical requirements match.

Technical Feature Highlights

High-output storage with smart BMS protection and ecosystem compatibility.

Native Victron CANBUS comms Designed to communicate with compatible Victron GX devices for BMS-level system visibility and control.
5.89kWh lithium storage 460Ah / 5,888Wh of nominal stored energy in one managed case for serious 12V energy systems.
230A continuous output About 2,944W DC at 12.8V before inverter losses, with 500A for 30 seconds and 1,300A for 1 second for inverter surge. Size the full installation for the system current.
230A max continuous charge Fast lithium charging capability for solar, inverter/charger, and shore-power systems configured to Epoch settings.
Internal self-heating Built-in heating, powered by the charge source, supports cold-weather charging from -22°F / -30°C ambient.
IP67 enclosure Dust-tight and protected against temporary immersion to 1 m for 30 minutes. Not rated for water jets or pressure washing: install it where it stays dry in normal use.

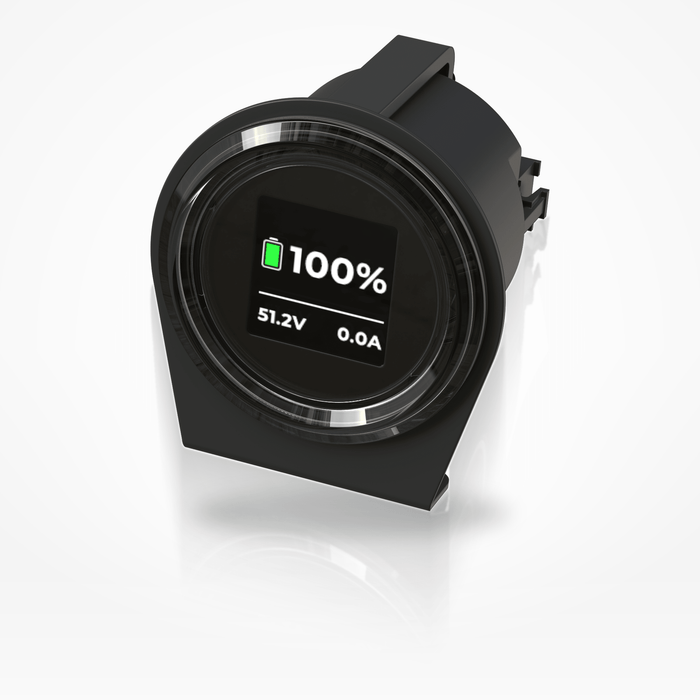

Bluetooth battery monitoring Bluetooth 4.0 through the included battery gauge: view SOC, voltage, current, cell voltages, temperatures and warnings in the Epoch Li-Ion app, and update firmware over the air.
Expandable storage Parallel up to 16 batteries for large 12V banks, or wire up to 4 in series where the system is designed accordingly.
External controls included Comes with an external power button for the external switch port and a Bluetooth battery gauge (state-of-charge meter) for easier access and system visibility.
UL-certified safety components Includes a UL60691 certified internal fuse and cells certified to UL1642, UL9540A and IEC 62619:2022.
Maintenance-free LiFePO4 No watering, equalizing or acid maintenance. Inspect the case, terminals and cables every 3 months and keep the M8 terminals at 8–12 N·m.
Replacing a Group 8D battery? Confirm tray fit, hold-down and lid clearance against 20.86 × 8.65 × 12.06 in first. The optional Epoch V2 & V2-T Mounting Hardware (8D battery bracket, sold separately) fastens to the six M8 nuts on the case.

Built for High-Intent Technical Installations

Native Victron CANBUS comms, Bluetooth visibility, and one large-format BMS-managed pack.

The Epoch 12V 460Ah V2 Elite is not just a high-capacity battery. It is a system component designed for premium power builds where communication, monitoring, IP67 sealing, cold-weather charging, safety components, and clean installation matter. Use it as the center of a serious 12V RV battery upgrade, 12V marine lithium battery bank, or off-grid 12V solar battery system.

Fitment, Charging & Victron Setup Note

Verify the full electrical system before installation.

Always confirm tray fit, hold-down and lid clearance (especially when replacing a Group 8D lead-acid battery), cable clearance, terminal torque (8–12 N·m), inverter size, overcurrent protection (a DC-rated fuse or breaker close to the battery positive; the internal 400A fuse does not replace it), busbar ratings, charger compatibility, alternator charging strategy, and communication setup before installation. For Victron-integrated systems, follow Epoch’s communication harness, DIP switch, DVCC, and GX device setup instructions. For series or parallel banks, use matched batteries of the same model, age, capacity, and state of charge.

Specifications:

Epoch Batteries 12V 460Ah (5.89kWh) V2 Elite Series LiFePO4 Battery
Electrical
Nominal voltage 12.8 V (3.2 V per cell)
Nominal capacity 460 Ah (0.5C, 25 °C)
Stored energy 5,888 Wh (5.89 kWh)
Operating voltage 10.0–14.6 V
Cell configuration 4S2P (230 Ah cells)
Cycle life 3,500+ cycles to 70% remaining capacity (25 °C)
Self-discharge ≤ 3% per month (100% SOC, 25 °C)
Current Ratings
Recommended continuous discharge 230 A (0.5C)
Max. continuous discharge 230 A
Peak discharge 500 A for 30 seconds; 1,300 A for 1 second
Recommended continuous charge 230 A (0.5C)
Max. continuous charge 230 A
Max. charge, short duration 400 A for 5 seconds
Charging
Bulk / absorption 14.2 V
Absorption time 15 minutes per battery in the bank
Float 13.5 V
Re-bulk 13.3 V
Equalization Disabled
Temperature compensation Disabled (0 mV/°C)
Victron GX DVCC On; controlling BMS: Epoch
Temperature
Charge (cells) 32 to 131 °F
Charge with self-heating −22 to 131 °F
Discharge −4 to 131 °F
Storage ≤ 1 month −4 to 113 °F
Storage ≤ 1 year 32 to 95 °F
Mechanical
Dimensions (L × W × H) 20.86 in × 8.65 in × 12.06 in
Weight 97 lb
Terminals M8 · 8–12 N·m (71–106 lbf·in)
Case ABS + PC, UL94 V-0
Enclosure IP67
Communication and BMS
Bluetooth Via included gauge · Epoch Li-Ion app
CAN bus 500 kbit/s · Victron GX
Series / parallel Up to 4 in series · 16 in parallel
BMS protection Over/under-voltage, overcurrent, short-circuit, temperature
Internal fuse 400 A, UL 60691
Compliance and Certifications
Pack / cells UL 1973 / UL 1642, UL 9540A, IEC 62619:2022
Other compliance CE, RoHS · UN 3480, Class 9

Frequently Asked Questions

Do I need a special cable to connect this battery to my Victron Cerbo GX?

For a single battery, no. The included communication harness has a grey RJ45 plug that goes into the GX device’s BMS-CAN port (Cerbo GX or Ekrano GX); on a Cerbo GX Mk2, use VE.Can 1 or VE.Can 2 and set the port speed to 500 kbit/s. For a bank, add RJ45 cables that link each battery’s black port to the next battery’s blue port, up to 16 batteries in parallel. Set the DIP switches on every battery, then turn on DVCC and set the controlling BMS and the battery monitor to Epoch before commissioning the system.

Can I wire multiple 12V 460Ah batteries together for a larger solar bank?

Yes. This battery supports large system expansion when installed according to Epoch guidelines. You can connect up to 16 batteries in parallel for higher amp-hour capacity, such as two batteries for 920Ah / 11.78kWh of nominal storage. Use matched batteries, balanced cabling, properly sized busbars, fusing, and lithium-compatible charging equipment.

What is the continuous discharge rate of the 12V 460Ah battery?

The Epoch 12V 460Ah V2 Elite battery is rated for 230A maximum continuous discharge, with 500A discharge for 30 seconds and 1,300A peak output for 1 second. In a properly designed 12V system, that makes it suitable for large inverter-class loads, marine house banks, RV power systems, and off-grid storage. Always size cables, fuses, busbars, and inverters around the full system current.

How does the single 460Ah design compare to multiple 100Ah batteries?

A single 460Ah battery can simplify large 12V systems by reducing the number of interconnect cables, terminals, parallel balance points, and physical batteries required. Instead of building a bank from several 100Ah-class batteries, one high-capacity battery gives you 5.89kWh of storage in one managed case with one BMS, Bluetooth monitoring, Victron communication, internal heating, and IP67 protection.

Product Documents:

Epoch Batteries 12V 460Ah (5.89kWh) V2 Elite Series LiFePO4 Battery User Manual

download
Download Now >

Epoch Batteries 12V 460Ah (5.89kWh) V2 Elite Series LiFePO4 Battery Specification Sheet

download
Download Now >
