Epoch Batteries 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery - Off Grid Stores
by Epoch Batteries

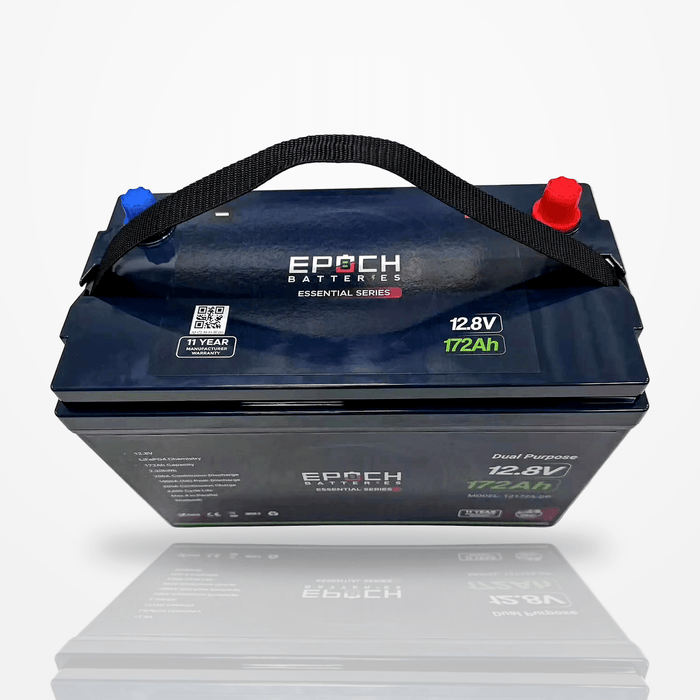

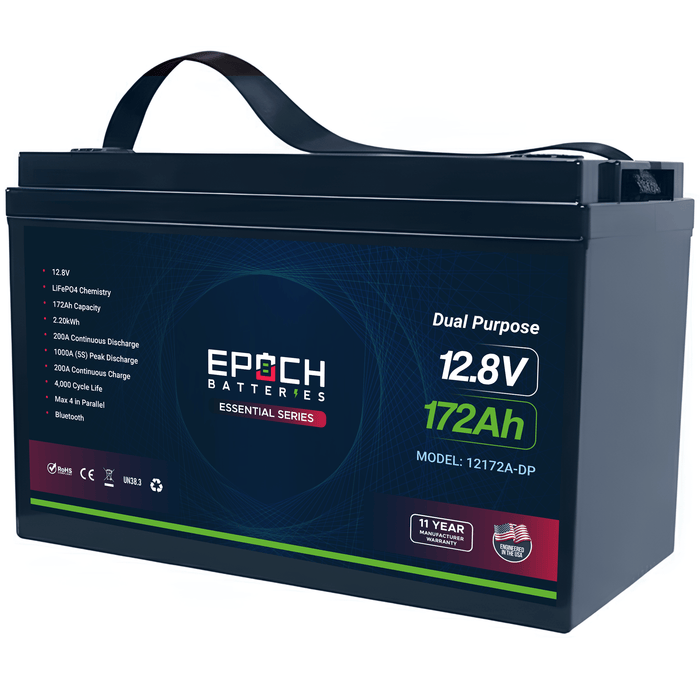

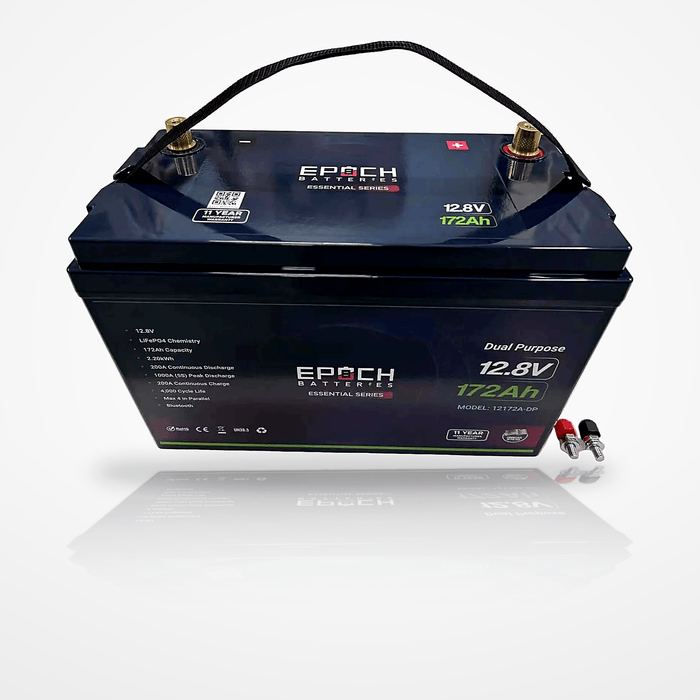

Epoch Batteries 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

SKU: 12172A-DP
$899.00 - $899.00
$899.00
$899.00 - $899.00
$899.00
Availability:
In stock

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

11-Year Limited Warranty

Off Grid Stores is an authorized retailer of Epoch Batteries products. Because of this, we pass on Epoch Batteries's manufacturer warranty to you.

Product Highlights
  • 12V 172Ah Dual-Purpose LiFePO4 (2.20kWh): A 12.8V nominal, 172Ah Essential Series battery that combines engine cranking and deep-cycle house power in one BCI Group 31 case and stores 2.20kWh (2,202Wh, nominal). It is not a drop-in replacement for every lead-acid installation: check tray fit, terminal clearance, cable size, overcurrent protection, charger profile, and engine and alternator compatibility first.
  • Cranking Power (Approx. 1,000 CCA Equivalent): 1,000A for up to 5 seconds, for engine cranking only. Epoch's compatibility target is outboards up to 250hp when the engine's battery requirements, alternator output, wiring and charging profile match.
  • 200A Continuous for House Loads: 200A maximum continuous discharge for fish finders, GPS, radios, livewell and bilge pumps, lighting and other 12V loads. Keep every load that lasts longer than 5 seconds at or below 200A, and keep enough charge in reserve to start the engine.
  • 200A Charging: 200A maximum continuous charge current from all sources combined (86A recommended) at 14.2-14.6V bulk/absorption. Program every charger, inverter charger, solar controller and DC-to-DC charger for LiFePO4, and use a DC-to-DC charger or lithium-ready regulation where the alternator needs it.
  • No Internal Heating: Rated to charge from -5°C to 55°C (23°F to 131°F), but program chargers to charge only between 0°C and 55°C (32°F and 131°F). The BMS blocks charging when the battery is too cold, and it can still discharge down to -20°C (-4°F).
  • Bluetooth Monitoring: The free Epoch Li-Ion app (iOS and Android) shows state of charge, voltage, current, temperature and BMS status.
  • Advanced BMS Protection: Protects against overcharge, over-discharge, over-current, short circuit, and high and low temperature. Install a DC-rated fuse or breaker as close as practical to the positive terminal, sized for engine cranking current as well as house loads.
  • IP65 Rated: Dust-tight and protected against low-pressure water jets. Not submersible: do not submerge or pressure-wash it, or install it where standing water can collect, such as a bilge.
  • Group 31 Footprint: 12.91 × 6.22 × 8.46 in (328 × 158 × 215 mm) and 40 lb (18.14kg), with M8 female terminals torqued to 8-12 Nm (71-106 in-lb).
  • Parallel Only: Up to 4 matched 12172A-DP batteries in parallel (688Ah, 8.81kWh at 12.8V). Series wiring is not approved for this model.
  • 4,000+ Cycle Life & Maintenance-Free: No watering, acid service or lead-acid equalization; routine inspections keep it safe.
  • 11-Year Limited Warranty: 3 years of free replacement, then 40% off MSRP on a replacement battery through Year 11. Register within 90 days or keep your proof of purchase to confirm your coverage start date.
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

Epoch Batteries 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Epoch Batteries 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Marine cranking · House power · Bluetooth · Group 31

12V 172Ah Marine Cranking Lithium Battery | Epoch Dual Purpose

Upgrade your boat with a 12V 172Ah marine cranking lithium battery that combines outboard starting power and deep-cycle house energy in one compact Group 31 LiFePO4 platform.

The Epoch Dual Purpose LiFePO4 battery delivers 2.20kWh of marine lithium battery storage, a 1,000A 5-second cranking pulse, 200A continuous output, Bluetooth monitoring, IP65 dust-tight, water-jet-resistant protection, and a lightweight 40-lb design for anglers and boaters who want fewer batteries, less weight, and more confidence on the water.

172Ah
Capacity
2.20kWh
Stored energy
1,000A
5-sec cranking pulse
200A
Continuous output
40 lb
Battery weight
IP65
Marine enclosure

Built to go further

Dual purpose designCranking + deep-cycle power
Approx. 1,000 CCAOutboard starting support
Bluetooth monitoringiOS and Android app visibility
IP65 protectionDust and water-jet resistance
4,000+ cyclesLong-cycle LiFePO4 chemistry
11-year limited warranty3 yrs free replacement

The Ultimate All-in-One Boat Battery: Core Features

Replace separate starting and house batteries with one cranking-capable, deep-cycle Group 31 lithium battery.

Cranking power: approx. 1,000 CCA equivalent

A heavy-duty cranking BMS delivers 1,000A for up to 5 seconds, for engine cranking only, giving compatible outboard starting systems the burst current they need without using a separate lead-acid starting battery.

Deep-cycle house power with 200A continuous output

This 2.20kWh marine lithium battery also supports long-running 12V loads including fish finders, livewell pumps, bilge pumps, lighting, radios, GPS units, stereos, and other onboard electronics.

Drop the dead weight at only 40 lbs

Replace heavy lead-acid starting and house batteries with one 40-lb Group 31 lithium battery to reduce boat weight, improve service access, and free up crowded battery compartments.

Built to Survive Demanding Marine Environments

Group 31 fitment, IP65 protection, and Bluetooth visibility for boaters who need dependable power.

BCI Group 31 footprint

The compact case measures 12.91 in L × 6.22 in W × 8.46 in H (328 × 158 × 215 mm) on a BCI Group 31 footprint, for compatible marine trays, hatches, and center-console compartments. It is not a drop-in replacement for every lead-acid installation: check tray fit, terminal clearance, cable size, overcurrent protection, and the charger profile first.

IP65 dust-tight, water-jet resistant

The IP65 enclosure is dust-tight and protects the internal cells and smart BMS against low-pressure water jets from any direction in marine battery hatches and boat compartments. It is not submersible: do not submerge or pressure-wash it, or install it where standing water can collect, such as a bilge.

Bluetooth smart app monitoring

Use the Epoch Li-Ion app to check battery state of charge, voltage, current, temperature, and BMS status from your phone, so you can see how much power remains before you run back to the ramp.

Expandability & 11-Year Reliability

Build a larger 12V house bank without moving away from the cranking-capable dual-purpose platform.

Expand your 12V house bank up to 4 in parallel

Wire up to 4 matched batteries in parallel for a 12V 688Ah / 8.81kWh bank. Series wiring is not approved for this model unless Epoch provides written model-specific guidance.

4,000+ cycles and 11-year limited warranty

LiFePO4 chemistry provides long service life, stable voltage, fast charging capability, and maintenance-free operation backed by Epoch’s 11-year limited warranty (3 years of free replacement, then 40% off MSRP on a replacement battery through Year 11; register within 90 days or keep your proof of purchase).

Smart BMS protection

The built-in BMS helps protect against overcharge, over-discharge, over-current, short circuit, high temperature, low temperature, and low-temperature charging conditions.

Built for Marine Anglers, Boaters & 12V Power Systems

An all-in-one boat battery for cranking, electronics, and deep-cycle marine runtime.

  • ✓Marine cranking and starting applications where the outboard requirements match.
  • ✓Epoch’s compatibility target is outboards up to 250 hp when the engine’s battery requirements, alternator output, wiring, and charging profile match.
  • ✓All-in-one boat battery setups that combine starting power and house electronics.
  • ✓Bass boats, fishing boats, pontoons, skiffs, flats boats, and center-console systems.
  • ✓Fish finders, livewell pumps, bilge pumps, GPS, marine radios, lighting, and onboard electronics.
  • ✓Group 31 AGM or lead-acid replacement projects where fitment and charging profile match.
  • ✓12V marine house banks up to 688Ah using matched batteries in parallel.
  • ✓RV, camper, van, and solar 12V deep-cycle systems where cranking capability is also useful.

IP65 marine protection

Dust-tight. Water-jet resistant. Not submersible.

The IP65-rated enclosure is dust-tight and protected against low-pressure water jets from any direction. It is suitable for many marine battery hatches and center-console installations, but it should not be submerged, pressure-washed, or installed where standing water can collect around the battery.

Why upgrade to Epoch dual-purpose lithium?

Start the engine, run the electronics, and remove unnecessary lead-acid weight.

This Epoch Dual Purpose LiFePO4 battery lets boaters consolidate cranking and deep-cycle power into a lighter, smarter, maintenance-free lithium platform. Compared with traditional lead-acid setups, it reduces watering, corrosion maintenance, wasted compartment space, and voltage sag under long accessory loads.

Fitment, Charging & Installation Note

Verify your exact boat, charger, alternator, and electrical system before installation.

Confirm Group 31 tray dimensions, lid clearance, hold-down method, terminal hardware, cable routing, fuse/breaker ratings, charger programming, and outboard alternator compatibility before installation. Mount the battery upright, and place a DC-rated main fuse or breaker as close as practical to the positive terminal, sized for engine cranking current as well as house loads. Use LiFePO4-compatible charging settings and follow Epoch’s current manual, applicable marine codes, and qualified installer guidance for final wiring.

Specifications:

Epoch Batteries 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery
ELECTRICAL & SYSTEM
Model 12172A-DP
Series Essential Series
Battery type Cranking + deep cycle
Chemistry LiFePO4
Cell configuration 4S1P
Nominal voltage 12.8 V
Capacity 172 Ah
Stored energy 2.20 kWh (2,202 Wh)
Operating range 10.0–14.6 V
Max. charge input 15.0 V (not a target)
Cycle life 4,000+ cycles
Bluetooth Epoch Li-Ion app, iOS / Android
Self-heating No
DISCHARGE & RUNTIME
Max. continuous discharge 200 A
Peak discharge 1,000 A for 5 s (cranking)
Cranking Approx. 1,000 CCA equivalent
Series / parallel Parallel only, max. 4P
100 W / 500 W load ≈ 17.6 h / ≈ 3.5 h
CHARGE SETTINGS
Max. continuous charge 200 A
Recommended charge Up to 86 A (50%)
Bulk / absorption 14.2–14.6 V
Absorption time ≤ C/20 or 15 min max
Float 13.4–13.8 V (off preferred)
Re-bulk 13.2 V
Equalization Disabled
Temperature compensation 0 mV/°C (disabled)
BMS high-voltage cutoff 14.6 V
SOC recalibration 14.6 V
TEMPERATURE
Charge 23 to 131 °F (rating)
Charger programming 32 to 131 °F
Discharge −4 to 140 °F
Storage 32 to 95 °F
Low-temperature charge Protection enabled
MECHANICAL
Dimensions 12.91 in × 6.22 in × 8.46 in
Metric dimensions 12.91 in × 6.22 in × 8.46 in
Footprint BCI Group 31
Weight 40 lb
Terminals M8 female, 8–12 N·m (71–106 in-lb)
Enclosure IP65, not submersible
BMS PROTECTIONS
Smart BMS Built-in management
Overcharge / over-discharge Protected
Over-current / short circuit Protected
High / low temperature Disconnect protection
COMPLIANCE & SUPPORT
Cell certification UL 1642 (cells)
Thermal runaway testing UL 9540A (cells)
Battery certification IEC 62619:2022
Compliance marks CE, RoHS
Transport UN 38.3, Class 9
Support US-based technical support

Frequently Asked Questions

Can this lithium battery really start a gas outboard motor?

Yes. Unlike standard deep-cycle lithium batteries that may shut down under engine-starting loads, the Epoch 12V 172Ah Dual Purpose battery uses a cranking-capable BMS and is rated for 1,000A for up to 5 seconds, for engine cranking only; Epoch lists it as approx. 1,000 CCA equivalent, based on that 5-second rating. Epoch’s compatibility target is outboards up to 250 hp when the engine manufacturer’s battery requirements, alternator output, wiring, and charging profile match.

Can I use this battery for both my outboard motor and my house electronics?

Yes. That is the purpose of this dual-purpose design. The battery can provide high-output cranking power for a compatible outboard while also delivering 172Ah / 2.20kWh of deep-cycle capacity for fish finders, GPS, livewell pumps, bilge pumps, lighting, stereos, radios, and other 12V marine electronics. Keep the accessory loads within the 200A continuous rating, and do not discharge the battery so deeply that there is not enough charge left to start the engine.

Will this fit in my boat's current battery tray?

The Epoch 12V 172Ah Dual Purpose battery is built on a BCI Group 31 footprint and measures 12.91 in L x 6.22 in W x 8.46 in H (328 x 158 x 215 mm). It is not a drop-in replacement for every lead-acid installation, so always verify tray size, lid clearance, cable routing, terminal access, and hold-down hardware before installation, and leave clearance above the terminals for cable bend radius and terminal covers.

Can I connect these batteries in series for a 24V or 36V trolling motor?

No. This model is not approved for series wiring. Series wiring increases voltage and may exceed the battery’s design limits, so it should not be wired in series to create 24V, 36V, or 48V systems unless Epoch provides written model-specific approval. It can be wired with up to 4 matched batteries in parallel for a larger 12V bank up to 688Ah (8.81kWh).

Can I install the battery in a bilge or an open deck compartment?

The battery has an IP65 enclosure rating: it is dust-tight and protected against low-pressure water jets from any direction. It suits many marine battery hatches and center-console compartments, but it is not submersible: do not install it in a bilge or anywhere standing water can collect around the case or terminals, and do not submerge or pressure-wash it. Keep it out of prolonged direct sunlight and away from engine and exhaust heat.

How do I check the battery level while I'm on the water?

This battery includes Bluetooth monitoring through the free Epoch Li-Ion app for iOS and Android. From your phone, you can review state of charge, voltage, current flow, temperature, and BMS status and protection events while you are at the helm or rigging area.

Can my outboard motor's alternator charge this lithium battery?

The battery can accept up to 200A of charge current, so confirm the alternator’s temperature, duty cycle, and output limits, and verify that your outboard alternator and charging system are compatible with LiFePO4 batteries. Some systems may require a lithium-ready regulator, a marine DC-to-DC charger, or manufacturer-specific guidance to protect the alternator and charge the battery correctly.

Does this battery have built-in heating?

No. This specific 12V 172Ah Dual Purpose Essential Series model does not include internal self-heating. It does include low-temperature charge protection: the battery is rated to charge from 23°F to 131°F / -5°C to 55°C, but chargers should be programmed to charge only between 32°F and 131°F / 0°C and 55°C, and the BMS blocks charging when the battery is too cold. It can still discharge down to -4°F / -20°C.

Product Documents:

Epoch Batteries 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery User Manual

download
Download Now >

Epoch Batteries 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery Specification Sheet

download
Download Now >
