SunGoldPower 11.4kW 48V Split Phase Hybrid Solar Inverter
by SunGoldPower

SunGoldPower 11.4kW 48V Split Phase Hybrid Solar Inverter

SKU: SGN-11K15PRO
Save $599.99 Save $599.99
$3,994.99
$3,994.99 - $3,994.99
$3,994.99
$3,395.00
$3,395.00 - $3,395.00
$3,395.00
Availability:
in stock, ready to be shipped

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Limited Sales Tax Collection

In compliance with state regulations, we must charge sales tax in: AZ, CA, CO, FL, GA, IL, IN, ME, MI, MD, MN, MO, NC, NJ, NV, OH, PA, SC, TN, TX, UT, VA, WA, and WI.

If your state isn’t listed — no tax!

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and we’ll do our best to beat it. We work hard to offer you the best value online.

Live Chat for Price Help

10-Year Warranty

Off Grid Stores is an authorized retailer of SunGoldPower products. Because of this, we pass on SunGoldPower's manufacturer warranty to you.

Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

SunGoldPower 11.4kW 48V Split Phase Hybrid Solar Inverter

SunGoldPower 11.4kW 48V Split Phase Hybrid Solar Inverter

11.4kW 48V Split Phase Hybrid Solar Inverter
 | Whole Home Backup (200A) |

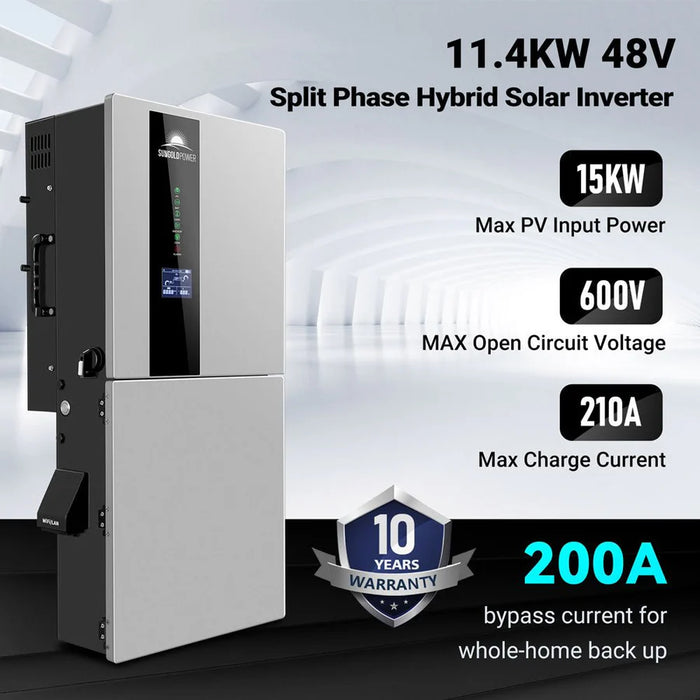

This high-performance hybrid inverter is engineered to efficiently convert solar energy into AC power, store excess energy in batteries, or feed it back into the grid. Supporting up to 15kW PV input and delivering 11.4kW continuous output, it offers unmatched flexibility for off-grid, grid-tied, or hybrid solar systems.

Equipped with AC-coupled functionality and a robust 200A whole-home backup capability, it ensures uninterrupted power supply during outages. Its IP65-rated enclosure makes it ideal for both indoor and outdoor installations, providing durable, weather-resistant performance in any environment

Stay Powered, No Matter What.

With the 200A bypass, your home instantly switches to grid power when needed—no interruptions, no worries.
It handles your entire home’s energy needs, from air conditioning to kitchen appliances,
keeping you safe, comfortable, and always connected.

IP 65 Outdoor / Indoor

All-Weather Reliability. Anytime. Anywhere.

Specifications:

SunGoldPower 11.4kW 48V Split Phase Hybrid Solar Inverter
Efficiency
CEC Efficiency 96.50 %
Input (PV)
Max. PV Input Power 15,000 W
Max. PV Voltage 600 V
Start-up Voltage 90 V
MPPT Operating Voltage Range 70 V to 540 V
Max. Input Current per MPPT 30 A / 22 A / 22 A
Max. Short Circuit Current per MPPT 40 A / 30 A / 30 A
No. of PV Strings per MPPT 2 / 2 / 2
No. of MPPT 3
Input / Output (BAT)

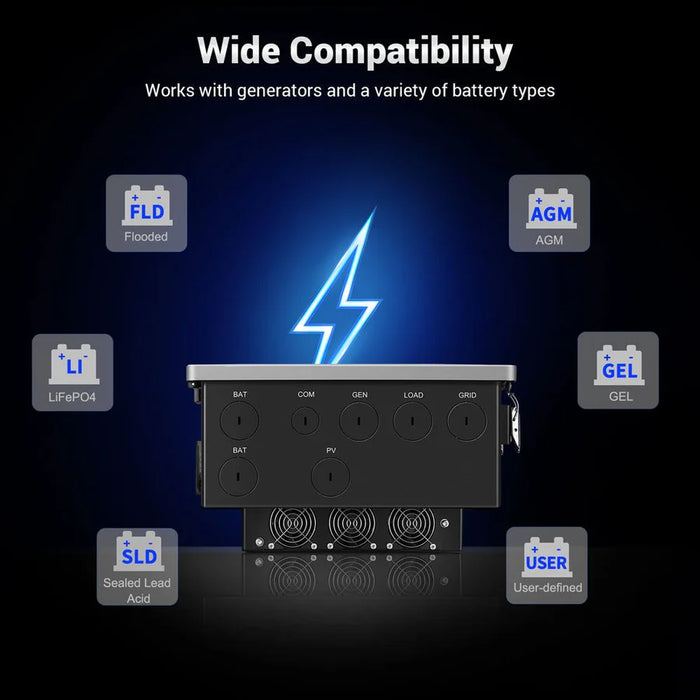

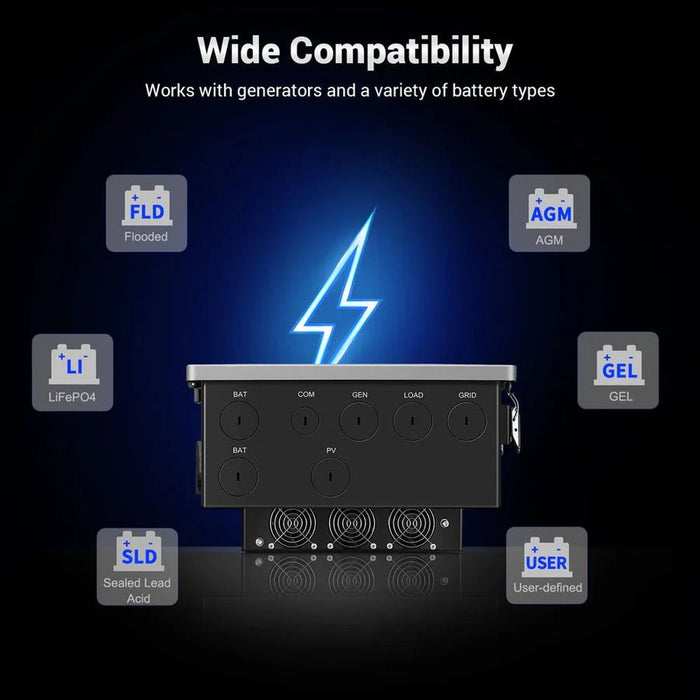

Battery Type Lithium-ion/Lead-acid
Nominal Battery Voltage 51.2 V
Battery voltage range 40 V to 64 V
Max. charge/discharge current 210 A / 210 A
Max. charge/discharge power 10,000 W / 10,000 W
Input / Output (Grid)
Nominal AC Output Power 11,400 W
Nominal AC Output Apparent Power 11,400 VA
Max. AC Output Current 47.5 A
Max. Grid Passthrough Current 200 A
Nominal Grid Voltage 120 V / 240 V (Split phase),
120 V / 208 V (2/3 phase)
Nominal Grid Frequency 50 Hz / 60 Hz
Grid Frequency Range 45 Hz to 55 Hz /
55 Hz to 65 Hz (Adjustable)
Power Factor > 0.99 @rated power
(Adjustable 0.8 LG to 0.8 LD)
THD < 3 % (Rated Power)
Output (Load)
Nominal Output Power 11,400 W
Nominal AC Output Power (PF=1) 11,400 W
Nominal Output Current 47.5 A
Peak Output Apparent Power 150 %, 10 s
Nominal Output Voltage 120 V / 240 V (Split phase),
120 V / 208 V (2/3 phase)
Nominal Output Frequency 50 Hz / 60 Hz
Transfer Time 10 ms (typical)
THD < 3 % @ 100% R Load
Output/Input (GEN Port) Max. 10 kW / 24,000 W
Protection
Protection Category Class I
DC Switch Yes
Anti-islanding Protection Yes
DC/AC Overcurrent Protection Yes
DC/AC Overvoltage Protection Yes
AC Short Circuit Protection Yes
General
PV Reverse Connection Yes
Surge Arrester DC Type II, AC Type II
Insulation Resistance Detection Yes
Leakage Current Protection Yes
Battery Breaker Integrated (300 A)
Load Breaker Integrated (2*200 A)
AFCI/RSD Monitoring Yes
Max. Operation Altitude 2000 m
Ingress Protection Degree NEMA 3R
Operating Temperature Range -25°C to 60°C (≥ 45°C derating)
Relative Humidity 0 % to 100 %
Cooling Method Smart Cooling
Mounting Wall bracket

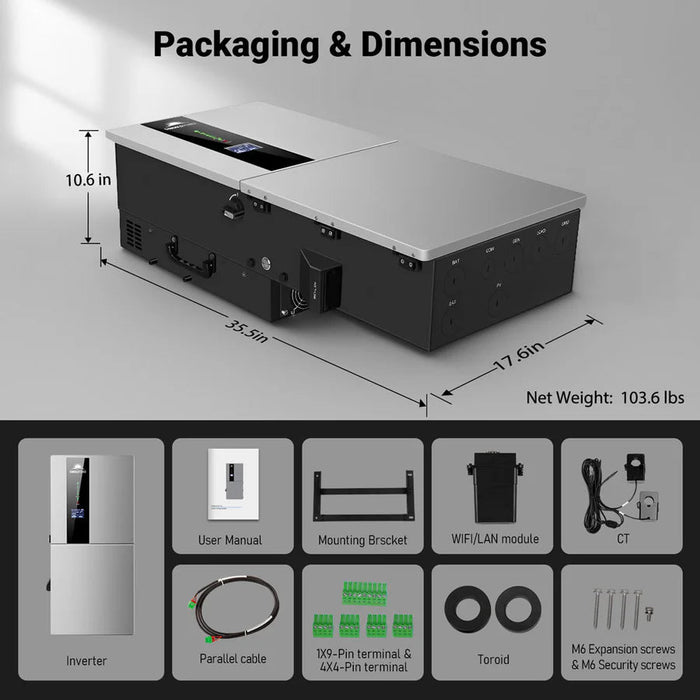

Dimensions (W*H*D) 17.6 in x 35.5 in x 10.6 in
Weight 103.6 lb
HMI & COM

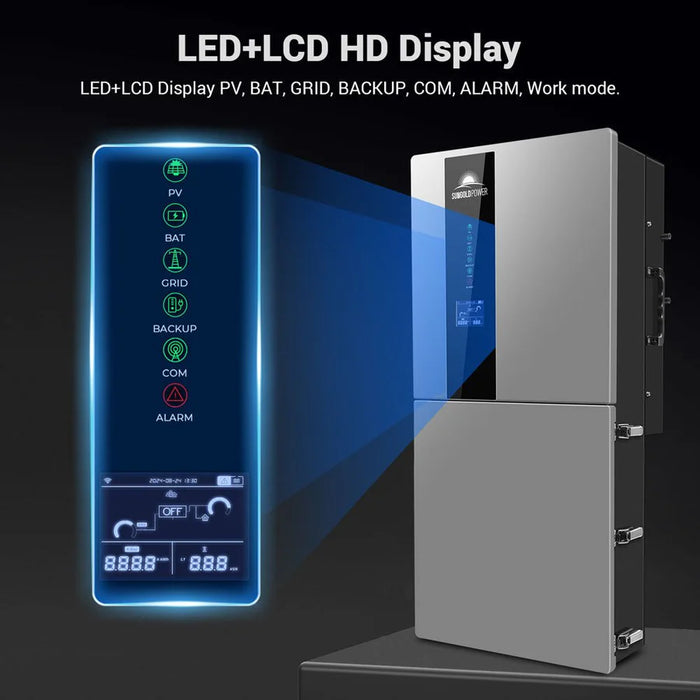

Display LED, LCD
Communication CAN (for BMS),
RS485 (for meter),
RS485 (CAN for parallel),

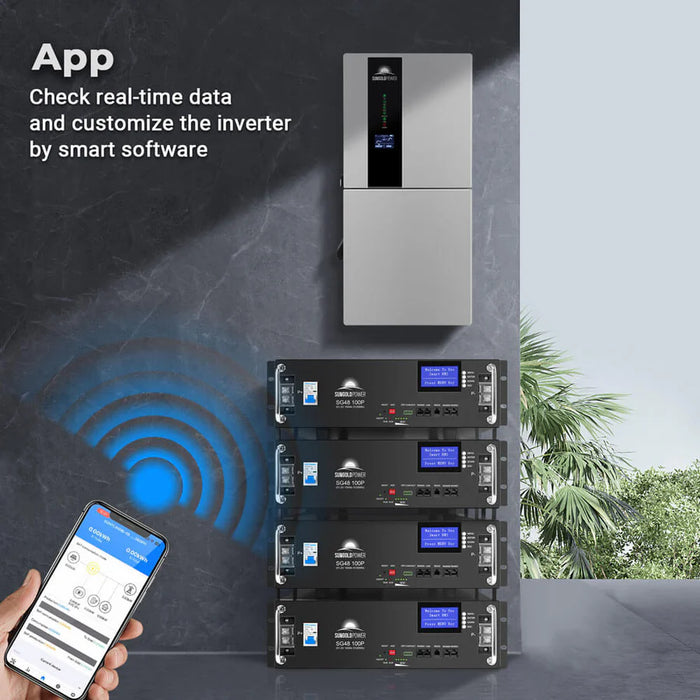

Optional: WiFi / LAN
Certification
Safety UL 1741/CSA C22.2/UL 1699B
EMC FCC Part 15 Class B
Grid UL1741SA, UL1741 SB,
UL 1741 PCS CRD,
IEEE1547, HECO SRD 2.0, CSIP

Product Documents:

SunGoldPower 11.4kW 48V Split Phase Hybrid Solar Inverter User Manual

download
Download Now >

SunGoldPower 11.4kW 48V Split Phase Hybrid Solar Inverter Certification Of Compliance

download
Download Now >
