Yes, Renogy 24V Core Series Batteries can be connected in series to increase the voltage for a 48V off-grid power system. You can also wire batteries in series first, then wire sets of batteries (same model) in parallel to achieve maximum power, up to 40.96kWh.

We do not recommend connecting batteries of different chemistries, capacities, nominal voltages, brands, or models in series or parallel. Doing so may cause damage to the batteries and connected devices and may create safety hazards.

The 24V 100Ah Core Batteries support multiple connection types, including series, parallel, and series-parallel. You can connect up to 2 batteries in series, 8 in parallel, or 16 in series-parallel, provided all batteries are the same model and similar in capacity.

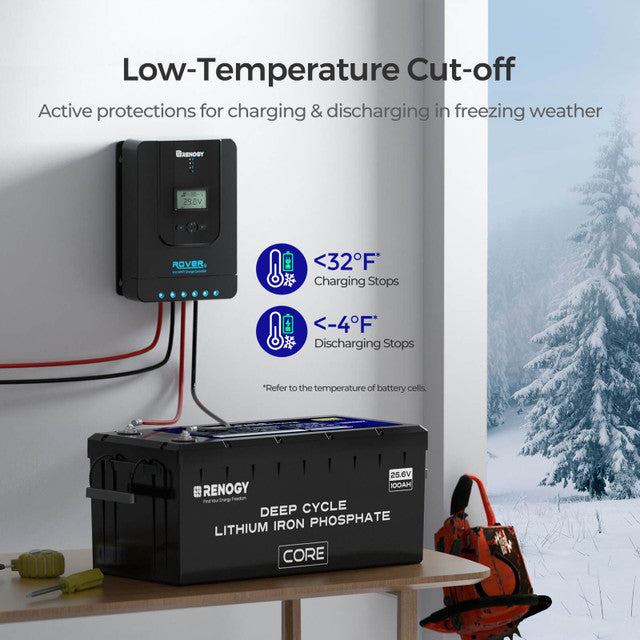

Renogy 24V 100Ah Core Series Batteries are designed to last for up to 5000 cycles with an 80% depth of discharge (DOD). These batteries also feature self-heating and low-temperature cut-off, allowing them to function in freezing temperatures.

To maintain optimal performance, it is recommended to connect your four batteries in parallel every six months to rebalance their voltages. This process helps reduce voltage differences and improves overall battery efficiency.

You can recharge your LiFePO4 batteries using solar power, a DC-DC battery charger, or an AC-DC charger. We recommend using a solar charge controller/charger that is specifically compatible with lithium iron phosphate batteries for optimal charging.

No, this battery is not compatible with a Bluetooth module. However, you can use a separate 500A Battery Monitor with Shunt (sold separately) to monitor the battery's status.

Each 24V 100Ah Core LiFePO4 Battery requires a charging current greater than 10A to initiate and maintain self-heating. Please verify that the charger you're using provides at least 10A of current to ensure proper heating.

1. This charger is specially designed for lithium battery charging. 2. This is a 24V dedicated lithium battery charger, where 24V refers to the voltage platform of the battery. The 24V voltage platform has two forms: the battery itself is a 24V battery, and the other is formed by connecting multiple small voltage platform batteries in series. For example, two 12V lithium batteries are connected in series can form a 24V voltage. To sum up, this charger is designed for 24V lithium iron phosphate.

Yes, this charger has a lithium battery activation function. When the lithium battery cannot be charged and discharged after triggering the BMS protection, this charger can be used to wake up the lithium battery.

The charging current of this charger is 10A. When using it, you need to make sure the maximum charging current of the battery is ≥10A. The total charging time for a 25Ah lithium battery is 2.5 hours; for a 50Ah lithium battery, the total charging time is 5 hours.

1. Accessories include alligator clip battery cable, ring terminal battery cable, and Blade Fuse. 2. The role of the battery cable: Provide two easy-to-operate connection methods to facilitate the user to realize the connection between the charger and the battery quickly 3. The role of the Blade Fuse: to provide the reverse connection protection of the battery. If the charger's positive and negative output terminals are accidentally reversed, it will burn only the fuse, and the AC charger will be safe, providing double protection.

1. When the charger is in the fast high-current charging stage, it will provide a maximum charging current of 10A, and the charger's indicator light is solid red, indicating that it is charging. 2. When the charger is in the constant voltage charging stage, the charging current will continue to decrease to 1A, and the charger's indicator light is solid red, indicating it is charging. 3. When the charger is in the trickle phase, the charging current will be less than 1A, and the charger's indicator light will be green, indicating that it is fully charged.
