Jackery Smart Transfer Switch
by Jackery

Jackery Smart Transfer Switch

SKU: 21-0006-000117
Save $279.99 Save $279.99
$1,678.99
$1,678.99 - $1,678.99
$1,678.99
$1,399.00
$1,399.00 - $1,399.00
$1,399.00
Availability:
in stock, ready to be shipped

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Limited Sales Tax Collection

In compliance with state regulations, we must charge sales tax in: AZ, CA, CO, FL, GA, IL, IN, ME, MI, MD, MN, MO, NC, NJ, NV, OH, PA, SC, TN, TX, UT, VA, WA, and WI.

If your state isn’t listed — no tax!

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and we’ll do our best to beat it. We work hard to offer you the best value online.

Live Chat for Price Help

5-Year Warranty

Off Grid Stores is an authorized retailer of Jackery products. Because of this, we pass on Jackery's manufacturer warranty to you.

Product Highlights
  • Seamless Power Switch: Provides UPS backup within ≤20ms during power outages, ensuring uninterrupted operation.
  • Eco-Friendly & Silent: Designed to integrate with solar panels and rooftop PV systems via Jackery Explorer 5000 Plus for sustainable energy use.
  • Energy Savings: Charging-discharging mode helps reduce electricity costs.
  • Compact & Maintenance-Free: Lightweight, easy to install, and requires no maintenance.
  • Smart App Control: Enables real-time monitoring and energy management.
  • Note: The Smart Transfer Switch is only compatible with the Jackery 5000 Plus Series.
Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

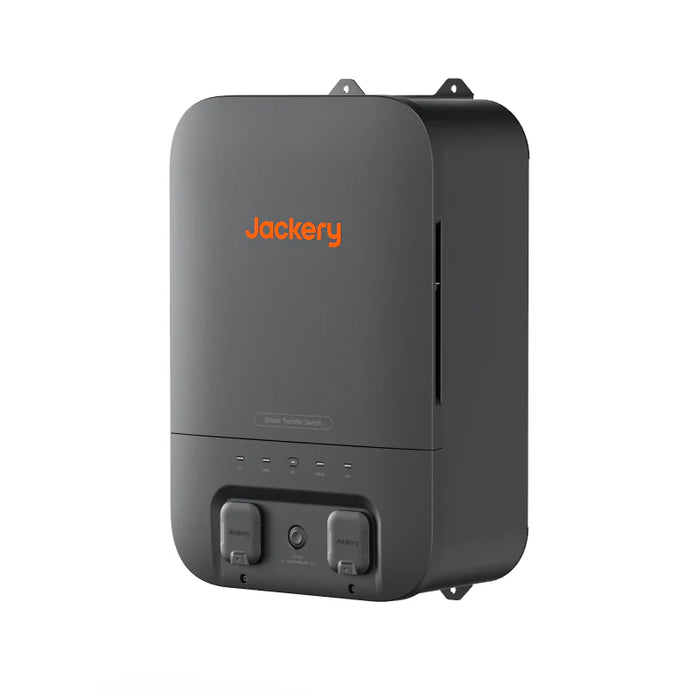

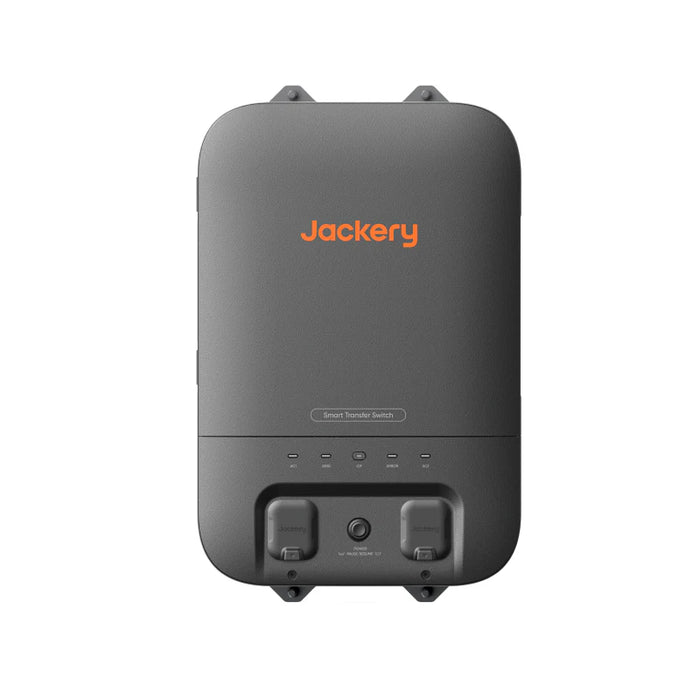

Jackery Smart Transfer Switch

Jackery Smart Transfer Switch

Jackery Smart Transfer Switch, paired with the Jackery 5000 Plus, ensures seamless 20ms power switching to keep essential devices running during outages. With smart app management, you can monitor energy usage and optimize power for greater efficiency and savings.

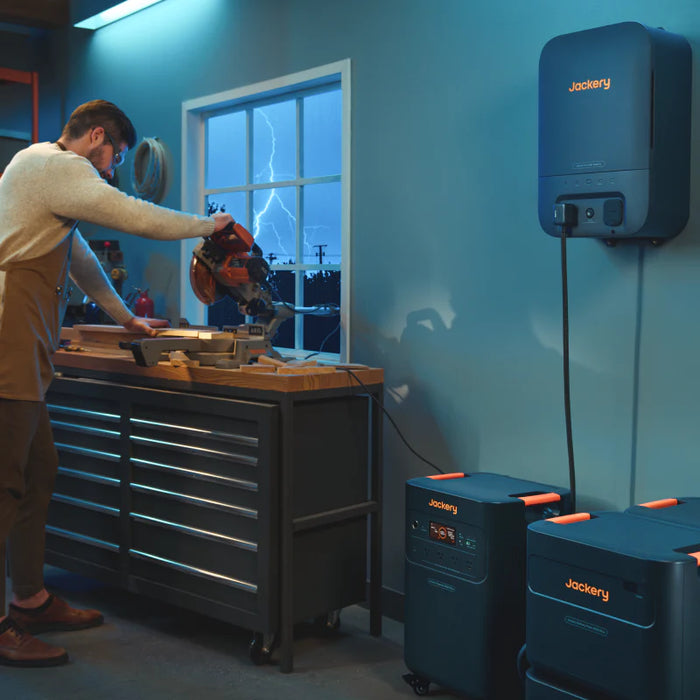

Uninterrupted Comfort

Jackery Smart Home Kit ( Explorer 5000 Plus + Smart Transfer Switch) consists of a portable power station and a smart transfer switch. It supports 12 essential circuits, accommodating a wide range of household appliances—from refrigerators and network services to sump pumps and living room lighting. Whether it's a storm or an unexpected blackout, your home is covered with a reliable, high-capacity power solution.

Uninterrupted Power Supply with 20ms Seamless Switching

Enjoy continuous power with our UPS system, designed to switch seamlessly in just 0.02 seconds to keep your refrigerator, computer, and router running without interruption. Please note: This UPS feature requires pairing with the Explorer 5000 Plus and must be activated through the app for optimal performance.

Save on Electricity Bills

Our Smart Transfer Switch system helps reduce energy costs by optimizing power usage. It automatically switches to stored power during peak hours and uses grid power during off-peak times, ensuring efficient energy consumption and savings on your electricity bill.

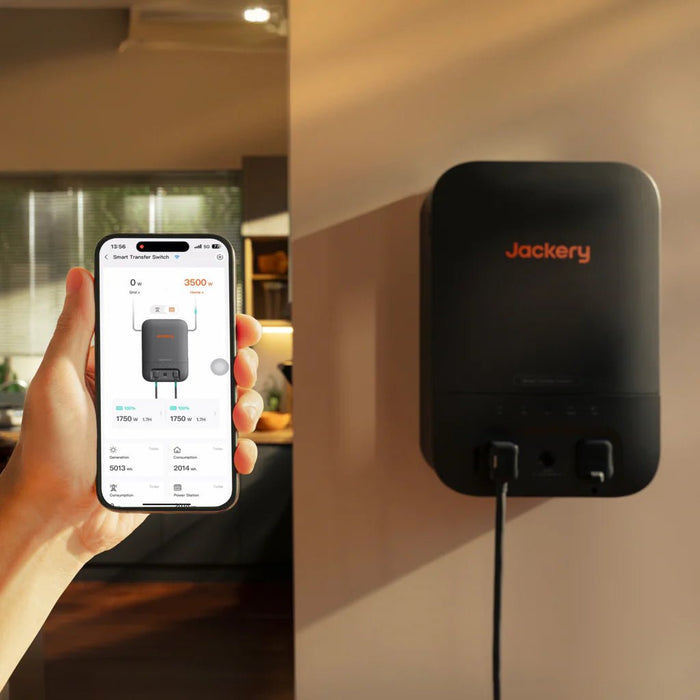

Smart App Management

Manage your power system effortlessly with our intelligent app. It allows real-time monitoring, remote control of circuits, and customized power settings, helping you optimize energy use and enhance efficiency, all from the convenience of your smartphone.

Specifications:

Jackery Smart Transfer Switch
Model No. JA-TS02A
AC Voltage (Nominal) 120V/240V~ 60Hz
Feed-In Type Split Phase
Maximum Input Current 100A Grid / 60A Power Station
Maximum Output Current 60A Home Load / 33.4A Power Station
Maximum Input Short-Circuit Current 10KA
Overvoltage Category IV
UPS ≤20ms
Enclosure Type (Distribution Panel) NEMA Type 1
Number of Load Branches 12
Main Circuit 2 AWG
Branch Circuit 14 AWG 12 AWG 10 AWG
Communication Wi-Fi and Bluetooth
Operating Temperature -4°F~104°F
Weight About 25.57 lbs
Dimensions 22 in x 14.7 in x 7.87 in

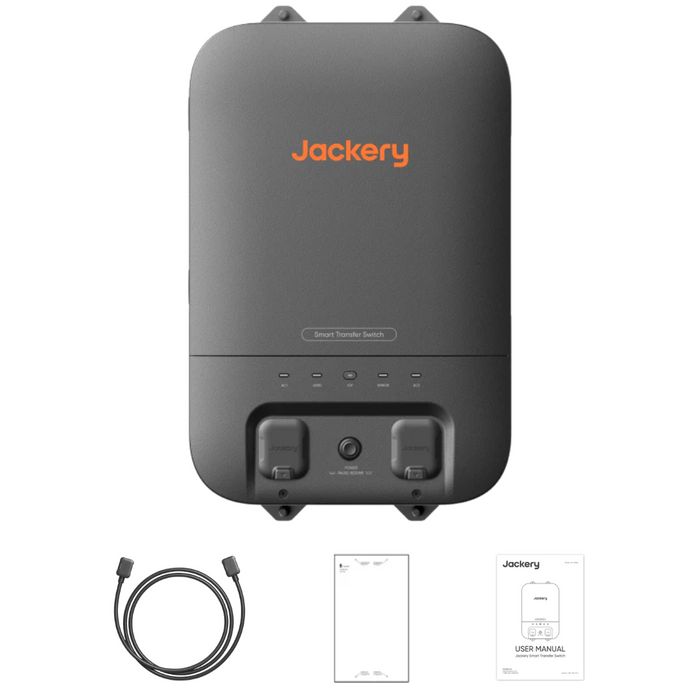

PACKAGE INCLUDES

Jackery Smart Transfer Switch

Jackery Smart Transfer Switch

x 1

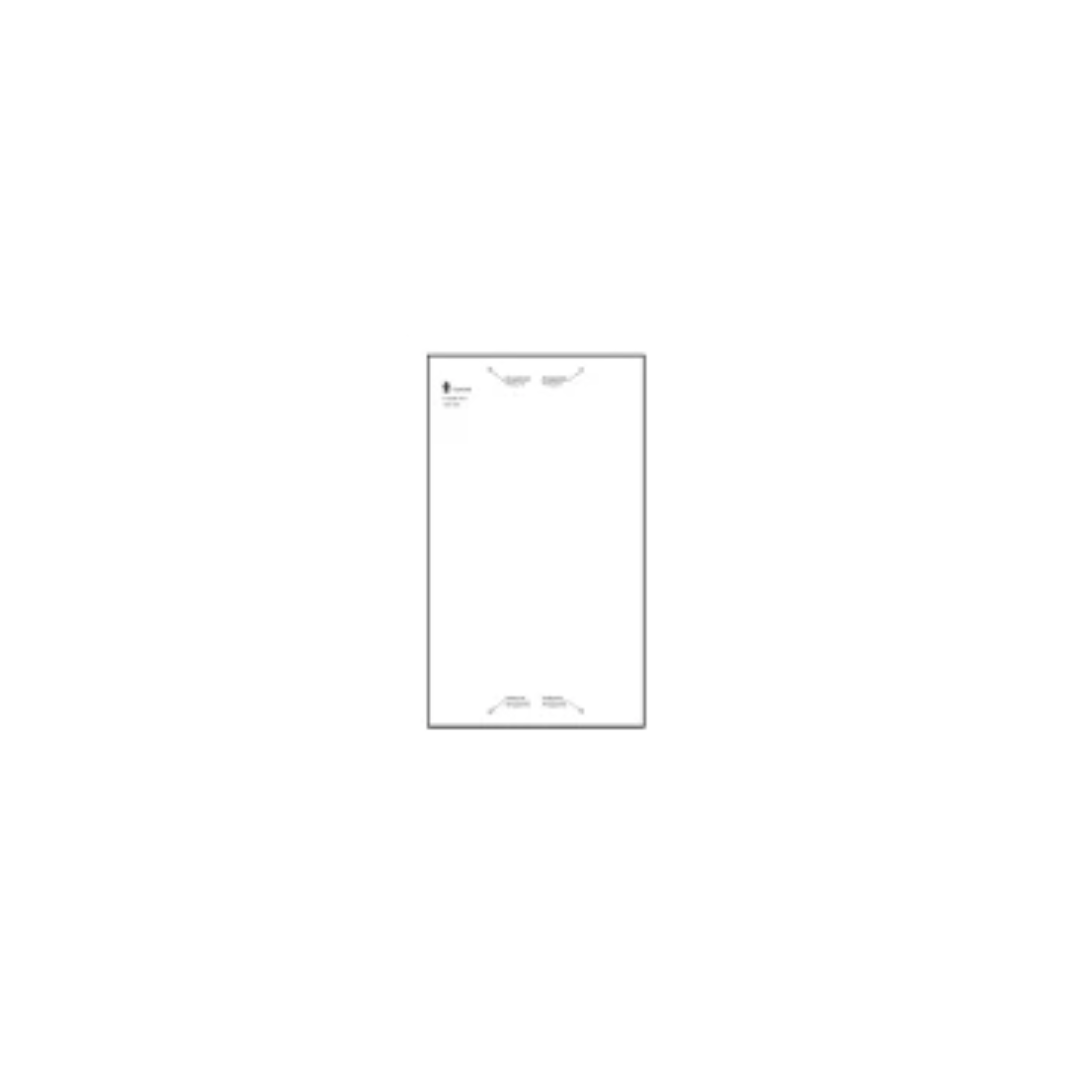

Marking Template

x 1

Power Input/Output Cable

x 1

Wall Bracket

x 2

M4 Phillips Flat Head Screw

x 4

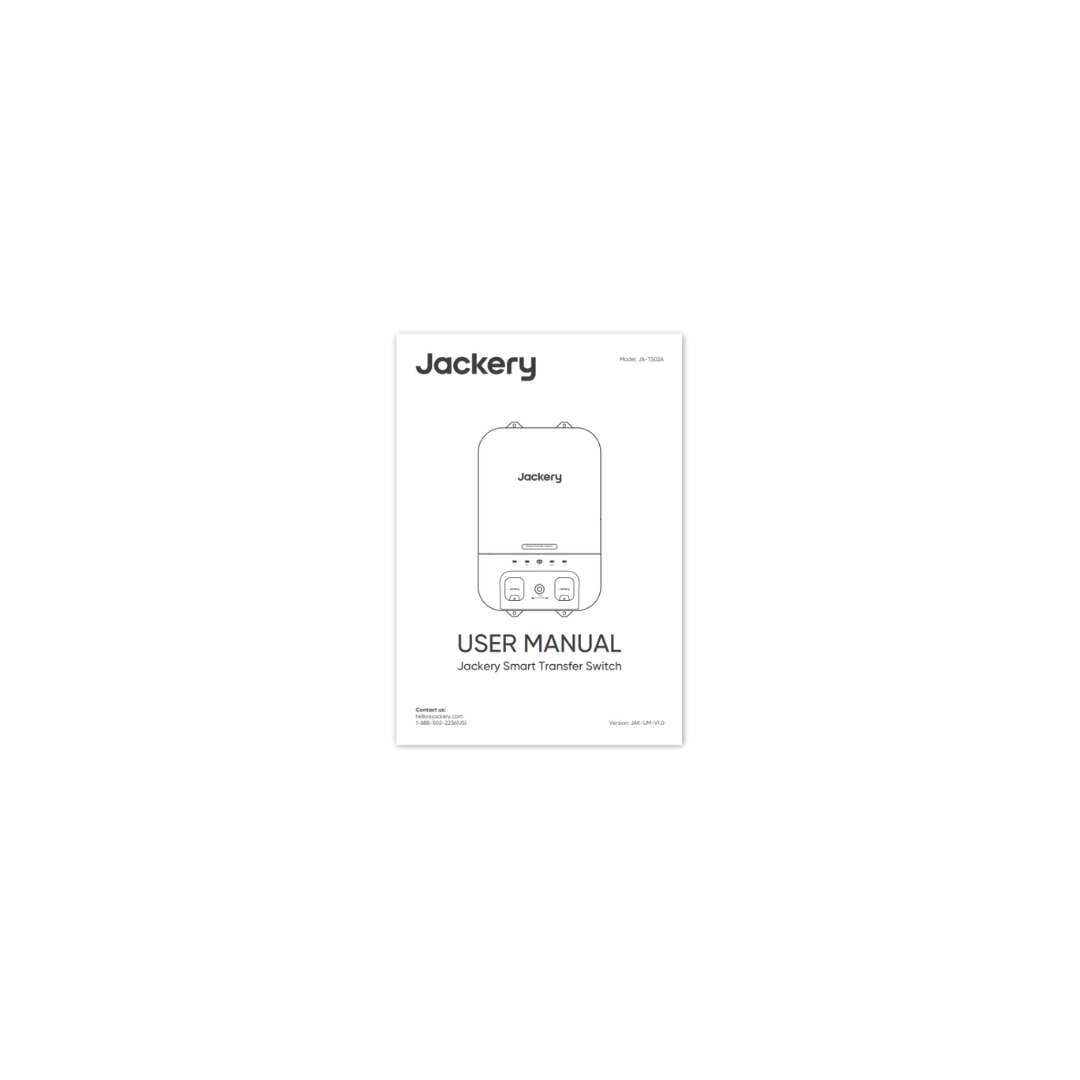

User Manual

x 1

Frequently Asked Questions

Which portable power stations can the Smart Transfer Switch connect to?

It can connect to the Jackery Explorer 5000 Plus, with support for up to 2 units simultaneously.

What are the power requirements for the Smart Transfer Switch?

It requires split-phase 240V input and supports 120V 60Hz and split-phase 240V 60Hz output. Three-phase power is not supported.

What appliances can the Smart Transfer Switch connect to?

The Smart Transfer Switch can connect to 120V and split-phase 240V circuits in a home's sub-panel. Professional electricians must handle the installation. Each circuit can support appliances up to 240V/30A and 7200W. A maximum of 12 circuits for 120V or 6 circuits for 240V can be connected simultaneously. Both 120V and 240V circuits can be connected at the same time.

What are the installation requirements for the Smart Transfer Switch?

The Smart Transfer Switch is not waterproof and must be installed indoors or in a location protected from rain.

Does the Smart Transfer Switch have grid-tie functionality?

The Smart Transfer Switch cannot input energy from portable power station or solar into the grid.

Can the Smart Transfer Switch connect to rooftop solar panels?

The Smart Transfer Switch cannot directly connect to rooftop solar panels. However, solar panels can be connected to the 5000 Plus, which can then connect to the Smart Transfer Switch to provide solar power for the home.

What if my home is already connected to a solar system?

If your home's electricity distribution panel is connected to rooftop solar through an inverter with a dedicated circuit breaker (AC-coupled), it is compatible with the Smart Transfer Switch. Note that in case of a grid outage, AC-coupled systems will also stop functioning, as they depend on grid signals. When the grid is operational, the solar generator can power the Smart Transfer Switch.

How many amps do the breakers on each Smart Transfer Switch circuit support?

Each circuit breaker supports up to 30A.

Why does it take longer to switch to portable power station during a power outage?

Either the UPS function is not enabled in the app, or the portable power station is charging. Without UPS enabled, the switch-over time is approximately 5 seconds when grid power fails.

How can I achieve a 20ms UPS switch?

Enable the UPS function in the Jackery App. When the grid power fails, the switch to a portable power station will occur within 20ms. If the portable power station is charging when a power outage occurs, the switch-over time will be approximately 1 second.

How can I save on electricity coSmart Transfer Switch using peak and off-peak rates?

Set the "Charging-discharging plan" in the Jackery App's working modes. Configure the charging and discharging times based on peak and off-peak electricity rates.

How can I use rooftop solar to power my home and save on electricity coSmart Transfer Switch?

First, connect the rooftop solar panels to the Explorer 5000 Plus. Then, set the working modes in the Jackery App to "Self-powered" mode. In this mode, a portable power station charges exclusively with solar power and automatically powers the home when fully charged. If the storage level falls below the backup threshold, it will switch to grid power for home supply.

How can I extend backup time for critical loads?

In the Jackery App, move non-critical load circuits to the "Nice to have circuits" group under "Backup priority." When the energy level falls below the set threshold, non-critical loads will automatically shut off, reserving more energy for critical loads.

Why do some circuits not have power after the mains power is restored?

After the mains power is restored, the circuits that were disconnected based on backup power priority during the outage will not be automatically turned on to reduce the risk of electric shock. Customers need to manually turn on the disconnected circuits.

Product Documents:

Jackery Smart Transfer Switch User Manual

download
Download Now >

Jackery Smart Transfer Switch Installation Guide

download
Download Now >
