EG4 12000XP Off-Grid Inverter | 12,000W Output | 24,000W PV Input | 48V Split Phase Hybrid Solar Inverter

EG4 12000XP Off-Grid Inverter | 12,000W Output | 24,000W PV Input | 48V Split Phase Hybrid Solar Inverter

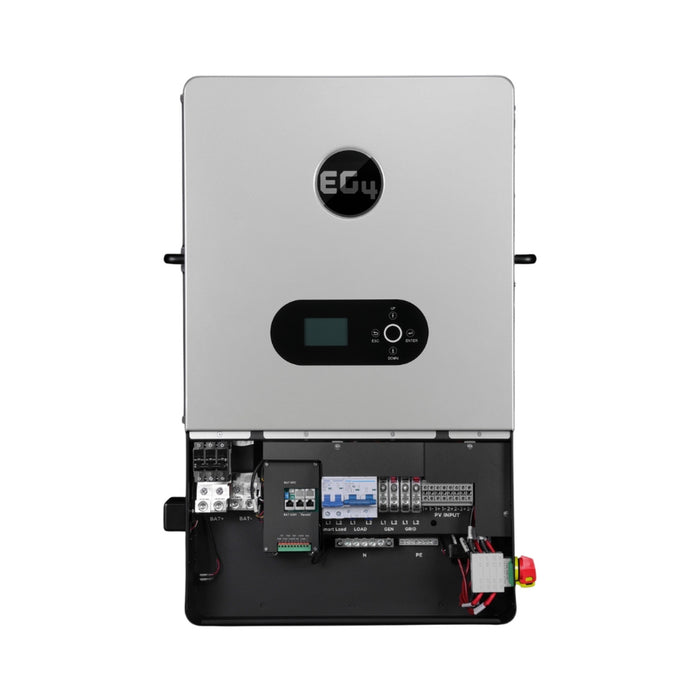

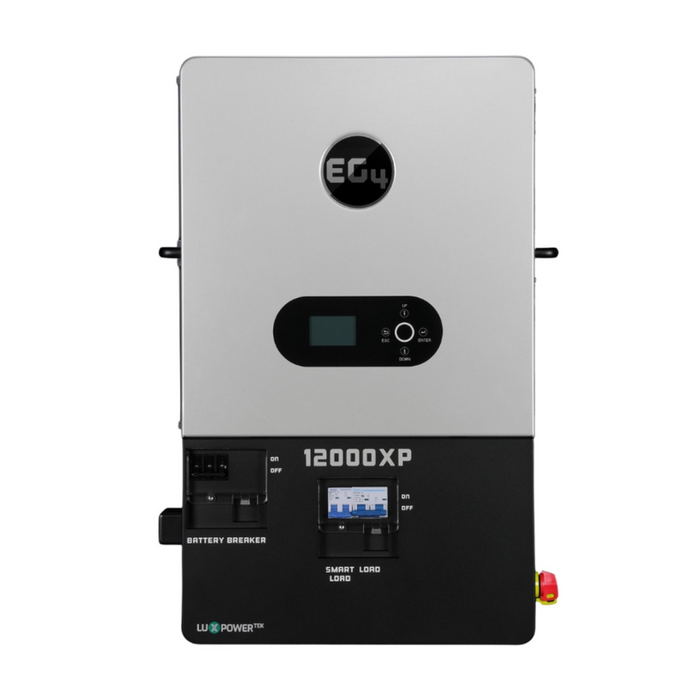

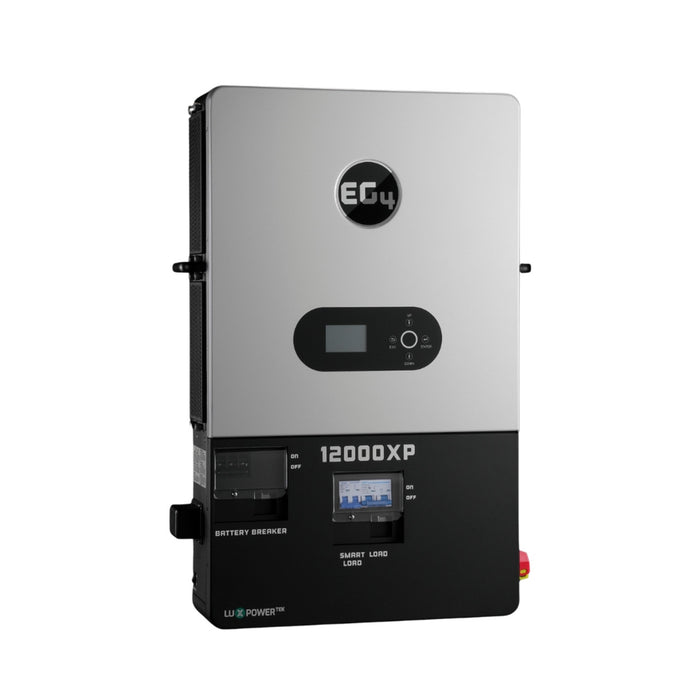

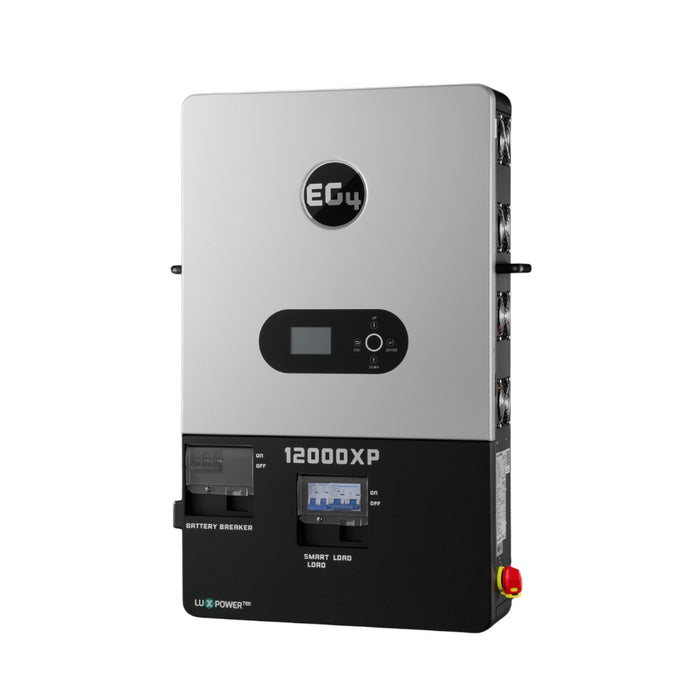

EG4 12000XP Off-Grid Inverter

The EG4 12000XP is designed for anyone seeking an efficient, all-in-one off-grid inverter with high power output, durable construction, and advanced communication features. Capable of running entirely off the grid or using grid electricity, this inverter is perfect for both residential and commercial setups.

Key Features:

  • High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.
  • Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.
  • Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.
  • Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.
  • Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.

Performance Highlights:

  • 12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.
  • High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.

Ideal Applications:

  • Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.
  • Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.
  • Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.

Why Choose the EG4 12000XP?

With high output power, advanced safety features, and remote management capabilities, the EG4 12000XP off-grid inverter provides an industry-leading solution that meets all your off-grid energy needs. Engineered for efficiency and durability, this inverter is your best choice for reliable and scalable power.

Specifications:

EG4 12000XP 48V Split Phase Off-Grid Inverter
AC INPUT DATA
Nominal AC Voltage (Grid | Generator) 120/240VAC; 120/208VAC (L1/L2/N required)
Frequency (Grid | Generator) 60 Hz (Default) | 50 Hz (Configurable)
Grid Max. Continuous AC Current 100A @ 240VAC
Max. AC Input Power 24000W
Generator Max. Continuous Current 62.5A @ 240VAC
Recommended Generator Capacity 6000W – 15000W
AC Bypass (Grid | Generator) 100A | 90A
AC OUTPUT DATA
Output Voltage 120/240VAC; 208VAC
Output Frequency 60 Hz (Default) | 50 Hz (Configurable)
Max. Output Continuous Current 50A @ 240VAC | 57.7A @ 208V
Nominal Power Output w/ PV: 12000W @ 240V | 12000W @ 208V
w/ out PV: 12000W @ 240V | 12000W @ 208V
Max. Continuous Wattage 12000W (L1-L2) | 6000W (L1-N or L2-N)
Peak Power (Surge Capacity) 18000W for ≈5 seconds | 15000W for ≈10s
Power Factor Value .99
THD (V) <3%
Switching Time <10 ms @ Single / <20 ms @ Parallel
PV INPUT DATA
Number of MPPTS 2
Inputs per MPPT 2/2
Max. Usable Input Current 35A/35A
Max. Short Circuit Input Current 44A/44A
DC Input Voltage Range 100 – 480 VDC
Min. Startup Voltage 100 VDC
MPPT Operating Voltage Range 120 – 385 VDC
Nominal MPPT Volatge 320 VDC
Max. Utilized Solar Power 24000W (12000 per MPPT)
Max Recommended Solar Input 28000W (14000 per MPPT)
GENERAL DATA
Max. Units in Parallel 16
Product Dimensions (H×W×D) 34.25×20.87×5.91 in.
Unit Weight 104.7 lbs. (47.5 kg)
Design Topology High Frequency - Transformerless
Relative Humidity 5 – 95% (non-condensing)
Operating Altitude <6561 ft. (<2000 m)
Operating Ambient Temperature Range 32°F – 113°F (0°C – 45°C) @ Full Load
Storage Ambient Temperature Range 5°F – 140°F (-15°C – 60°C)
Noise Emission (Typical) <60 dB
Locked Rotor Amps (LRA) 195A
Cooling Method Fan
Communication Interface RS485/CAN/Wi-Fi
Ingress Protection Rating IP20
Safety Features PV Reverse Polarity Protection,
Surge Protection Device,
Output Over- Voltage Protection,
Output Over Voltage Protection Varistor

Product Documents:

EG4 12000XP 48V Split Phase Off-Grid Inverter User Manual

download
Download Now >

EG4 12000XP 48V Split Phase Off-Grid Inverter Specification Sheet

download
Download Now >

EG4 12000XP 48V Split Phase Off-Grid Inverter Certification Of Compliance

download
Download Now >
