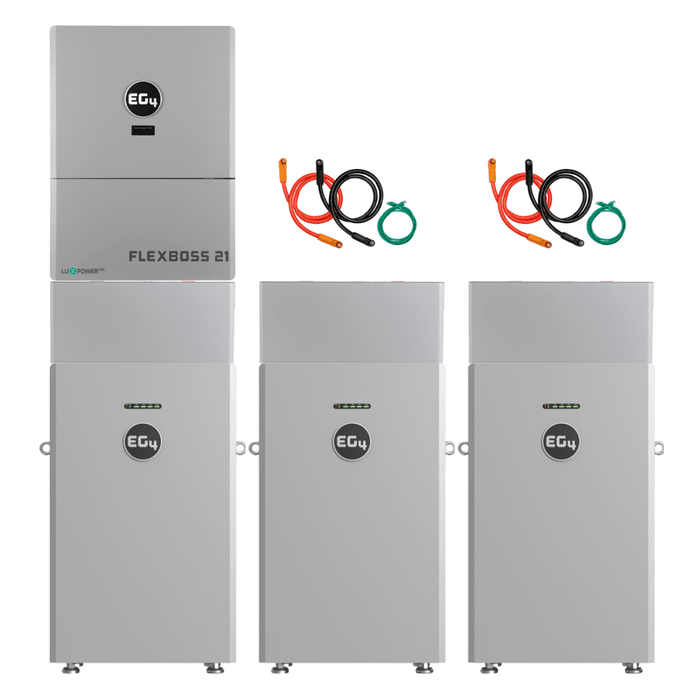

Bundle Options: 1 x All Weather Battery + FlexBOSS21 Inverter

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and we’ll do our best to beat it. We work hard to offer you the best value online.

Live Chat for Price Help

10-Year Warranty

Off Grid Stores is an authorized retailer of EG4 products. Because of this, we pass on EG4's manufacturer warranty to you.

Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

EG4 48V 314Ah All Weather WallMount LiFePO4 Battery + FlexBOSS21 16kW 48V Split Phase AC Hybrid Inverter

EG4 48V 314Ah All Weather WallMount LiFePO4 Battery + FlexBOSS21 16kW 48V Split Phase AC Hybrid Inverter

Meet the EG4 WallMount 314Ah AllWeather Battery — a high-capacity, outdoor-ready energy storage unit built for installs where space, weather, and long runtimes all matter. Delivering 16kWh at 51.2V, it’s designed to be a dependable backbone for solar-plus-storage, off-grid power, or whole-home backup setups that need serious capacity with straightforward expandability.

At the core are lithium iron phosphate (LiFePO₄) cells paired with EG4’s smart BMS for stable performance and long service life, plus active cell balancing to help keep the pack operating efficiently over time. The enclosure is purpose-built for exterior placements with an IP67 rating, and internal heaters support reliable operation when temperatures drop. For day-to-day ownership and long-term maintenance, Bluetooth + Wi-Fi connectivity enables live status checks and over-the-air firmware updates through the EG4 app—so the system stays current without hassle.

Why it stands out

  • Big usable capacity: 16kWh (314Ah) for extended runtime and stronger backup coverage
  • True outdoor protection: IP67 enclosure built to handle dust, water, and harsh conditions
  • Smarter control: EG4 smart BMS with active cell balancing for better efficiency and longevity
  • Connected ownership: Bluetooth/Wi-Fi monitoring + OTA updates via the EG4 app
  • Cold-weather confidence: Built-in heaters for reliable performance in colder climates
  • Simplified scaling: Auto-addressing and closed-loop integration with EG4 inverters/batteries

Best-fit applications

A strong choice for residential and light commercial solar storage, outdoor battery banks, off-grid power systems, and backup power where durability, monitoring, and easy expansion are priorities.



Specifications:

EG4 48V 314Ah AllWeather WallMount LiFePO4 Battery
Product Type LFP Battery
Battery Type Lithium Iron Phosphate (LFP)
Nominal Energy Capacity 16 kWh
Usable Energy (DOD) 12.86 kWh (80% recommended)
Voltage Range 47.5 – 57.6 VDC
Nominal Voltage 51.2 VDC
Capacity 314 Ah
Charging Voltage Range 56 – 57 VDC
Discharging Cut-off Voltage 47.5 VDC
Max Continuous Charge Current 157 A
Max Continuous Discharge Current 200 A
Continuous Charge/Discharge Power 8 / 10.2 kW
Recommended Charge/Discharge Rate 0.5C
Peak Power 12.8 kW (3 sec)
Round-trip Efficiency 95%
Max Parallel Units 32
Protection Over/Under Voltage, Over-Current,
Short Circuit, High/Low Temp
BMS Integrated, Active Balancing
Communication Protocols RS485, CAN
Battery Breaker 250 A
Storage Temperature -4 – 131°F
Humidity Range 5% – 95% RH (non-condensing)
Altitude 9843 ft. (<3000 m)
Cooling Method Natural Convection
Dimensions (H × W × D) 34.6 × 21.7 × 9.3 in
Operating Temperature Range Charge: 32–122°F
Discharging: -4–131°F
Recommended DOD Setting EG4 recommends this value be set
no lower than 20% to maintain the
recommended 80% Depth of Discharge.
Storage Temperature Less than 3 months of storage.
If longer than 3 months, recommended
storage temperature will be 59–86°F
Weight 309 lbs
Enclosure Rating IP67
Mounting Options Wall attached / Floor mount
Display / Indicators LED Status
Connector Type Degson quick connector / screw terminal
UL 1973 Pending
UL 9540 Pending
UL 9540A Pending
UN 38.3 Pending
Cycle Life (70% EOL Capacity) 10,000 cycles @ 0.5C, 25°C, 80% DOD
Design Life 15 years
Application Type Residential / Commercial / Off-grid / Backup
Lifetime Energy Throughput 122.2 MWh

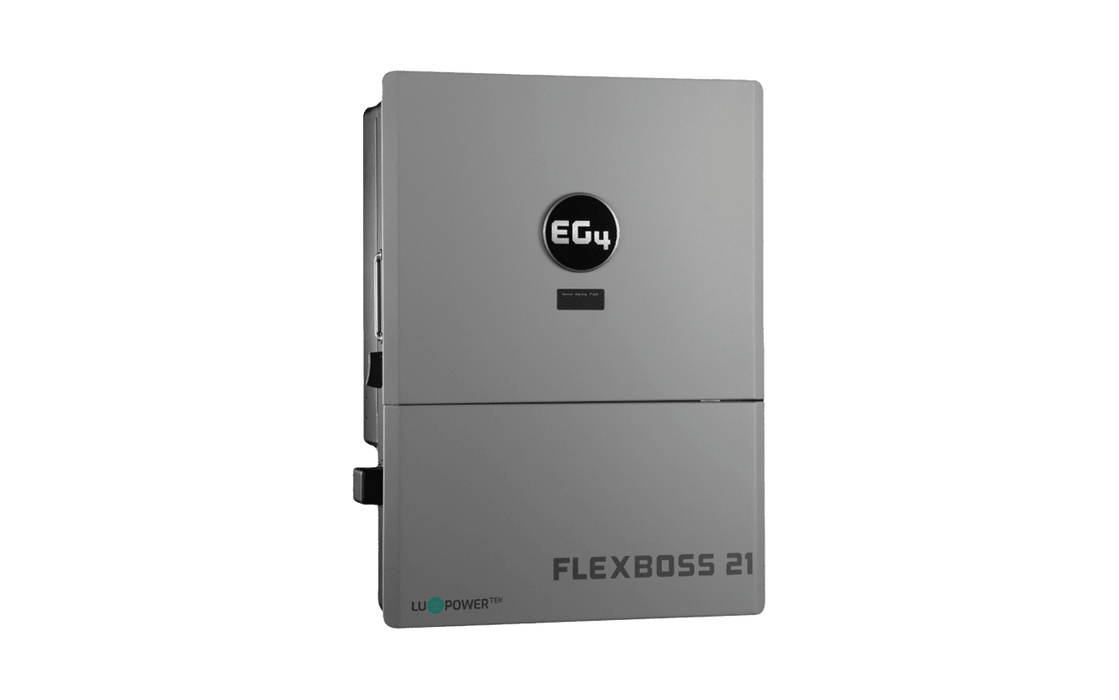

EG4 FlexBOSS21 16kW 48V Split Phase AC Hybrid Inverter
Nominal AC Voltage 120/240VAC | 120/208VAC (L1/L2/N required)
Frequency 60 Hz (Default) | 50 Hz
Max. AC Current 50A @ 240V | 57.7A @ 208V
Max. AC Input Power 12000W
Max. AC Bypass 90A
Operating Voltage Range 180 - 270VAC
Output Voltage 120/240VAC | 120/208VAC (L1/L2/N required)
Max. Output Current 66.7A
Output Frequency 60 Hz (Default) | 50 Hz
Nominal Output Power (without PV) 12000W @ 240V | 12000W @ 208V
Nominal Output Power (with PV) 16000W @ 240V | 13800kW @ 208V
Power Factor 0.99 (Full Load)
Reactive Power Adjustment Range -0.8 - 0.8 Leading Adjustable
Total Harmonic Distortion <5% (Full Load)
Transfer Time 20ms (Default) | 10ms
(Configurable) | 20ms (Parallel)
Rated Output Current 50A @ 240V | 57.7A @ 208V
Nominal Output Voltage 120/240VAC | 120/208VAC
Rated Output Power 12000W @ 240VAC | 12000W @ 208VAC
Peak Power 24000W (0.5 sec) | 18000W (1 sec)
15000W (6 min) | 13200W (12 min)
Operating Frequency 60 Hz (Default) | 50 Hz
Total Harmonic Distortion Voltage <5%
Transfer Time 20ms (Default) | 10ms (Configurable)
| 20ms (Parallel
No. of MPPTs 3
Inputs per MPPT 2 (MPPT 1) | 2 (MPPT 2) | 1 (MPPT 3)
Max. Usable Input Current 26A (MPPT 1) | 26A (MPPT 2) | 15A (MPPT 3)
Max. Short Circuit Input Current 31A (MPPT 1) | 31A (MPPT 2) | 19A (MPPT 3)
DC Input Voltage Range 100 - 600VDC
Unit Start-Up Voltage 100VDC
MPPT Operating Voltage Range 120 - 440VDC
Nominal MPPT Voltage 360VDC
Max. Utilized PV Array Power 21000W
Max. Recommended PV Input 25000W
Max. Efficiency 97% (PV to Grid) | 94.5%
(PV to Battery) | 94% (Battery to Grid)
Idle Consumption <65W
Nominal Voltage 48VDC
Voltage Range 40 - 60VDC
Max. Charge / Discharge Power 12000W
Recommended Battery
Capacity per Inverter		 >300Ah
Operating / Storage Temperature Range -13ºF - 140ºF
Operating Altitude <6,561 ft (2000 m)
Relative Humidity 0 - 100%
Typical Noise Emission <50dB @ 3 ft
Design Topology High-Frequency / Transformerless
Protection Rating IP65 / NEMA 4X
Communications RS485 / CANBus / WiFi
Max. Parallel Connections 16
Weight 88 lbs
Depth 11.3 in
Width 22.3 in
Height 30.5 in

PACKAGE INCLUDES

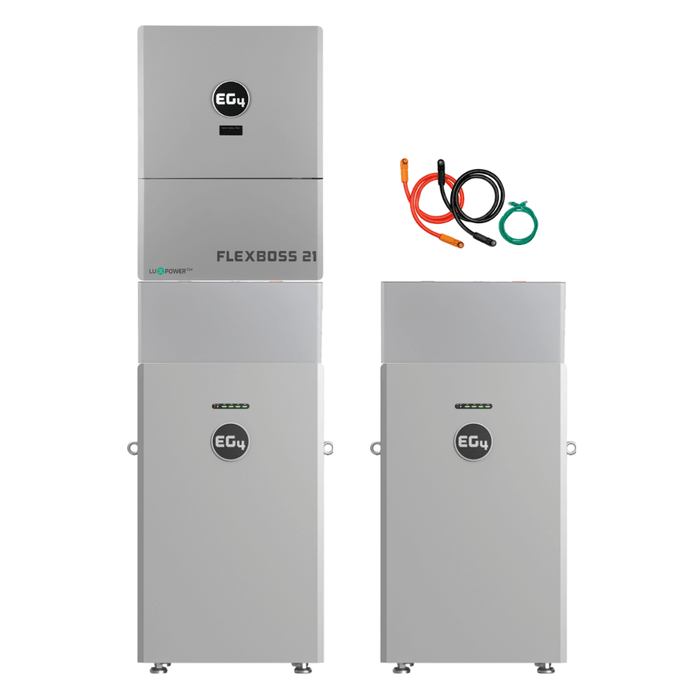

EG4 48V 314Ah All Weather WallMount LiFePO4 Battery + FlexBOSS21 16kW 48V Split Phase AC Hybrid Inverter

EG4 48V 314Ah AllWeather WallMount LiFePO4 Battery

x 1

EG4 FlexBOSS21 16kW 48V Split Phase AC Hybrid Inverter

x 1

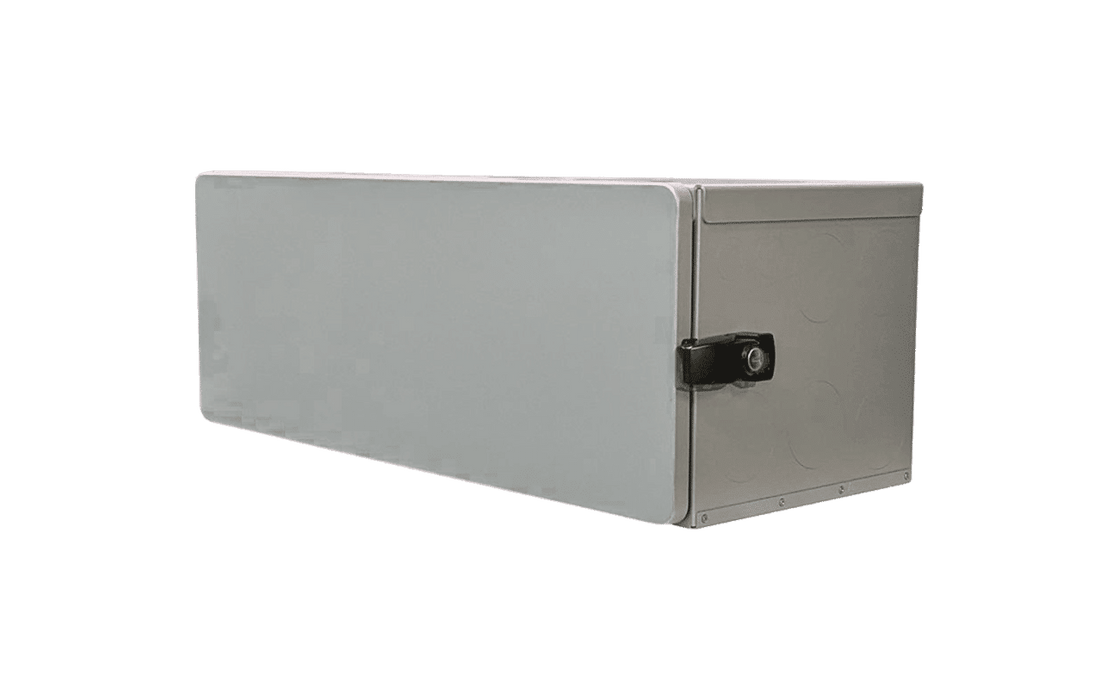

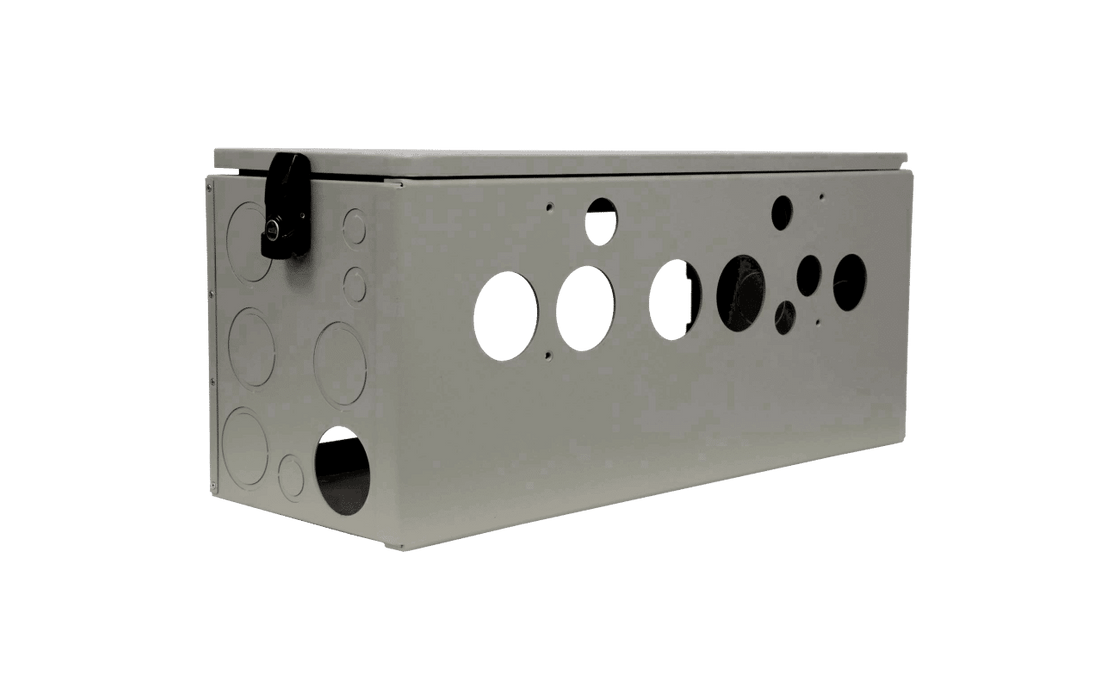

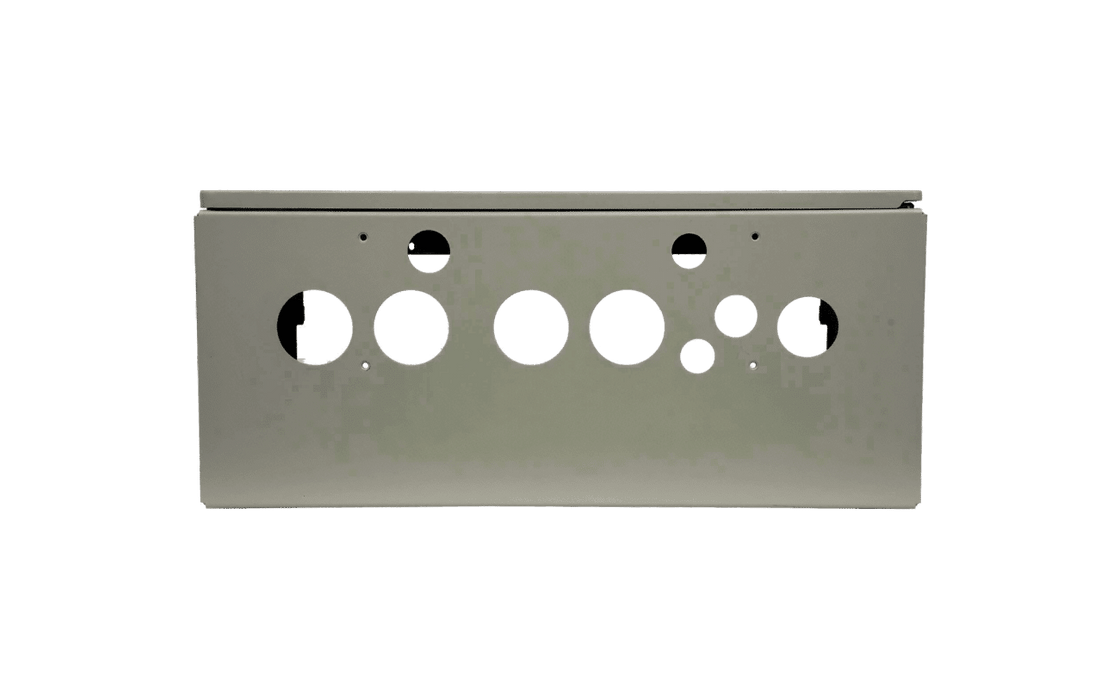

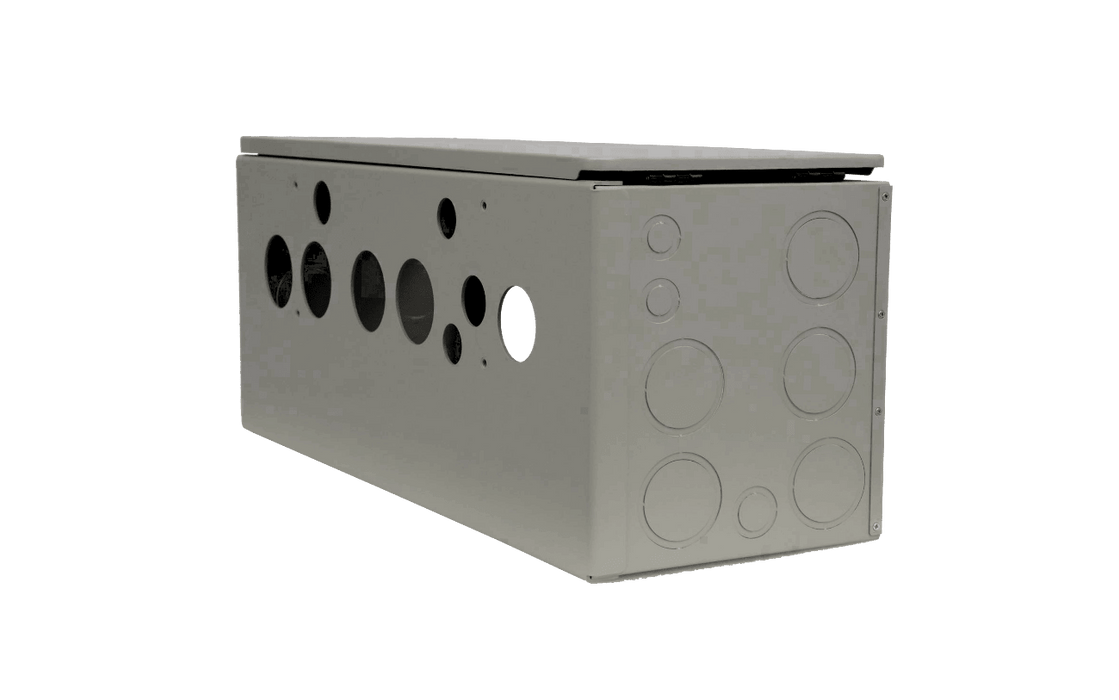

EG4 PowerPro Conduit Box

x 1
