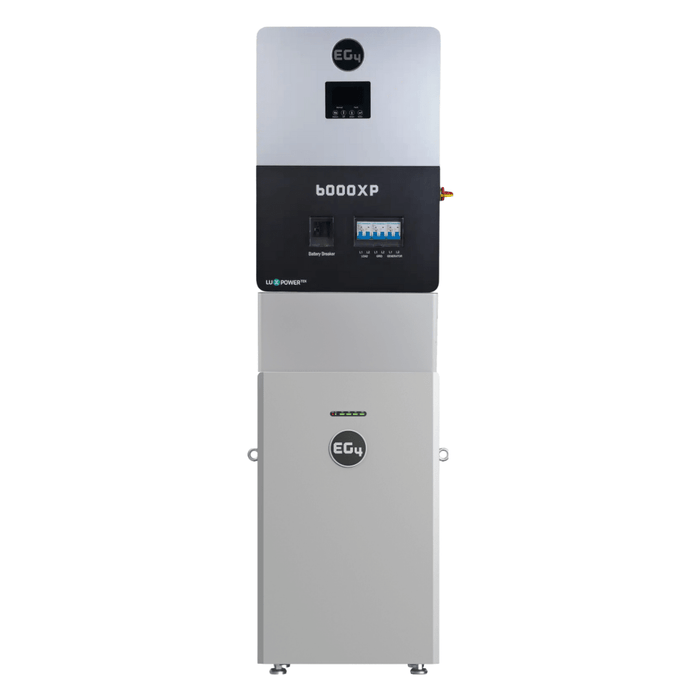

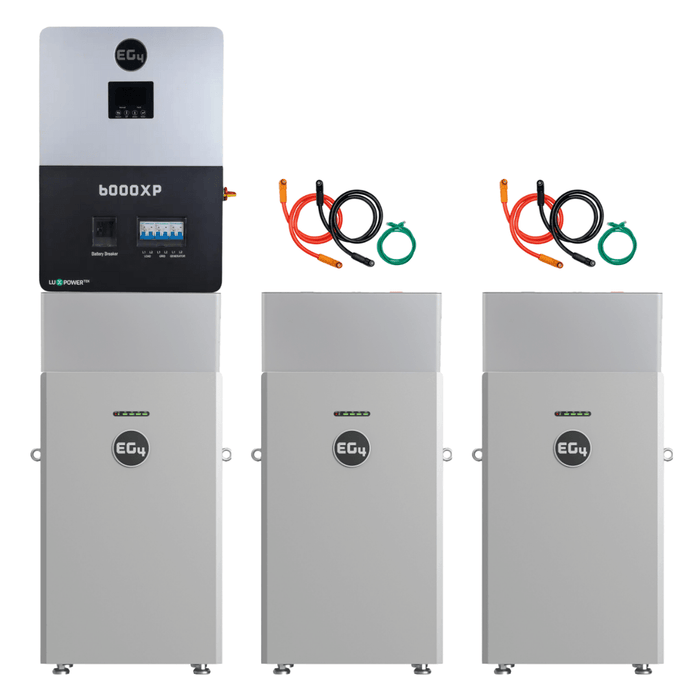

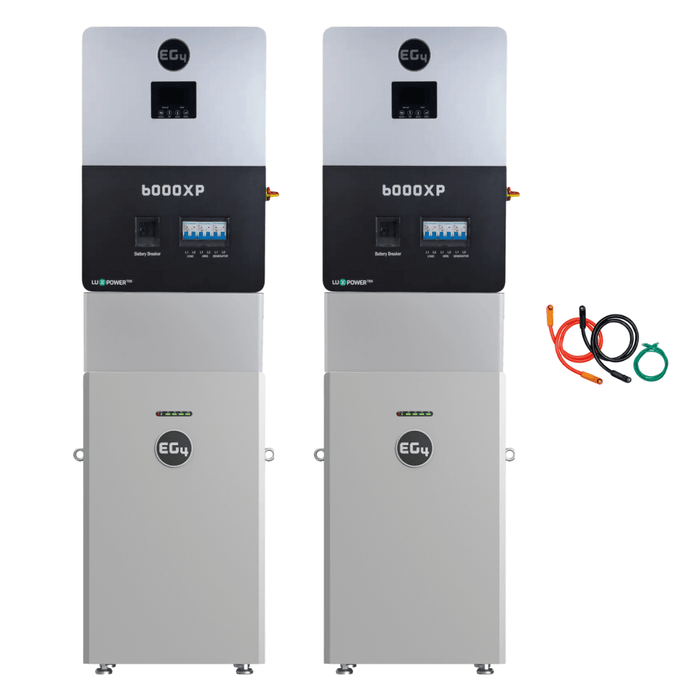

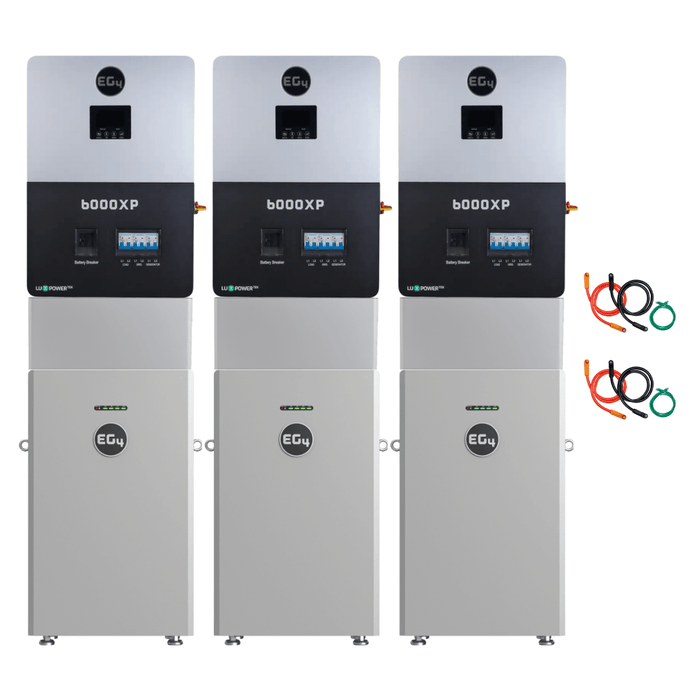

EG4 48V 314Ah All Weather WallMount LiFePO4 Battery + 6000XP 6000W 48V Split Phase Off-Grid Inverter

SKU: K0268
Save $4,517.50 Save $1,477.50
Original price $7,387.50
Original price $7,387.50 - Original price $22,587.50
Original price $7,387.50
Current price $5,910.00
$5,910.00 - $18,070.00
Current price $5,910.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Bundle Options: 1 x All Weather Battery + 6000XP Inverter

Free Shipping

Enjoy free shipping on all products from Off Grid Stores

Authorized Dealer

We are authorized dealers of every brand on our website

Found a lower price?

Let us know and we’ll do our best to beat it. We work hard to offer you the best value online.

10-Year Warranty

Off Grid Stores is an authorized retailer of EG4 products. Because of this, we pass on EG4's manufacturer warranty to you.

Best Price Guarantee

We work hard to offer fair, competitive prices on everything we sell.

If you find the same item listed for less on a competitor’s site, let us know — and we’ll do our best to match it.

Just reach out to our customer service team before purchasing to see what we can do.

You can learn more by visiting our Best Price Request page here.

Shipping & Handling

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Why Choose Off Grid Stores?
  • Trusted by Thousands: We’ve served over 15,000 customers and counting — your satisfaction is our priority.
  • Real Expertise: Our team has hands-on experience with the products we sell — we actually use them ourselves.
  • U.S.-Based Support: When you reach out, you’ll talk to a real person here in the USA, not someone overseas.
  • Fast, Reliable Shipping: All products ship from U.S. warehouses for quicker, hassle-free delivery.
  • Authorized Dealer: We're official partners with every brand we carry, so your purchase is backed by full manufacturer warranty and support.

EG4 48V 314Ah All Weather WallMount LiFePO4 Battery + 6000XP 6000W 48V Split Phase Off-Grid Inverter

EG4 48V 314Ah All Weather WallMount LiFePO4 Battery + 6000XP 6000W 48V Split Phase Off-Grid Inverter

Introducing the WallMount 314Ah Batteries!

EG4 is proud to announce the next generation of our WallMount batteries with our 314Ah Indoor and All Weather versions! On top of the capacity improvements over our previous batteries, the WallMount 314Ahs have newly developed B

The WallMount 314Ah batteries are compatible with the 280Ah form factor, so they will slot into existing systems easily. They pair well with the FlexBOSS21 and 18kPV when looking for whole home ESS solutions.

Specifications:

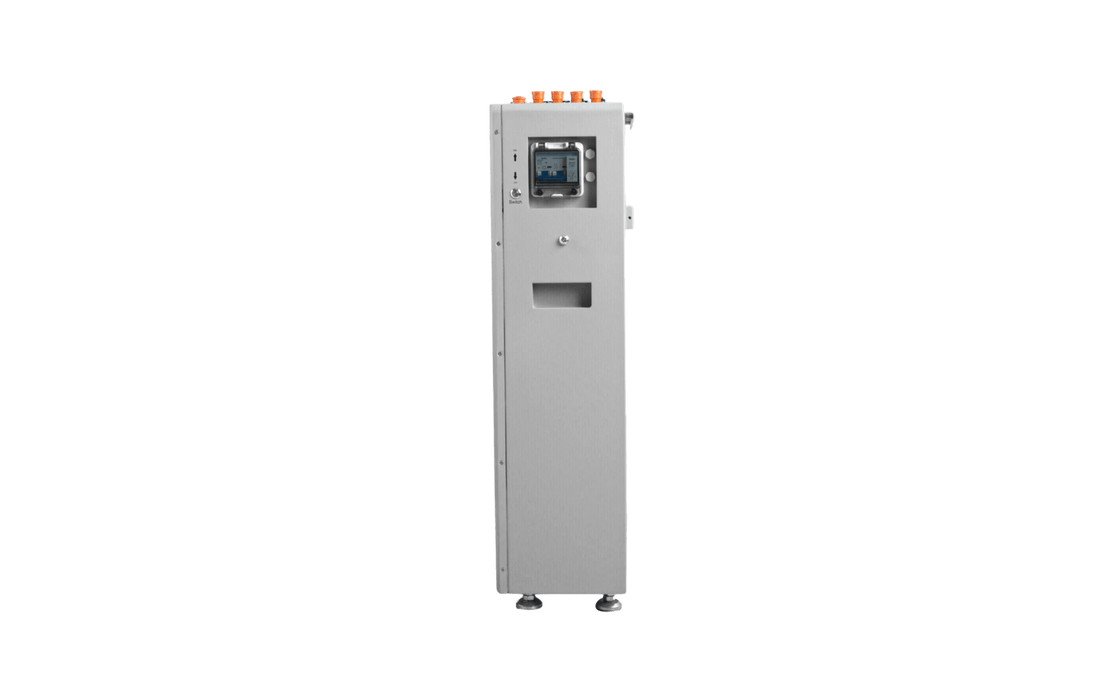

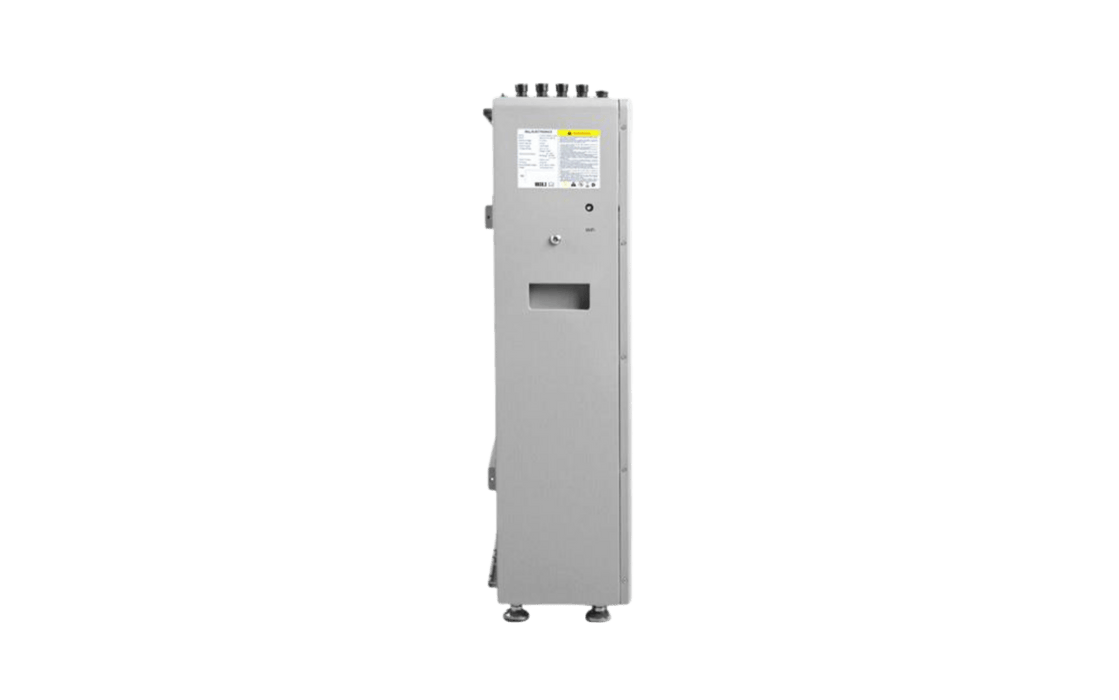

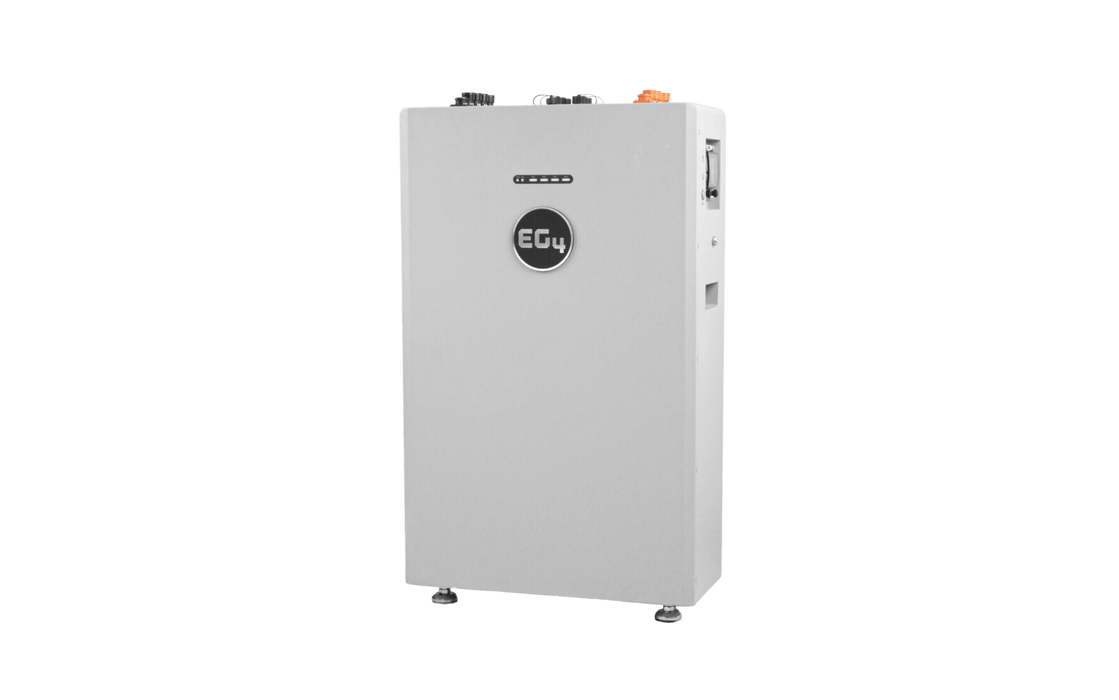

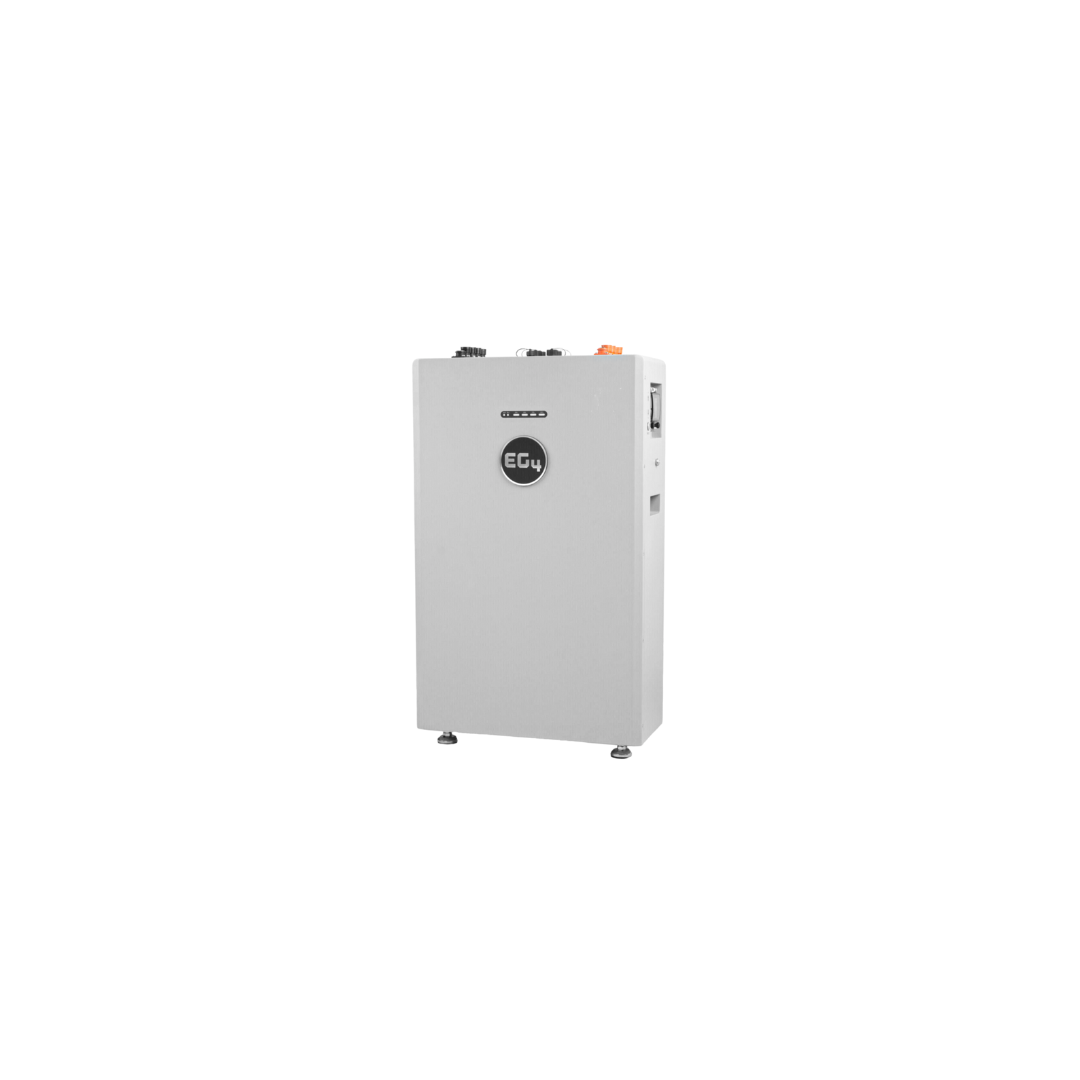

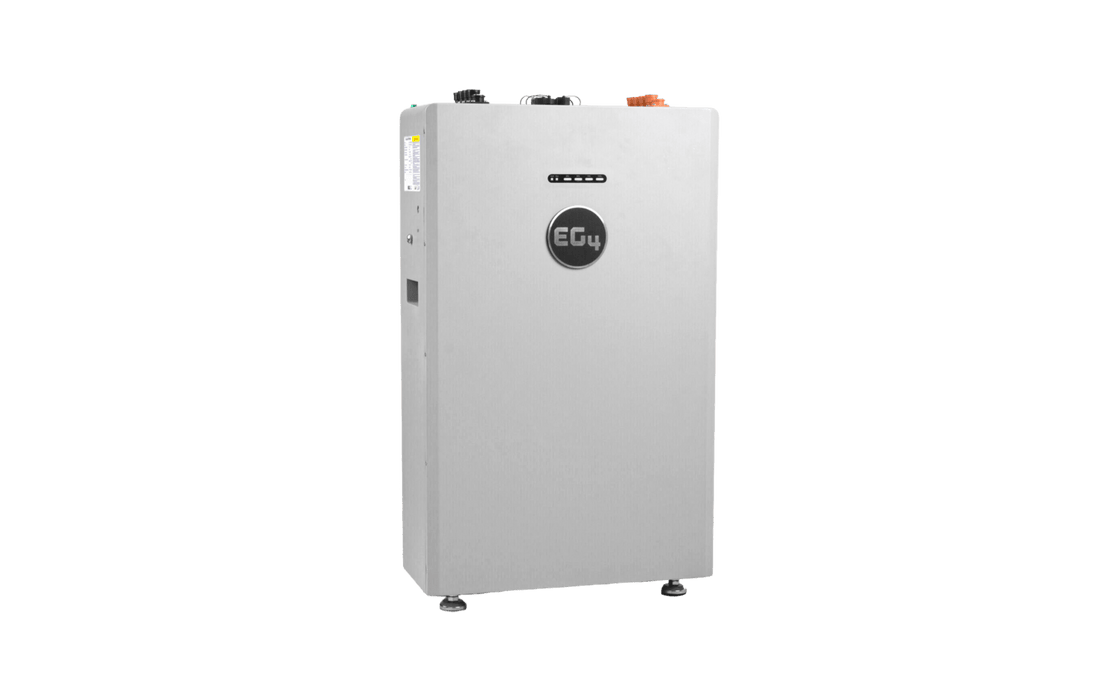

EG4 48V 314Ah AllWeather WallMount LiFePO4 Battery
Product Type LFP Battery
Battery Type Lithium Iron Phosphate (LFP)
Nominal Energy Capacity 16 kWh
Usable Energy (DOD) 12.86 kWh (80% recommended)
Voltage Range 47.5 – 57.6 VDC
Nominal Voltage 51.2 VDC
Capacity 314 Ah
Charging Voltage Range 56 – 57 VDC
Discharging Cut-off Voltage 47.5 VDC
Max Continuous Charge Current 157 A
Max Continuous Discharge Current 200 A
Continuous Charge/Discharge Power 8 / 10.2 kW
Recommended Charge/Discharge Rate 0.5C
Peak Power 12.8 kW (3 sec)
Round-trip Efficiency 95%
Max Parallel Units 32
Protection Over/Under Voltage, Over-Current,
Short Circuit, High/Low Temp
BMS Integrated, Active Balancing
Communication Protocols RS485, CAN
Battery Breaker 250 A
Storage Temperature -4 – 131°F
Humidity Range 5% – 95% RH (non-condensing)
Altitude 9843 ft. (<3000 m)
Cooling Method Natural Convection
Dimensions (H × W × D) 34.6 × 21.7 × 9.3 in
Operating Temperature Range Charge: 32–122°F
Discharging: -4–131°F
Recommended DOD Setting EG4 recommends this value be set
no lower than 20% to maintain the
recommended 80% Depth of Discharge.
Storage Temperature Less than 3 months of storage.
If longer than 3 months, recommended
storage temperature will be 59–86°F
Weight 309 lbs
Enclosure Rating IP67
Mounting Options Wall attached / Floor mount
Display / Indicators LED Status
Connector Type Degson quick connector / screw terminal
UL 1973 Pending
UL 9540 Pending
UL 9540A Pending
UN 38.3 Pending
Cycle Life (70% EOL Capacity) 10,000 cycles @ 0.5C, 25°C, 80% DOD
Design Life 15 years
Application Type Residential / Commercial / Off-grid / Backup
Lifetime Energy Throughput 122.2 MWh

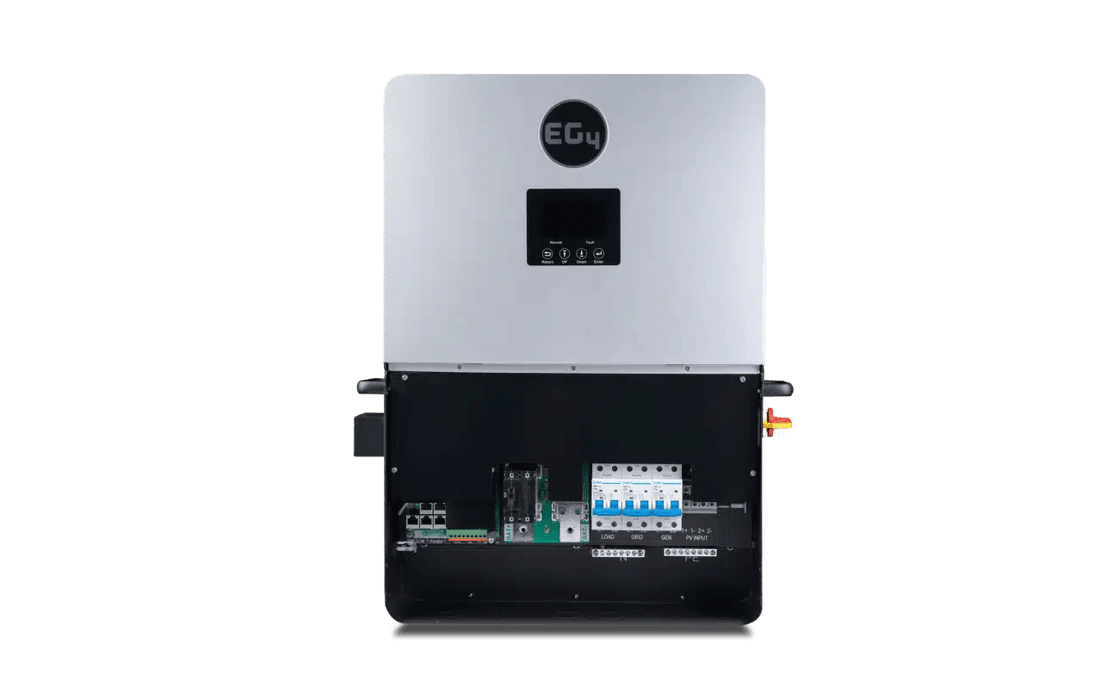

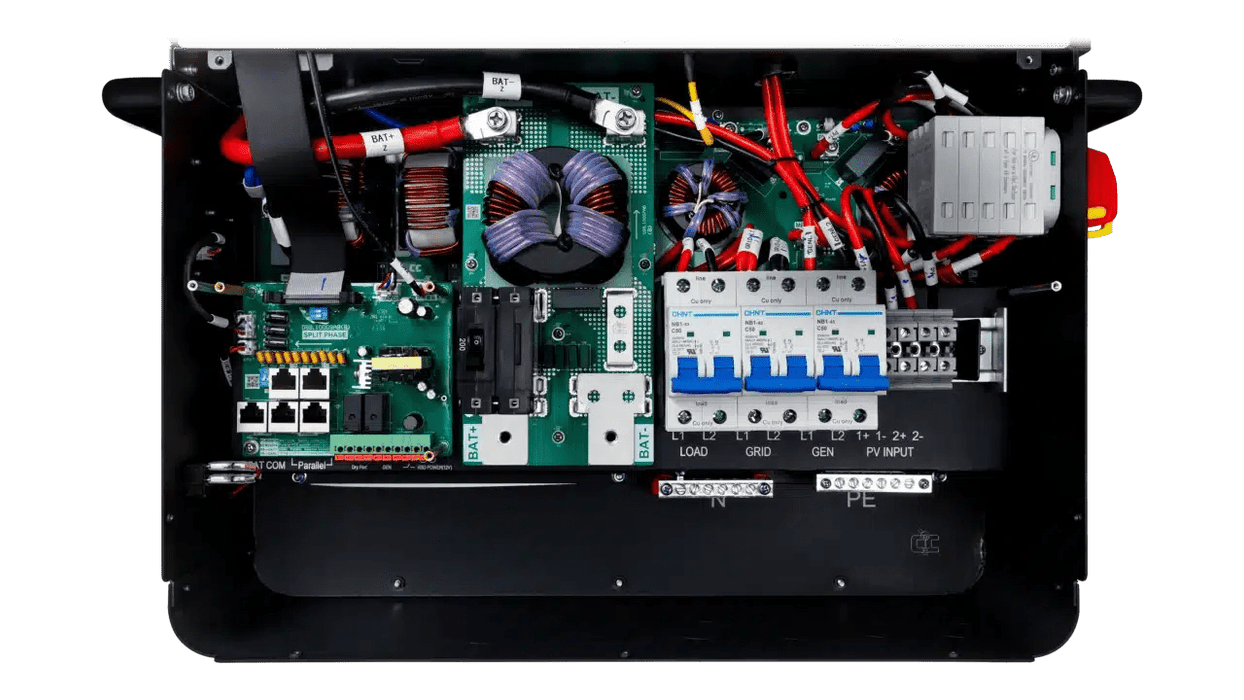

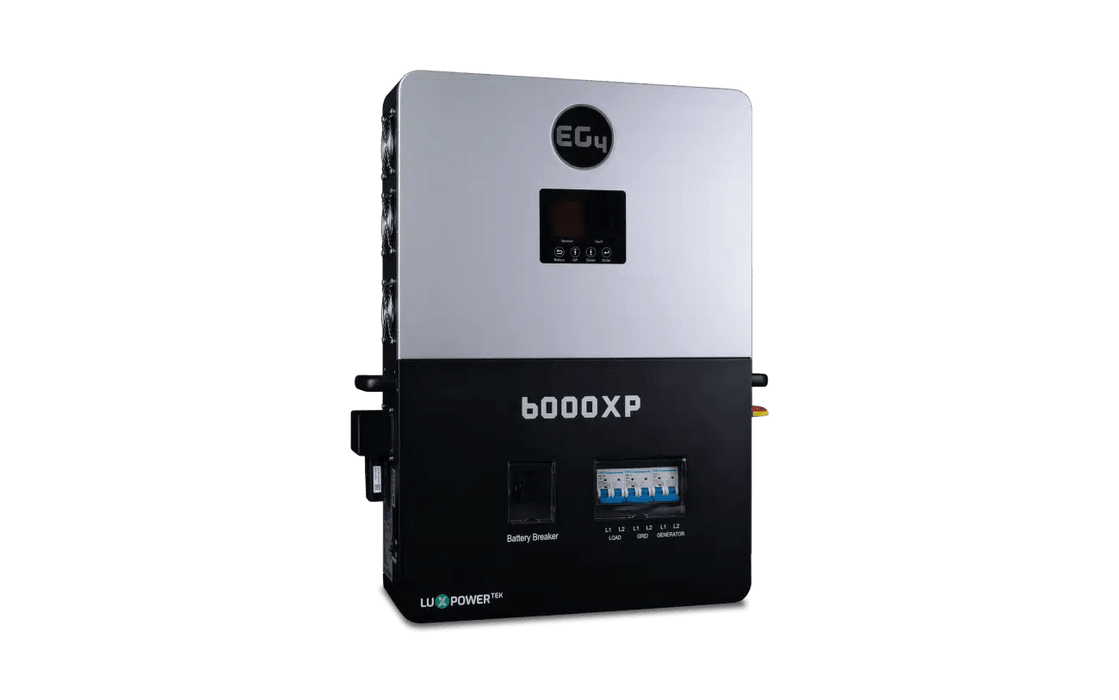

EG4 6000XP 6000W 48V Split Phase Off-Grid Inverter
AC INPUT
AC Voltage 120V AC / 240V AC
AC Frequency 50 Hz / 60 Hz
Max. Continuous AC Current 37.5A @ 240V
Max. AC Input Power 9000W
AC Bypass 50A
AC OUTPUT
Output Voltage 120V AC / 240V AC
Output Frequency 50 Hz / 60 Hz
Max. Continuous Output Current 25A @ 240V
Output Power 6000W
Surge Capacity 12000W (3.5 sec) / 11000W (5 sec)
Power Factor 0.99 (Full Load)
Reactive Power Adjustment Range -0.8 - 0.8 Leading Adjustable
Total Harmonic Distortion <3%
Switching Time <15 ms (Single) / <30 ms (Parallel)
PV INPUT
No. of MPPTs (Inputs per MPPT) 2 (1)
Max. Input Current 17A / 17A
Max. Short Circuit Input Current 25A / 25A
DC Input Voltage Range 100 - 480V DC
Start Up Voltage 100V DC ± 10V DC
MPPT Operating Voltage Range 120 - 385V DC
MPPT Voltage 320V DC
Max. PV Array Power 8000W (4000W per MPPT)
MPPT Efficiency 99%
BATTERY
Nominal Voltage 48V DC
Battery Voltage Range 46.4 - 60V DC
Max. Discharge Current 140A
Max. Charge Current 125A
DC Cut-Off Voltage 59V DC
DC Recovery Voltage 57.4V DC
Charge Cut-Off Voltage 58.4V DC
OPERATING ENVIRONMENT
Operating Temperature 32ºF - 113ºF
Storage Temperature 5ºF - 140ºF
Altitude <6,561 ft (2000 m)
Relative Humidity 5 - 95%
Typical Noise Emission <58 dB
Protection Rating IP20
Max. Parallel Connections 16
DIMENSIONS
Weight 52.9 lbs
Depth 5.25 in
Width 18 in
Height 25.5 in

PACKAGE INCLUDES

EG4 48V 314Ah All Weather WallMount LiFePO4 Battery + 6000XP 6000W 48V Split Phase Off-Grid Inverter

EG4 48V 314Ah AllWeather WallMount LiFePO4 Battery

x 1

EG4 6000XP 6000W 48V Split Phase Off-Grid Inverter

x 1

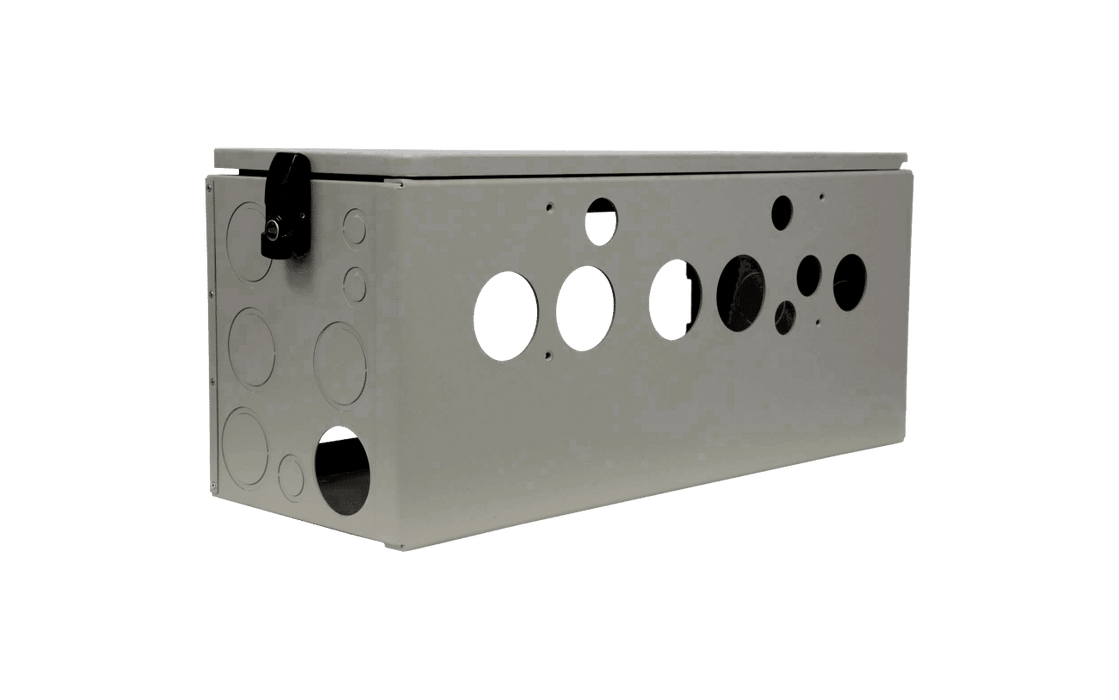

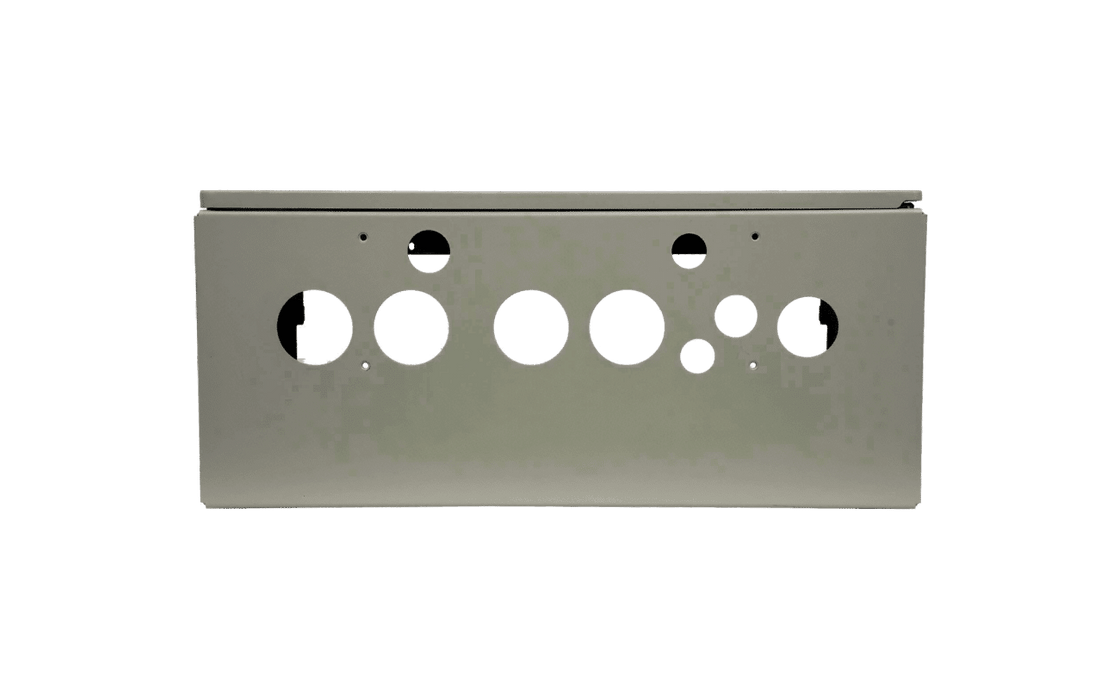

EG4 PowerPro Conduit Box

x 1
