Name: PRO Solar Kit - 48V Self-Heating Battery Bank (10.24kWh-20.48kWh) + 10kW 120V/240V Hybrid Inverter + 410W Solar Panels
Brand: PRO Solar Kits
SKU: PSK-120V/240V-RX-SH-2
Price: 6509.99 USD
Availability: InStock

by PRO Solar Kits

PRO Solar Kit - 48V Self-Heating Battery Bank (10.24kWh-20.48kWh) + 10kW 120V/240V Hybrid Inverter + 410W Solar Panels

SKU PSK-120V/240V-RX-SH-2

Save $1,627.50

$8,137.49

$8,137.49 - $13,768.74

$8,137.49

$6,509.99

$6,509.99 - $11,014.99

$6,509.99

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Free shipping with delivery between Monday, Mar 24th and Thursday, Mar 27th Order within the next 13 hrs and 40 mins

Bundle Options:

Quantity

Free Shipping

Every Off Grid Stores Product Ships For Free

No Sales Tax Many States

We Charge Sales Tax Only In AZ, CA, CO, FL, GA, MI, NC, NV, OH, PA, TN, TX, VA, WA, and WI

Authorized Dealer

We are authorized dealers of every brand on our website

Why Buy From Us?

- Help Support Small Family Owned Business

- Our Team Has Actual Knowledge Of Our Products

- You Will Talk To A Real Person In The USA When You Call

- We Guarantee To Match The Lowest Prices On The Internet

- Our Items Are Located In The USA

- We Actually Live Off-Grid Unlike Some Of Our Competitors

Best Price Guarantee

Shop with confidence, as we guarantee the best prices available.

If you come across an item at a lower price on a competitor's website, we'll gladly match it.

Simply contact our customer service chat before purchasing to redeem this exclusive offer.

Learn more by visiting our Best Price Guarantee page here.

Shipping & Handling Policy

We provide Free Shipping to the continental 48 United States only.

International shipping, as well as shipping to Alaska, Hawaii, US Protectorates, P.O. Boxes, APO, FPO, or DPO addresses, is NOT available.

Orders are typically processed and shipped from our warehouse within 1-3 Business Days (excluding weekends and holidays).

After leaving our warehouse, the expected delivery time is 3-4 Business Days, resulting in an average total shipping and handling time of 4-7 Business Days.

Learn more about our Shipping & Handling Policy here.

Returns & Refunds

While shopping at Off Grid Stores know that returns are a breeze! If you are not completely satisfied with your purchase, for any reason, you may return it to us within 30 Days of delivery for a refund.

If you would like to open up a return you can send us an email to support@offgridstores.com with your name, order number, and reason for return.

To learn more about our Returns & Refunds Policy you can do so here.

Description

PRO Solar Kit - 48V Self-Heating Battery Bank (10.24kWh-20.48kWh) + 10kW 120V/240V Hybrid Inverter + 410W Solar Panels

PRO Off-Grid Solar Kits – Power Your Freedom

Our PRO Off-Grid Solar Kits are designed for tiny homes, cabins, RVs, and other off-grid spaces. Offering the perfect balance of simplicity, performance, and reliability, these kits provide everything you need to power your off-grid lifestyle—backed by expert customer support.

Common Uses:

Tiny Homes, Cabins, and RVs
Backup Power for Sheds and Remote Buildings

Key Features:

Complete System: Includes solar panels, batteries, inverter/charger, and all necessary cables and connectors.
Expandable: Add more panels or batteries as your needs grow.
Easy Installation: DIY-friendly with all components pre-selected for compatibility.
Reliable: High-quality components for long-term off-grid power.

The PRO Advantage:

Simplicity & Reliability: Quick setup with long-lasting performance.
Lifetime Support: Customer support via email, or chat.

Important Notes:

Modifications May Be Required: Depending on your setup and location, some modifications to your system may be needed.
Tools Required: To complete the installation, you will need basic tools like wire cutters, wire strippers, screwdrivers, and wrenches.
Professional Installation Recommended: If you are not confident with electricity, we strongly recommend hiring a licensed professional installer for optimal safety and performance.

Specifications:

RUiXU Single/Split-Phase Off-Grid 10kW Inverter

INVERTER OUTPUT
Rated Output Power	10,000W
Max. Output Power	20,000VA
Rated Output Voltage	120/240 Vac (single-phase/split-phase)
Load Capacity of Motors	6 HP
Rated Frequency	50/60Hz
Output Wave	Pure Sine Wave
Switching Time	10ms (typical value)
BATTERY
Battery Type	Lithium-ion battery / Lead-acid battery / User-defined battery
Rated Battery Voltage	48V
Voltage Range	40-60Vdc
Max. Solar Charging Current	200A
Max. Grid/Generator Charging Current	120A
Max. Charge Current	200A
SOLAR INPUT
No. of MPPT	2
Max. Input Power	11,000W
Max. Input Current	22/22A
Max. Open Circuit Voltage	550Vdc
MPPT Voltage Range	125~425Vdc
GRID/GENERATOR INPUT
Input Voltage Range	90~140Vac
Input Frequency Range	50/60Hz
Bypass Overload Current	63A
EFFICIENCY
MPPT Tracking Efficiency	99.9%
Max. Efficiency	92%
GENERAL DATA
Parallel Capacity	1~6 Units (More than 2 units in parallel can form a three-phase output)
Dimension	28.5 in x 17.6 in x 5.9 in
Weight	61.7lb
Noise	<60dB
Cooling Method	Intelligent Fan
Protection Degree	IP20 Indoor Only
Temperature	-14~131ºF, >113ºF Derate
Communication	RS485 / CAN / USB / Dry Contact
External Module (Optional)	Wi-Fi / GPRS
Integrated Circuit Breaker	Utility Load / Battery / PV
Certificate	RoHS / EN61000-6-1 / IEC61000-6-3 / FCC Part15 ClassB / IEC62109-1 / IEC62109-2 / UL1741

RUiXU RX-LFP48100-H Rack Mounted 3U Battery Self Heating

Parameters	RX-LFP48100-H
Nominal voltage	51.2V
Nominal capacity	100Ah
Nominal energy	5.12kWh
Usable energy	4.92kWh
Operating voltage range	44.8V–56.0V
Charge voltage	56V
Float voltage	54.6V
Recommended charge current	50A
Max. charge current	70A
Recommended discharge current	50A
Max. discharge current	100A
Communication	RS485 / CAN
Peak discharge current	101–119A @ 5mins \| 120–149A @ 15S
IP rating	IP20
Cycle life	≥6000 cycles @90%DOD
Net weight	~103.6 lbs
Dimension (WHD)	18.95.218.1 inches
Cell type	Lithium-iron phosphate (LiFePO4)
Design life	15 years
Operation temperature	14–122°F
Storage temperature	14–113°F
Relative humidity	5%–90% No condensation
Install altitude	≤4000m
Installation location	Indoor
Installation	Wall mounted / Floor mounted / Stack / Rack mounted
Certification	CE / IEC62619 / UN1973 / UN38.3
Heater Specifications
Voltage	56V
Power Consumption	250W
Function	self-heating starts ≤4l°F (5°C), ≥53.6°F(5°C) self-heating stops
Communications
Canbus	Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk,Schneider
RS485	MPP, Voltronic, RCT, Alpha outback

Rich Solar MEGA 410 Watt Monocrystalline Solar Panel

SKU	RS-M410
Maximum Power(Pmax)	410W
Maximum Power Voltage(Vmp	31.3V
Maximum Power Current(Imp)	13.1A
Open Circuit Voltage(Voc)	37.5V
Short Circuit Current(Isc)	13.8A
Maximum System Voltage(Vmax)	1500VDC
Temperature Range	-40°F ~ 185°F
Max Series Fuse Rating	25A
Weight	45.2 lb
Dimensions	67.9 in x 44.6 in x 1.2 in

PACKAGE INCLUDES

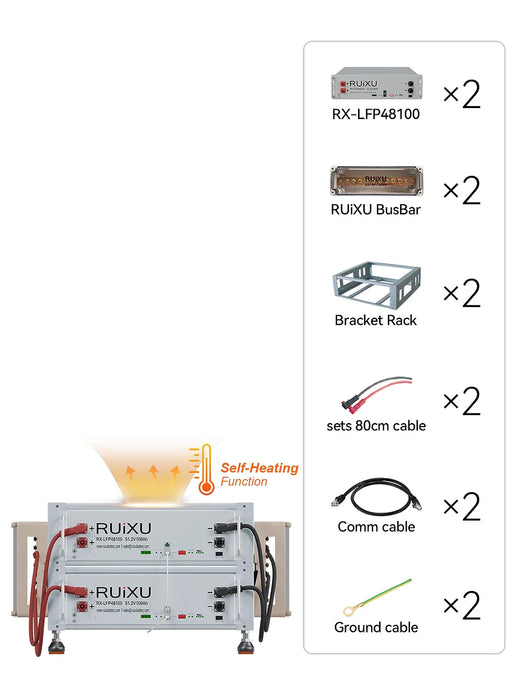

Rich Solar 410 Watt Rigid Solar Panels x 8	Rich Solar 10AWG 50 Feet Solar Panel Extension Cables x 1 Pair	Rich Solar Solar PV DC Quick Disconnect Switch x 1	Rich Solar 10 AWG 30 Ft Cable - Solar Panels to Charge Controller x 1	RUiXU Single/Split-Phase Off-Grid Inverter x 1	Spartan Power 2/0 AWG Welding Cables (8ft Each) x 1 Pair	RUiXU 51.2V 100Ah Self-Heating Server Rack LiFePO4 Battery x 2	RUiXU Bracket Rack x 2	RUiXU Busbar x 2	Set of 80cm Battery To Busbar Cables x 2	Battery Communications Cable x 2	RUiXU Ground Cable x 2

PACKAGE INCLUDES

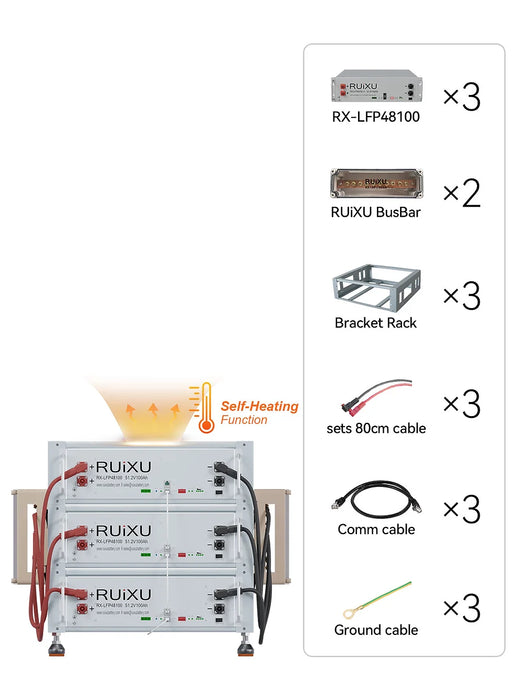

Rich Solar 410 Watt Rigid Solar Panels x 12	Rich Solar 10AWG 50 Feet Solar Panel Extension Cables x 2 Pairs	Solar PV DC Quick Disconnect Switch x 1	Rich Solar 10 AWG 30 Ft Cable - Solar Panels to Charge Controller x 2	RUiXU Single/Split-Phase Off-Grid Inverter x 1	Spartan Power 2/0 AWG Welding Cables (8ft Each) x 1 Pair	RUiXU 51.2V 100Ah Self-Heating Server Rack LiFePO4 Battery x 3	RUiXU Bracket Rack x 3	RUiXU Busbar x 2	Set of 80cm Battery To Busbar Cables x 3	Battery Communications Cable x 3	RUiXU Ground Cable x 3

PACKAGE INCLUDES

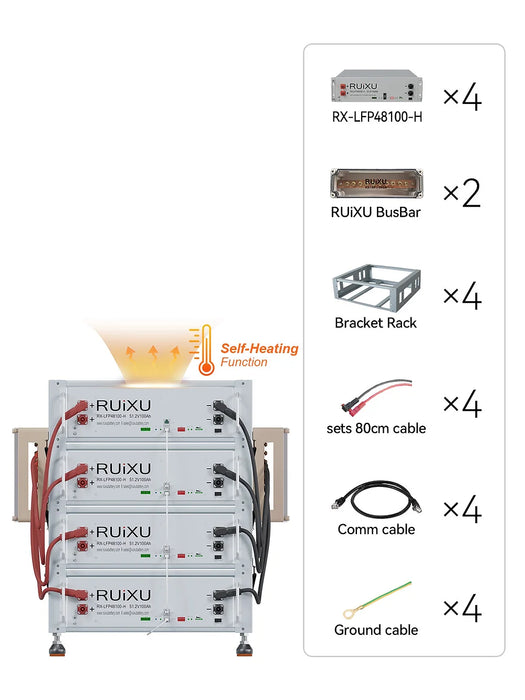

Rich Solar 410 Watt Rigid Solar Panels x 16	Rich Solar 10AWG 50 Feet Solar Panel Extension Cables x 2 Pairs	Solar PV DC Quick Disconnect Switch x 1	Rich Solar 10 AWG 30 Ft Cable - Solar Panels to Charge Controller x 2	RUiXU Single/Split-Phase Off-Grid Inverter x 1	Spartan Power 2/0 AWG Welding Cables (8ft Each) x 1 Pair	RUiXU 51.2V 100Ah Self-Heating Server Rack LiFePO4 Battery x 4	RUiXU Bracket Rack x 4	RUiXU Busbar x 2	Set of 80cm Battery To Busbar Cables x 4	Battery Communications Cable x 4	RUiXU Ground Cable x 4
