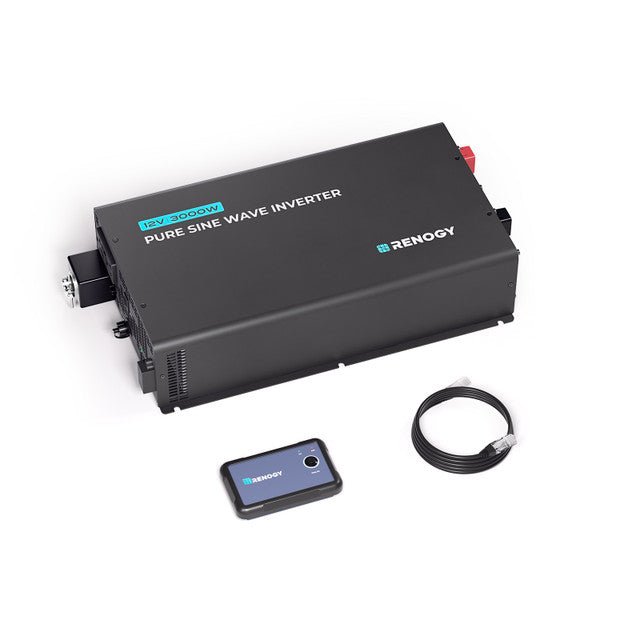

Renogy 3000W 12V Pro Pure Sine Wave Inverter With EcoSleep Mode

For a 12V 3KW inverter, you can use either: • Two 12V 200Ah batteries, or • One 12V 400Ah battery. In typical situations, a 100Ah to 300Ah battery would be needed, depending on the Battery Management System (BMS). Many 100Ah batteries limit the continuous current to 100 DC amps, and if this limit is exceeded, the BMS may shut down the battery. Two 100Ah batteries combined would give you a total of 200 amps, which may not be enough to fully power the 3000W inverter, but it should support up to around 2000 watts.

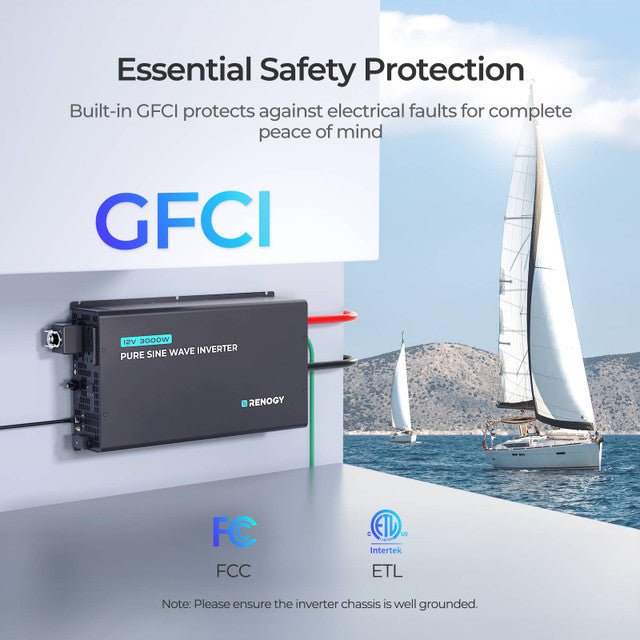

Yes, the inverter is designed with several safety features for boat use: 1. Ground Fault Circuit Interrupter (GFCI): Protects against electric shock. 2. Breaker Usage: Breakers should be used with appropriate wire sizes to prevent electrical hazards. 3. IP21 Water Protection Rating: Provides protection against water ingress. 4. Reverse Connection Protection: Prevents damage in case of battery terminal misconnection. 5. Real-Time Monitoring: The inverter comes with built-in Bluetooth and RV-C, allowing connection to the Renogy M1 for system monitoring.

Modified Sine Wave (MSW) inverters produce a jagged waveform, resulting in significant noise that can affect appliance performance. They are less capable of handling inductive loads (like motors and microwave ovens), which may run less efficiently or even overheat. Pure Sine Wave (PSW) inverters produce a smooth, consistent waveform similar to the power supplied by utility grids. This allows appliances, especially inductive loads like microwave ovens and electric motors, to operate more efficiently, with faster speeds, reduced noise, and cooler temperatures.

You can use loads with a combined power rating of 3000 watts or less, such as a refrigerator and microwave, simultaneously. However, it is important to avoid running multiple high-power appliances together if their combined power consumption exceeds 3000 watts, as this can trip the inverter’s protection.

There are several possible causes for tripping: Overload: Running multiple appliances at the same time may exceed the inverter’s capacity, causing the over-current or over-voltage protection to trip. Inductive Loads: Appliances like air conditioners, refrigerators, and microwaves require high startup currents. If the inverter cannot handle these peak loads, it may trip. Short Circuit: A short circuit in any appliance can cause a trip. Loose Wiring: Poor connections or loose circuit wiring can also trigger trips. If this happens, disconnect all circuit breakers and check each one for tight connections to prevent further issues.
